Sanus Systems VMPL3B Manual de usuario

ESPAÑOL

FRANÇAIS ITALIANO PYCCKO

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA (6901-300039 <00>)

Customer Service Europe: 31 (0)20 5708938 • fax 31 (0)20 5708989

See complementary Sanus products at www.sanus.com

中文

ENGLISH

International Assembly Instructions for model VMPL3

VMPL3_051106_ML.indd 1 7/17/06 11:36:48 AM

VMPL3_051106_ML.indd 2 7/17/06 11:36:49 AM

ENGLISH

Assembly Instructions for Model: VMPL3

Thank you for choosing a Sanus Systems VisionMount™ Wall Mount. The VMPL3 is designed to hold 27” to 84” [686 mm to 2133 mm]

Flat Panel LCD or Plasma Displays weighing up to 280 lbs [127 kg].

CAUTION: The size and weight of your large screen television must not exceed 84” [2133 mm] diagonally and 280 Lbs [127.3

Kg], the maximum load capacity of the mount. Never use defective parts. Improper installation may cause property damage or

personal injury. Do not use this product for any purpose that is not explicitly specied by Sanus Systems.

If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualied contractor

or contact Sanus at 800.359.5520 or www.sanus.com. Our customer service representatives can quickly assist you with installation

questions and missing or damaged parts. Replacement parts for products purchased through authorized dealers will be shipped directly

to you. Check carefully to make sure that there are no missing or defective parts. Sanus Systems can not be liable for damage or injury

caused by incorrect mounting, incorrect assembly, or incorrect use. Please call Sanus Systems before returning products to the point of

purchase.

NOTE: The supplied wall mounting hardware is not for metal stud or old cinder block walls. If you are uncertain about the nature

of your wall, consult an installation contractor. Sanus makes every effort to assure all necessary television mounting hardware

is included. If the hardware you need is not included please consult your local hardware store or call Sanus systems.

Required Tools: Drill, 3/16” bit (1/2” masonry bit for brick, concrete, or concrete block installations), wrench set, phillips screwdriver.

Supplied Parts and Hardware: (All threaded fasteners are shown full size.)

Wall Plate Assembly - A

Qty. 1

Monitor Bracket Extension - B

Qty. 4

Right Tilting Monitor Bracket - D

Qty. 1 Left Tilting Monitor Bracket - E

Qty. 1

Low Prole Monitor Bracket - F

Qty. 2

Latch Extension - C

Qty. 2

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

VMPL3_051106_ML.indd 3 7/17/06 11:36:52 AM

ENGLISH

M4 x 16 mm Bolt - O

Qty. 4

M5 x 16 mm Bolt - P

Qty. 4

M6 x 16 mm Bolt - Q

Qty. 4

M8 x 16 mm Bolt - R

Qty. 4

M4 x 35 mm Bolt - S

Qty. 4

M5 x 35 mm Bolt - T

Qty. 4

M6 x 40 mm Bolt - U

Qty. 4

M8 x 40 mm Bolt - V

Qty. 4

M4 Lock Washer - W

Qty. 4

M5 Lock Washer - X

Qty. 4

M6 Lock Washer - Y

Qty. 4

M8 Lock Washer - Z

Qty. 4

M4/M5 Spacer - AA

Qty. 4

M6/M8 Spacer - BB

Qty. 4

M4/M5 Washer - CC

Qty. 8

M6/M8 Washer - DD

Qty. 4

Nylon Washer - G

Qty. 8

Flange Nut - H

Qty. 8

Safety Bolt - I

Qty. 2

Allen Key - J

Qty. 1

Lag Bolt - K

Qty. 6

Lag Bolt Washer - L

Qty. 6

Concrete Anchor - M

Qty. 6

10-32 Screw - N

Qty. 4

VMPL3_051106_ML.indd 4 7/17/06 11:37:02 AM

ENGLISH

Low Prole Monitor Brackets - See Diagram 1B

To install the Monitor Bracket Extensions (B) place the threaded stud portion through the Low Prole Monitor Bracket (F); then, slide a

Nylon Washer (G) onto the threaded stud.

NOTE: The Monitor Bracket Extensions can be adjusted to the correct height.

Secure the Monitor Bracket Extension (B) by threading on, and tightening a Flange Nut (H) onto each threaded stud of the Monitor

Bracket Extension.

NOTE: If the latch is within reach from the bottom of the televison, the Latch Extension (C) is not required.

The Latch Extension may be adjusted for easy operation on televisions of varying height. Using the 10-32 Screws (N), secure the Latch

Extension (C) to the latch on both Low Prole Monitor Brackets (F).

Diagram 1B

Step 1: Congure the Monitor Brackets

If the hole pattern on the back of your television falls within the vertical reach of the Monitor Brackets (D,E, or F) you do not have to install

the Monitor Bracket Extensions (B). If the hole pattern on the back of your television exceeds the vertical reach of the Monitor Brackets,

the Monitor Bracket Extension must be used.

NOTE: If the Monitor Extension Brackets (B) are required, both Monitor Bracket Extension Brackets must be installed.

CAUTION: Both threaded studs on each Monitor Bracket Extension (B) must pass through the Monitor Bracket (D, E, or F) to

ensure a safe installation.

Tilting Monitor Brackets - See Diagram 1A

To install the Monitor Bracket Extensions (B) place the threaded stud portion through the Tilting Monitor Bracket (D,E); then, slide a Nylon

Washer (G) onto the threaded stud.

NOTE: The Monitor Bracket Extensions can be adjusted to the correct height.

Secure the Monitor Bracket Extension (B) by threading on, and tightening a Flange Nut (H) onto each threaded stud of the Monitor

Bracket Extension (B). Diagram 1A

D & E

latch

VMPL3_051106_ML.indd 5 7/17/06 11:37:03 AM

ENGLISH

NOTE: If you are using the Low Prole Monitor Brackets (F), proceed directly to Step 4 for televisions with a at back and Step

5 for televisions with a curved back.

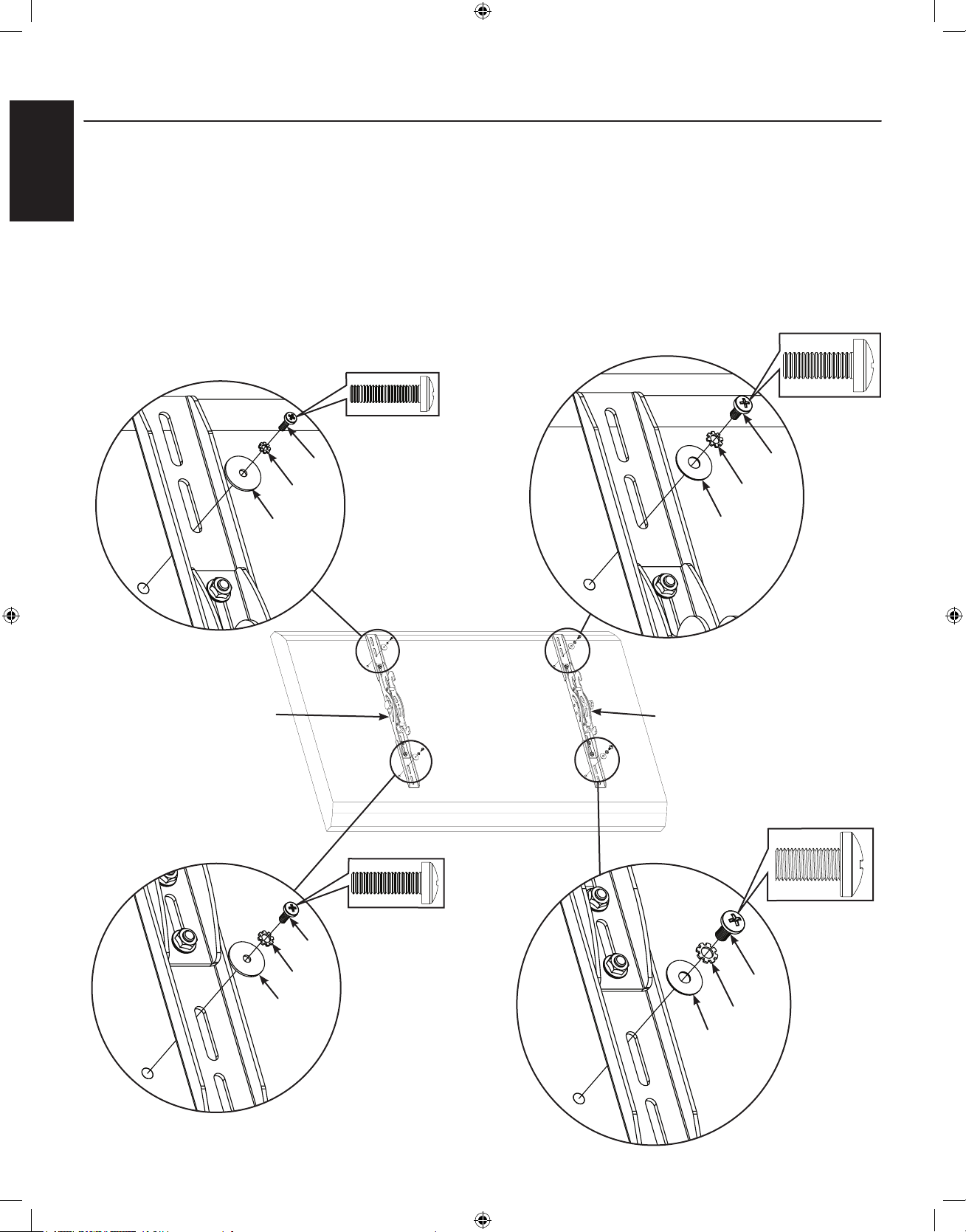

Step 2: Attach Tilting Monitor Brackets to a television with a at back.

NOTE: For televisions with a curved back, or an obstruction near the threaded insert proceed directly to Step 3.

Determine the diameter of the Bolt (O,P,Q,R) your television requires by hand threading them into the threaded insert on the back of the

television. If you encounter any resistance, stop immediately.

Once you have determined the correct diameter Bolt (O,P,Q,R), see the appropriate diagram below, thread the Bolt through the appropriate

Lock Washer (W,X,Y,Z), corresponding Washer (CC,DD), Tilting Monitor Bracket (D,E,) or Monitor Bracket Extension (B), and nally into

the television.

Make sure the Tilting Monitor Brackets (D,E) are vertically centered and level with each other.

Tighten the Bolts (O,P,Q,R) securing the Tilting Monitor Brackets (D,E) to the television.

Diagram 2

Diameter Bolt

VMPL3_051106_ML.indd 6 7/17/06 11:37:05 AM

ENGLISH

Step 3: Attach Tilting Monitor Brackets to a television with a curved back or an obstruction near the threaded insert.

Note: After Completing Step 3, proceed directly to Step 6.

Determine the diameter of the Bolt (S,T,U,V) your television requires by hand threading them into the threaded insert on the back of the

television. If you encounter any resistance, stop immediately.

Once you have determined the correct diameter Bolt (S,T,U,V), see the appropriate diagram below, thread the Bolt through the appropriate

Lock Washer (W,X,Y,Z), corresponding Washer (CC,DD), Tilting Monitor Bracket (D,E) or Monitor Bracket Extension (B), a second

Washer (CC, M4/M5 diameters only), a Spacer (AA,BB) and nally into the television.

Make sure the Tilting Monitor Brackets (D,E) are vertically centered and level with each other.

Tighten the bolts (S,T,U,V) securing the Tilting Monitor Brackets (D,E) to the television.

Diagram 3

Diameter Bolt

VMPL3_051106_ML.indd 7 7/17/06 11:37:07 AM

ENGLISH

Step 4: Attach Low Prole Monitor Brackets to a television with a at back.

NOTE: For televisions with a curved back, or an obstruction near the threaded insert proceed directly to Step 5.

Determine the diameter of the Bolt (O,P,Q,R) your television requires by hand threading them into the threaded insert on the back of the

television. If you encounter any resistance, stop immediately.

Once you have determined the correct diameter Bolt (O,P,Q,R), see the appropriate diagram below, thread the Bolt through the appropriate

Lock Washer (W,X,Y,Z), corresponding Washer (CC,DD), Low Prole Monitor Bracket (F) or Monitor Bracket Extension (B), and nally

into the television.

Make sure the Low Prole Monitor Brackets (F) are vertically centered and level with each other.

Tighten the Bolts (O,P,Q,R) securing the Low Prole Monitor Brackets (F) to the television.

Diagram 4

Diameter Bolt

VMPL3_051106_ML.indd 8 7/17/06 11:37:09 AM

ENGLISH

Step 5: Attach Low Prole Monitor Brackets to a television with a curved back or an obstruction near the threaded insert.

Determine the diameter of the Bolt (S,T,U,V) your television requires by hand threading them into the threaded insert on the back of the

television. If you encounter any resistance, stop immediately.

Once you have determined the correct diameter Bolt (S,T,U,V), see the appropriate diagram below, thread the Bolt through the appropriate

Lock Washer (W,X,Y,Z), corresponding Washer (CC,DD), Low Prole Monitor Bracket (F) or Monitor Bracket Extension (B), a second

Washer (CC, M4/M5 diameters only), a Spacer (AA,BB) and nally into the television.

Make sure the Low Prole Monitor Brackets (F) are vertically centered and level with each other.

Tighten the Bolts (S,T,U,V) securing the Low Prole Monitor Brackets (F) to the television.

Diagram 5

Diameter Bolt M6

Diameter Bolt

VMPL3_051106_ML.indd 9 7/17/06 11:37:11 AM

ENGLISH

Step 6: Add Safety Bolts (Tilting Monitor Brackets only)

Thread a Safety Bolt (I) into the bottom portion of each Tilting Monitor Bracket (D & E) approximately 1/4″ as shown in Diagram 6.

NOTE: Do not tighten the Safety bolt (I). The Safety Bolt is tightened after the television and Tilting Monitor Brackets (D & E) are

attached to the Wall Plate Assembly (A).

Step 7: Congure Wall Plate Assembly

The Wall Plate Assembly (A) can be adjusted in width from 27″ to 42″ [686 mm to 1067 mm]. Determine how wide you want the Wall

Plate Assembly based on the following criteria:

• Width of television (Wall Plate Assembly should be congured so the total width is less than the overall width of your television)

•Width of Hole Pattern on television (Wall Plate Assembly should be wider than the horizontal distance between threaded inserts on the

back of your TV by at least 2″ [50.8 mm])

•Stud Spacing (Sanus recommends attaching Wall Plate Assembly to three studs for televisions over 125 lbs. [56.7 Kg])

To adjust the width of the Wall Plate Assembly (A):

Diagram 6

D & E

Remove the Center Plate of the Wall Plate Assembly (A) as

shown in Diagram 7B.

Seperate the Left and Right Extension of the Wall PlateAssembly

(A) and set them to so that their outer edges are equal to the

desired width; then, insert the Center Plate so the teeth on its

bottom t into the slots in the Left and Right Extension, making

sure that the Threaded Studs t through the center row on holes

in the Center Plate as shown in Diagram 7C.

Diagram 7A

Flange

Nut

Wall Plate

Assembly (A)

Nylon

Washer

Diagram 7B

Center

Plate

Diagram 7C

Left

Extension

Center

Plate

Right

Extension

Threaded

Studs

Remove each Flange Nut and Nylon Washer as shown in

Diagram 7A

VMPL3_051106_ML.indd 10 7/17/06 11:37:14 AM
