Sanus Systems VMF Manual de usuario

Assembly Instructions for Model: VMF

Thank you for choosing Sanus Systems wall mount furniture. This product is designed to mount VESA 75/100

LCD televisions up to 50 pounds onto a vertical wall. It allows you to effortlessly tilt your new television up to

15° up or down without the use of tools. Check carefully to make sure there are no missing or defective parts.

Never use defective parts. Improper installation may cause damage or serious injury. If you do not understand

these directions, or have any doubts about the safety of the installation, please call a qualied contractor or contact

Sanus at 800.359.5520 or www.sanus.com. We can quickly assist you with installation questions and missing

or damaged parts. Replacement parts for Sanus products purchased through authorized dealers will be shipped

directly to you.

Note: The hardware provided is for wood stud, concrete, brick and concrete block walls.

Required Tools: Drill with 3/16” bit, 1/2” masonry bit, Phillips screw driver

Supplied Parts:

(1) Wall Plate - a

(1) TV Mount Plate - b

(2) Glide - c

(1) Carriage Bolt and Washer - d, e

(1) Knob - f

(2) Lag Bolt - g (4) M4 Bolt - h (1) Allen Key - i (2) Anchor - j

Mounting the Wall Plate: Wood Stud Installation - Use a high quality stud sensor to locate a stud. It is a

good idea to verify where the stud is located with an awl or thin nail. Use the Wall Plate as a template to mark the

two hole locations on the wall. Make sure these holes are aligned vertically and centered over the stud. Pre-drill

the two holes using a 3/16” drill bit. Tighten the Lag Bolts until they protrude 1/4 inch from the wall. You will

rmly tighten the Lag Bolts during nal assembly. See next page for concrete installation.

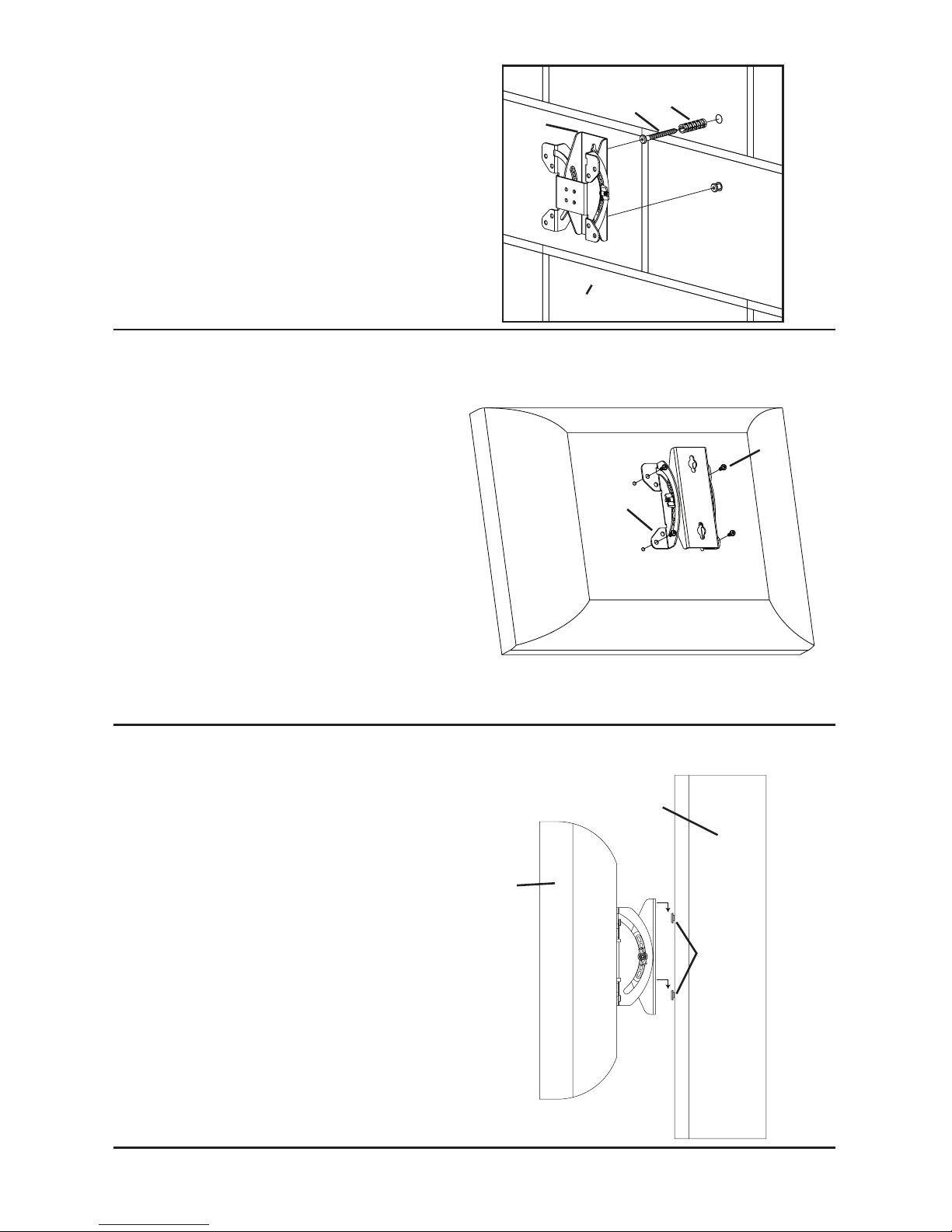

Diagram 1a

a stud

drywall cut away to show stud location

Concrete, brick and concrete block in-

stallation:

Use the Wall Plate (a) as a template to mark 2

hole locations on the wall. Always locate Con-

crete Anchors (j) in the brick, block, or concrete.

Never drill into the mortar between blocks!

Carefully pre-Drill these holes with a 1/2” ma-

sonry bit to at least 2.5” in depth. Insert a Con-

crete anchor into each of these holes. Make sure

the anchor is seated completely ush with the

concrete surface even if there is a layer of dry-

wall or other material in front. Insert a Lag Bolt

into each Anchor and tighten until they protrude

1/4 inch from the wall.

Attaching the Monitor Plate to the TV:

Mount the assembly to the back of your LCD

television using the M4 Bolts (h) as shown in

Diagram 2. Place the four M4 Bolts through the

holes in TV Mount Plate (b) and tighten into the

VESA bolt mounting pattern on the back of the

television.

Final Assembly:

Next hang the assembly over the Lag Bolts (g)

using the key-holes in the Wall Plate as shown

in Diagram 3. Once the Wall Plate slides down

over the Lag Bolts, rmly tighten them with the

Allen Key (j).

Diagram 1b

g j

concrete or brick surface

Diagram 2

Diagram 3

Wall

Sanus Systems • 2221 Hwy 36 West, St Paul, MN 55113 • 11.15.06 (6901-100048)

Customer Service: 800.359.5520 • See complementary Sanus products at www.sanus.com
