Flat to Wall

Tilting TV Mount

Instruction Manual

STM19

TV SIZE

DISTANCE TO WALL

TV LOAD VESA COMPLIANCE

TILT ANGLE

32” - 47”

36 mm

30 kg 100 x 100 mm – 400 x 400 mm

0° – 12°

Safety Warnings

WARNING! READ THE FOLLOWING BEFORE STARTING INSTALLATION

• It is the installers’ responsibility to verify that the wall will safely support the total load of the TV and the TV bracket.

Never exceed the designated maximum TV load.

• Assembly is required. Installation must be carried out by qualied personnel only. Incorrect assembly can result in

severe personal injury and property damage.

• The supplied TV bracket is only for use on vertical walls constructed from solid brick, solid concrete, solid wood and

solid wooden columns.

• Parts are heavy; take care when handling. For some steps, 2 people are required for installation.

• Check the TV bracket frequently to ensure that it is safe and secure. Additional tools (not included) are required for the

installation. Do not over-tighten screws.

• Keep this instruction manual for future reference.

Tooling

A1 x 4

A6 x 1 A7 x 1

A8 x 2 A9 x 1

B1 x 4

B5 x 4

B10 x 4

B3 x 4

B7 x 4

B12 x 4

M4 × 15

Wall Template

M6 × 15

M6-M8 × 5

M5 × 15

M8 × 20

M4-M8

M4 × 35

M6 × 35

M6-M8 × 10

M5 × 30

M8 × 35

Soft pad

M8 × 50

A2 x 4

B2 x 4

B6 x 4

B11 x 8

B4 x 4

B8 x 4 B9 x 4

A3 x 4 A4 x 1 A5 x 4

Unpacking

Instruction

Manual

Installation

Ø10.5 mm

60 mm

Ø4.5 mm

60 mm

Ensure mounting screws are in the

centre of the timber stud.

B12

B1 B2 B3 B4 B5

B6 B7 B8 B9

B10 B11

Use spacers provided for mounting TVs with

curved/recessed backs, recessed mounting

holes, or to allow access to A/V inputs.

Place the soft pad as desired to act as

cushion between the TV and the bracket.

M5-M6

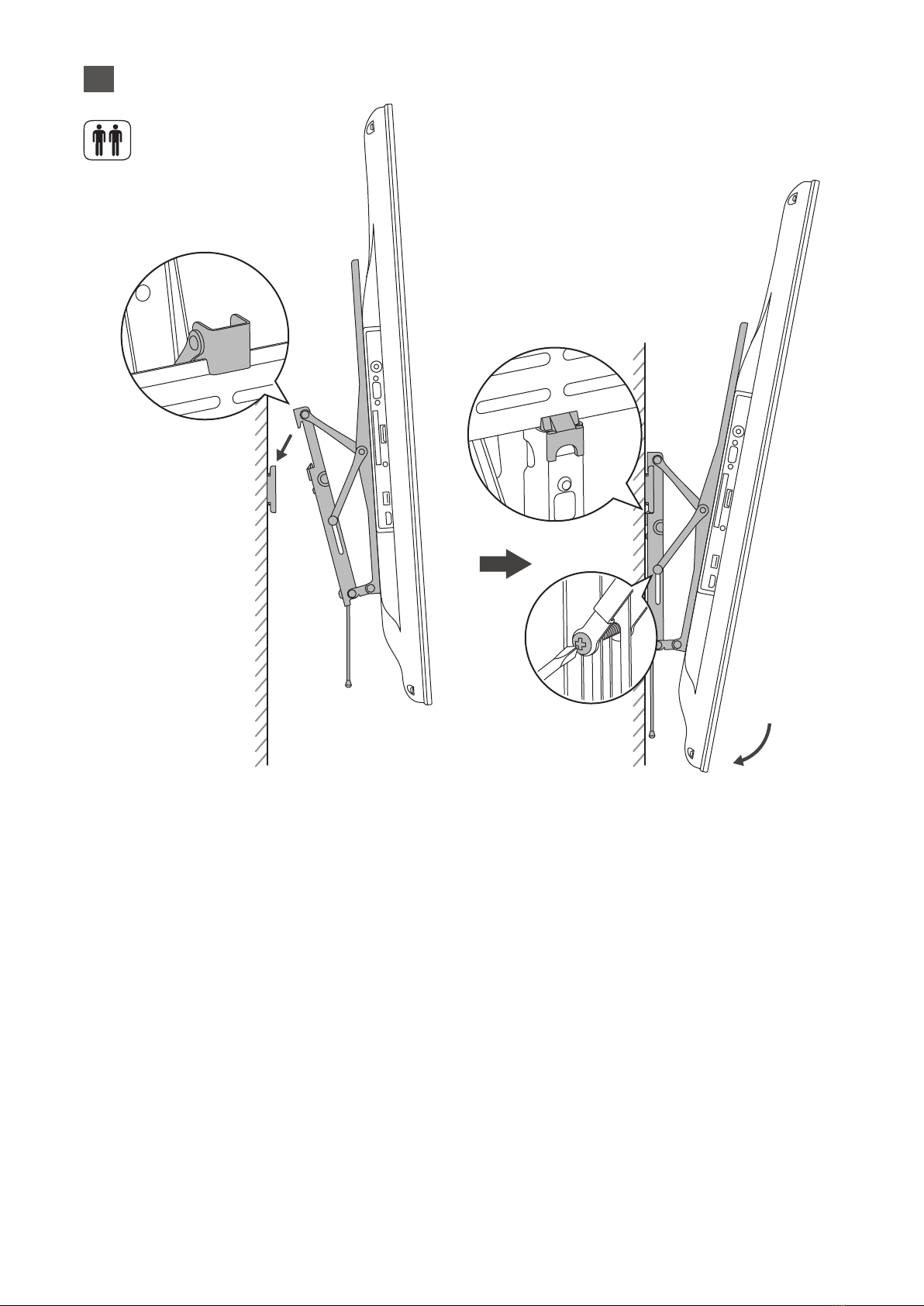

2 people are required to lift

the unit during assembly.

IB-STM19-211026V3

Http://sandstromstyle.com

For a easy to follow video on how to install your mount,

please scan the QR code.

This Mount comes with a 3-year guarantee. If the product fails whilst in use for its

intended purpose, please return it, along with your receipt, for a full refund or replacement.

Please follow the instruction manual carefully when installing this device.

Currys.co.uk

All the support you need.

Whether it’s a tech emergency or

you need plain good advice, we’re

always on hand to help.

UK: 0344 5611234

IRE: 1 890 818 575

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.

With over 1 million spares and accessories available we can deliver direct to your door the very next day.

Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate.

Currys Group Limited (co. no. 504877)

1 Portal Way, London, W3 6RS, UK

EU Representative

Currys Ireland Limited (259460)

3rd Floor Oce Suite

Omni Park SC, Santry, Dublin 9, Republic of Ireland
