Owner’s Instruction

WT8600/WT8700

TABLE OF CONTENTS

DESCRIPTION OF PARTS

............................................................................ 2

PRECAUTIONS

............................................................................................. 2

CONTROL PANEL

......................................................................................... 3

WASHING PROCEDURE

.............................................................................. 3

TO WASH

...........................................................................................................................3

SPIN DRY

..........................................................................................................................4

RINSING

............................................................................................................................4

OVERFLOW RINSE

...........................................................................................................4

ADDITIONAL RINSE

..........................................................................................................4

CLEANING THE MACHINE

........................................................................... 4

CLEANING THE LINT FILTER

..........................................................................................4

OVERFLOW FILTER

.........................................................................................................4

CLEANING THE WASH TUB

.............................................................................................4

HOW TO CLEAN DETERGENT BOX

...............................................................................5

INSTALLATION

............................................................................................. 5

ENVIRONMENT

.................................................................................................................5

CONNECTING THE DRAIN HOSE

...................................................................................5

LAUNDRY GUIDE

.......................................................................................... 5

WASHING TIME

................................................................................................................5

SPIN DRY TIME

.................................................................................................................5

DETERGENT

.....................................................................................................................5

MAINTENANCE

............................................................................................. 6

TROUBLESHOOTING

................................................................................... 6

DESCRIPTION OF PARTS

PRECAUTIONS

• Do not use adapter or extension cord

to plug in your washing machine.

• Do not allow water to come in contact

with electrical parts.

(You may risk electric shock.)

• Do not expose the unit to high heat

(direct sun light) and high humidity.

(Heat can damage the external

surfaces.)

• Do not attempt to repair or

reconstruct the unit in case of

trouble. (Ask company authorized

service persons for repairs.)

• Do not open Inner Lid until Spin Tub

has come to a complete stop. Even if

Spin Tub rotation is slow it can cause

injuries.

• When spinning always use the

spinning cap pressing tightly against

the clothes, maintaining horizontal

level.

• Do not put hot objects, lighted candles

or any flaming objects on or near the

unit. (These are fire hazards.)

• Do not put clothes with gasoline,

benzene, thinner, alcohol or other

inflammable substances into wash

tub and spin tub.

• Do not let sprays (insecticide,

perfumes, etc.) come in contact with

the switch controls. (It might cause

timers to stuck-up or damage plastic

parts.)

• Do not use vinyl chloride covers.

• Do not use detergent in excess of

amount indicated in the package.

(This will result in insufficient rinsing.)

• Do not step on the unit or put heavy

things on it.

• While the washing machine is in

operation, do not insert hand, foot, or

anything under the base.

• Do not let the children peep into the

wash tub or spin tub, to prevent them

from falling in and getting injured.

• Do not allow cord to be pinched by

the unit or by other heavy objects.

• Unplug the unit when not in use. Pull

by the plug and not by the cord.

Always use dry hands.

• Do not use the washing machine if the

power cord is damaged or if insertion

into wall outlet is loose.

• When power cord and plug are

damaged, contact nearest company

authorized service

center for repair.

• Do not twist, bundle, severely bend or

do other things that can damage the

power cord.

CONTROL PANEL

1. WASH SELECTOR

• This is used to select wash action.

2. WASH TIMER

• This is used to set the wash time, 1-15 minutes.

3. CYCLE SELECTOR

• This is used to select the Washing / Rinsing or draining.

4. SPIN DRY TIMER

• This is used to set the spin time, 1-5 minutes.

5. WATER SELECTOR

• During washing, WATER SELECTOR KNOB should

be selected to wash. During spin rinsing, WATER

SELECTOR KNOB should be selected to spin.

WASHING PROCEDURE

TO WASH

1. Before starting washing, check the

following;

Connect the water supply hose and open the

water tap.

• Lay the drain hose down toward a sinkhole.

(In case no drain pump)

• Place the drain hose in sink or bath. (In

case drain pump)

• Connect the power cord to the power

supply outlet.

2. Set the CYCLE

SELECTOR

KNOB to the

desired mode.

3. Set the CYCLE

SELECTOR KNOB to

‘WASH/HEAVY’.

4. Set the WATER

SELECTOR

KNOB to

WASH.

5. Load laundry in the

wash tub.

6. Fill water in the

wash tub and add

the detergent.

7. Set the WASH TIMER 1-35 minutes.

SOAK

• Set the WASH TIMER to the point more than “15” for SOAK function.

• If the WASH TIMER is set to the point less than “15”, it leads to

WASH only. (No SOAK)

• Although the machine may stay still maximum 5 minutes, if the WASH TIMER is

indicated over 15 minutes position, it is just in the process of soaking and not a

breakdown.

8. After washing, set the CYCLE SELECTOR KNOB to ‘DRAIN’ for

drain.

9. Soak-Washing

1) Place clothes into the WASH TUB.

2) Turn on tap or use bucket to fill the WASH TUB with desired amount of water.

3) Put detergent depending on the water volume and detergent package indications.

4) Set WASH TIMER to point between “15” to “35” in the timer.

• Soak-Washing automatically starts the wash (15 min.) after the soak

(2 to 20 min.) is completed.

• The SOAK function (20 min.) repeats the cycle that is 1.5 ~ 2.0 min.

turning and the next 5 min. resting 3 times.

SPIN DRY

1. Transfer the clothes into the

spin basket and arrange the

clothes evenly.

2. Be sure to

attach the safety

cover and close

the inner lid.

3. Close the spin dryer lid. 4. Set the SPIN DRY

TIMER 1-5

minutes.

RINSING

1. Set the CYCLE SELECTOR KNOB to ‘WASH

HEAVY’.

2. Supply the proper amount of water as not to overflow the top of

the washing tub.

3. Set the WASH TIMER 2~3 minutes.

4. Drain the water. Set the CYCLE SELECTOR KNOB to ‘DRAIN’.

5. Repeat this cycle until drain water is clean. (2~3 cycles)

OVERFLOW RINSE

1. Keep supplying water

• Adjust water pressure

to ensure that the

amount of water

supplied does not

exceed that water

drained.

2. Set the WASH TIMER

6~8 minutes.

3. As soon as the WASH

TIMER shuts off, turn

off the water tap.

4. Set the CYCLE

SELECTOR KNOB to

‘DRAIN’.

ADDITIONAL RINSE

1.After rinsing you can select

this course for more effective

rinse (Don't select only this

course for rinse.) Load the

laundry evenly into the spin

basket.

2. Set the WATER

SELECTOR KNOB to

SPIN and CYCLE

SELECTOR KNOB to

‘DRAIN’.

3. Supply water for about 1

minute. Adjust the water flow

to prevent overflow from the

wash tub.

4. After stopping water

supply, cover the

laundry with safety

cover and close the

inner lid.

5.Close the spin dryer lid. 6. Set the SPIN DRY

TIMER 2~3 minutes.

CLEANING THE MACHINE

CLEANING THE LINT FILTER

• If the dregs are filled up in the lint filter after

finishing the wash, push down and pull it out as

shown in figure. Remove the collected lint and

rinse the filter net.

OVERFLOW

FILTER

• Pull the upper side of the overflow filter with two fingers into the hole

‘A’ in the direction of arrow as shown in the figure.

CLEANING THE WASH TUB

• Wipe off strains on the cabinet and operation panel with soft cloth. Do not use

benzene, thinners, cleanser, or wax, nor scrub the washer with a brush.Painted

surfaces or plastic parts will be damaged.

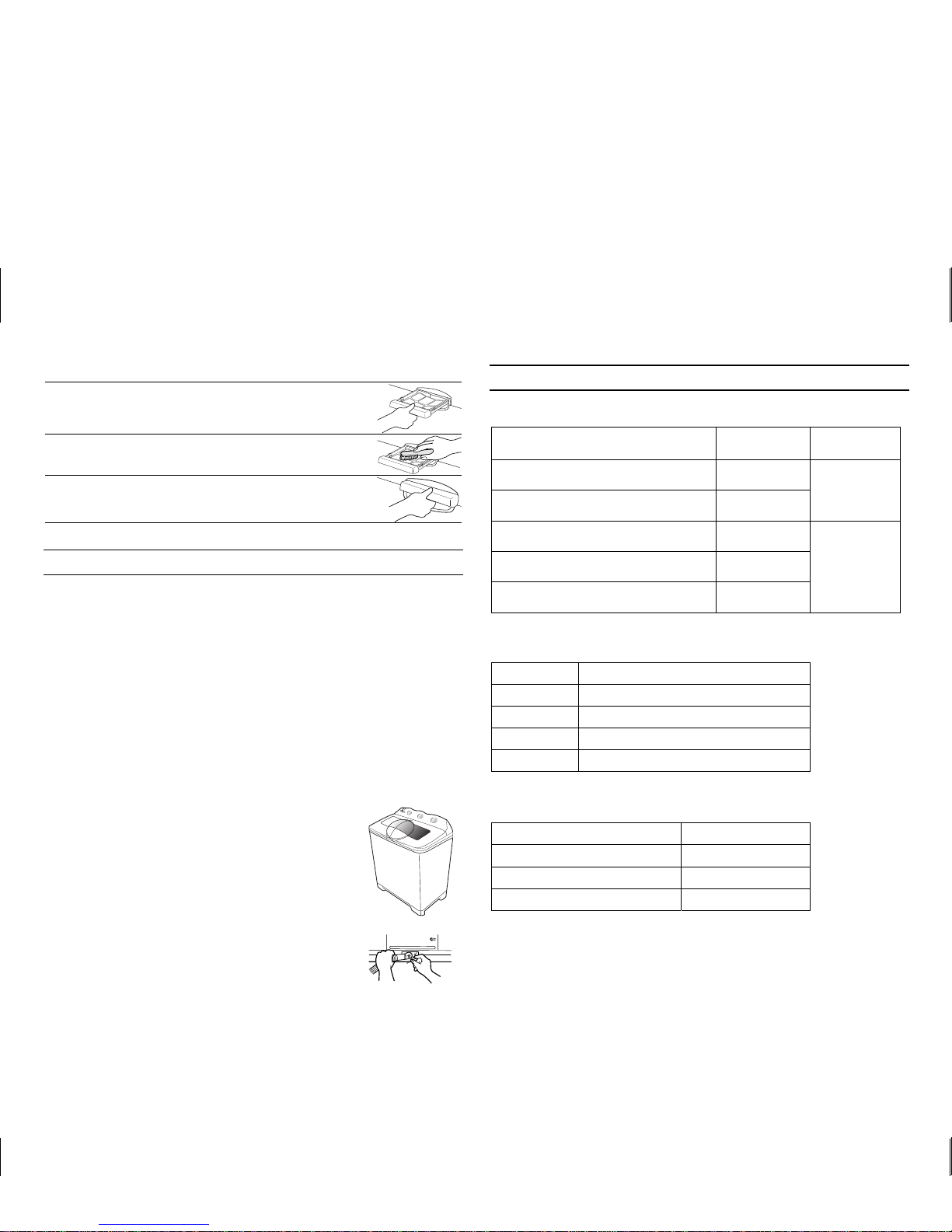

HOW TO CLEAN DETERGENT BOX

1. Pull and remove the detergent box in the direction of the arrow.

2. Remove dirt with a brush and wash the box with water.

3. To put the detergent box in position, push the box in the reverse

direction of the arrow.

INSTALLATION

ENVIRONMENT

Leave some space

• Space at least 15cm between the washer and the wall.

Place the washing machine on a sturdy flat surface.

• If the washing machine is placed on an uneven or weak surface, noise or

vibration occurs. (Allowable is 2°)

Never install the washing machine near water.

• Do not place the washing machine in steamy rooms or where itis directly exposed

to rain. Moisture may destroy the electrical insulation and cause an electrical shock

hazard.

Avoid direct sunlight or heating devices.

• As plastic and electrical components are affected by direct heat, never place the

washing machine near heaters, boilers, etc. Do not place under direct sunlight.

Precautions when installing.

• Place the washing machine on a sturdy flat surface.

• Never support the washing machine with a brick or a piece of

wood for leveling. During spinning, the machine may be trembled

more and even fallen down.

CONNECTING THE DRAIN HOSE

•Insert the drain hose in the drain direction.

LAUNDRY GUIDE

WASHING TIME

KINDS OF CLOTHING WASHING TIME WASHING

SELECTION

Extremely solid heavy fabric 10 to 15 minutes

Linen, cotton, etc. 8 to 15 minutes

NORMAL

Ordinary clothes (underwear, etc.) 7 minutes

Slightly solid synthetic fiber 2 to 5 minutes

100% wool, mixed wool knitting, thin synthetic

fiber with tags indicating hand washing 2 to 5 minutes

WASH / HEAVY

SPIN DRY TIME

TIME TYPE OF LAUNDRY

1 min Thin (synthetic fiber)

1~2 min Wool

3~5 min Cotton

5 min Thick (cotton)

DETERGENT

AMOUNT OF DETERGENT WATER LEVEL

45gLow(45

)

55gMid(55

)

65gHigh(65

)

The amount of detergent is average.

Follow the instruction detergent printed on the package for amount of detergent.

Choose the amount of detergent depending on the fabric type.

MAINTENANCE

When you load the laundry into the spin

basket.

Press the laundry evenly and put the safety cover

into the spin basket drum as shown in the figure.

To pick out the clothing which has fallen

between the basket and tub.

For safety, pull the power supply plug out of the

socket.

1. Disassemble a screw from the spin dryer hatch.

2. The spin dryer hatch is fixed to the brim by the

concave and convex parts at two places. Expand

the concave and convex parts, and pull up the

spin dryer hatch to remove it.

3. Remove the clothing.

4. Close the spin dryer hatch.Push in hatch firmly

until the catch at the front is engaged securely.

TROUBLESHOOTING

The washing machine does not work.

Check that the power cord is connected to a power outlet well.Power stoppage?

Clothes will not move freely.

Is the laundry overloaded?

Incomplete spinning

Is the laundry arranged evenly?

Incomplete draining

Is the filter clogged with lint?

The spin dryer basket will not run.

Is the spin dryer lid closed completely? Is laundry (socks, etc.) falling out of the spin

dryer basket and clinging to the axle?

• See “To pick out...”on page 6

IF YOU NEED HELP

•

Do not hesitate to call your local Samsung service center.

They will be willing to help you. Be sure to give them your name, address, telephone

number and the purpose of the call.

SPECIFICATIONS

DIMENSIONS (W x D x H) mm 820 x 490 x 980

WATER PRESSURE 0.05~0.78 MPa

0.5 ~ 8.0 kg

f/cm²

WEIGHT

EXTRACTION EFFICIENCY 50 %

STANDARD QUANTITY OF WATER 65

RATING TIME Washing 1Hour / Spinning 15minutes

Code No.: DC68-01498A

(NET) 33Kg

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Samsung

Samsung

Samsung WF8608GF Series Manual de usuario

Samsung

Samsung B1180D Manual de usuario

Samsung

Samsung WA40A3 A Series Manual de usuario

Samsung

Samsung WF8604AHA Manual de usuario

Samsung

Samsung WW12K84 20 Series Manual de usuario

Samsung

Samsung WA40J3000AW Manual de usuario

Samsung

Samsung WF350XAC Manual de usuario

Samsung

Samsung WF419AAU/XAA Manual de usuario

Samsung

Samsung WF42H5100 Instrucciones de funcionamiento

Samsung

Samsung WF80F5 series Manual de usuario

Samsung

Samsung J1455AV Manual de usuario

Samsung

Samsung WW8NK 2 Series Manual de usuario

Samsung

Samsung WW9 TA Series Manual de usuario

Samsung

Samsung WF438AAP Manual de usuario

Samsung

Samsung WF520 Manual de usuario

Samsung

Samsung WW70J3 Series Manual de usuario

Samsung

Samsung WF42H5000A Manual de usuario

Samsung

Samsung WF50A88 A Series Manual de usuario

Samsung

Samsung WF8804FS(A/F/G/H/S/V/W/Z) Manual de usuario

Samsung

Samsung WW1 CB Series Manual de usuario

Samsung

Samsung WW10K6 Series Manual de usuario

Samsung

Samsung WF393BTPA series Manual de usuario

Samsung

Samsung WA10CG4545 Series Manual de usuario

Samsung

Samsung WF331ANW/XAA Instrucciones de funcionamiento

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
