Samsung Washing machine Manual de usuario

Before operating the unit, please read this manual throughly,

and retain for future reference.

BEFORE USING THE WASHER 1

CAUTIONS 1

PRECAUTIONS WHEN OPERATING 1

DESCRIPTION OF PARTS 2

CONTROL PANEL 2

WASHING PROCEDURE 3

TO WASH 3

SPIN DRY 3

RINSING 4

OVER FLOW RINSE 4

ADDITIONAL RINSE 4

INSTALLATION 5

ENVIRONMENT 5

HOW TO CLEAN THE FILTER 5

CONNECTING DRAIN HOSE 5

CLEANING THE MACHINE 5

LAUNDRY GUIDE 6

MAINTENANCE 6

TROUBLESHOOTING 6

SPECIFICATIONS

Owner's Instructions

Code no : DC68-01983A-00

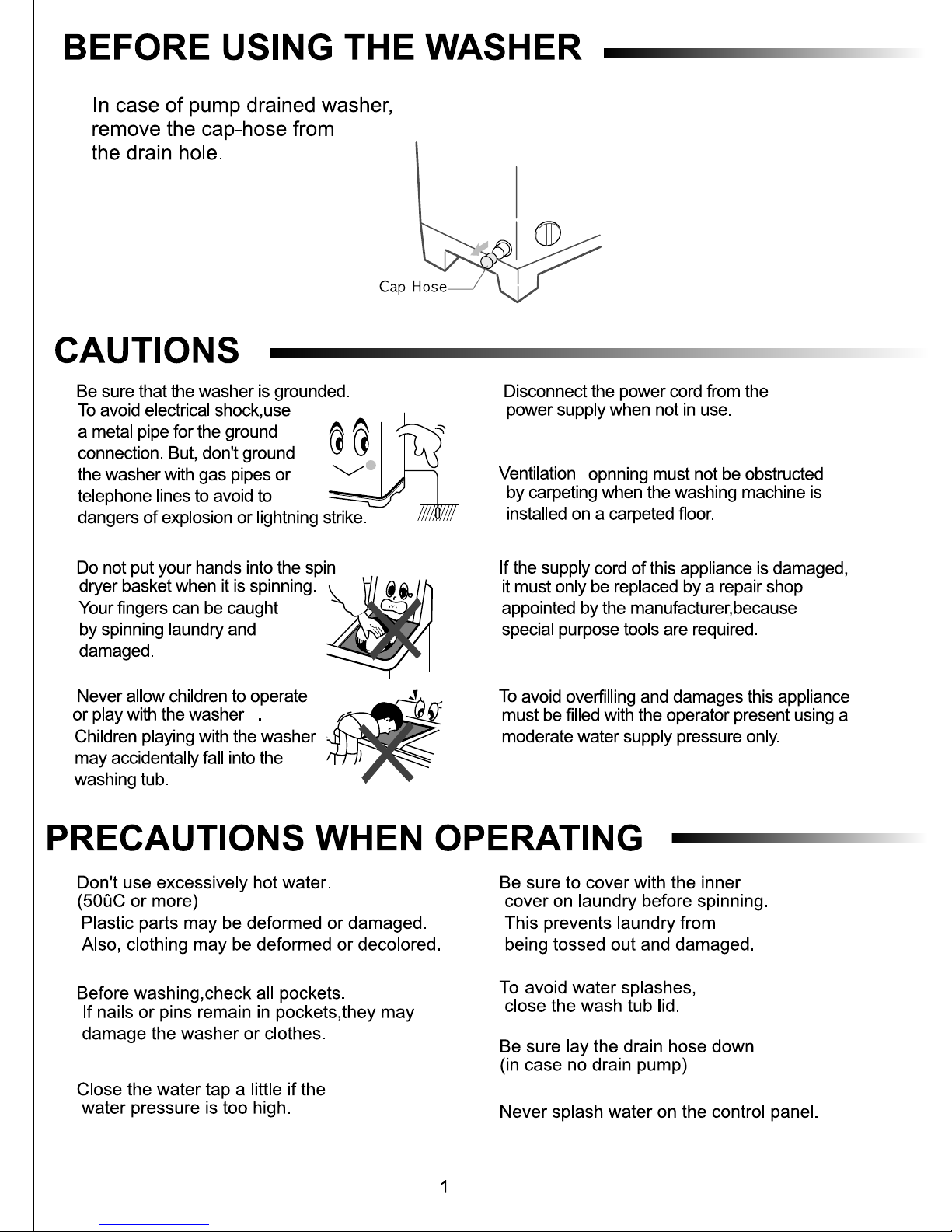

BEFORE USING THE WASHER

CAUTIONS

PRECAUTIONS WHEN OPERATING

In case of pump drained washer,

remove the cap-hose from

the drain hole.



Be sure that the washer is grounded.

To avoid electrical shock,use

a metal pipe for the ground

connection. But, don't ground

the washer with gas pipes or

telephone lines to avoid to

dangers of explosion or lightning strike.



Do not put your hands into the spin

dryer basket when it is spinning.

Your fingers can be caught

by spinning laundry and

damaged.



Ventilation opnning must not be obstructed

by carpeting when the washing machine is

installed on a carpeted floor.



If the supply cord of this appliance is damaged,

it must only be replaced by a repair shop

appointed by the manufacturer,because

special purpose tools are required.



To avoid overfilling and damages this appliance

must be filled with the operator present using a

moderate water supply pressure only.



Never allow children to operate

or play with the washer .

Children playing with the washer

may accidentally fall into the

washing tub.



Be sure to cover with the inner

cover on laundry before spinning.

This prevents laundry from

being tossed out and damaged.



Before washing,check all pockets.

If nails or pins remain in pockets,they may

damage the washer or clothes.



Close the water tap a little if the

water pressure is too high.



To avoid water splashes,

close the wash tub lid.



Be sure lay the drain hose down

(in case no drain pump)



Never splash water on the control panel.



Disconnect the power cord from the

power supply when not in use.



Don't use excessively hot water .

(50ûC or more)

Plastic parts may be deformed or damaged.

Also, clothing may be deformed or decolored.





DESCRIPTION OF PARTS

INNER LID

When you open this lid while

the spin basket is spinning,

the spinning will be stopped

by breake system.

POWER CORD

WATER DRAIN HOSE

(WITHOUT PUMP)

DRAIN HOSE

(WITH PUMP)

SPIN DRYER

BASKET

WASH TUB LID

Be sure to keep the lid

closed during washing

and spinning.

OVER FLOW

FILTER

STRAINER (FILTER)

WASH TUB

PULSATOR

DRAIN FILTER

(with pump)

The plugÕs shape may not

correspond with this drawing.

1.WASH TIMER

This is used to set the wash time, 1-15 minutes.

2.CYCLE SELECTOR

This is used to select the Washing /

Rinsing or draining

3. SPIN DRY TIMER

This is used to set the spin time, 1-5 minutes.(1-10 minutes)

4.WATER SELECTOR

During washing,WATER SELECTOR KNOB should

be selected to wash.During spin rinsing,WATER

SELECTOR KNOB should be selected to spin.

CONTROL PANEL

SPIN DRYER LID

1 4 2 3

WASHING PROCEDURE

SPIN DRY

1. Before starting washing, check the following;

Connect the water supply hose and open the water tap.

- Lay the drain hose down toward a sinkhole.

(In case no drain pump)

- Place the drain hose in sink or bath.

(In case drain pump)

-Connect the power cord to the power supply outlet .

2. Set the CYCLE SELECTOR KNOB to

‘WASH  RINSE . (in case drain pump“WASH )

4. Fill water in the wash tub

and add the detergent.

5. Load laundry in the

wash tub and fill

water to H high

water level.

6. Set the WASH TIMER 1-15minutes.

7. After washing,set the

CYCLE SELECTOR KNOB

to 'DRAIN' for drain.

1. Transfer the clothes into the spin basket

and arrange the clothes evenly. 3. Close the spin dryer lid.

4. Set the SPIN DRY TIMER 1-5minutes.2. Be sure to attach the safety cover and

close the inner lid.

inner lid

safty cover

3. Set the WATER SELECTOR

KNOB to WASH .

TO WASH

FOR B TYPE

“‘

‘

(1-10minutes)



ADDITIONAL RINSE

Set the WATER SELECTORKNOB to

SPIN and CYCLE

SELECTOR KNOB to

ÔDRAINÕ.

RINSING

OVER FLOW RINSE

1. Set the CYCLE SELECTOR KNOB to

WASH RINSE (In case drain pump“WASH )

2. Supply the proper amount of water

as not to overflow the top of the

washing tub.

3. Set the WASH TIMER

2~3minutes.

3.As soon as the WASH TIMER

shuts off, turn off the water tap.

1.Keep suppling water

4. Drain the water.

Set the CYCLE

SELECTOR

KNOB to DRAIN

5.Repeat this cycle until drain water

is clean. (2~3 cycle)

2.Set the WASH

TIMER 6~8minutes. 4. Set the CYCLE

SELECTOR KNOB

to 'DRAIN'.

inner lid

safety cover

After rinsing you can select this

course for more effective rinse

(Don't select only this course

for rinse.)Load the laundry

evenly into the spin basket.

Supply water for about 1minute.

Adjust the water flow to prevent

overflow from the wash tub.

After stopping water

supply, cover the

laundry with safety cover

and close the inner lid.

Close the spin dryer

lid.

Set the SPIN DRY

TIMER 2~3 minutes.

(Without pump) (with pump)

Adjust water pressure to ensure

that the amount of water supplied

does not exceed that water drained.

‘

“

‘

CONNECTING THE DRAIN HOSE

INSTALLATION

Leave some space

Space at last 15cm between the washer

and the wall.

Place the washer on a sturdy flat surface.

If the washer is placed on an uneven or weak

surface, noise or vibration may be occured.

(Allowable is 2 )

Never install the washer near water.

Do not place the washer in steamy rooms or

where the washer is directly exposed to rain.

Moisture may destroy the electrical insulation

and cause an electrical shock hazard.

Avoid direct sunlight or heating devices.

As plastic and electrical components are

affected by direct heat, never place the

washer near heaters, boilers,etc.

Do not place under direct sunlight.

CLEANING THE MACHINE

ENVIRONMENT

1. OVERFLOW FILTER

Pull the upper side of the

overflow filter with

your fingers into the holes

in the direction of arrow as

shown in the figure.

2. CLEANING THE FILTER

Push the strainer(filter) out and take up the

filter as shown in figure.

Wash the filter and washing tub.

3. CLEANING THE WASHER BODY

Wipe off strains on the cabinet and operation panel with soft cloth.

Do not use benzene,thinners,cleanser,or wax, nor scrub the washer with a brush.

Painted surfaces or plastic parts will be damaged.

Place a rag under the washer filter

not to wet the floor.

Rotate the filter counterclockwise

and pull out the filter.

3. Remove dirts and rotate

the filter clockwise until it

locks in position.

HOW TO CLEAN THE FILTER (In case drain pump)

Install the drain hose about

70~80cm above the ground

for pump model.

After pressing the joint ring(a), insert the drain hose(b)

to drain direction.

TROUBLE

The washer

does not work.

Clothes will

not move freely .

Incomplete

spinning

TROUBLE

Incomplete

draining

The spin dryer

basket will not

run.

CHECK POINT

Check that the power cord is

connected to a power outlet well.

Power stoppage?

Is the laundry overloaded?

Are the laundry arranged evenly?

WASHING TIME

LAUNDRY GUIDE

MAINTENANCE

TROUBLE SHOOTING

SPIN DRY TIME

DETERGENT

WHEN YOU LOAD THE LAUNDRY INTO

THE SPIN BASKET.

Press the laundry evenly and put the safety

cover into the spin basket drum as shown in

the figure.

KINDS OF CLOTHING

Extremely solid heavy fabric

Linen,cotton,etc.

Ordinary clothes

(underwear,etc)

Slightly solied synthetic

fiber

100%wool,mixed wool knitting,

thin synthetic fiber with tags

indicating hand washing

WASHING TIME

10 to15minutes

8 to10minutes

7minutes

2 to 5minutes

TIME

1min.

1~2min.

3~5min.

5min.

TYPE OF LAUNDRY

Thin(synthetic fiber)

wool

cotton

thick(cotton)

In case the water level is at High ,

amount of water is 42l.

-H-

Follow the directions printed on the

package for amount of detergent.

Choose the amount of detergent

depending on the fabric type and

water level.

CHECK POINT

Is the filter clogged

with lint?

See 'Cleaning the

machine' on page 5.

Is the spin dryer lid closed

completely?

Are laundry(socks,etc.)falling

out of the spin dryer basket and

clinging to the axle?

See 'To pick out... '

on page 6.

‘



W715mmxD430mmxH870mm

0.05~0.78 MPa

0.5 ~ 8.0 kg.f/cm2

60 %

42 l

Washing 1Hour Spinning 15minutes

IF YOU NEED HELP.

Do not hesitateto call your local samsung service center.

They will be willing to help you.

Be sure to give them your name,address,telephone number and the purpose of the call.

SPECIFICATION

DIMENSIONS (mm)

WATER PRESSURE

WEIGHT

EXTRACTION EFFICIENCY

STANDARD QUANTITY OF WATER

RATING TIME

With out pump 19kg With pump 21kg

Otros manuales para Washing machine

Este manual sirve para los siguientes modelos

Otros manuales de Arandela de Samsung

Samsung

Samsung WD75M4 Series Manual de usuario

Samsung

Samsung FLEXWASH WV55M9600A SERIES Manual de usuario

Samsung

Samsung WA13VP Manual de usuario

Samsung

Samsung WW9 T Series Manual de usuario

Samsung

Samsung WF-R106NS Manual de usuario

Samsung

Samsung WW95H7410E Series Manual de usuario

Samsung

Samsung WA11RAS3 Manual de usuario

Samsung

Samsung SWT58H0 Manual de usuario

Samsung

Samsung WF317AAG/XAA Manual de usuario

Samsung

Samsung WF7520S8S Manual de usuario

Samsung

Samsung WF8692NHW/XSG Manual de usuario

Samsung

Samsung SW1065D1 Manual de usuario

Samsung

Samsung WW6000J Series Manual de usuario

Samsung

Samsung WF0704A(B/C/H)(A/E/F/G/H/R/W/X/Z) Manual de usuario

Samsung

Samsung WA10RA Manual de usuario

Samsung

Samsung WA55A7300AE/US Manual de usuario

Samsung

Samsung WA80U3 Manual de usuario

Samsung

Samsung WW10H9 Series Manual de usuario

Samsung

Samsung WA5471AB Series Manual de usuario

Samsung

Samsung WA70CG4240 Series Manual de usuario

Samsung

Samsung WA90R6350B Series Manual de usuario

Samsung

Samsung WA16J675 Series Manual de usuario

Samsung

Samsung WF393 Series Manual de usuario

Samsung

Samsung B1215J Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
