Thank you for purchasing this Samsung product.

WA85M4

This manual is made with 100% recycled paper.

M-PJT_DC68-03032E-04_Philippines_EN.indd 1 2014/4/30 10:42:18

2_ features

features of your new samsung

washing machine

 

It’s artiﬁcially intelligent, can inspect weight of clothes and select the water level

automatically according to the load capacity.

 

Its diamond-like rhombus design can relieve the impulsive force of water effectively and

reduce the damage to clothes.

 

This unique magic Filter ensures that all the lint inside the tub is captured for top quality

ﬁltering results to deliver consistently effective cleaning results.

M-PJT_DC68-03032E-04_Philippines_EN.indd 2 2014/4/30 10:42:18

features _3

safety information

Throughout this manual, you’ll see Warning and Caution notes. These warnings, cautions, and the

important safety instructions that follow do not cover all possible conditions and situations that may

occur. It’s your responsibility to use common sense, caution, and care when installing, maintaining, and

operating your washing machine. Samsung is not liable for damages resulting from improper use.





WARNING

Hazards or unsafe practices that may result in severe personal injury or

death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or

property damage.

Your washing machine comes with a power

cord having grounding plug for use in a

properly installed and grounded outlet.

- Failure to do so may result in electric shock

due to damage or electric leakage.

Connect the machine to an earthed socket in

accordance with current wiring regulations.

Do not bend the power supply cord by force

or press it with heavy things.

- This may result in electric shock or ﬁre.

Don’t use the damaged plug or socket.

Don’t share one socket with several electrical

appliances.

- This may result in electric shock or ﬁre.

Do not touch the power plug with wet hands.

Do not unplug the appliance by pulling at the

power cord, always grip plug ﬁrmly and pull

straight out from the outlet.

- This may result in electric shock or ﬁre.

In the event of a gas leak, ventilate

immediately without touching the power

plug.

- A spark may result in an explosion or ﬁre.

WARNING

M-PJT_DC68-03032E-04_Philippines_EN.indd 3 2014/4/30 10:42:18

4_ safety information

safety information

Don’t put a candle light or cigarette light on

the washer.

- This may result in ﬁre.

Do not put laundry stained with gasoline,

benzene, or alcohol in the washer, and keep

the materials away from the washer.

- This may result in explosion or ﬁre.

During spinning, don’t put your hand in the

spinning tub.

- It may hurt your hands. If it does not stop

within 15 seconds after you open the lid, call

service agent immediately.

No user-serviceable parts inside. Refer any

servicing to qualiﬁed service personnel.

- Otherwise this may cause a mechanical

error, electric shock, ﬁre or physical damage.

- The product warranty does not cover

problems resulting from disassembling the

product.

Please unplug the power supply cord when

you do not use it.

- Failure to do so may result in lightning strike.

Do not use an extension cord or double

adapter.

If the washer makes strange noise, smell or

smoke, unplug it promptly and call Samsung

Customer Service.

Do not use the strong acid cleaning agent.



M-PJT_DC68-03032E-04_Philippines_EN.indd 4 2014/4/30 10:42:18

safety information _5

When using hot water in washing, please

make sure that the water should not exceed

50°C.

- Otherwise, plastic parts may deform or be

damaged, and clothes may deform, shrink or

discolor.

When the washer is spinning and rotating,

please don’t open the washer lid or touch the

clothes.

- It’s dangerous even rotating at a low speed.

Special attention should be paid to children.

Do not wash water-proof rain covers or

clothing etc. with the washer.

- It will result in abnormal vibration and injury

while spinning.

Don’t press the button with an awl or pin.

- Failure to do so may result in electric shock

due to damage.

When cleaning, don’t spray water to the parts

of the washer directly.

- It may make its life span shorten.Also an

electric shock or ﬁre may take place.

Use the new hose-sets and old hose-sets

should not be reused.

M-PJT_DC68-03032E-04_Philippines_EN.indd 5 2014/4/30 10:42:18

6_ contents

contents

SETTING UP YOUR WASHING

MACHINE

7Unpacking your washing machine

7Description of parts

7Accessories

7Selecting a location

8Adjusting the levelling feet

8Connecting the water supply hose

9Connecting the drain hose

9How to change the drain hose direction

9Assembling the Rat Protection Panel

WASHING A LOAD OF

LAUNDRY

10 Using the control panel

11 Preparing for clothes before washing

12 Wash course

12 Step 1: Put the laundry into the washer

12 Step 2: Add detergent

12 Step 3: Press the Power button

13 Step 4: Select the washing program

13 Step 5: Select the water level

14 Step 6: Start washing clothes

14 When the cycle is ﬁnished

CLEANING AND MAINTAINING

YOUR WASHING MACHINE

15 Cleaning the exterior

15 Cleaning the ﬁlter

15 Cleaning supply connector ﬁlter

TROUBLESHOOTING

16 Troubleshooting

16 Following phenomena are not failures

APPENDIX

17 Speciﬁcations

M-PJT_DC68-03032E-04_Philippines_EN.indd 6 2014/4/30 10:42:18

setting up your washing machine _7

setting up your washing machine



Carefully unpack your washing machine, and make sure you’ve received all of the parts shown

below. If your washing machine was damaged during shipping, or if you do not have all of the parts,

contact your Samsung dealer.





  



Before you install the washing machine, make sure the location:

• Placethewasheronasturdyatsurface.(ifitisuneven,see

“Adjusting the leveling feet” on the next page).

• Avoiddirectsunlightorheaters.

• Neverinstallthewashernearwater.

• Thereisacushionbottom,protectingwasherinthe

transportation,in the packing box.When install and use the

washer, must remove the cushion bottom, otherwise, noise may take place.























When the water pipe is

metal, make sure to

cover the end of the

ground wire.

M-PJT_DC68-03032E-04_Philippines_EN.indd 7 2014/4/30 10:42:19

8_ setting up your new washing machine



1. Select a location for placing the washing machine.

Maintain at least 10cm between the washer and the wall if it is

placed near wall.

2. Adjust the legs on feet for levelling.

3. Method to adjust level of the washer:

Press both sides of the washer along diagonal direction to check

if it shakes. If so, adjust the leveling feet at its lower front to keep it

level.



1. Remove the adaptor from

the water supply hose.

5. Connect the other end of

the water supply hose to

the inlet water valve at the

back of the washer. Screw

the hose clockwise all the

way in.

2. First, using a “+” type

screw driver,loosen

the four screws on the

adaptor. Next, take the

adaptorandturnpart(b)

following the arrow for gap

about 5mm between them.

5-1. Connect the other end

of the water supply

hose to the inlet water

valve at the top of the

washer. Screw the hose

clockwise all the way in.

3. Connect adaptor to the

water tap by tightening the

screws ﬁrmly. Then, turn

part(b)followingthearrow

andput(a)and(b)together. a

If the water tap is a screw

type, assemble a water supply

hose that ﬁts to the tap as

shown.

4. Connect the water supply

hose to the adaptor. Pull

downthepart(c)ofthe

water supply hose. When

thepart(c)isreleased,

the hose is automatically

connected to the adaptor

making a ‘click’ sound.

After completing connection, if water

leaks from the hose,then repeat the

same steps.

Use the most conventional type of

faucet for water supply

In case the faucet is square or too

big, remove the spacing ring before

inserting the faucet into the adaptor.

高低

High Low

对角线

Diagonal

setting up your washing machine

M-PJT_DC68-03032E-04_Philippines_EN.indd 8 2014/4/30 10:42:20

setting up your new washing machine _9

01 setting up



• Decidedirectionofthedrainhose

• Insertendofthedrainhoseintothedrain-outlet.

Cautions when inserting the drain hose:

Don’t exceed more than

3m when the drain hose is

used by connecting whth

other hoses.

Be careful to drain water

out at the end of the drain

hose.

The doorsill shoudn’t be

more than 5cm.



Make sure that you install your washing machine correctly by running the

 cycle after the installation is complete.



The drain hose has been installed at left side

of the washer before delivery, but users may

change it to right side according to actual

drain place.

1. Putblanketorsoftclothontheoor;lay

down the washer backwards lightly.Take

out the drain hose from the outlet at left

side, and remove the cover at Outlet of

the drain hose (Right);Don’tlaydownthe

washerontheoordirectly;otherwise,the

oororwashermaybedamaged.

2. Insert the drain hose along the groove at

bottom of the washer.

3. Align its cover with the cover at Outlet of

the drain hose (Left), lift it lightly and place

the washer properly.

Beforechangingthedirection,thepowermustbeoff(toavoidriskofelectricshock).

Don’tdamagethedrainhosewhenchangingitsdirection;Watermayleakifthehose

is damaged.



1. Insert the panel into the mounting groove at bottom of the

washer.

2. If it’s hard to insert, lift the washer slightly and insert.

3. After the panel is inserted properly, press the locking slot of the

panel into the related groove at bottom of the washer.

4. Fixthepanelwiththebolts(providedintheplasticbagforUser

Manual)

小于 3 m 小于 3 m

小于　

5 cm

Less than 3m Less than 3m

Less than

5cm

前面

排水管

取出口

(左)

排水管

取出口

(右)

毯子等

孔盖

后面

Outlet of the

drainhose(L)

Outlet of the

drainhose(R)

Blanket etc.

Front

Rear

Cover

前面

排水管

取出口

(左)

排水管

取出口

(右)

毯子等

孔盖

Outlet of the

drainhose(R)

Blanket etc.

Cover

Outlet of the

drainhose(L)

Front

后面

固定槽

Rear

Locking

slot

M-PJT_DC68-03032E-04_Philippines_EN.indd 9 2014/4/30 10:42:21

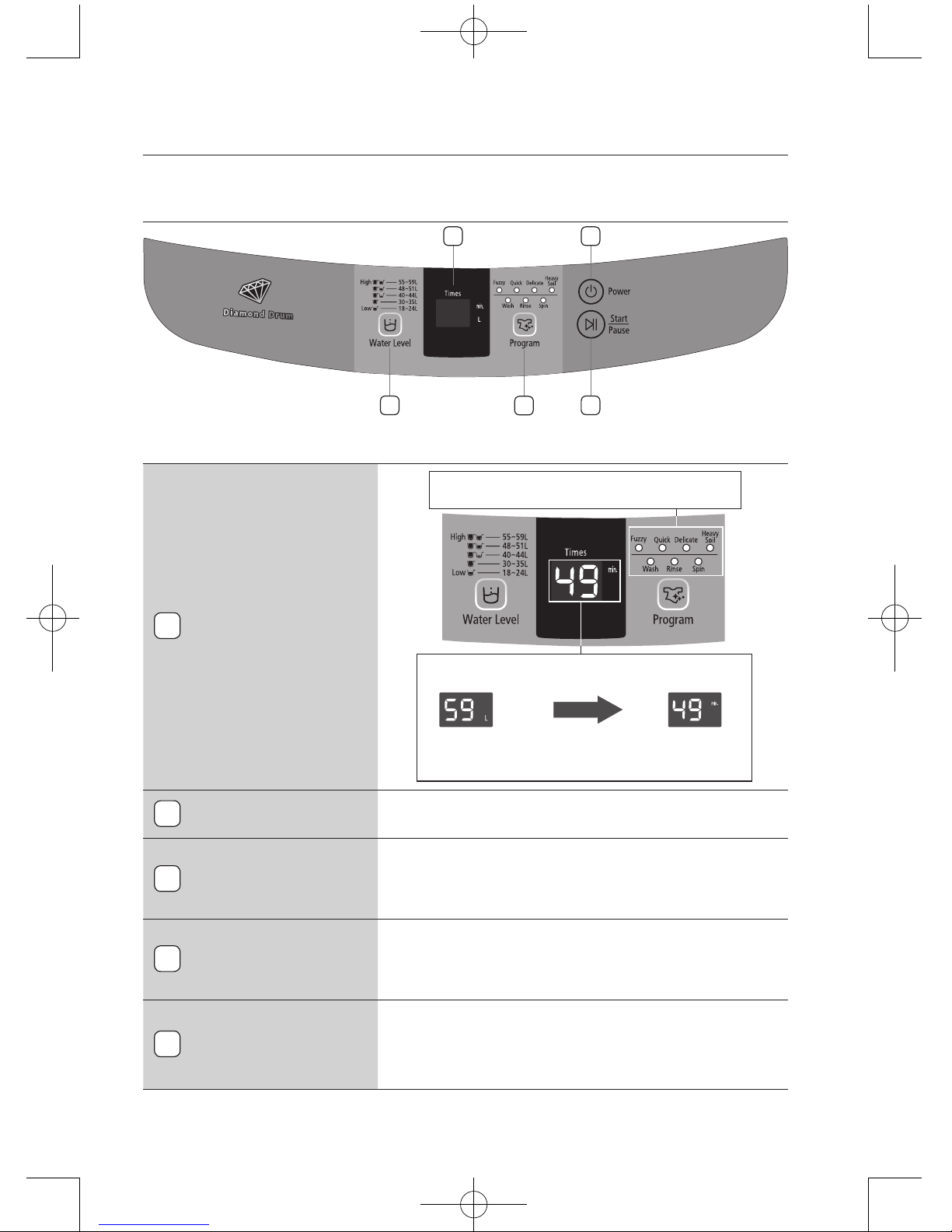

10_ washing a load of laundry

washing a load of laundry



DISPLAY PANEL

Display current water level/ Remaining time

After the washer starts operating,

the display show current water

level for 5 seconds

After 5 seconds , the display

show the remaining time to

finish washing.

5 s. later

Display current water level or the remaining time to finish washing.

Display current program

When the washer operating, the current program will flicker.

POWER BUTTON Press it once to turn your washing machine on, press it

again to turn your washing machine off.

START/PAUSE BUTTON

Use to pause and restart the operation.

To change the washing procedure during an operation,

press this button to stop, and again to restart after changing

the procedure.

PROGRAM SELECTION

BUTTON

Each time the button is pressed, the washing course

changes:

Fuzzy Quick Delicate Heavy Soil Wash Rinse

Spin Fuzzy

WATER LEVEL BUTTON

The water level is automatically adjusted. However, you can

select the water level manually by pressing this button.

• Accordingtothetextureandhumidityofclothes,water

level and water consumption may differ.

1 2

M-PJT_DC68-03032E-04_Philippines_EN.indd 10 2014/4/30 10:42:21

Tabla de contenidos

Otros manuales de Arandela de Samsung

Samsung

Samsung WF602U4BK Series Manual de usuario

Samsung

Samsung WT14J4200MB/AP Manual de usuario

Samsung

Samsung WF80F5E5U Manual de usuario

Samsung

Samsung SW52ASP Manual de usuario

Samsung

Samsung WW7 T3 Series Manual de usuario

Samsung

Samsung WA13M8700G Manual de usuario

Samsung

Samsung WW65T3 Series Manual de usuario

Samsung

Samsung WF702W2 Series Manual de usuario

Samsung

Samsung WW9 TA Series Manual de usuario

Samsung

Samsung WF8804FS Manual de usuario

Samsung

Samsung WD21B6400 Series Manual de usuario

Samsung

Samsung WA10CG4545 Series Manual de usuario

Samsung

Samsung WF0802W8(E/N/S/V/W) Manual de usuario

Samsung

Samsung WW60J4 Series Manual de usuario

Samsung

Samsung WW1 T Series Manual de usuario

Samsung

Samsung WF350ANR/XAA Manual de usuario

Samsung

Samsung WA456 Series Manual de usuario

Samsung

Samsung WF405ATPAWR/A2-00 Manual de usuario

Samsung

Samsung WF42H5700A Series Manual de usuario

Samsung

Samsung WA40A3 A Series Manual de usuario

Samsung

Samsung WA10J8700G Series Manual de usuario

Samsung

Samsung SWF-P12 Manual de usuario

Samsung

Samsung SW1065D1 Manual de usuario

Samsung

Samsung S621GWL2/YLW Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
