Owner’s Instructions

Before operating the unit, please read this manual

throughly, and retain for future reference.

SWT70A1/ SWT70B1/ SWT75A1

BEFORE USING THE WASHER 1

CAUTIONS 1

PRECAUTIONS WHEN OPERATING 1

DESCRIPTION OF PARTS 2

CONTROL PANEL 2

WASHING PROCEDURE 3

To wash 3

Spin dry 3

Rinsing 4

Over flow rinse 4

Additional rinse 4

INSTALLATION 5

Environment 5

Changing the position of the drain hose 5

How to clean the filter 5

CLEANING THE MACHINE 5

AFTER OPERATION 5

LAUNDRY GUIDE 6

MAINTENANCE 6

TROUBLESHOOTING 6

SPECIFICATIONS

BEFORE USING THE WASHER

CAUTIONS

PRECAUTIONS WHEN OPERATING

●Be sure that the washer is grounded.

To avoid electrical shock,use

a metal pipe for the ground

connection. But, don't ground

the washer with gas pipes or

telephone lines to avoid to

dangers of explosion or lightning strike.

●Do not put your hands into the spin

dryer basket when it is spinning.

Your fingers can be caught

by spinning laundry and

damaged.

●Ventilation opnning must not be obstructed

by carpeting when the washing machine is

installed on a carpeted floor.

●If the supply cord of this appliance is damaged,

it must only be replaced by a repair shop

appointed by the manufacturer,because

special purpose tools are required.

●Warning to avoid overfilling and damages

this appliance must be filled with the

operator present using a moderate water

supply pressure only.

● Be sure to cover with the inner

cover on laundry before spinning.

This prevents laundry from

being tossed out and damaged.

● Before washing,check all pockets.

If nails or pins remain in pockets,they may

damage the washer or clothes.

● Close the water tap a little if the

water pressure is too high.

● To avoid water splashes,

close the wash tub lid.

● Never splash water on the control panel.

●Disconnect the power cord from the

power supply when not in use.

● Don't use excessively hot water.

(50˚C or more)

Plastic parts may be deformed or damaged.

Also, clothing may be deformed or decolored.

●Never allow children to operate

or play with the washer.

Children playing with the washer

may accidentally fall into the

washing tub.

● Remove the cap-hose from the drain

hose. ● In case of pump drained washer,

remove the cap-hose from

the drain hole.

●

Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this

or any other appliance.

4.SPIN DRY TIMER

This is used to set the spin time, 1-5 minutes.

5.WATER INTAKE

Connect water inlet to a tap with a suitable hose.

6.WATER SELECTOR (For SWT70B1, SWT75A1)

During washing, WATER SELECTOR KNOB should

be selected to wash. During spin rinsing, WATER

SELECTOR KNOB should be selected to spin.

1.WASH TIMMER

This is used to set the wash time, 1-15 minutes.

2.WASH SELECTOR

Refer to the washing time and washing selection.

3.CYCLE SELECTOR

This is used to set the Washing/Rinsing or draining.

DESCRIPTION OF PARTS

INNER LID

When you open this lid while

the spin basket is spinning,

the spinning will be stopped

by breake system.

POWER CORD

EARTH WIRE

WATER DRAIN HOSE

(WITHOUT PUMP)

SPIN DRYER BASKET

SPIN DRYER HATCH

WASH TUB LID

Be sure to keep the lid

closed during washing

and spinning.

STRAINER (FILTER)

WASH TUB

PULSATOR

The plug’s shape may not

correspond with this drawing.

CONTROL PANEL

SPIN DRYER LID

SWT70B1

SWT70A1

SWT75A1

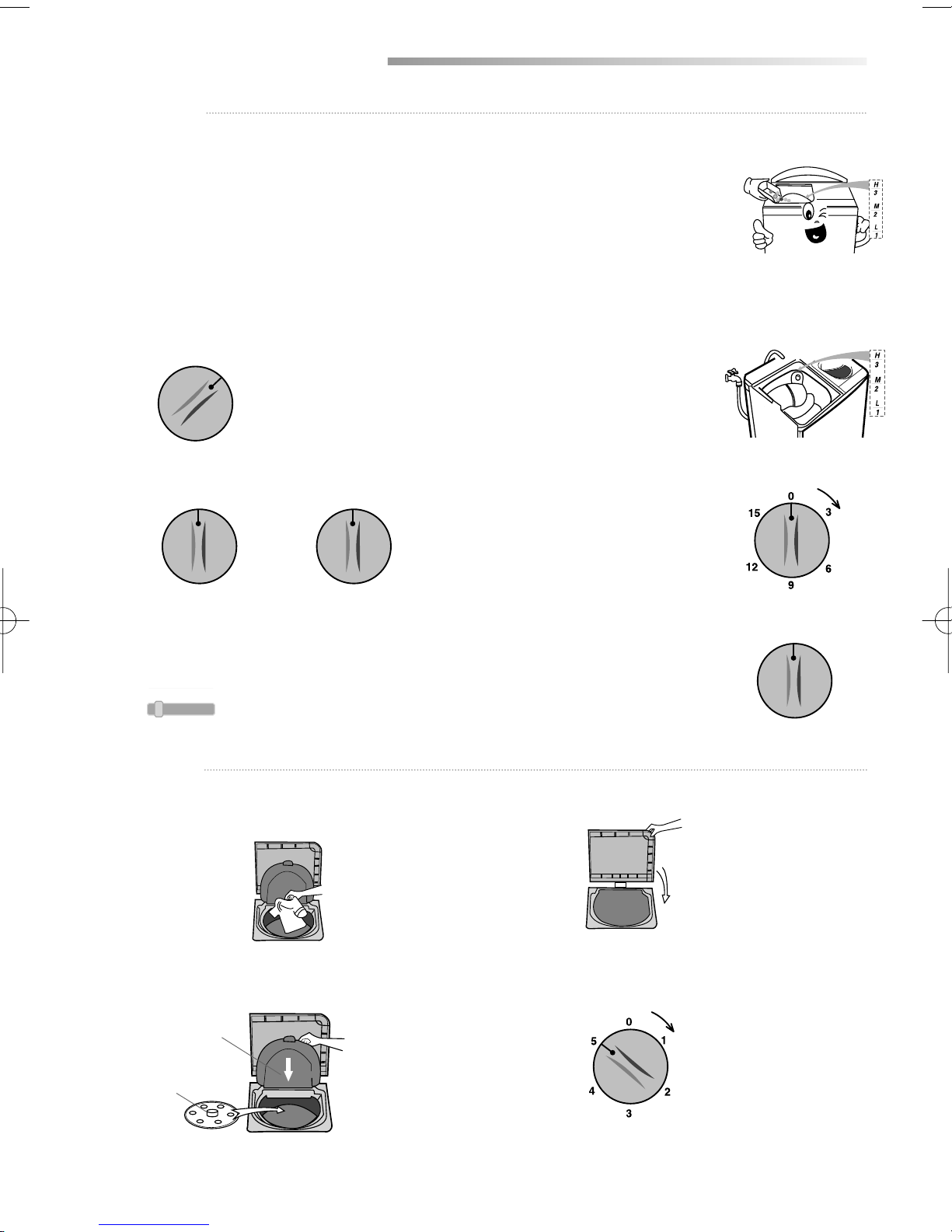

WASHING PROCEDURE

SPIN DRY

1. Before starting washing, check following;

Connect the water supply hose.

- Lay the drain hose down toward a sinkhole.

(In case no drain pump)

- Place the drain hose in sink or bath.

(In case drain pump)

-Connect the power cord to the power supply outlet .

3. Set the CYCLE SELECTOR KNOB to

‘WASH.URINSE’.

(in case drain pump ‘WASH’)

4. Set the WATER SELECTOR KNOB

to ‘WASH’

(For SWT70B1, SWT75A1)

5. Fill water in the wash tub

to the ‘L’ lower water

level by carefully and

add the detergent.

6. Load laundry in the

wash tub and fill

water to proper

water level.

7. Set the WASH TIMER

1-15minutes.

8. After washing,set the

CYCLE SELECTOR KNOB

to ‘DRAIN’ for drain.

1. Transfer the clothes into the spin basket

and arrange the clothes evenly. 3. Close the spin dryer lid.

4. Set the SPIN DRY TIMER 1-5minutes.2. Be sure to attach the safety cover and

close the inner lid.

inner lid

safty cover

2. Set the WASH SELECTOR KNOB

to the desired mode.

TO WASH

SOFT HEAVY

WASH SPIN

WASH . RINSE

RINSEDRAIN

CYCLE SELECTOR

WASH

DRAIN

CYCLE SELECTOR

DRAIN

CYCLE SELECTOR

SPIN DRY TIMER

WASH TIMER

ADDITIONAL RINSE (SHOWER RINSE FOR SWT70B1, SWT75A1)

Set the WATER SELECTOR KNOB to SPIN for

SWT70B1, and CYCLE

SELECTOR KNOB to

‘DRAIN’.

RINSING

OVER FLOW RINSE

2. Set the CYCLE SELECTOR KNOB to

‘WASH.RINSE’

1. Set the WATER GUIDE

KNOB to “WASH”

(For SWT70B1, SWT75A1)

3. Supply the proper amount of water

as not to overflow the top of the

washing tub.

4. Set the WASH TIMER

2~3minutes.

3.As soon as the WASH TIMER

shuts off, turn off the water tap.

1.Keep suppling water(adjust water pressure

to ensure that the amount of water supplied

does not exceed that water drained.)

5. Drain the water.

Set the CYCLE

SELECTOR KNOB to

‘DRAIN’.

6.Repeat this cycle until drain water

is clean. (2~3 cycle)

2.Set the WASH

TIMER 6~8minutes. 4. Set the CYCLE

SELECTOR KNOB

to ‘DRAIN’.

inner lid

safety cover

After rinsing you can select this

course for more effective rinse

(Don't select only this course

for rinse.) Load the laundry

evenly into the spin basket.

Supply water for about 1minute.

Adjust the water flow to prevent

overflow from the wash tub.

After stopping water

supply, cover the

laundry with safety cover

and close the inner lid.

Close the spin dryer lid.

Set the SPIN DRY

TIMER 2~3 minutes.

WASH SPIN

(in case drain pump “WASH)

WASH . RINSE

RINSEDRAIN

CYCLE SELECTOR

WASH

DRAIN

CYCLE SELECTOR

(in case drain pump “WASH)

WASH . RINSE

RINSEDRAIN

CYCLE SELECTOR

WASH

DRAIN

CYCLE SELECTOR

DRAIN

CYCLE SELECTOR

SPIN DRY TIMER

DRAIN

CYCLE SELECTOR

DRAIN

CYCLE SELECTOR

WASH TIMER

WASH SPIN

WASH TIMER

INSTALLATION

Leave some space

Space at least 15cm between the washer

and the wall.

Place the washer on a sturdy flat surface.

If the washer is placed on an uneven or weak

surface, noise or vibration may be occured.

(Allowable is 2˚)

Never install the washer near water.

Do not place the washer in steamy rooms or

where the washer is directly exposed to rain.

Moisture may destroy the electrical insulation

and cause an electrical shock hazard.

Avoid direct sunlight or heating devices.

As plastic and electrical components are

affected by direct heat, never place the

washer near heaters, boilers,etc.

Do not place under direct sunlight.

CHANGING THE POSITION OF THE DRAIN HOSE

Before attempting to change the position of the drain hose,

disconnect the plug from the outlet.

1. Route the drain hose inside the machine.

2.Take out the drain hose from the opposite hole and

insert the drain hose into the hose holder.

CLEANING THE MACHINE

ENVIRONMENT

CLENING THE LINT FILTER

-If the dregs are piled up in the lint filter after finishing

the wash, push down and pull it out as shown in figure.

-Wash the filter net in water.

CLEANING THE WASH TUB

Wipe off strains on the cabinet and operation panel

with soft cloth.

Do not use benzene, thinners, cleanser, or wax,

nor scrub the washer with a brush.

Painted surfaces or plastic parts will be damaged.

70~80cm

Place a rag under the washer filter

not to wet the floor.

Rotate the filter counterclockwise

and pull out the filter.

3. Remove dirts and rotate

the filter clockwise until it

locks in position.

Rag

Open

Filter

HOW TO CLEAN THE FILTER (In case drain pump)

Install the drain hose about

70~80cm above the ground

for pump model.

Hose holder

AFTER OPERATION

1. Remove the power cord from the outlet.

2. Take out the laundry.

3. Close the water tap and disconnect the water supply hose.

4. Clean the washing machine.

-Periodical cleaning will extend the life of your washing machine.

-Do not spray the unit water or use tinner, benzene, alcohol etc, for cleaning it.

WASHING TIME

10 to15minutes

8 to10minutes

7minutes

2 to 5minutes

KINDS OF CLOTHING

Extremely solid heavy fabric

Linen,cotton,etc.

Ordinary clothes

(underwear,etc)

Slightly solied synthetic

fiber

100%wool,mixed wool knitting,

thin synthetic fiber with tags

indicating hand washing

TROUBLE

The washer

does not work.

Clothes will

not move freely.

Incomplete

spinning

TROUBLE

Incomplete

draining

The spin dryer

basket will not

run.

CHECK POINT

Check that the power cord is

connected to a power outlet well.

Power stoppage?

Is the laundry overloaded?

Are the laundry arranged evenly?

WASHING TIME

LAUNDRY GUIDE

MAINTENANCE

TROUBLE SHOOTING

WHEN YOU LOAD THE LAUNDRY INTO

THE SPIN BASKET.

Press the laundry evenly and put the safety

cover into the spin basket drum as shown in

the figure.

TO PICK OUT THE CLOTHING WHICH HAS

FALLEN BETWEEN THE BASKET AND TUB.

For safty,pull the power supply plug out of the socket.

TYPE OF LAUNDRY

Thin(synthetic fiber)

wool

cotton

thick(cotton)

SPIN DRY TIME

DETERGENT

TIME

1min.

1~2min.

3~5min.

5min.

AMOUNT OF DETER-

GENT

32 g

40 g

50 g

WATER

LEVEL

Low (32l)

Mid (40l)

High (50l)

The amount of detergent is average.

Follow the instruction detergent printed

on the package for amount of detergent.

Choose the amount of detergent

depending on the fabric type.

CHECK POINT

Is the filter clogged

with lint?

●See “Cleaning the

machine”on page 5.

Is the spin dryer lid closed

completely?

Are laundry(socks,etc.) falling

out of the spin dryer basket and

clinging to the axle?

●See “To pick out...”on page 6.

1. Disassemble two screws from the spin dryer hatch.

2. The spin dryer hatch is fixed to the brim by the concave

and convex parts at two places. Expand the concave

and convex parts, and pull up the spin

dryer hatch to remove it.

3. Remove the clothing

4. Close the spin dryer hatch.

Push in hatch firmly until

the catch at the front is

engaged securely.

MODEL

DIMENSIONS (W x D x H)mm

WATER PRESSURE

WEIGHT

EXTRACTION EFFICIENCY

STANDARD QUANTITY OF WATER

RATING TIME

812 x 448 x 957 812 x 448 x 918 812 x 448 x 995

0.05~0.78 MPa

0.5 ~ 8.0 kg.f/cm

With out pump

With pump

SWT70A1 SWT70B1 SWT75A1

IF YOU NEED HELP.

Do not hesitate to call your local samsung service center.

They will be willing to help you.

Be sure to give them your name,address,telephone number and the purpose of the call.

SPECIFICATION

DC68 - 00100A

29 kg

31 kg

50 %

50 l

Washing 1Hour / Spinning 15minutes

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Samsung

Samsung

Samsung WD10J8420GW Manual de usuario

Samsung

Samsung WF229AN Series Manual de usuario

Samsung

Samsung WA50A5400A Series Manual de usuario

Samsung

Samsung WF9804EWE Manual de usuario

Samsung

Samsung WW90K6 Series Manual de usuario

Samsung

Samsung WF393BTPAWR/A1-0001 Manual de usuario

Samsung

Samsung WS7000A1 Manual de usuario

Samsung

Samsung WA85R6350B Series Manual de usuario

Samsung

Samsung WA52M8650AW Manual de usuario

Samsung

Samsung WD0804W8 series Manual de usuario

Samsung

Samsung WF501ANW Trouble Shooting Guide Manual de usuario

Samsung

Samsung WA10J7750GW/SA Manual de usuario

Samsung

Samsung WA45T3400A Manual de usuario

Samsung

Samsung WD17T6300 Series Manual de usuario

Samsung

Samsung P843GW/YLP Manual de usuario

Samsung

Samsung WW9 J5 6 Series Manual de usuario

Samsung

Samsung WW80J3 Series Manual de usuario

Samsung

Samsung J121NSH Manual de usuario

Samsung

Samsung WD702U4BK Series Manual de usuario

Samsung

Samsung WA40J3000AW Manual de usuario

Samsung

Samsung DC68-01518Q Manual de usuario

Samsung

Samsung WF702U2SA series Manual de usuario

Samsung

Samsung WD70M4 Series Manual de usuario

Samsung

Samsung WT6500 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
