COLOUR

TELEVISION

SP43L2HX

SP50L2HX

SP61L2HX

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

ON-SCREEN MENUS

PICTURE INPICTURE (PIP)

TELETEXT

ENG

Safety Instructions

◆Do not expose the television to extreme temperature conditions or to extreme humidity conditions.

◆Do not expose the television to direct sunlight and other sources of heat.

◆Do not expose the television to any liquids.

◆Never put objects of any kind into the television, and do not place a water-containing vessel on the

television.

◆During a storm conditions (especially when there is lightning) unplug the television from the mains

socket and aerial.

◆Do not step on or twist the power cord.

◆Do not overload wall outlets or extension cords as this can result in a risk of fire or electric shock.

◆Please use a soft and dry cloth (not containing volatile matter) when you clean the TV.

◆If the television is broken, do not try to repair it yourself. Contact qualified service personnel.

◆If the remote control is not used for a long period of time, remove the batteries and store it in a

cool, dry place.

◆Do not drop the remote control.

This device is not for use in industrial environments.

Caution

WARNING: TO PREVENT DAMAGE WHICH MAY RESULT

IN FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRICAL SHOCK,

DO NOT REMOVE REAR COVER, NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

The lightning flash and arrow head

within the triangle is a warning sign

alerting you of “dangerous voltage”

inside the product.

The exclamation point within the

triangle is a warning sign alerting

you of important instructions

accompanying the product.

☛The main voltage is indicated on the

rear of the TV set and the frequency is

50 or 60Hz.

ENG

Contents (continued)

◆FOREWORD

■Safety Instructions......................................................................................... 2

■Caution.......................................................................................................... 2

■Replacing the Lamp....................................................................................... 5

◆CONNECTING AND PREPARING YOUR TELEVISION

■Control Panel of Your Television................................................................... 6

■Connection Panel of Your Television ............................................................ 7

■Connecting to an Aerial or Cable Television Network................................... 8

■Connecting a Satellite Receiver or Decoder.................................................. 8

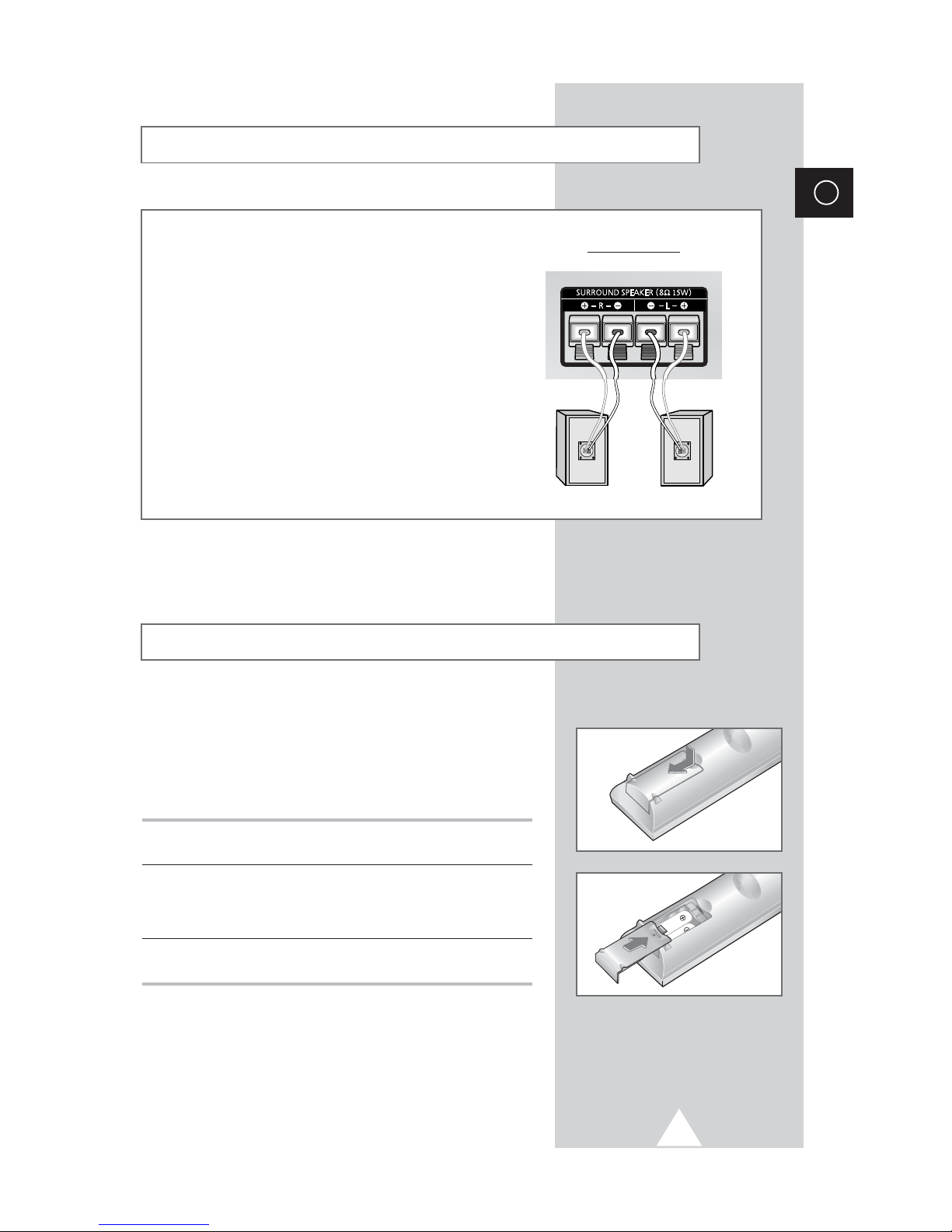

■Connecting Additional Speakers ................................................................... 9

■Inserting the Batteries in the Remote Control................................................ 9

■Infrared Remote Control................................................................................ 10

■Switching Your Television On and Off........................................................... 11

■Placing Your Television in Standby Mode..................................................... 11

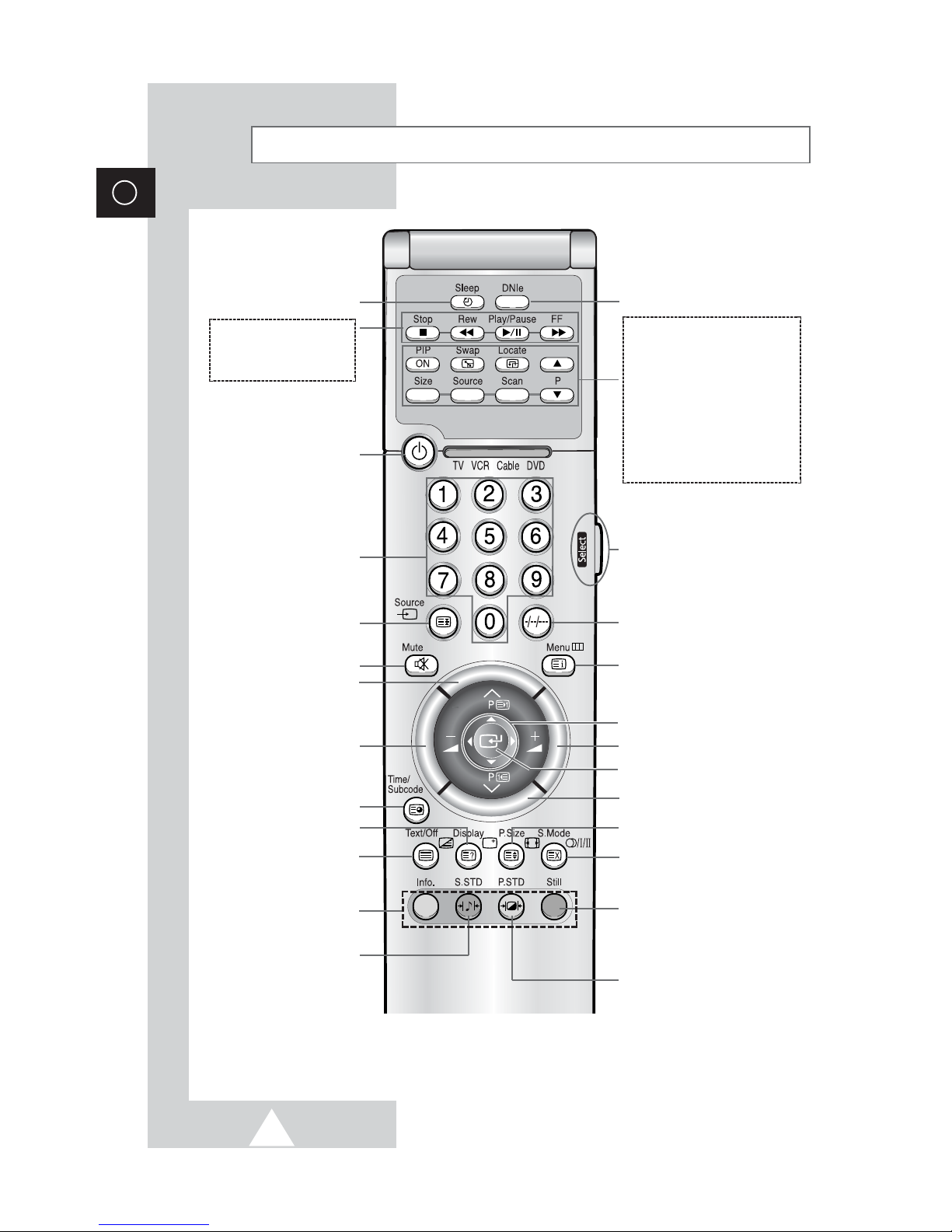

■Becoming Familiar with the Remote Control................................................. 12

■Setting Up Your Remote Control................................................................... 13

■Plug & Play Feature....................................................................................... 14

■Choosing Your Language.............................................................................. 15

◆SETTING THE CHANNELS

■Storing Channels Automatically..................................................................... 16

■Sorting the Stored Channels ......................................................................... 17

■Storing Channels Manually............................................................................ 18

■Assigning Names to Channels ...................................................................... 20

■Activating the Child Lock and Skipping Unwanted Channels........................ 21

■Selecting a Channel by Information............................................................... 22

◆USING YOUR TELEVISION (continued)

■Changing the Picture Standard ..................................................................... 22

■Changing the Picture Standard ..................................................................... 23

■Adjusting the Picture Settings........................................................................ 23

■Adjusting the Picture Settings (PC or DVI Mode).......................................... 24

■Setting the Picture (PC Mode)....................................................................... 25

■Extra Picture Settings.................................................................................... 26

Size

Blue Screen

Film Mode

Digital NR

■Using the LNA (Low Noise Amplifier) Feature............................................... 27

■Freezing the Current Picture ......................................................................... 27

■DNIeTM (Digital Natural Image engine) ............................................... 28

ENG

Contents

◆USING YOUR TELEVISION

■Changing the Sound Standard...................................................................... 28

■Adjusting the Sound Settings ........................................................................ 29

■Adjusting the Volume Automatically.............................................................. 29

■Setting the Dolby Pro Logic........................................................................... 30

■Adjusting Your Dolby Preferences................................................................. 31

■Setting the External Sound............................................................................ 32

■Selecting the Sound Mode (depending on the model) .................................. 33

■Setting the Melody Sound ............................................................................. 34

■Setting the Sleep Timer................................................................................. 34

■Setting the Time and Switching the TV On/Off Automatically ....................... 35

■Viewing Pictures From External Sources...................................................... 36

■Redirecting an Input to the External Output .................................................. 37

■Viewing the Picture In Picture (PIP) .............................................................. 38

◆USING THE TELETEXT FEATURE

■Teletext Feature ............................................................................................ 40

■Displaying the Teletext Information............................................................... 41

■Selecting Display Options.............................................................................. 42

■Select a Teletext Page .................................................................................. 43

◆ADDITIONAL INFORMATION AND CONNECTIONS

■Connecting to the External Input/Output ....................................................... 44

■Connecting to the DVD Input......................................................................... 45

■Connecting to the Audio Outputs................................................................... 45

■Connecting to the Audio/Video Input............................................................. 46

■Connecting to the S-Video Input.................................................................... 46

■Connecting to the DVI Input .......................................................................... 47

■Connecting to the PC Input ........................................................................... 47

■Setting up Your PC Software (Windows only)............................................... 48

■Input Mode (PC/DVI)..................................................................................... 49

■Pin Configurations......................................................................................... 50

◆RECOMMENDATIONS FOR USE

■Troubleshooting: Before Contacting Service Personnel................................ 51

■Technical Specifications................................................................................ 52

■Wiring the Mains Power Supply Plug (UK Only)............................................ 53

☛➢

Press Important Note

Symbols

ENG

1Use a screwdriver to remove the screw.

2Remove the Lamp cover.

3Use a screwdriver to remove the screws securing the Lamp.

There are 2 screws: one on the up and one on the down.

When the screws have been completely unfastened, they will still

be connected to the body of the Lamp.

4Separate the Lamp from the engine by holding the handle and

pulling it out.

5To reinstall the Lamp, follow these steps in reverse order.

☛A Projection TV lamp is a consumable item, and should be

replaced from time to time for best projector operation. If the

screen image becomes dark, or timer, lamp and Temp LEDs

flicker off at the same time, you may have to replace the lamp.

When changing the lamp, you should first verify the

type/model, and then use only the correct lamp replacement.

The code for lamp regulation and usage is marked on the

label. If you remove the lamp, you can identify this

replacement code. You should only replace the lamp with the

one of the same regulation code.

◆

If you wish to buy a new lamp,please phone your Service Center

or a nearby TV dealer, and tell them the model of your projection

unit.

◆

You can identify the lamp type on the left side of TV and the

lamp cover.

◆

The TV will be damaged if you use a lamp that is different from

the original supplied by the manufacturer. Be sure the

replacement lamp is the same model.

◆

Please don't remove the lamp except when replacing with a new

one.

◆

Please turn off TV power before changing a lamp and then

unplug after waiting 1 minute.

◆

The cooling fan will help cool the lamp so you can safely remove

it. The surface of the Lamp is very hot. Please wait for 30

minutes after turning off your projection TV to handle the lamp.

◆

Please keep the old lamp away from flammable articles and

children. Dispose of properly.

◆

Don't allow dirt or dust to accumulate inside the lamp cover or on

the Lamp.

◆

A dirty cover or lamp can catch fire, explode and cause electric

shock.

◆

Please don't touch the front glass of a new lamp or the glass of

the lamp container.

◆

If a new lamp is improperly handled,the quality of the screen

image can be affected and the expected life span of the lamp

can be reduced.

◆

Be sure to tighten the lamp cover on the TV after changing the

lamp. Note that the TV will not function if the lamp cover is not

securely attached. Please tighten the holding screw on the lamp

cover after it has been attached to the TV.

Replacing the Lamp

ENG

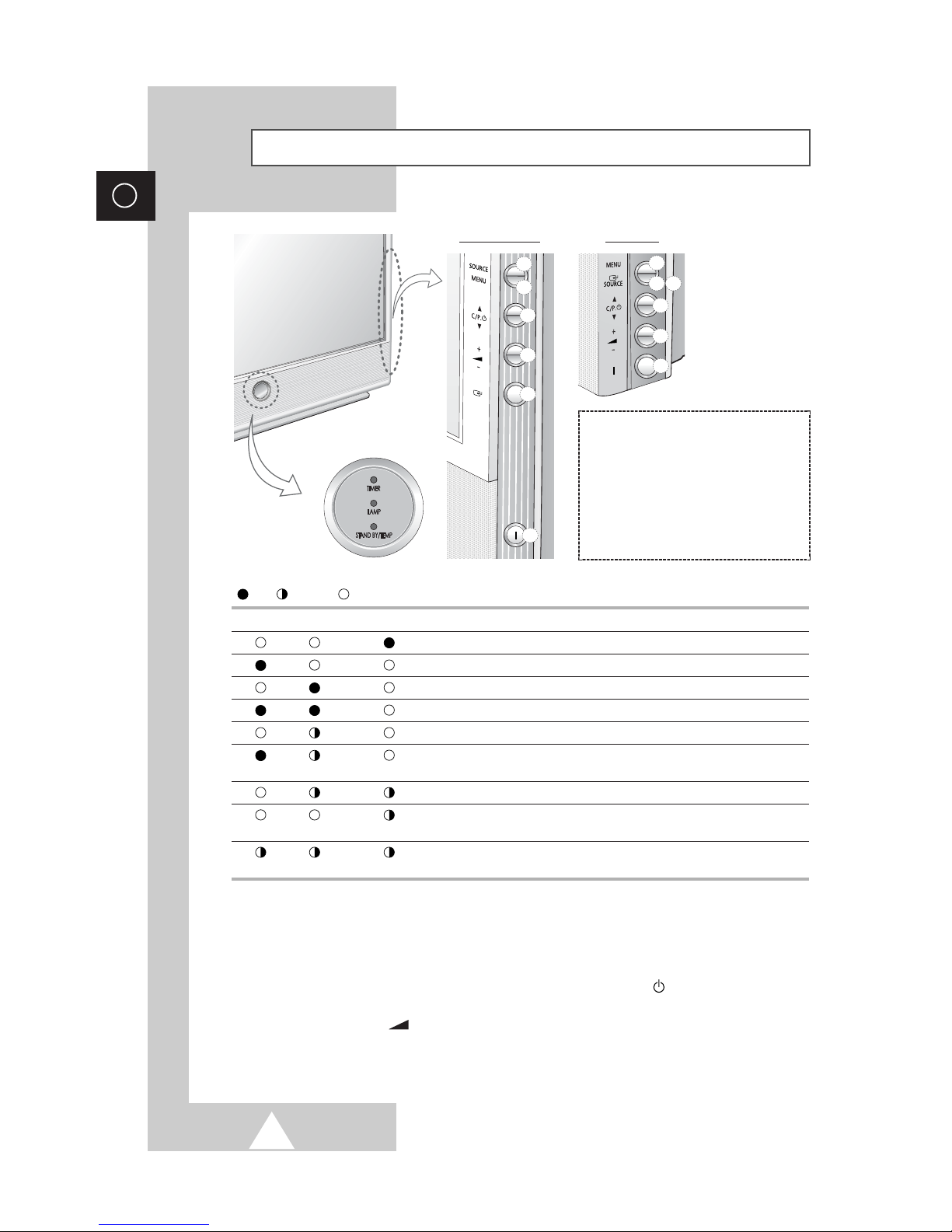

Control Panel of Your Television

LED Indicators

➢

The actual configuration on your TV may be different, depending on

your model.

(:On, :Blinking, :Off)

TIMER LAMP STAND BY/TEMP Indication

Standby mode.

A timer pilot lights when Timer Auto On or Off is selected.

Normal operation.

Normal operation (when Timer Auto On or Off is selected).

Lamp is warming up. The normal picture comes on after 25 seconds.

The normal picture comes on after 25 seconds. (when Timer Auto On or

Off is selected)

Air vent cover in the rear of the TV is not properly installed.

Inside temperature of the TV is over normal. Clean the air vent cover in the

rear of the TV. Turn the TV back on after 1 hour.

The lamp does not work, please contact an authorized Service Center for

assistance.

➢Using the Buttons on the Panel

If the remote control no longer works or you have lost it, you can use controls on the panel of the TV to:

◆

Switch on the TV when it is in Standby mode and select channels ( ▲C/P. ▼ ).

◆

Access the menu ( MENU ).

◆

Adjust the volume ( +

◆

Switch among Video input modes ( SOURCE ).

( a ) Input Source Selection

( b ) Menu Display

( c ) Channel Selection

( d ) Volume Adjustment

( e ) Confirm your choice

(Store or Enter)

( f ) Power On/Off

SP43L2/50L2HX SP61L2HX

ENG

Connection Panel of Your Television

efh

Video Input

Audio Inputs

S-Video Input

Rear of the TV

➣For further details about connection, refer to pages 44~47.

➢

The actual configuration on your TV may be different, depending on

your model.

a) 75Ω

Coaxial connector for Aerial or Cable

Network.

b) AV1 / AV2 / AV3

Inputs or outputs for external devices, such as

VCR, DVD, video game device or video disc

players.

c) SURROUND SPEAKER (8Ω15W)

Connectors for external rear speakers.

d) AUDIO OUT

Amplifier (L/R) or powered speaker (WOOFER)

connection to take full advantage of the

surround sound effect.

e) COMPONENT

Video (Y/PB/PR) and audio (L/R) inputs for

Component.

f) PC AUDIO (L/R)

PC or DVI Audio inputs.

g) PC (15 Pin)

PC Video input.

h) DVI (24 Pin)

Video input for device with DVI input.

i) RS-232 (only for service)

Side of the TV

ENG

To view television channels correctly, a signal must be received by

the set from one of the following sources:

◆An outdoor aerial

◆A cable television network

◆A satellite network

1In the first three cases, connect the aerial or network input cable to

the 75Ωcoaxial socket on the rear of the television.

2If you are using an indoor aerial, you may need to turn it when

tuning your television until you obtain a picture that is both sharp

and clear.

For further details, refer to:

◆“Storing Channels Automatically” on page 16

◆“Storing Channels Manually” on page 18

Connecting to an Aerial or Cable Television Network

Rear of the TV

Cable Television

Network

Connecting a Satellite Receiver or Decoder

In order to watch television programmes broadcast via a

satellite network, you must connect a satellite receiver to the

rear of TV. Also, in order to descramble a coded

transmission signal, you must connect a decoder to the rear

of TV.

◆Using a SCART cable

Connect the receiver (or decoder) SCART cable to one of

the SCART connectors on the rear of the television.

◆Using a coaxial cable

Connect a coaxial cable to the:

Receiver (or Decoder) output socket.

Television aerial input socket.

➢If you wish to connect both a satellite receiver (or decoder)

and a VCR, you should connect the:

◆Receiver (or Decoder) to the VCR

◆VCR to the television

Otherwise, connect the receiver (or decoder) directly to

the television.

Rear of the TV

Satellite receiver/

Decoder

ENG

Connecting Additional Speakers

You must insert or replace the batteries in the remote control when

you:

◆Purchase the television

◆Find that the remote control is no longer operating

correctly

1Remove the cover on the rear of the remote control by pressing

the symbol downwards and then pulling firmly to remove it.

2Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking

care to respect the polarities:

◆

on the battery against

on the remote control

◆

on the battery against

on the remote control

3Replace the cover by aligning it with the base of the remote

control and pressing it back into place.

Inserting the Batteries in the Remote Control

Rear of the TV

To take advantage of the surround sound system, connect

additional speakers.

The speaker terminals are located on the rear of the television:

◆Two for the left-hand surround speaker (marked L)

◆Two for the right-hand surround speaker (marked R)

➢To improve the quality of the sound, connect the:

◆Red wire to the red terminal

◆Black wire to the black terminal

ENG

Infrared Remote Control

Power

AUTOMATIC SWITCH-OFF

VCR/DVD FUNCTIONS;

- STOP (Stop)

- REWIND (Rew)

- PLAY/PAUSE (Play/Pause)

- FAST FORWARD (FF)

POWER ON/OFF

NUMERIC BUTTONS

TEMPORARY SOUND SWITCH OFF

VOLUME DECREASE

DISPLAY INFORMATION/

TELETEXT REVEAL

SOUND EFFECT SELECTION

PICTURE EFFECT SELECTION

STILL THE MAIN PICTURE

➢In the PIP mode, the main and sub

pictures are stilled at the same time.

PICTURE SIZE/

TELETEXT SIZE SELECTION

VOLUME INCREASE

CONTROL THE CURSOR IN THE MENU

MENU DISPLAY/

TELETEXT INDEX

MAKE THE REMOTE CONTROL WORKS

FOR TV, VCR, CABLE, DVD PLAYER

EXTERNAL INPUT SELECTION/

TELETEXT HOLD

➢The performance of the remote control may be affected by bright light.

PIP FUNCTIONS;

-PIP ACTIVATING OR DEACTIVATING

(PIP ON)

-SWAPPING THE MAIN AND THE SUB

PICTURE (Swap)

-SELECTING THE LOCATION OF SUB

PICTURE (Locate)

-SELECTING THE CHANNEL OF SUB

PICTURE (P▲/▼)

-SETTING THE SIZE OF SUB PICTURE

(Size)

-SELECTING THE INPUT SOURCE

(Source)

-SCANNING THE CHANNEL OF SUB

PICTURE (Scan)

CONFIRM YOUR CHOICE

(STORE OR ENTER)

ONE, TWO, OR THREE-DIGIT CHANNEL

SELECTION

FASTEXT TOPIC SELECTION

NEXT CHANNEL/

TELETEXT NEXT PAGE

PREVIOUS CHANNEL/

TELETEXT PREVIOUS PAGE

SOUND MODE SELECTION/

TELETEXT CANCEL

TELETEXT SUB CODE

TELETEXT ON

VIDEO & TEXT

MIX

TELETEXT OFF

(Refer to page 41 for details)

DNIe ON/MEMO/OFF

Otros manuales para SP-43L2HX

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Samsung

Samsung

Samsung CT-17M16MQ Manual de usuario

Samsung

Samsung AG20400SC/TCE Manual de usuario

Samsung

Samsung PS42A450P1D Manual de instalación y operación

Samsung

Samsung GL21M6W Manual de usuario

Samsung

Samsung UN40D5550RF Guía del usuario

Samsung

Samsung CS2551SX Manual de usuario

Samsung

Samsung SP46L5HR1X/XTT Manual de usuario

Samsung

Samsung 9 Series Manual de usuario

Samsung

Samsung Plasma TV Manual de usuario

Samsung

Samsung CS-29Z45Z3Q Manual de usuario

Samsung

Samsung CL21K30M16 Manual de usuario

Samsung

Samsung CS3403AMNS/XSH Manual de usuario

Samsung

Samsung LN32D405E5D Manual de usuario

Samsung

Samsung series 5 5000 Manual de usuario

Samsung

Samsung QE85Q80BATXXH Manual de usuario

Samsung

Samsung PN60E8000 E- Instrucciones de montaje

Samsung

Samsung QE65LST7TCUXXN Manual de usuario

Samsung

Samsung TELEVISOR EN COLOR CL-29Z30 Manual de usuario

Samsung

Samsung CK331ET6X/BOB Manual de usuario

Samsung

Samsung UE40M5000A Manual de usuario

Samsung

Samsung HL67A750 - 67" Rear Projection TV Manual de usuario

Samsung

Samsung HG24ND470 Manual de usuario

Samsung

Samsung FP9ATSCF-2.101 Guía

Samsung

Samsung TU43CU7175U C Series Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
