Samsung 690 series 6 Manual de usuario

Thank you for purchasing Samsung product.

To receive more service, please register your

product at

www.samsung.com/register

Model Serial No.

LED TV

Installation manual

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product

appearance. Product design and speciﬁcations may be changed without notice.

Introduction

This TV B2B (Business to Business) model is designed for hotels or the other hospitality businesses, supports a variety of special functions,

and lets you limit some user (guest) controls.

Operational Modes

This TV has two modes: Interactive and Stand-alone mode.

yInteractive mode: In this mode, the TV communicates with and is fully or partially controlled by a connected Set Back Box (SBB) or Set Top

Box (STB) provided by a hospitality SI (System Integration) vendor. When the TV is initially plugged in, it sends a command that attempts to

identify the SSB or STB connected to it. If the TV identiﬁes the SBB or STB and the SBB or STB identiﬁes the TV, the TV gives full control

to the SBB or STB.

yStand-alone mode: In this mode, this TV works alone without an external SBB or the STB.

The TV has a Hotel (Hospitality) Menu that lets you easily set its various hospitality functions. Please see pages 28 to 32.

The Menu also lets you activate or de-activate some TV and hospitality functions so you can create your optimal hospitality conﬁguration.

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such as TV channel logos, panorama or 4:3 format images,

stock or news bars or crawls) on the screen. Displaying still pictures continually can cause uneven screen wear, which will affect image quality.

To reduce the chance that this effect will occur, please follow the recommendations below:

yAvoid displaying the same TV channel for long periods.

yAlways try to display a full screen image.

yReduce brightness and contrast to help prevent the occurrence of after-images.

yUse all TV features designed to reduce image retention and screen burn-in. Refer to the proper user manual section for details.

Ensuring Proper Ventilation

When you install the TV, maintain the distances shown below between the TV and other objects (walls, cabinet sides, etc.) to ensure proper

ventilation.

Failing to do so may result in a ﬁre or problems with the TV caused by an increase in its internal temperature.

✎When using a stand or wall-mount, use parts provided by Samsung Electronics only.

– If you use parts provided by another manufacturer, it may cause a problem with the product or cause the product to fall, leading to

serious injury.

Installation with a stand. Installation with a wall-mount.

4 inches

4 inches4 inches

4 inches

Additional Information

✎The appearance of the TV and its accessories may differ from the illustrations in this manual, depending on the TV.

✎Be careful when you touch the TV if it is on or has been on for a period of time. Some parts can be hot.

Contents

ENGLISH

English

Symbols Used in this Manual

TOOLS

Indicates that you can press the

TOOLS button on the remote

control to use this function.

NOTE One-Touch Button

yIntroduction ............................................................................................................................................. 2

yOperational Modes .................................................................................................................................. 2

yStill image warning................................................................................................................................... 2

yEnsuring Proper Ventilation ..................................................................................................................... 2

yAdditional Information .............................................................................................................................. 2

yAccessories ............................................................................................................................................. 4

yInstalling the LED TV Stand...................................................................................................................... 5

yAssembling the swivel (32 inch TVs or larger) ........................................................................................... 7

yUsing the TV's Controller ......................................................................................................................... 9

yThe Connection Panel.............................................................................................................................. 10

yThe Remote Control................................................................................................................................. 12

yUsing the Samsung Smart Control (sold separately)................................................................................. 14

yConnecting to the Network ...................................................................................................................... 19

yConnecting the TV to an SBB or STB ...................................................................................................... 21

yConnecting the Bathroom Speakers ........................................................................................................ 24

yConnecting the RJP (Remote Jack Pack)................................................................................................. 25

ySetting the Hotel Option Data .................................................................................................................. 27

yInstalling the Wall Mount .......................................................................................................................... 49

yAnti-theft Kensington Lock....................................................................................................................... 51

ySpeciﬁcations .......................................................................................................................................... 52

yDisplay Resolution ................................................................................................................................... 53

yDimensions.............................................................................................................................................. 54

English

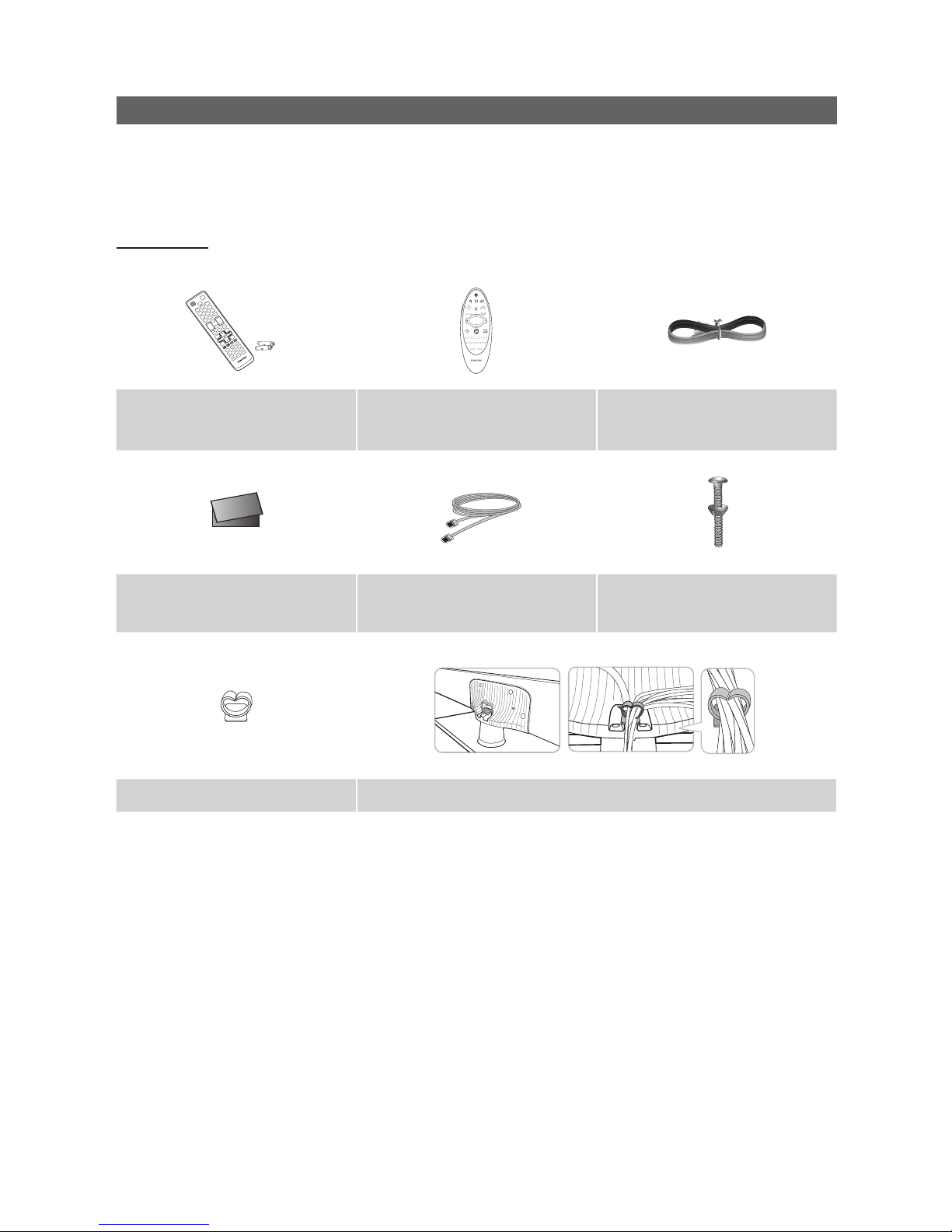

Accessories

✎Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

✎The items’ color and shape may vary, depending on the model.

✎The parts for the stand are listed under Stand Components on the following page.

List of Parts

Remote Control (AA59-00817A) &

Batteries (AAA x 2)

Samsung Smart Control

(BN59-01181N) (sold separately) Power Cord

Safety Guide / Quick Setup Guide

(Not available in all locations)

Data Cable

(depending on the model)

(BN39-00865B, BN39-01011C)

Hotel Mount Kit

Holder-Wire stand 1(EA) Assembling the Holder Wire Stand

English

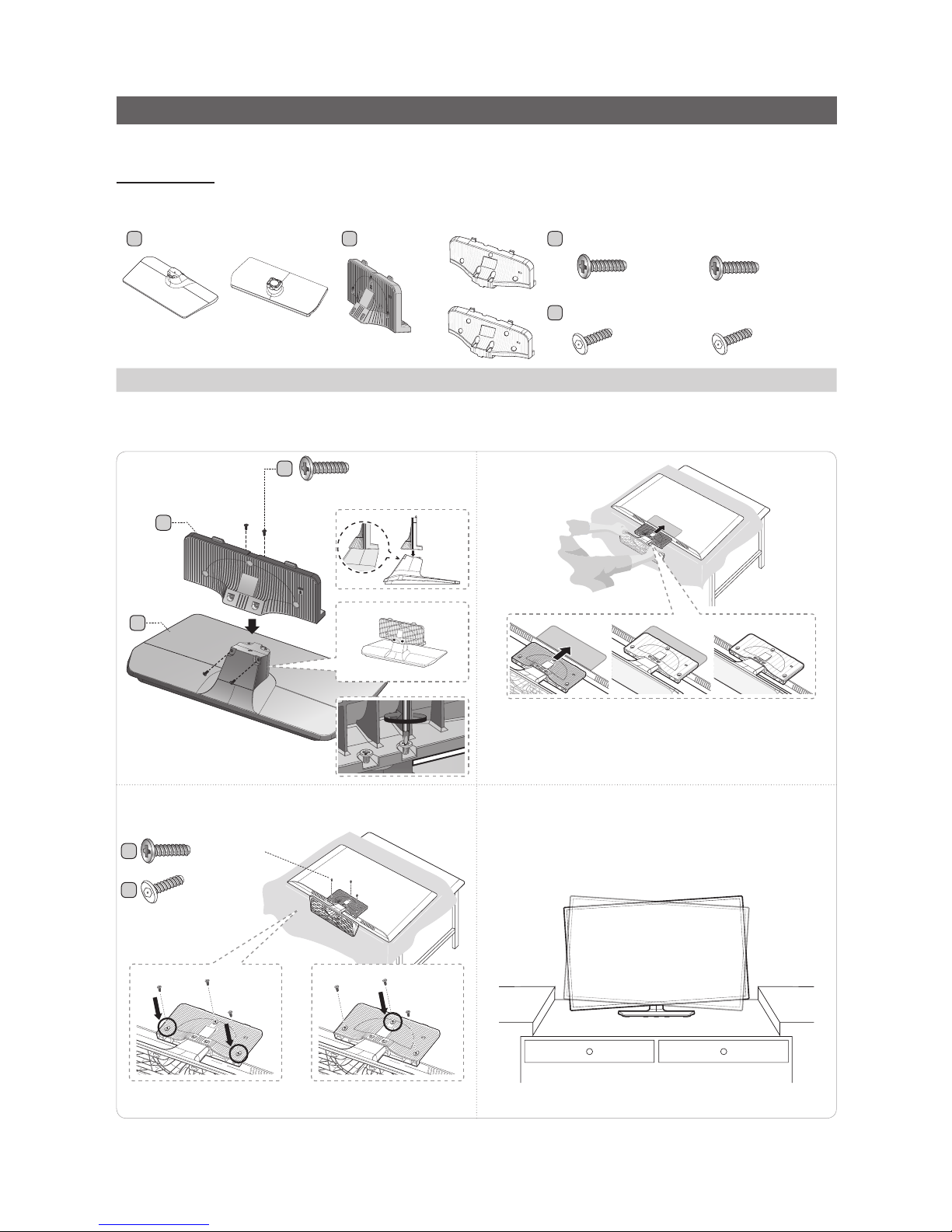

Installing the LED TV Stand

Components

When installing the stand, use the provided components and parts.

28" 32" ~ 55"

1 EA

A B

1 EA

28"

32"

40" ~ 55"

28" ~ 32" 40" ~ 55"

x7 (M4 X L12) x8 (M4 X L12)

28" ~ 32" 40" ~ 55"

x3 (M4 X L12,

SECURITY)

x4 (M4 X L12,

SECURITY)

Stand Guide Stand Screws

HG28ND690

Tight the bottom of the screw ﬁrst, and stow the upper

side of screw last.

When the declination happened, try reassemble it

category.

Cx3 (M4 X L12)

Dx3 (M4 X L12,

SECURITY)

✎Place a soft cloth over the table to protect the TV, and then place

the TV on the cloth screen-side down.

✎Insert the Stand Guide into the slot on the bottom of the TV.

✎Slide and assemble it to the end line in the direction of arrow.

✎Progress the assembly of screw in the manual’s order.

✎Make sure to assembling stand guide attached on the TV.

(M4 X L12)

English

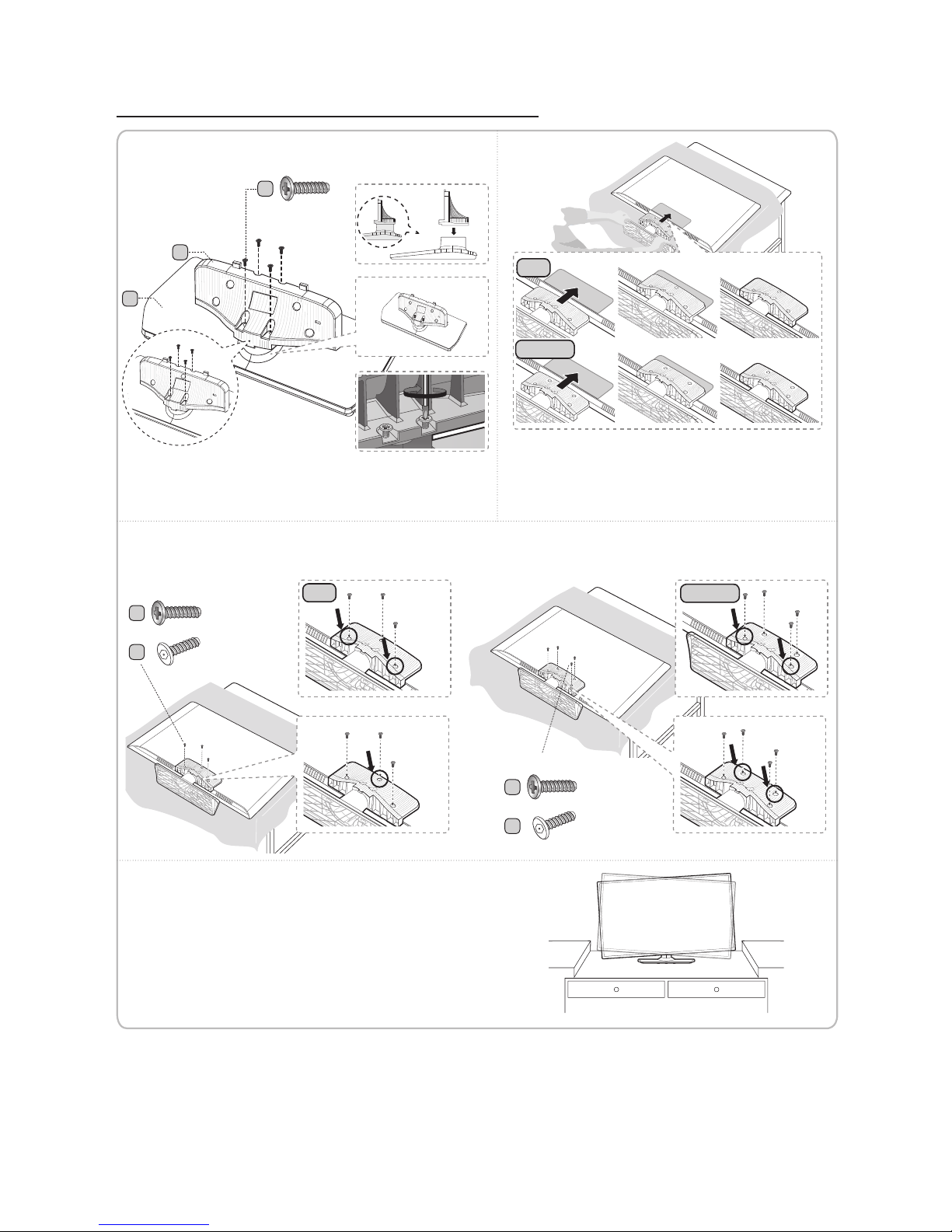

HG32ND690 / HG40ND690 / HG48ND690 / HG55ND690

Tight the bottom screw ﬁrst, and upper screw last.

✎Progress the assembly of screw in the manual’s order.

When the declination happened, try reassemble it

category.

✎Make sure to assembling stand guide attached on the TV.

✎Place a soft cloth over the table to protect the TV, and then

place the TV on the cloth screen-side down.

✎Insert the Stand Guide into the slot on the bottom of the TV.

✎Slide and assemble it to the end line in the direction of

arrow.

(M4 X L12)

x3 (M4 X L12)

x3 (M4 X L12,

SECURITY)

x4 (M4 X L12)

x4 (M4 X L12,

SECURITY)

40"~55"

32"

40"~55" 32"

32"

40"~55"

✎NOTE

– Make sure to distinguish between the front and back of each component when assembling them.

– Make sure that at least two persons lift and move the TV.

English

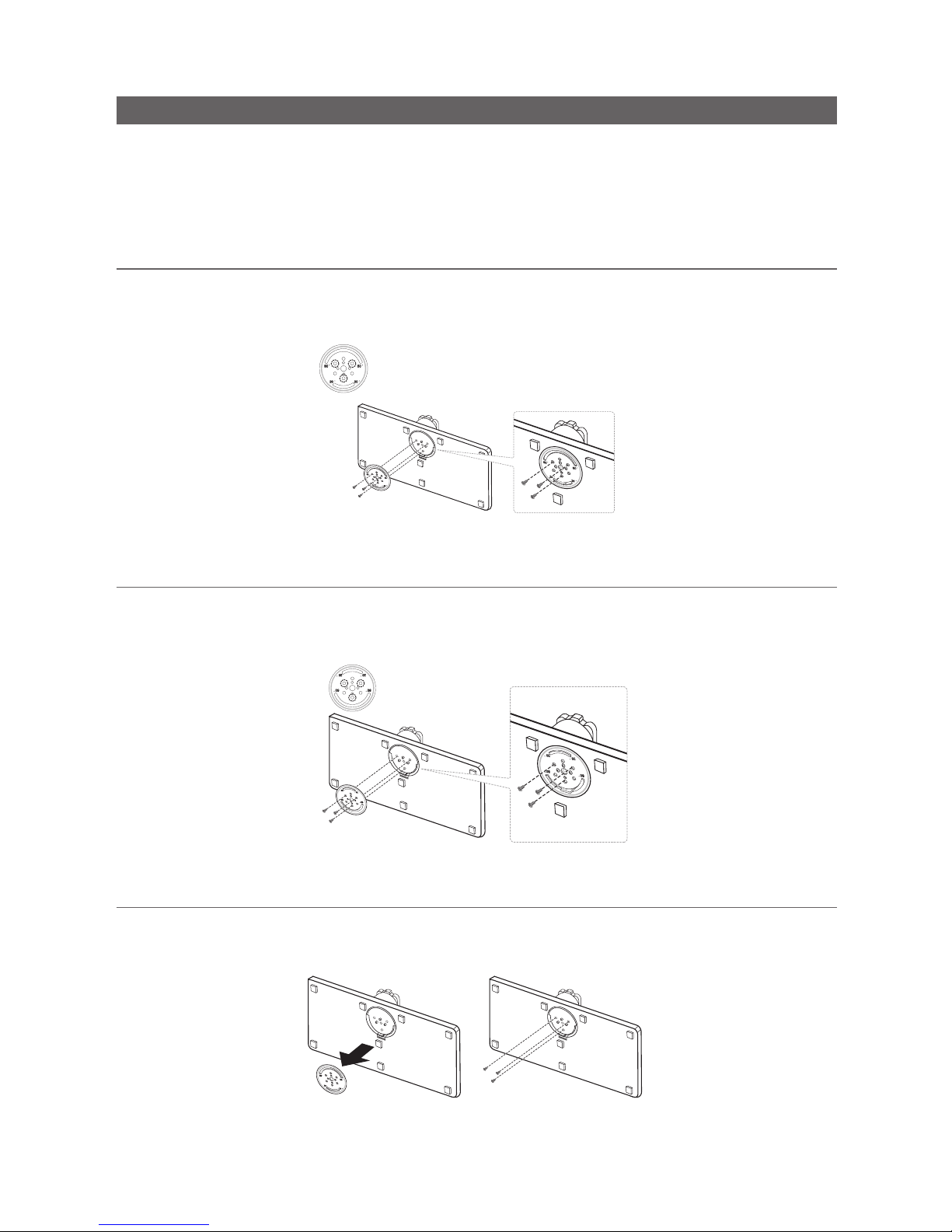

Assembling the swivel (32 inch TVs or larger)

]WARNING: If you conﬁgure the TV to swivel, you must attach it securely to the ﬂoor, a desk, a dresser top, etc. as

described in the installation instructions.

The 32” and larger LED TVs have swivel stands. You can conﬁgure these stands so that the TVs swivel 20 degrees left and

right, 60 degrees left and right, or 90 degrees left and right using the BRACKET HOLDER SWIVEL.

¦20° swivel

To conﬁgure the TV so that it swivels 20° left and right, insert the prong on the bottom of the stand through the curved hole

in the Bracket Holder Swivel marked 20°. Then, ﬁx the Bracket Holder Swivel to the stand using the three supplied screws

as shown below.

¦60° swivel

To conﬁgure the TV so that it swivels 60° left and right, insert the prong on the bottom of the stand through the curved hole

in the Bracket Holder Swivel marked 60°. Then, ﬁx the Bracket Holder Swivel to the stand using the three supplied screws

as shown below.

¦90° swivel

To conﬁgure the TV so that it swivels 90° left and right, remove the Bracket Holder Swivel, and then screw the three supplied

screws into the stand as shown below.

English

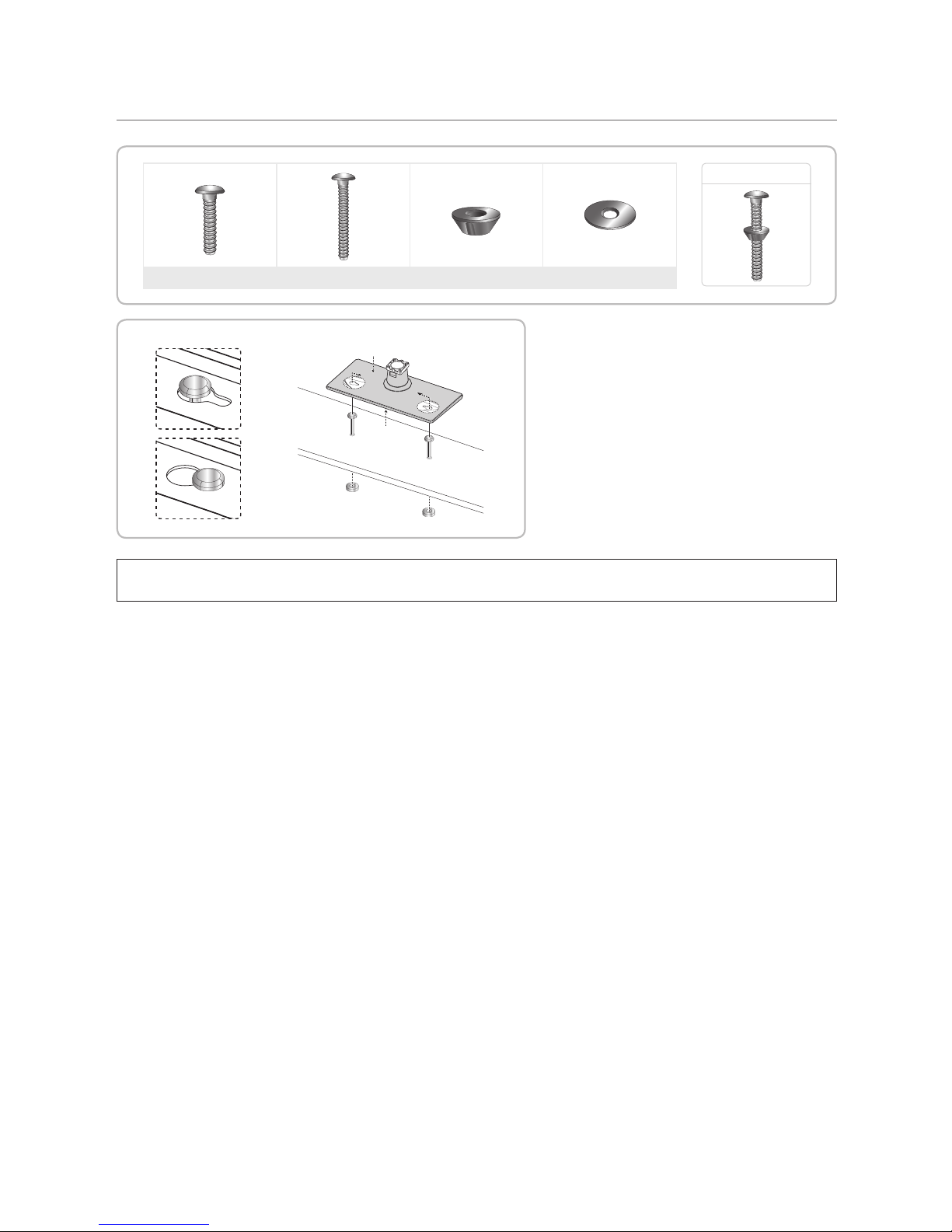

¦Hotel Mount Kit

Short Bolt (2EA) Long Bolt (2EA) Nut (2EA) Washer (2EA)

Bolt + Nut

Top

Bottom

Afﬁx the stand to a ﬂat surface such as a

dresser top, desk top, or entertainment center as

shown.

[

WARNING: To prevent injury, you must attach this TV securely to the ﬂoor, a table, a dresser top, etc.

with the Hotel Mount Kit as described in these instructions.

English

Using the TV's Controller

✎The color and shape of the TV Controller may vary depending on the model.

✎The TV's Controller, a small joy stick like button on the bottom right side of the TV, lets you control the TV without the

remote control.

TV Controller

The control stick is located at the

lower-left corner on the back of the TV.

Turn off the TV.

Open Smart Hub.

Open the menu. Select a source.

Remote control sensor

When you use the Remote control, the

standby LED does not respond, except

when you press the Pbutton.

Power on Turn the TV on by pressing the Controller when the TV is in standby mode.

Adjusting the volume Adjust the volume by moving the Controller from side to side when the power is on.

Selecting a channel Select a channel by moving the Controller backwards and forwards when the power

is on.

Using the Function menu To view and use the Function menu, press and release the Controller when the

power is on. To close the Function menu, press and release the Controller again.

Selecting the MENU (

)With the Function menu visible, select the MENU (m) by moving the Controller to

the left. The OSD (On Screen Display) Menu appears. Select an option by moving

the Controller to the right. Move the Controller to the right or left, or backwards and

forwards to make additional selections. To change a parameter, select the it, and

then press the Controller.

Selecting SMART HUB (™)With the Function menu visible, select SMART HUB (™) by moving the Controller

upwards. The SMART HUB main screen appears. Select an application by moving

the Controller, and then pressing the Controller.

Selecting a Source (s)With the Function menu visible, open the Source screen (s) by pushing the

Controller to the right. The Source screen appears. To select a source, move the

Controller back and forth. When the source you want is highlighted, press the

Controller.

Power Off (P)With the Function menu visible, select Power Off (P) by pulling the Controller

forwards, and then press the Controller.

✎To close the Menu, SMART HUB, or Source, press the Controller for more than 1 second.

Standby mode

Your TV enters Standby mode when you turn it off, and continues to consume a small amount of electric power. To be safe

and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on

vacation, for example). It is best to unplug the power cord.

English

The Connection Panel

7 8

HG28ND690**

HG32ND690**

HG40ND690**

HG48ND690**

HG55ND690**

✎Whenever you connect an external device to your TV, make sure that power on the TV and the device is turned off.

✎When connecting an external device, match the color of the connection terminal to the cable.
