Samsung GT-B2710 Manual de usuario

GSM TELEPHONE

GT-B2710

1. Safety Precautions

2. Level 1Repair

3. Reference data

Notice :

All functionality, features, specifications and other

product information provided in this document inclu

ding, but not limited to, the benefits, design, pricing,

components, performance, availability, and capabiliti

-es of the product are subject to change without

notice or obligation. Samsung reserves the right to

make changes to this document and the product

described herein, at anytime, without obligation on

Samsung to provide notification of such change.

GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice

1. Safety Precautions

1-1

This Document can not be used without Samsung's authorization

1-1. Repair Precaution

―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because

specipicty of cellular phone is sensitive for surrounding interference(RF noise).

―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by

the influence of magnetic force.

―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be

worn away.

―Use athicken twisted wire when you measure level.

Athicken twisted wire has low resistance, therefore error of measurement is few.

―Repair after separate Test Pack and Set because for short danger (for example an overcurrent

and furious flames of parts etc) when you repair board in condition of connecting Test Pack and

tuning on.

―Take specially care of soldering, because Land of PCB is small and weak in heat.

―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous

when tuning ON/OFF PBA and Connector after disassembling charger.

―Don't use as you pleases after change other material than replacement registered on SEC System.

Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice

Safety Precautions

1-2

This Document can not be used without Samsung's authorization

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD

(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.

You can prevent from ESD damage by static electricity.

―Remove static electricity remained your body before you touch semiconductor or parts with

semiconductor. There are ways that you touch an earthed place or wear static electricity prevention

string on wrist.

―Use earthed soldering steel when you connect or disconnect ESD.

―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static

electricity.

―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and

aluminum plate to have conductive power,they are prevented from static electricity.

―You must maintain electric contact between ESD and place due to be set up until ESD is

connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice

6. Level 1Repair

6-1

This Document can not be used without Samsung's authorization

6-1. S/W Download

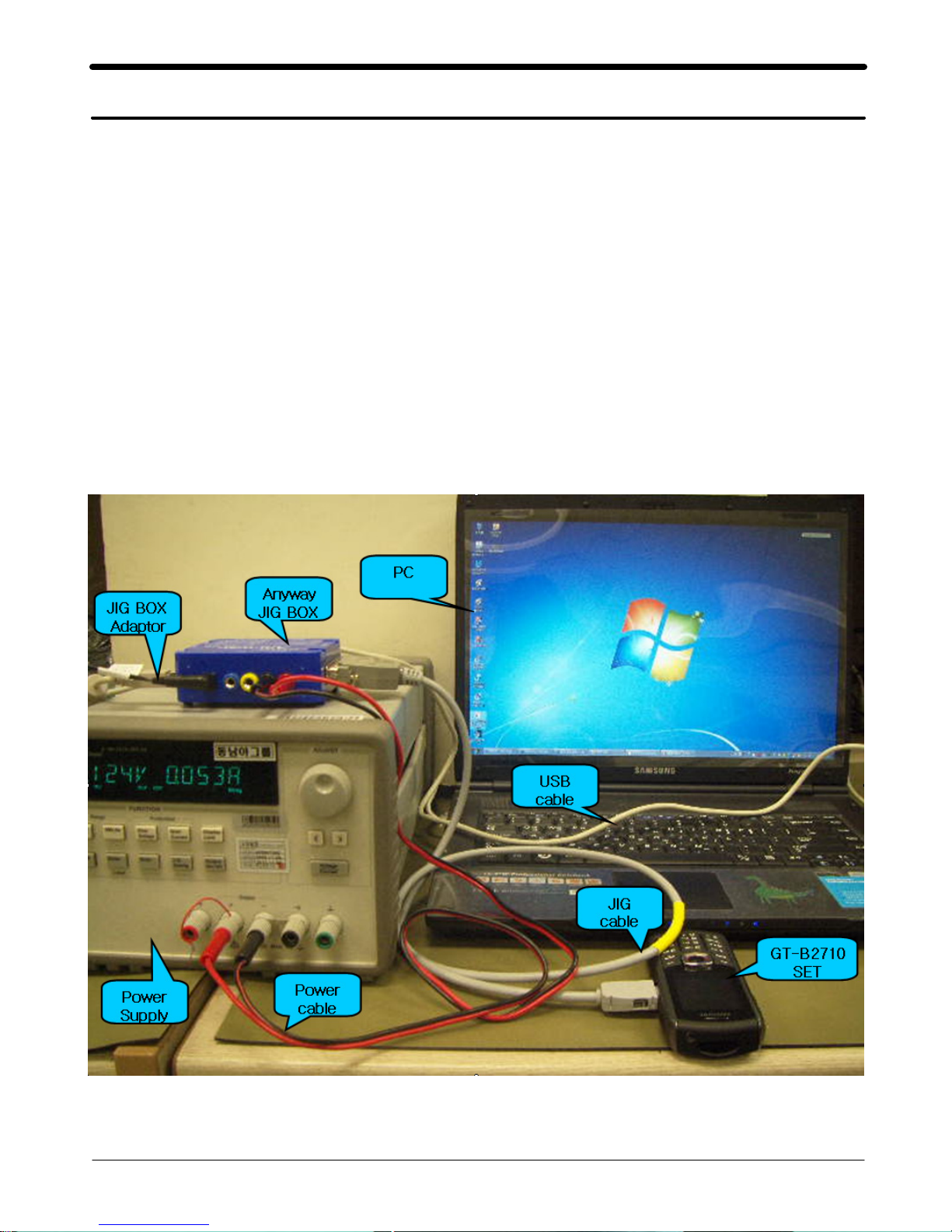

6-1-1. Pre-requsite for S/W Downloading

•GT-B2710 Mobile Phone

•JIG Cable :GH39-01290A

•Anyway JIG BOX :GH99-36900A

•Anyway JIG BOX Adaptor :GH99-38251A

•USB cable

•Power supply (eg. Agilent E3632A or similar one)

•Downloader Program(Downloader V5.63)

•Binary files

•PC (Windows XP)

（The settings for download.

SAMSUNG Proprietary-Contents may change without notice

Level 1Repair

6-2

This Document can not be used without Samsung's authorization

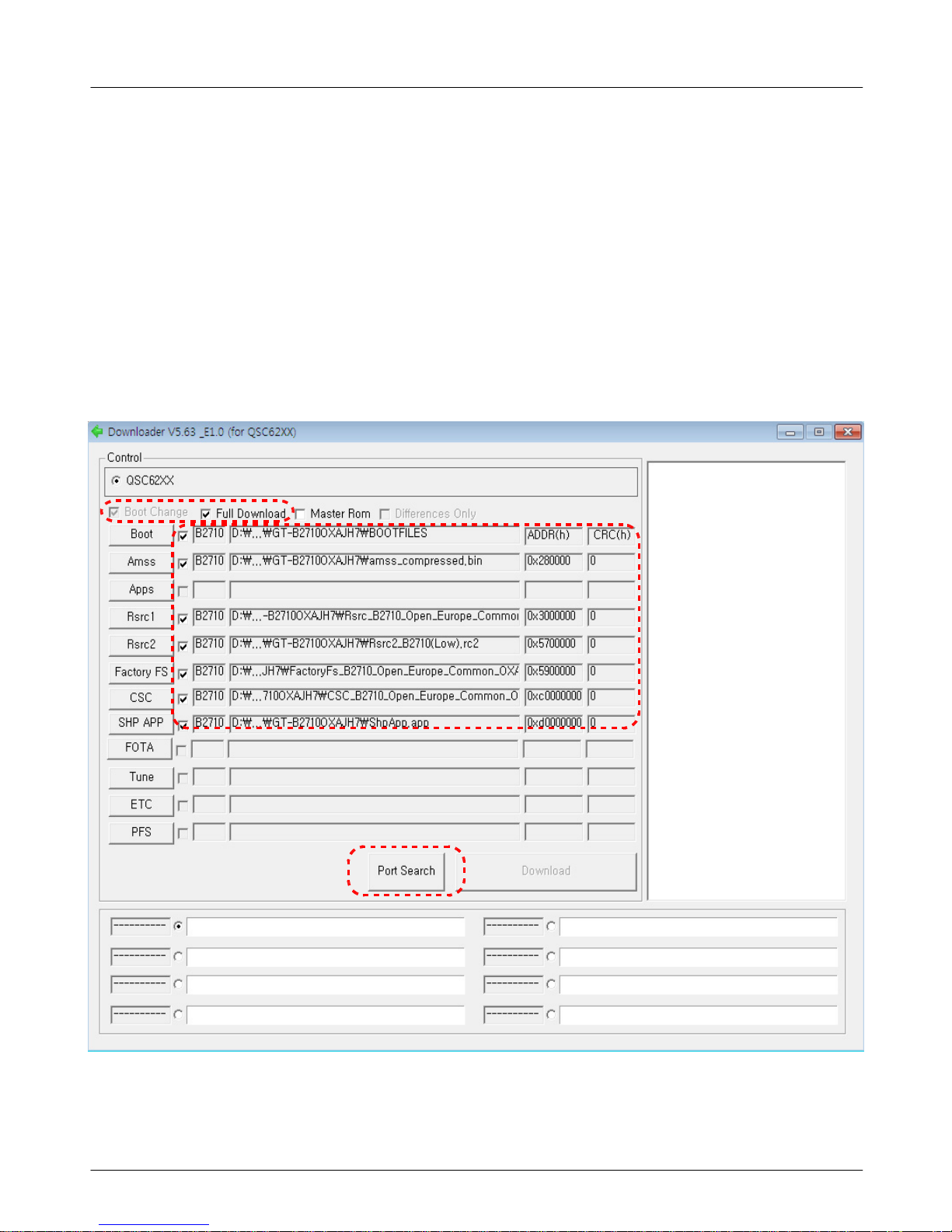

6-1-2. S/W Downloader Program

1. Load the binary download program by executing the Downloader V5.63

2. Check "Boot Change"and "Full Download"

3. Load the file of Boot, Amss, Rsrc 1. Rsrc2, Factory FS, CSC, SHP APP from the

folder that you saved the binary files. (Drag &Drop form file folder)

4. Click the "Port Search"when the download cable is connected to PC

◀2

3▶

4▶

SAMSUNG Proprietary-Contents may change without notice

Level 1Repair

6-3

This Document can not be used without Samsung's authorization

5. Click download when the port ready.

6. When downloading is finished successfully, there is a"

All files complete" message

7. Wait until the mobile is completely booting. It takes few minute

8. Check the bin ver. ( *#1234# )

◀5-1

◀5-2

◀5-3

◀6

SAMSUNG Proprietary-Contents may change without notice

9. Reference Abbreviate

This Document can not be used without Samsung's authorization

9-1

Reference Abbreviate

―AAC:Advanced Audio Coding.

―AVC :Advanced Video Coding.

―BER :Bit Error Rate

―BPSK:Binary Phase Shift Keying

―CA :Conditional Access

―CDM :Code Division Multiplexing

―C/I :Carrier to Interference

―DMB :Digital Multimedia Broadcasting

―EN :European Standard

―ES :Elementary Stream

―ETSI:European Telecommunications Standards Institute

―MPEG:Moving Picture Experts Group

―PN :Pseudo-random Noise

―PS :Pilot Symbol

―QPSK:Quadrature Phase Shift Keying

―RS :Reed-Solomon

―SI :Service Information

―TDM :Time Division Multiplexing

―TS :Transport Stream

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Samsung Electronics Co.,Ltd.

2010. 11. Rev.1.0

ⓒ

Country Web Site

North America service.samsungportal.com

Latin America latin.samsungportal.com

CIS cis.samsungportal.com

Europe europe.samsungportal.com

China china.samsungportal.com

Asia asia.samsungportal.com

Mideast &Africa mea.samsungportal.com

GSPN (Global Service Partner Network)
