Samsung Series Manual de usuario
Portable Series
USER MANUAL
External Hard Drive
S2 Portable S2 Portable 3.0 M3 Portable
•HXMU016DA •HXMU050DA •HX-MTA25DA •HX-MT025DA •HX-M500TCB
•HX-MU016DA •HX-MU050DA •HX-MTA32DA •HX-MT032DA •HX-M101TCB
•HXMU025DA •HX-MU064DA •HX-MTA50DA •HX-MT050DA •HX-M500TAE
•HX-MU025DA •HX-MUD75DA •HX-MTA64DA •HX-MT064DA •HX-M101TAE
•HXMU032DA •HX-MU010EA •HX-MTD75DA
•HX-MU032DA •HX-MUT75DA •HX-MTT75DA
•HX-MU040DA •HX-MUD10EA •HX-MT010EA
•HX-MTD10EA
Portable Series External Hard Drive 2
User’s Manual
Read Me First
About this Manual
Your product comes with a quick start guide and a user’s manual.
Following the instructions and precautions of this manual will ensure easier and more enjoyable use of your Portable Series
External Hard Drive.
Quick Start Guide
A start guide is provided with the purchase of Portable Series External Hard Drive.
The quick start guide explains product components and provides simple instructions on how to install the product.
User’s Manual
The User’s Manual contains detailed information about features and instructions on using your Portable Series
External Hard Drive.
Using this Manual
Carefully read and understand the “Handling Precautions” section before using the product.
Failure to follow all the instructions as outlined in the Handling Precautions section could result in damage to
you or to your Portable Series External Hard Drive.
Refer to the Troubleshooting section rst if you experience a problem with the product.
Icon Guide
Icon Meaning
Precautions These must be read thoroughly before using any of the functions.
Caution This contains must-know information about functions. User must be careful.
Note This contains useful information about the functions.
Software and user’s manuals are available for download at the Samsung Hard Drive website (samsunghdd.seagate.com).
The content of this User’s Manual may change without prior notice for product improvement purposes.
Portable Series External Hard Drive 3
User’s Manual
Handling Precautions
The following information serves to ensure user’s safety and prevent damage to user’s properties.
Carefully read the information provided and use your product correctly.
Supplied with the rated USB BUS Power
Your Samsung Portable Series must use the USB Bus Power. Please connect to the USB Port supplied with the rated USB BUS Power.
Installation Related
Use the product on a at surface.
Do not sit on the product and
donot place a heavy object over
the product.
Product case or connector can be damaged
and may cause a break down.
Data Cable Usage
Standardized data cable
This may increase the wrong operation and
may cause a malfunction.
Do not severely bend the data
cable and do not place a heavy
object over the data cable.
If the data cable is damaged, it may cause a
malfunction.
Do not unplug the data cable by
severely pulling the cable.
This may damage connector on the product
and may cause a problem with the product.
Shock
The external drive is very portable and you may easily drop it. Take care not to drop and tip the product while carrying the
external drive. If you make an impact on the external drive, it may cause bad sectors on the disk. Bad sectors can cause
various and potentially read/write errors.
Humidity
If you use the product in places exposed to humidity, it may danger of electric shock. In addition, prolonged exposure to
moisture can corrode various parts and components.
Portable Series External Hard Drive 4
User’s Manual
Magnets
Magnetic objects can cause various types of damage to the External Hard Drive, including data damage. Keep magnets
and magnetic objects away from the external drive.
Disassembly and Label Removal
For repair, please visit the designated (samsung) customer service center. Unauthorized disassembly, repair, or reform of
the product and unauthorized removal of the labeling will void your warranty.
Always Backup your Important Data
The external drive manufacturer does not guarantee data stored in the external drive and will not assume responsibility
for any mental or material damage incurred during data recovery.
•Backup : Storing the original and a copy on two or more separate and accessible storage media.
Regular Virus Scanning
Frequently scan the device for viruses and protect the external drive from virus infection.
Cleaning the product
Never use cleaning uid or similar chemicals.
Do not spay cleaner directly on the product.
It may cause discoloration and deformation of the product.
Custody Related
Keep the product and accessories out of the reach of children. It may cause personal injuries and problem.
Safely Remove Hardware
Always use the Safely Remove Hardware feature before shutting down the External Hard Drive or disconnecting the USB cable and power cable.
1MB=1,000,000bytes / 1GB=1,000,000,000bytes / 1TB=1,000,000,000,000bytes
Actual accessible capacity may vary from advertised capacity due to formatting and partitioning of the hard drive, as well as due to your computer’s operating system.
Portable Series External Hard Drive 5
User’s Manual
Table of Contents
Read Me First 2
2
2
2
2
About this Manual
Quick Installation Guide
User’s Manual
Using this Manual
Icon Guide
Handling Precautions 3
3
3
3
3
4
4
4
4
4
4
4
Supplied with the rated USB BUS Power
Installation Related
Data Cable Usage
Shock
Humidity
Magnets
Disassembly and Label Removal
Always Backup your Important Data
Regular Virus Scanning
Cleaning the product
Custody Related
Safely Remove Hardware
Introduction 6Safely Remove Hardware
Specications 7
8
S2 Portable
S2 Portable 3.0/M3 Portable
Connecting your Portable Series 9
11
12
Installation
Windows
Macintosh
Using your Portable Series 13
13
15
15
16
Copying / Moving Files
Removable Disk Method
Safely Removing your Portable Series
For Windows
For Macintosh
Portable Series Software 17
17
19
Samsung Drive Manager Software
Samsung Drive Manager Installation
Using Samsung Drive Manager
Troubleshooting 21 FAQ
Appendix 22
22
22
22
23
23
Partitioning and Changing File System Type
Reformat to FAT32
Reformat to NTFS32
Format in Macintosh
Product Certications
FCC
Portable Series External Hard Drive 6
User’s Manual
Introduction
The Portable Series External Hard Drive is a high-performance external hard drive that supports USB 2.0 and
USB 3.0 *. Unlike conventional desktop disk drives, the Portable Series External Hard Drive makes it possible for
you to instantaneously add greater storage capacity to your system without having to take the computer apart.
This means that your Portable Series External Hard Drive comes fully partitioned and formatted for your use and
you can instantly access to the drive by simply plugging it into your computer through a USB port.
The Portable Series comes with Samsung Drive Manager which is a Windows-based integrated-management
software that allows the convenient use of External Hard Drives.
Samsung Drive Manager supports various functions including auto backup, le / folder security, drive lock, drive
diagnostic, partition setup, and power settings.
* S2 Portable : USB 2.0
S2 Portable 3.0 : USB 3.0
M3 Portable : USB 3.0
Portable Series External Hard Drive 7
User’s Manual
Specications (S2 Portable)
Category S2 Portable
Interface High Speed USB
Transfer Rate 480 Mbps Max.
USB Host Power
Operating System Windows XP / Vista / 7
Mac OS X 10.4.8 or Later
Hard Disk Capacity 160GB / 250GB / 320GB / 500GB / 640GB 750GB / 1TB
Dimensions (W x H x L) (82mm x 15.6mm x 111mm) (82mm x 15.6mm x 111mm)
Color Piano Black, Snow White, Wine Red, Chocolate Brown, Sweet Pink, Ocean Blue, Metal Gray, Champagne Gold
Format System NTFS
System Requirements
•PC : Windows XP / Vista / 7
•Macintosh : Mac OS X 10.4.8 or Later
•Upgrade your operating system to the latest version to enjoy better performance and reliability.
Components
S2 Portable
USB 2.0-Cable
S2 Portable Series
Quick Start Guide
Pouch
When you purchase a S2 Portable External Hard Drive, make sure that all components have been included in your
product package.
Overview
LED
USB Port
LED Description
1) Standby Status : Steadily lit LED
2) Read / Write in Progress : Blinking LED
Some computers supply limited USB bus power. If your drive doesn't power on after connecting the USB cable, you may need to
purchase a USB Y-cable from retailers or online shops.
Portable Series External Hard Drive 8
User’s Manual
Specications (S2 Portable 3.0 and M3 Portable)
Category S2 Portable 3.0 M3 Portable
Interface Super Speed USB
Transfer Rate 4.8 Gbps Max.
USB Host Power
Operating System Windows XP / Vista / 7
Mac OS X 10.4.8 or Later
Hard Disk Capacity 500GB / 640GB / 750GB / 1TB
Dimensions (W x H x L) (82mm x 15.6mm x 111mm) (81.9mm x 17.6mm x 110.6mm)
Color Black
Format System NTFS
System Requirements
•PC : Windows XP / Vista / 7
•Macintosh : Mac OS X 10.4.8 or Later
Upgrade your operating system to the latest version to enjoy better performance and reliability.
Components
S2 Portable 3.0 or M3 Portable
USB 3.0 Micro-B Cable
S2 Portable Series
Quick Start Guide
Pouch
(not included with M3 Portable)
When you purchase a Portable Series External Hard Drive, make sure that all components have been included in your
product package.
Overview
LED
USB 3.0 Port
LED Description
1) Standby Status : Steadily lit LED
2) Read / Write in Progress : Blinking LED
To use the S2 Portable 3.0 or M3 Portable at its Maximum speed, you need a PC or a Host Card that supports USB 3.0 interface.
Portable Series External Hard Drive 9
User’s Manual
Connecting your S2 Portable
Installation
Verify that the computer meets the minimum system requirements as outlined in System Requirements.

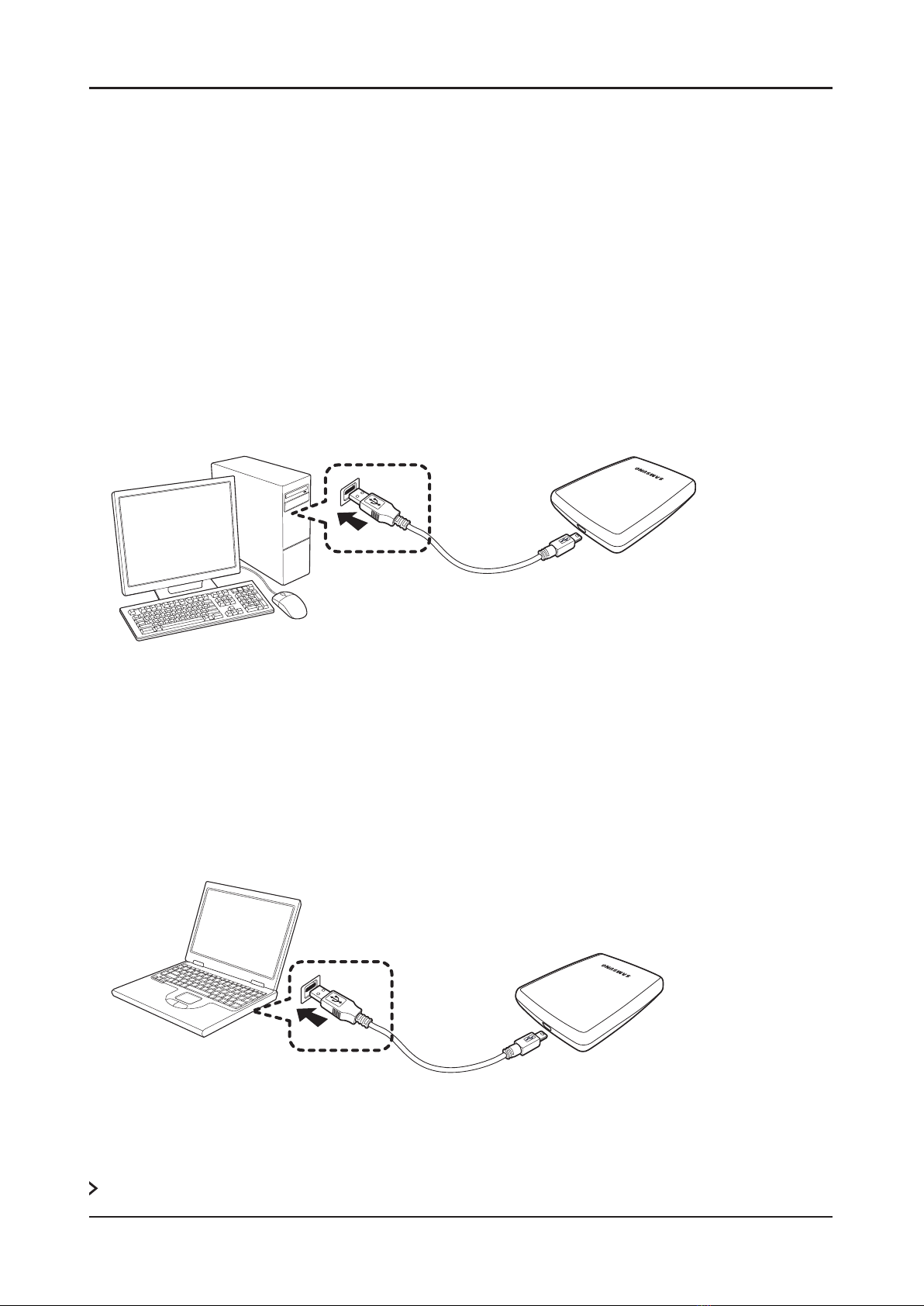

Insert the USB cable to the desktop/laptop computer as shown in Figures 1 and 2:
•Figure 1. Connecting to a Desktop Computer
•Figure 2. Connecting to a Laptop Computer
Your S2 Portable Series External Hard Drive will automatically activate once connected to the computer.
Portable Series External Hard Drive 10
User’s Manual
Connecting your S2 Portable 3.0
or M3 Portable
Installation
Verify that the computer meets the minimum system requirements as outlined in System Requirements. Insert the
USBcable to the desktop/laptop computer as shown in Figures 3 and 4:
•Figure 3. Connecting to a Desktop Computer
•Figure 4. Connecting to a Laptop Computer
To use the S2 Portable 3.0 or M3 Portable model at its maximum speed, you need a PC or a Host Card that supports USB 3.0 interface.
