Samsung DA-F680 Manual de usuario

DA-F680

Wireless Audio with Dock

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more a complete service, please register

your product at

www.samsung.com/register

2 English

features

NFC support

Connect your NFC compatible device via Bluetooth to the Wireless Audio with Dock using this simple set-up procedure

and play music on the device through the Wireless Audio with Dock.

Galaxy Docking Audio Speaker System

Using the system's docking station, dock, charge and then play some Samsung Galaxy devices released after

S3(Android OS 4.1.2 or later) through the system's built-in speakers.

Bluetooth Function

Connect a Bluetooth device to the Wireless Audio with Dock and enjoy music from the device with high quality stereo

sound, all without wires!

EnG

English

safety information

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates “dangerous voltage”

inside the product that presents a risk of

electric shock or personal injury.

This symbol indicates important instructions

accompanying the product.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains

plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the

apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power

plug must be easily and readily accessible at all times.

4 English

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification

sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with

enough space around it for ventilation (70~100 mm). Make sure the ventilation slots are not covered. Do not place

the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully

turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a

long period of time.

Ensure that the AC power supply in your house complies with the power requirements listed on the identification

3.9 inch 3.9 inch

2.7 inch

3.9 inch

During thunderstorms, disconnect the AC plug from

the wall outlet. Voltage peaks due to lightning could

damage the unit.

Protect the product from moisture (i.e. vases) , and

excess heat (e.g.fireplaces) or equipment creating

strong magnetic or electric fields Disconnect the power

cable from the AC supply if the unit malfunctions. Your

product is not intended for industrial use. This product

is for personal use only.

Condensation may occur if your product has been

stored in cold temperatures. If transporting the unit

during the winter, wait approximately 2 hours until the

unit has reached room temperature before using.

Do not expose the unit to direct sunlight or other heat

sources.

This could cause the unit to overheat and malfunction.

The batteries used with this product contain chemicals

that are harmful to the environment.

Do not dispose of batteries in the general household

trash.

Phones

99.1mm

68.6mm

99.1mm

EnG

English

contents

FEATURES

2 Features

SAFETY INFORMATION

3 Safety warnings

4 Precautions

GETTING STARTED

6 Before reading the user’s manual

6 What’s included

DESCRIPTIONS

7 Top/Front/Rear Panel

REMOTE CONTROL

9 Tour of the remote control

POWER ON AND VOLUME

CONTROL

10 Turning the Power on/off

10 Adjusting the volume

CONNECTIONS

11 Using the Spacer Cover

12 Connecting a device to the Galaxy Dock

13 Connecting an audio device using AUX IN

14 Connecting the NFC function

15 Using Bluetooth

FUNCTIONS

18 Using the TV mode (SoundShare)

18 Using the docking mode with Samsung

Galaxy Devices

19 Using the Bluetooth mode

20 Using the USB mode

21 Software upgrade (only USB mode)

TROUBLESHOOTING

22 Troubleshooting

APPENDIX

23 Specifications

English6

getting started

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be canceled.

Note

Indicates tips or instructions on the page that help a function operate.

Safety Instructions and Troubleshooting

1) Familiarise yourself with the Safety Instructions before using this product. (See page 3)

2) If a problem occurs, check Troubleshooting. (See page 22)

permission of Samsung Electronics Co.,Ltd.

WHAT’S INCLUDED

Check for the supplied accessories shown below.

MUTE

VOL

BASS

FUNCTION

Remote Control /

Lithium Battery (3V)

Power Adapter Power Cable Audio Cable

Spacer Cover/

Protection Cover Cloth User Manual

`The appearance of the accessories may differ slightly from the illustrations above.

EnG

English

●DESCRIPTIONS

descriptions

TOP/FRONT/REAR PANEL

DOCK

PUSH

AUX IN ONLYFOR

SERVICE

LAN

USB 5V 500mA

DC 14V 4A

AUX IN ONLYFOR

SERVICE

LAN

USB 5V 500mA

DC 14V 4A

PUSH

<TOP>

DOCK

PUSH

AUX IN ONLYFOR

SERVICE

LAN

USB 5V 500mA

DC 14V 4A

AUX IN ONLYFOR

SERVICE

LAN

USB 5V 500mA

DC 14V 4A

PUSH

<FRONT>

DOCK

PUSH

AUX IN ONLYFOR

SERVICE

LAN

USB 5V 500mA

DC 14V 4A

AUX IN ONLYFOR

SERVICE

LAN

USB 5V 500mA

DC 14V 4A

PUSH

DOCK

PUSH

AUX IN ONLYFOR

SERVICE

LAN

USB 5V 500mA

DC 14V 4A

AUX IN ONLYFOR

SERVICE

LAN

USB 5V 500mA

DC 14V 4A

PUSH

DOCK

PUSH

AUX IN ONLY FOR

SERVICE

LAN

USB 5V 500mA

DC 14V 4A

AUX IN ONLY FOR

SERVICE

LAN

USB 5V 500mA

DC 14V 4A

PUSH

<REAR>

English8

1PLAY/PAUSE

BUTTON

Play or pause a music file.

Press the button for 3 seconds to turn off.

2FUNCTION

BUTTON

Switches the mode as follows :

;

3VOLUME

+/- BUTTON

Controls the volume level.

4FUNCTION

DISPLAY

When you change the mode with the Function button, the icon of the

selected mode is displayed in white on the Function Display.

The LED blinks when you turn the power on and stops blinking when

the unit is on and ready to play.

5NFC TAG

Connect your NFC compatible device via Bluetooth to the using this

simple set-up procedure.

6GALAXY DOCK

Provides a 5-pin dock for Samsung Galaxy devices and a 30-pin

dock for Samsung Galaxy Tab devices.

7DC 14V

Connect the unit's DC adapter to this jack.

8USB PORT

Connect a regular stick type USB storage device such as a thumb

drive to play files stored in the device.

AUX IN

Connect to the Analog output of an external device.

ONLY FOR

SERVICE

This jack is for service only.

`When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

`To update the product’s software via USB port, it is required to use a USB memory device.

`This unit can connect to mobile devices with high audio output levels. When you connect this

unit to external devices with high output levels, it may lower the audio output to protect the

amp and speakers.

`When disconnecting the power cable from the wall outlet, hold the plug. Do not pull the

cable.

EnG

English

●REMOTE CONTROL

remote control

TOUR OF THE REMOTE CONTROL

MUTE

VOL

BASS

FUNCTION

POWER BUTTON

Turns the unit on and off.

CONTROL BUTTON

Search for the next or

previous music file.

VOLUME

Adjusts the volume level of

the unit.

PLAY/PAUSE BUTTON

Play or pause a music file.

FUNCTION BUTTON

Selects the Function mode.

MUTE BUTTON

Mutes the sound from this

unit. Press again to restore

the sound to the previous

volume level.

BASS BUTTON

Optimise the sound based on

your tastes.

Installing battery in the Remote Control

1. Open the cover of the remote

control by putting your fingernail

into the gap between the cover

and body of the remote control.

Then, lift the cover and separate

it completely.

2. Install a 3V Lithium battery.

Insert the battery into the battery

compartment with the + side

facing up.

3. Fit the remote control's cover to

the remote control. Next, lower the

cover so that it is flush with the

body of the remote, and then press

the cover into the body by pushing

the edges down with your hand.

`Be careful not to catch your fingernail in the gap when you lift the cover. You can damage your fingernail.

Operation Range of the Remote Control

You can use the remote control up to 7 meters in a straight line from the unit. You can also operate the remote at a

horizontal angle of up to 30° from the remote control sensor.

English10

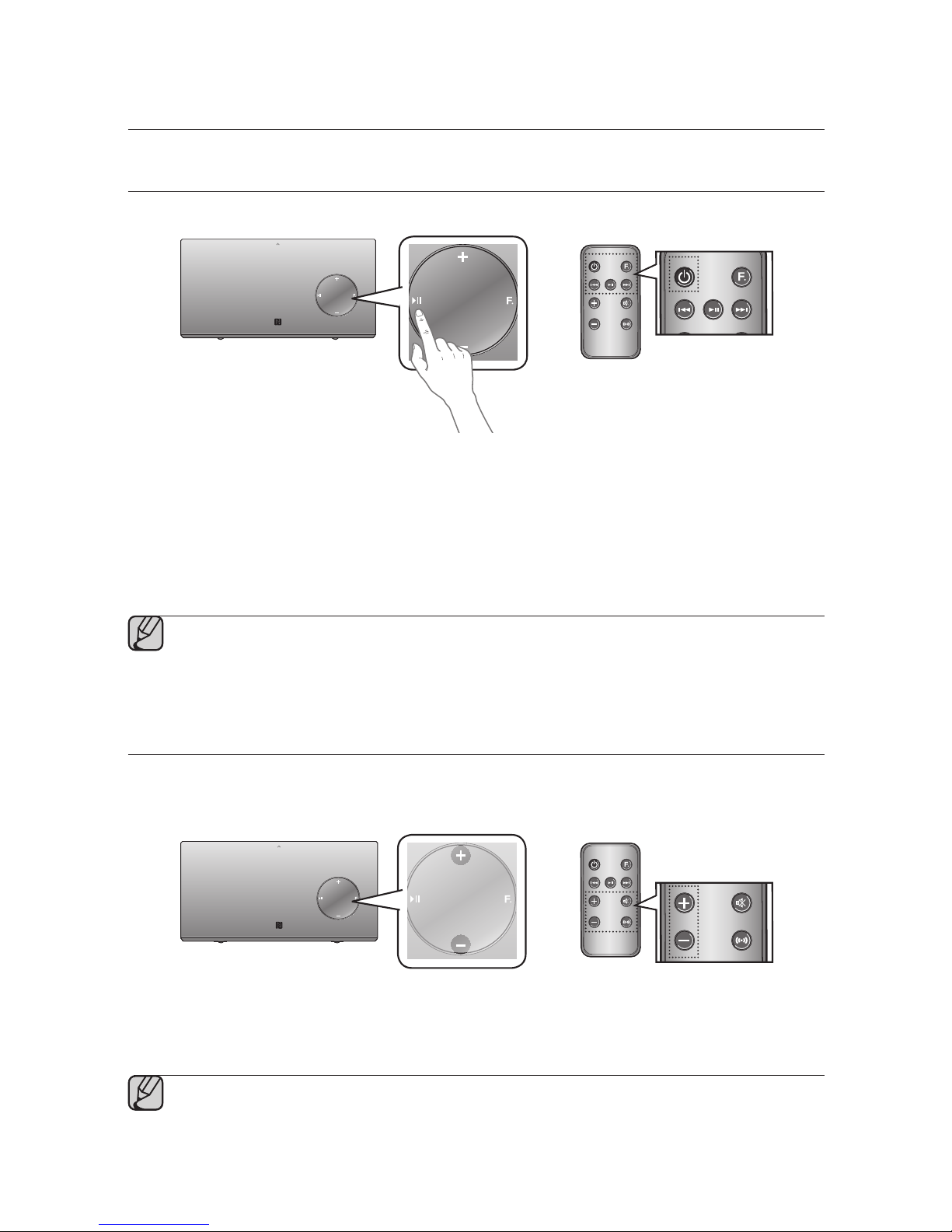

power on and volume control

TURNING THE POWER ON/OFF

MUTE

VOL

BASS

FUNCTION

MUTE

VOL

BASS

FUNCTION

DOCK

DOCK DOCK

1. To turn on this unit, press any button on the unit's top panel when the unit is in Standby mode.

or,

Press POWER on the remote control.

2. To turn off this unit, press the

button on the unit's top panel for more than 3 seconds.

or,

Press POWER on the remote control again.

`The unit turns off automatically in the following situations:

- BT/Dock/SoundShare mode : If there is not connected for about 25 minutes.

- USB mode : If there is no audio signal for about 25 minutes.

- AUX mode : If no KEY input is entered for 8 hours when the cable is connected.

ADJUSTING THE VOLUME

Use +,- buttons to adjust the volume. The function LEDs light from left to right when you turn the volume up and from

right to left when you turn the volume down. The LEDs do not flicker if you try to increase the volume when it has

already been set to maximum or try to decrease the volume when it has already been set to minimum.

MUTE

VOL

BASS

FUNCTION

MUTE

VOL

BASS

FUNCTION

DOCK

DOCK DOCK

Press the +/– button on the right side of the top panel.

or,

Press VOL +/– on the remote control.

`The volume level increases or decreases when you press VOL +/–.

`You can also use the volume controls of devices connected using the Galaxy Dock or Bluetooth to control

the volume. However, your ability to control the volume using the volume controls of devices connected

using Bluetooth may be limited.

Otros manuales para DA-F680

Tabla de contenidos

Idiomas:

Otros manuales de Sistema estéreo de Samsung

Samsung

Samsung MAX-ZS940 Manual de usuario

Samsung

Samsung MX-F630 Manual de usuario

Samsung

Samsung mx-hs6500 Manual de usuario

Samsung

Samsung MM-C8 Manual de usuario

Samsung

Samsung MAX-6020 Manual de usuario

Samsung

Samsung MM-G25 Manual de usuario

Samsung

Samsung MM-J4 Manual de usuario

Samsung

Samsung MAX-S725 Manual de usuario

Samsung

Samsung MM-Z100 Manual de usuario

Samsung

Samsung MM-DA25 Manual de usuario

Samsung

Samsung MM-DJ8 Manual de usuario

Samsung

Samsung MM-ZJ8 Manual de usuario

Samsung

Samsung MAX-B550 Manual de usuario

Samsung

Samsung MM-ZJ9 Guía

Samsung

Samsung MX-JS9000 Manual de usuario

Samsung

Samsung MAX-DS9550 Manual de usuario

Samsung

Samsung DA-E660 Manual de usuario

Samsung

Samsung MM-ZB9 Manual de usuario

Samsung

Samsung MX-FS9000 Manual de usuario

Samsung

Samsung MM-DB9 Manual de usuario

Samsung

Samsung MAX-ZJ550 Manual de usuario

Samsung

Samsung Shape WAM-750 Manual de usuario

Samsung

Samsung MAX-DJ14500 Manual de usuario

Samsung

Samsung MAX-G56 Manual de usuario

Manuales populares de Sistema estéreo de otras marcas

LG CM3330B Manual de usuario

Sony

Sony SS-CEP50 Manual de usuario

Cetacea Sound

Cetacea Sound CVS-II Manual de usuario

Aiwa

Aiwa XR-H66MD Manual de usuario

Denon

Denon UCD-250 Manual de usuario

Sanyo

Sanyo DC-MX41i Manual de usuario

Sharp

Sharp CD-ES600V Manual de usuario

Exibel

Exibel BDX600-UK Manual de usuario

Sanyo

Sanyo DC-F320 Manual de usuario

Philips

Philips FWM583X Manual de usuario

Sharp

Sharp CD-C462 Manual de usuario

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manual de usuario

Aiwa

Aiwa XR-EM70 Manual de usuario

Cyrus

Cyrus Lyric Manual de usuario

Philips

Philips MCM159/98 Manual de usuario

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manual de usuario

RCA

RCA RS3965SB Manual de usuario

Sharp

Sharp XL-UH240 Manual de usuario
