QUICK SETUP GUIDE
WAM1500-ZC-QSG-0826.indd 01 2016-09-05 5:31:11
· 1 · English
Speaker Main Features
Wi-Fi connection is recommended for this speaker
Provides a wide range of sound sources, Internet radio available, and supports
group play with multiple connections or stereo sound feature
Features Wi-Fi
Bluetooth
Multiroom
feature Connect multiple devices at once One device
connection
Music service
Variety of music services available
with the Samsung Multiroom
App
-Sound source service
-Internet radio (Tuneln)
App installation
per music service
required
NOTE
Bluetooth Setup, please refer to page 11
WAM1500-ZC-QSG-0826.indd 1 2016-09-05 5:31:34
· 2 · English

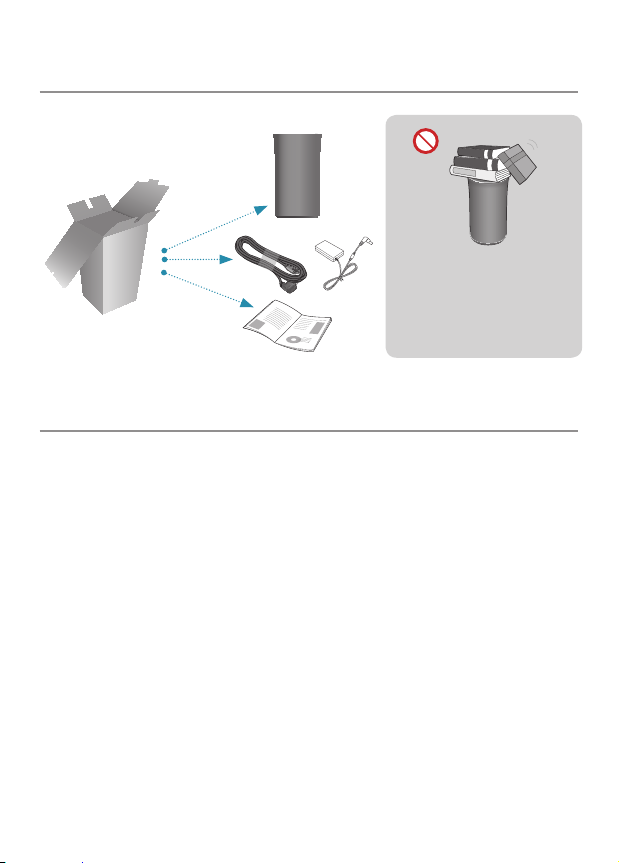

Checking the Components
Do not place any items on
top off or sit on the main
unit
MODE
Getting Started
1 Follow the installation steps in this user manual
2 Please download Samsung Multiroom app on your smart device
Inst
1 M
(S
co
2 O
3 C
WAM1500-ZC-QSG-0826.indd 2 2016-09-05 5:31:34
· 3 · English
son
ain
Installation
1 Make sure your smart device
(Smart Phone, Tablet, PAD, etc) is
connected to your Wi-Fi network
NOTE
All the devices need to connect to the
same network
2 On your smart device, download and install the Samsung Multiroom app
3 Connect your speaker to power
Speaker
Sk
SPK ADD/Wi-FiSETUP SERVICE
DC 19V
Smart device Router
td i
Rout
er
WAM1500-ZC-QSG-0826.indd 3 2016-09-05 5:31:37
Android iOS
Application Samsung Multiroom
· 4 · English
Installation
4 Launch the Samsung Multiroom app on your smart device, and then follow
the instruction on the screen to complete setup
-Play music after speaker setup is complete
Welcome Screen
If Auto Set-up fails, follow the on-screen instructions
NOTE
If speaker setup continually fails,
Press and hold the volume (
+,-
) buttons on top of the speaker simultaneously for
five seconds to reset the speaker
Next, restart the app and follow the displayed instructions to configure the
speaker again
Spe
WAM1500-ZC-QSG-0826.indd 4 2016-09-05 5:31:38
· 5 · English
ow
ly for
Speaker Top
Volume button
MODE VOL
Touch to select TV SoundConnect
/Bluetooth/Wi-Fi
Previous
Song
Next
Song
Swipe
Indicator
LED
Play/Pause
Tap
NOTES
Tap/Swipe : Whole area is available except MODE, Volume (-,+) key area on the
TOP
The speaker will enter standby mode to reduce energy consumption after
15 minutes of idle time
WAM1500-ZC-QSG-0826.indd 5 2016-09-05 5:31:40
· 6 · English
Speaker Bottom
SPK ADD/Wi-Fi SETUP SERVICE
DC 19V
SPK ADD/Wi-Fi SETUP
Notch forPowerCable
SERVICE
For service only
DC 19V
1 Connect the
adaptor’s input
power cord to the
adaptor
2 Connect the
adaptor’s output
power cord (with the
round plug) to the
DC 19V jack on the
speaker
SPK ADD/Wi-FiSETUP SERVICE
DC 19V
Usi
WAM1500-ZC-QSG-0826.indd 6 2016-09-05 5:31:40
· 7 · English
e
the
e
he
Using the Samsung Multiroom App (on Main Screen)
1
View the full list of connected
speakers
2
Enter a keyword to search for
the music desired
3
Access the settings menu
4
Select a source of music and
play the music you want
Scroll left or right to view
different sources of music
5
A different screen is displayed
according to the music source
selected
6
Different categories of music
are listed below the bar
Scroll down to select your
favorite categories of music
4
3
12
5
6
NOTES
Some of app image might be different Please refer to Web Manual for the detail
information
Sign-up or log-in may be required to access some streaming services
Some TuneIn radio channels may be restricted depending on their site policies
Supported streaming services are provided by third parties and may be
terminated at any time
WAM1500-ZC-QSG-0826.indd 7 2016-09-05 5:31:42
· 8 · English
Connecting Additional Speakers
You can add additional speakers
Use an app to add speakers to the network
1 Connect the new speaker to an electrical outlet
2 On the main screen, touch at the top left to display a list of speakers
3 Touch More
4 Touch
Add New Speaker in the app, and then follow the instructions on the
app screen
Usi
Sett
Grou
mus
1 O
2 To
3 To
sp
WAM1500-ZC-QSG-0826.indd 8 2016-09-05 5:31:44
· 9 · English
e

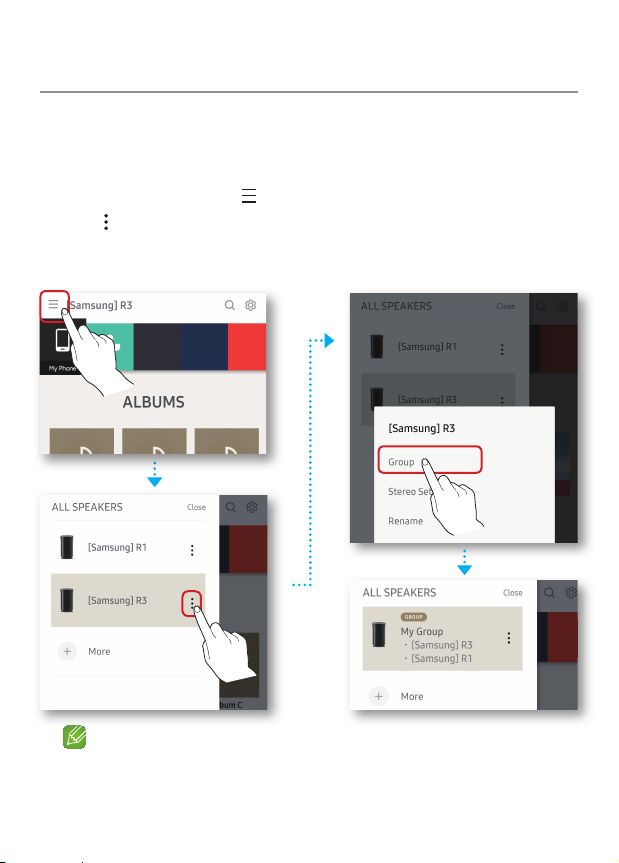

Using Multiple Speakers
Setting up a group
Group multiple speakers, connected over the same network, to play the same
music via the speakers
1 On the main screen, touch at the top left to display a list of speakers
2 Touch next to the speaker name
3 Touch Group If you have more than two connected speakers, select the
speakers you want to set up as a group, and then select Done
NOTES
If two speakers are available, touch Group to automatically group the speakers
You cannot use Group with Bluetooth or a TV SoundConnect connection
WAM1500-ZC-QSG-0826.indd 9 2016-09-05 5:31:49
