Samsung HW-H430 Manual de usuario

Wireless Audio - Soundbar

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive a more complete service, please register your product at

www.samsung.com/register

User manual

HW-H430

features

TV SoundConnect

TV SoundConnect lets you listen to audio from your TV on your Soundbar via a Bluetooth connection and lets you control the

sound.

3D SOUND

The 3D SOUND feature adds depth and spaciousness to your listening experience.

Wireless Subwoofer

Samsung’s wireless module does away with cables running between the main unit and the subwoofer.

Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.

Special Sound mode

You can select from 5 different sound modes - MUSIC, VOICE, SPORTS, CINEMA, and STANDARD (Original Sound) - depending

on the type of content you want to enjoy.

Multi-function Remote Control

You can use the supplied remote control to control various operations with the simple press of a button.

Active Speaker System

This unit features an Active Speaker System that provides high sound quality in a single slim unit.

This unit does not require any satellite loudspeakers or speaker cabling, which are normally associated with conventional surround

sound systems.

USB Host support

You can connect and play music files from external USB storage devices such as MP3 players,

USB flash memory, etc. using the Soundbar's USB HOST function.

Bluetooth Function

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

LICENSE

2.0 Channel

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

Manufactured under license under U.S. Patent No.s: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents

issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a

- To send inquiries and requests regarding open sources, contact Samsung via Email (oss.request@samsung.com).

ENG

safety information

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates “dangerous voltage”

inside the product that presents a risk of

electric shock or personal injury.

This symbol indicates important instructions

accompanying the product.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•

This apparatus shall always be connected to a AC outlet with a protective grounding connection.

•

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains

plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the

apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power

plug must be easily and readily accessible at all times.

●Figures and illustrations in this User Manual are provided for reference only and may differ from actual

product appearance.

●An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect with the product (i.e. where the user

manual has not been read).

(b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual

has not been read).

●You will be informed of the administration fee amount before a technician visits.

precautions

Ensure that the AC power supply in your house complies with the power requirements listed on the identiﬁcation

sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with

enough space around it for ventilation 7~10 cm. Make sure the ventilation slots are not covered. Do not place the

unit on ampliﬁers or other equipment which may become hot. This unit is designed for continuous use. To fully

turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a

long period of time.

99.1mm 99.1mm

68.6

99.1mm

During thunderstorms, disconnect the AC plug from

the wall outlet. Voltage peaks due to lightning could

damage the unit.

Protect the product from moisture (i.e. vases), and

excess heat (e.g. a ﬁreplace) or equipment creating

strong magnetic or electric ﬁelds. Disconnect

the power cable from the AC supply if the unit

malfunctions. Your product is not intended for

industrial use. It is for personal use only.

CondenSoundbarion may occur if your product has

been stored in cold temperatures. If transporting the

unit during the winter, wait approximately 2 hours until

the unit has reached room temperature before using.

Do not expose the unit to direct sunlight or other heat

sources.

This could lead to overheating and cause the unit to

malfunction.

The batteries used with this product contain chemicals

that are harmful to the environment.

Do not dispose of batteries in the general household

trash.

Do not dispose of batteries in a ﬁre.

Do not short circuit, disassemble, or overheat the

batteries.

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

ENG

contents

FEATURES

2 Features

2 License

SAFETY INFORMATION

3 Safety warnings

4 Precautions

GETTING STARTED

6 Before reading the user’s manual

6 What’s included

DESCRIPTIONS

7 Front/Rear panel

REMOTE CONTROL

8 Remote control buttons and functions

CONNECTIONS

10 Installing the wall mount

11 Connecting the wireless subwoofer

12 Attaching the toroidal ferrite core to the

power cord of the subwoofer

12 Looping the power cable around the toroidal

core

13 Connecting an external device using audio

(analog) cable or optical (digital) cable

TROUBLESHOOTING

19 Troubleshooting

APPENDIX

20 Specifications

FUNCTIONS

14 Input mode

14 Bluetooth

16 Soundconnect

17 USB

18 Software upgrade

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be

canceled.

Note

Indicates tips or instructions on the page that help you operate a function.

Safety Instructions and Troubleshooting

1) Be sure to familiarize yourself with the Safety Instructions before using this product. (See page 3)

2) If a problem occurs, check Troubleshooting. (See page 19)

written permission of Samsung Electronics Co.,Ltd.

getting started

WHAT’S INCLUDED

Check for the supplied accessories shown below.

Remote Control / Lithium Battery (3V

: CR2032)

Bracket-Wall Mount User Manual

(For Subwoofer power cable 1EA)

AUX Cable USB Cable Toroidal ferrite core

▪The appearance of the accessories may differ slightly from the illustrations above.

▪Use the dedicated USB cable to connect external USB devices to the unit.

ENG ●DESCRIPTIONS

descriptions

FRONT/REAR PANEL

▪When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

▪When disconnecting the power cable from the wall outlet, pull the plug. Do not pull the cable.

▪Do not connect this unit or other components to an AC outlet until all connections between components are

complete.

REMOTE

CONTROL

SENSOR

The remote control can operate

Soundbars made by

SAMSUNG only.

DISPLAY Displays the current mode.

POWER

BUTTON Turns the Soundbar on and off.

FUNCTION

BUTTON

Selects the D.IN, AUX, BT, TV,

USB input.

While the unit is powered,

pressing the button for more

than 3 seconds sets the button

to act as MUTE button. To

cancel MUTE button setup,

press button for more than 3

seconds again.

5VOLUME

(

+/-

)Controls the volume level.

6USB PORT Connect USB devices such as

MP3 players.

7OPTICAL IN Connect to the digital (optical)

output of an external device.

8AUX IN Connect to the Analog output

of an external device.

POWER

SUPPLY

CABLE

Plug the power supply cable

into the AC wall outlet.

1 2

5v 500mA

OPTICAL IN AUX IN

REMOTE CONTROL

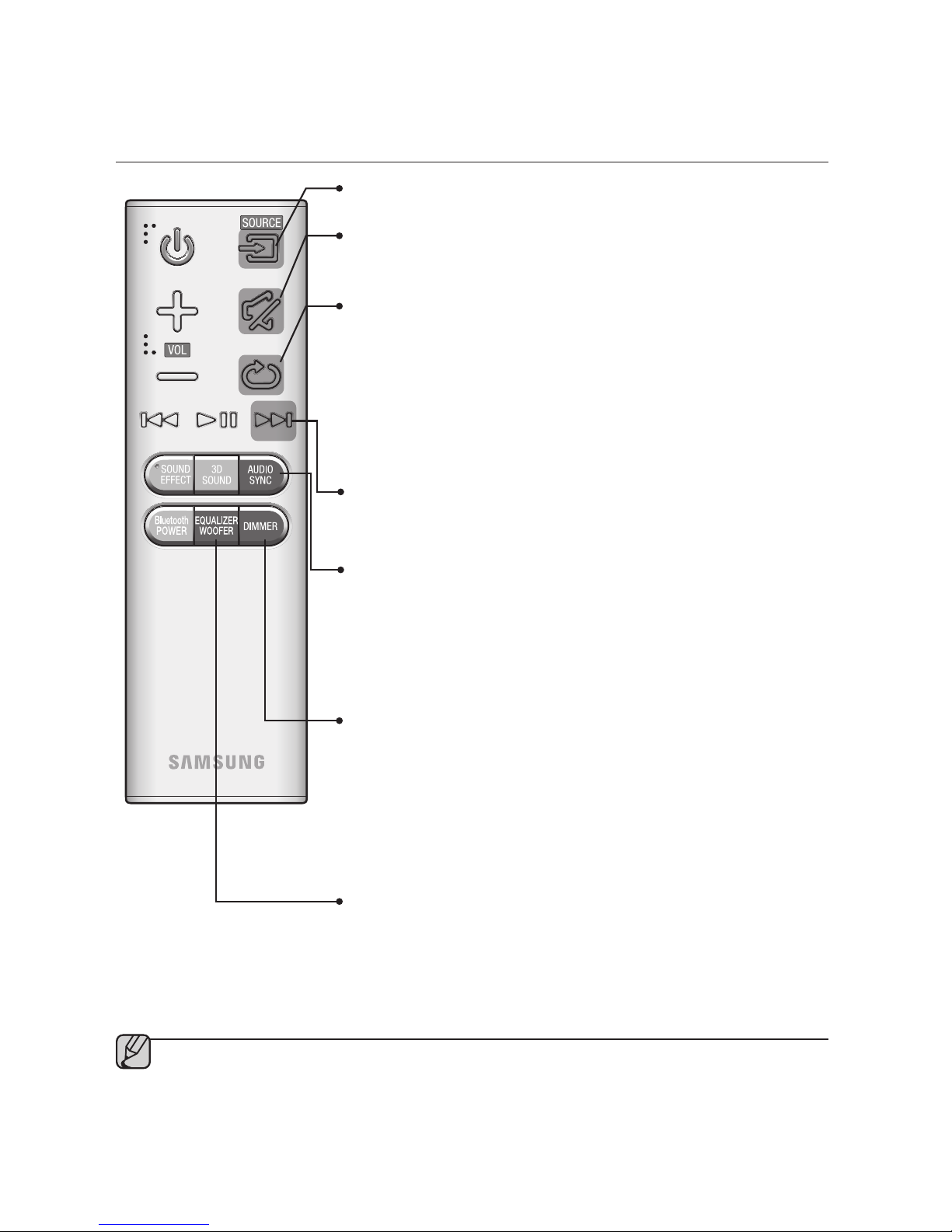

REMOTE CONTROL BUTTONS AND FUNCTIONS

EQUALIZER WOOFER

Press to select Treble or Bass. Then, use the [,]button to adjust the

Treble or Bass volume from -3 to +3.

You can control the subwoofer volume. Press the [,]button to

increase or decrease the subwoofer volume. You can set it from SW -6 to

SW +6.

DIMMER

DIMMER : Press the DIMMER button to control the brightness of the

display.

Auto Power Link : Press and hold the DIMMER button for more than

3 seconds to turn the Auto Power Link function on or off.

(Auto Power Link : Default OFF)

* Auto Power Link

Synchronizes the Soundbar to a connected Optical source via the

Optical jack so it turns on automatically when you turn on your TV.

REPEAT

Press to set the REPEAT function during music playing from a USB

device.

REPEAT OFF : Cancels Repeat Playback.

REPEAT FILE : Repeatedly play a track.

REPEAT ALL : Repeatedly play all tracks.

REPEAT RANDOM : Plays tracks in random order. (A track that has

already been played may be played again.)

MUTE

You can turn the volume down to 0 with the push of a button.

Press again to restore the sound to the previous volume level.

SOURCE

Press to select a source connected to the Soundbar.

Skip Forward

If there is more than one ﬁle on the device you are playing, and you press

the ]button, the next ﬁle is selected.

AUDIO SYNC

If the Soundbar is connected to a digital TV and the video appears out of

sync with the audio, press the AUDIO SYNC buttons to sync the audio

with the video. Use the [,]buttons to set the audio delay between 0

ms and 300 ms. In USB mode, TV mode, and BT mode, the Audio Sync

function may not work.

▪Soundbar is a Samsung proprietary name.

▪Operate the TV using the TV's remote control.

ENG ●CONNECTIONS

Bluetooth POWER

Press the Bluetooth POWER button on the remote control to turn the

Bluetooth POWER on function on and off.

See pages 16 and 17 for details.

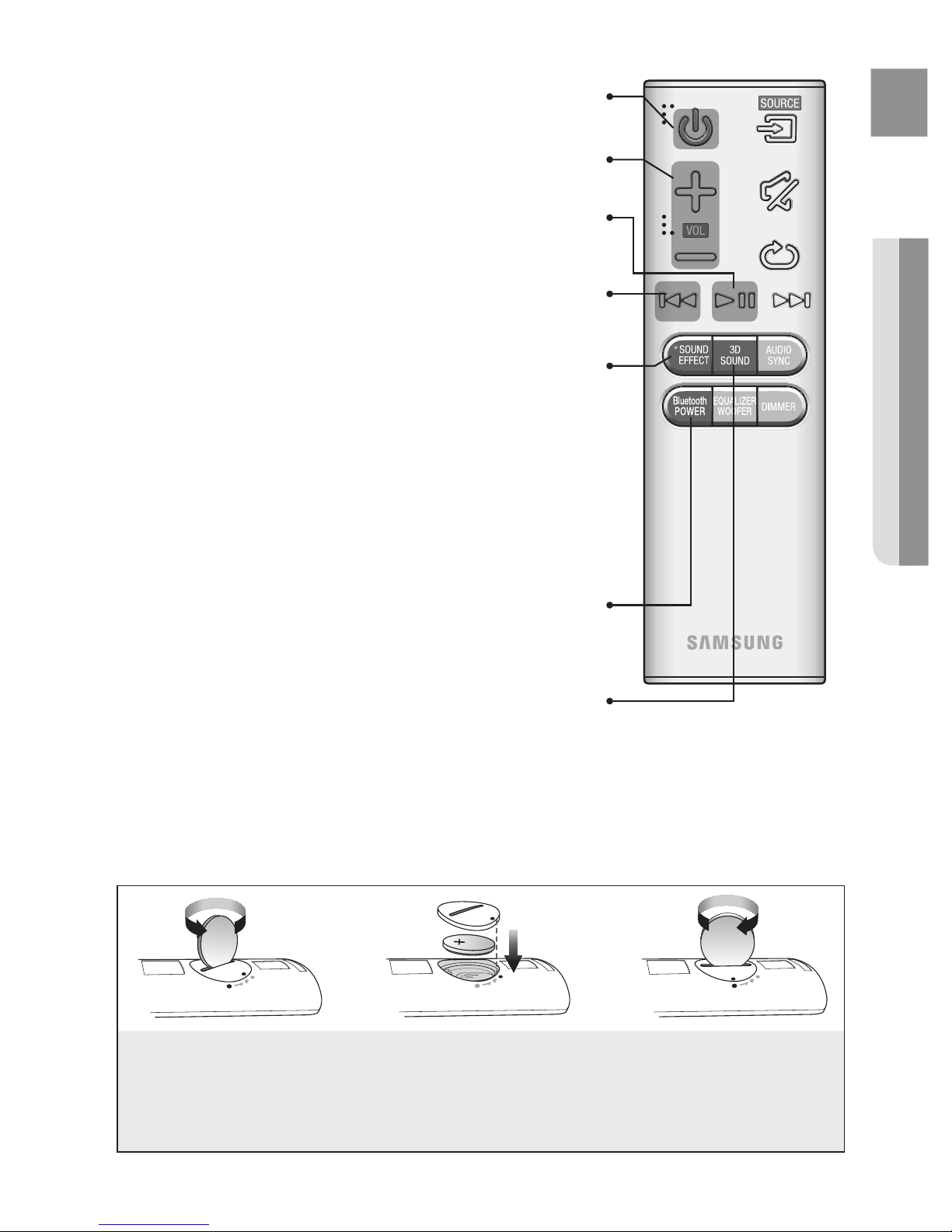

3D SOUND (3D Sound Plus)

Press the 3D SOUND button on the remote control to add depth and

spaciousness to the sound.

Press the 3D SOUND button on the remote control.

Each time the button is pressed, the selection changes as follows :

3D SOUND PLUS OFF



3D SOUND PLUS MUSIC 

3D SOUND PLUS MOVIE

VOLUME

Adjusts the volume level of the unit.

POWER

Turns the Soundbar on and off.

SOUND EFFECT

You can select from 5 different sound modes - MUSIC, VOICE,

SPORTS, CINEMA, and STANDARD - depending on the type of

sources you want to enjoy.

Press the SOUND EFFECT button on the remote control.

Select the STANDARD mode if you want to enjoy the original sound.

Press the SOUND EFFECT button for more than 5 seconds to turn on or

off Smart Volume.

* Smart Volume

This will regulate and stabilize the volume level against a drastic

volume change caused by a channel change or scene transition.

Play/Pause

Press the +# button to pause playing the ﬁle temporarily.

Press the +# button again to play the selected ﬁle.

Skip Back

If there is more than one ﬁle on the device you are playing, and you press

the [button, the previous ﬁle is selected.

+Installing the Batteries in the Remote Control

1. Use a suitable coin to turn

the remote control's battery

cover counterclockwise to

remove it as shown in the

ﬁgure above.

2. Insert a 3V lithium battery. Keep the

positive (+) pole facing up when

inserting the battery. Put the battery

cover on and align the '' marks

side by side as shown in the ﬁgure

above.

3. Use a suitable coin to turn the

remote control battery cover

clockwise as far as it will go to

ﬁx it in place.

connections

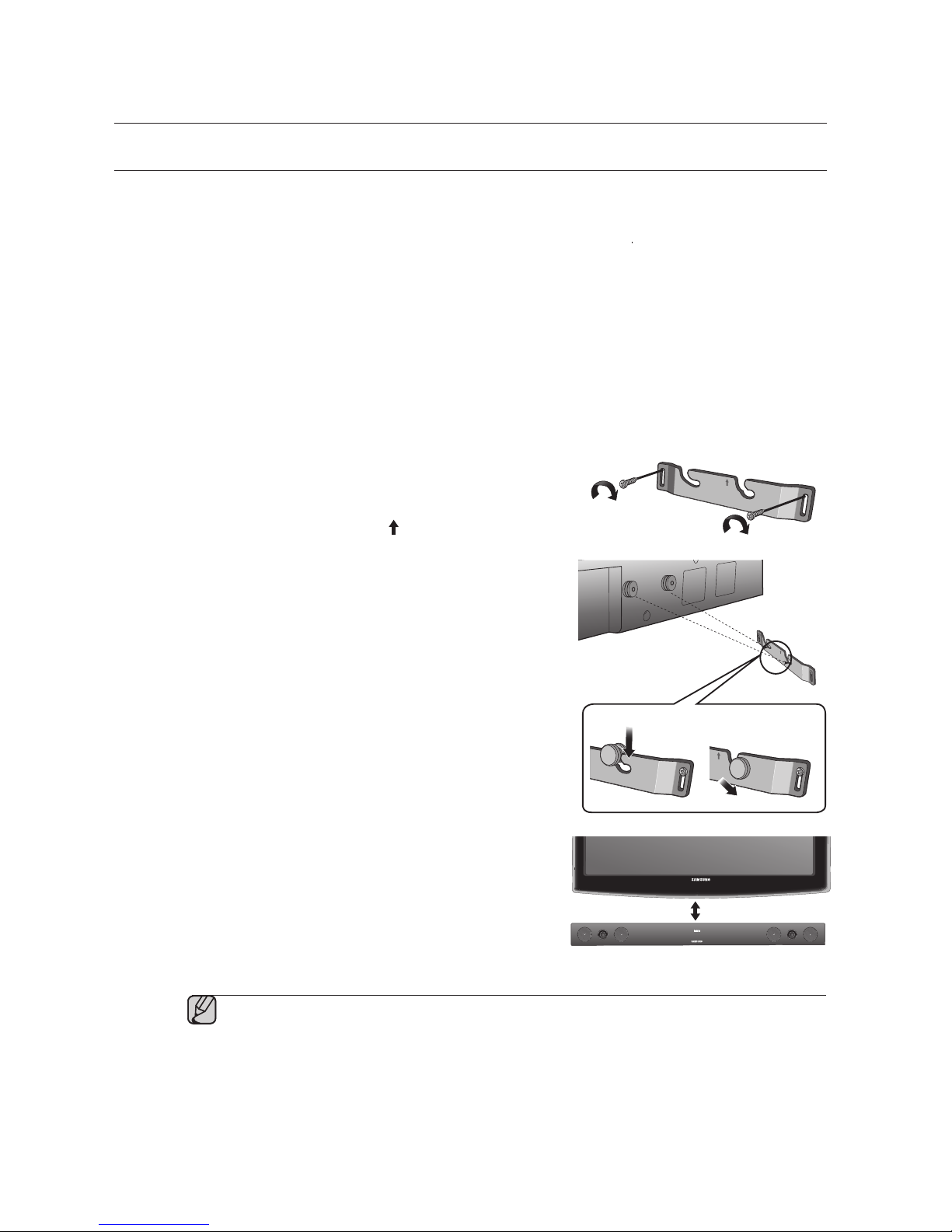

INSTALLING THE WALL MOUNT

You can use the wall mount bracket to mount this unit on a wall.

connections

Installation Precautions

• Install on a vertical wall only.

• For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the

weight of the set.

• Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or

install the unit on different wall that can support the unit's weight.

• Purchase and use the fixing screws or mollys appropriate for the kind of wall you have (plaster board, iron

board, wood, etc.). If possible, fix the support screws into wall studs.

• Connect cables from the unit to external devices before you install it on the wall.

• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

▪Do not hang onto the installed unit and avoid any impact to the unit.

▪Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an

injury or damage the product.

▪When the unit is installed on a wall, please make sure that children do not pull any of the

connecting cables, as it may cause it to fall.

▪For the optimal performance of a wall mount installation, install the speaker system at least 5 cm

below the TV.

5 cm or more

1. Place the wall mount bracket on a wall surface

and then

secure it with two screws (not supplied).

If you are hanging the unit below a TV, be

sure to install the

wall mount bracket so that the arrow ( ) is placed in the

center of the TV.

Also make sure the unit is at least 5 cm below the TV.

2. Fit the unit into the corresponding slots of the wall mount

bracket. For secure installation, make sure the mounting

studs slide firmly down into the bottom of the slots.

3. The installation is complete.

Otros manuales para HW-H430

Tabla de contenidos

Otros manuales de Oradores de Samsung

Samsung

Samsung TW-J5500/ZA-ZZ01 Manual de usuario

Samsung

Samsung HW-M430 Instrucciones de instalación

Samsung

Samsung HW-B450 Instrucciones de instalación

Samsung

Samsung HW-J7500R Manual de usuario

Samsung

Samsung Shape WAM-750 Manual de usuario

Samsung

Samsung HW-C450 Instrucciones de instalación

Samsung

Samsung HW-K550 Manual de usuario

Samsung

Samsung HW-Q990C Instrucciones de instalación

Samsung

Samsung MX-T70 Instrucciones de instalación

Samsung

Samsung VL350 Manual de usuario

Samsung

Samsung HW-J8501R Manual de usuario

Samsung

Samsung HW-J8500 Manual de usuario

Samsung

Samsung HW-J550 Manual de usuario

Samsung

Samsung HW-M550 Instrucciones de instalación

Samsung

Samsung HW-LST70T Instrucciones de instalación

Samsung

Samsung HW-R550 Manual de usuario

Samsung

Samsung HW-K860 Manual de usuario

Samsung

Samsung HW-H450 Manual de usuario

Samsung

Samsung EO-SG510 Manual de usuario

Samsung

Samsung HW-H750 Manual de usuario

Samsung

Samsung MX-ST40B Instrucciones de instalación

Samsung

Samsung HW-Q6CT Instrucciones de instalación

Samsung

Samsung HW-Q800C Instrucciones de instalación

Samsung

Samsung HW-H750 Manual de usuario

Manuales populares de Oradores de otras marcas

argon audio

argon audio IE20 Manual de usuario

Denon

Denon SC-N7 Manual de usuario

Gemline

Gemline Ace 3952 Manual de usuario

Focal

Focal ON WALL 300 Manual de instrucciones

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manual de usuario

SoundLogic

SoundLogic BCCS-6/6395 Manual de usuario

Peavey

Peavey DTH 218 Manual de usuario

Avantree

Avantree Pluto Air Manual de usuario

Morel

Morel Integra Series INTEGRA OVATION 4 Manual de usuario

Oppo

Oppo SONICA Manual de usuario

Bose

Bose SoundLink Wireless Music System Manual de usuario

Rocksteady

Rocksteady Stadium Manual de usuario

Bowers & Wilkins

Bowers & Wilkins 4 Manual de usuario

Sonance

Sonance SONOS OUTDOOR Series Manual de usuario

Electro-Voice

Electro-Voice EVID FM4.2 Manual de usuario

Pioneer

Pioneer XW-HTD630 Manual de usuario

Onn

Onn BWA16AA002 Manual de usuario

HP GL313AA - USB Speakers PC Multimedia Manual de usuario
