Samsung HW-S60A Instrucciones de instalación

HW-S60A / S61A

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

Para evitar cualquier avería o daños, lea detalladamente este manual de instrucciones antes de conectar y utilizar este

aparato. Conserve el manual para referencia futura. (Sólo México)

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - 3

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

CAUTION : Danger of explosion if the battery

is replaced incorrectly. Replace only with the

same or equivalent type.

Fabric cleaning

Remove any dirt or stain on the product surface

immediately.

Removing and cleaning can be less effective for

some substances or if left for a prolonged time.

CAUTION

•Use a vacuum cleaner or an adhesive lint

roller to remove dust, handprints, and the

likes.

– Some cleaning brushes may damage the

product, depending on the materials they

contain.

– Towels and cleaning clothes may leave

lint or dirt on the product.

•Do not use a nail or other tools to scratch the

dirt off. It may damage the fabric.

•To remove oil or liquid stains, use a clean

white cloth moist with water. If the stain

persists, wipe it with a mixture of water and

neutral detergent (such as dishwashing

soaps) and a cloth.

– A non-neutral detergent or cleaner may

cause discoloration or fabric damage.

– After cleaning, use a dry cloth or

hairdryer to dry the area.

– Do not use excessive force to avoid

discoloration or fabric damage.

ENG - 4

CONTENTS

01 Checking the Components 6

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 6

02 Product Overview 7

Top Panel of the Soundbar ------------------------- 7

Bottom Panel of the Soundbar ------------------------- 9

03 Using the Remote Control 10

How to Use the Remote Control ------------------------- 10

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 13

Output specications for the different sound effect modes ------------------------- 13

Adjusting the Soundbar volume with a TV remote control ------------------------- 14

04 Connecting the Soundbar 15

Connecting Electrical Power ------------------------- 15

Connecting an SWA-9100S (Sold Separately), SWA-W500

(Sold Separately) to your Soundbar ------------------------- 15

05 Using a wired connection to the TV 16

Method 1. Connecting with HDMI ------------------------- 16

Method 2. Connecting using an Optical Cable ------------------------- 18

06 Using a wireless connection to the TV 19

Method 1. Connecting via Bluetooth ------------------------- 19

Method 2. Connecting via Wi-Fi ------------------------- 21

07 Connecting an External Device 22

Connecting using an Optical Cable ------------------------- 22

ENG - 5

08 Connecting a Mobile Device 23

Method 1. Connecting via Bluetooth ------------------------- 23

Method 2. Connecting via Wi-Fi (Wireless Network) ------------------------- 26

Getting Started with Amazon Alexa (Built-in Alexa) ------------------------- 27

Getting Started with Alexa on Amazon Product (Works with Alexa) ------------------------- 29

Using the Tap Sound ------------------------- 31

09 Connecting To Apple AirPlay 2 32

10 Installing the Wall Mount 33

Installation Precautions ------------------------- 33

Wallmount Components ------------------------- 33

11 Installing the Soundbar in front of TV 35

12 Software Update 36

Auto Update ------------------------- 36

USB Update ------------------------- 36

Reset ------------------------- 37

13 Troubleshooting 38

14 License 40

15 Open Source License Notice 40

16 Important Notes About Service 40

17 SpecicationsandGuide 41

Specications ------------------------- 41

ENG - 6

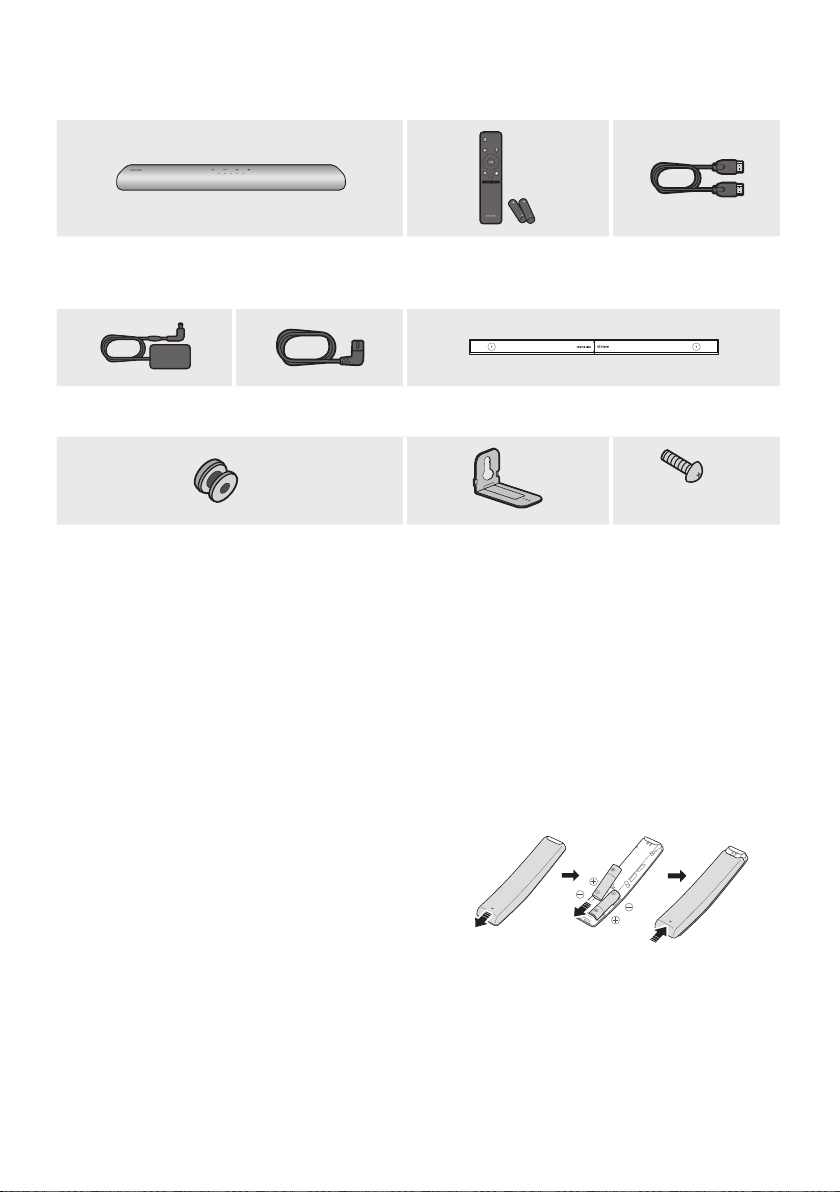

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Soundbar Remote Control

Batteries (Not available in

some locations or models)

HDMI Cable

AC/DC Adapter

(Soundbar)

Power Cord

(Soundbar)

Wall Mount Guide

x 2 x 2

(M4 x L10)

x 2

Holder-Screw Bracket-Wall Mount Screw

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Center or

Samsung Customer Care.

•For more information about the wallmount see page 33.

•Design, specications, and App screen are subject to change without prior notice.

•The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the back cover back into position.

ENG - 7

02 PRODUCT OVERVIEW

Top Panel of the Soundbar

Top Panel

Position the product so that

the SAMSUNG logo is

located on the top.

󱂔 󱂖󱂕

󱂓

󱂓LED

indicator

The LED Indicator ashes, glows, or changes color depending on the Soundbar's current

mode or status. The color of the LED indicator and the number of lights indicate the active

mode as described below.

White LED

Multicolor LED

White LED

•The Multicolor LED changes to White, Cyan, Green, Red, and Blue depending on the

mode or status.

󱂔

Multi

Function

Button

•In standby mode, press the (Multi Function)button to turn on the Soundbar.

•Press the (Multi Function) button to change the mode. Each time you change the

mode, the LED lights in white and then turns off.

LED

Indicator

White On -> Off White On -> Off White On -> Off

“Digital Audio In” or

“TV ARC”“Wi-Fi” “Bluetooth”

󱂕Volume

Button Press the (Volume) button to adjust the volume.

ENG - 8

󱂖

Mic

On/Off

Button

Press the (Mic On/Off) button to turn on or off the microphone.

LED Indicator

Red On

“Mic Off”“Mic On”

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and

change the TV speaker to External Speaker.

•You can turn on and off audio feedback by using SmartThings app. To learn about using the

SmartThings app, refer to “Method 2. Connecting via Wi-Fi (Wireless Network)”.

ENG - 9

Bottom Panel of the Soundbar

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

󱂓 󱂔 󱂕 󱂖 󱂗 󱂘

󱂓

ID SET

Press to connect the Soundbar to Surround speakers and a subwoofer wirelessly.

(The surround speaker, subwoofer are sold separately.)

󱂔NETWORK

Press to connect to a wireless network (Wi-Fi) via the SmartThings app.

󱂕SERVICE

Connect a USB storage device to upgrade the product's software.

󱂖DC 19V (Power Supply In)

Connect the AC/DC power adapter. (See page 15)

󱂗DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device. (See page 22)

󱂘HDMI (ARC)

Connect to the HDMI (ARC) port on a TV. (See page 16)

•When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug.

Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

ENG - 10

03 USING THE REMOTE CONTROL

How to Use the Remote Control

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

󱂓

󱂔

󱂕

󱂖

󱂗

󱂙

󱂘

󱂚

󱂜

󱂛

󱂓Power

Turns the Soundbar on and off.

LED

Indicator

Cyan Blinks X1

On Off

Red Blinks X3

•Auto Power Down Function

The unit turns off automatically in the following

situations:

– In “Digital Audio In” or “TV ARC”/ “Wi-Fi” /

“Bluetooth” mode if there is no audio signal for 18

minutes.

󱂔(Source)

Press to select a source connected to the Soundbar.

•Audio Feedback On/Off

You can turn on or off the Audio Feedback. Press and hold

the (Source) button on the remote control for

5 seconds while the Soundbar is off (Standby mode).

LED

Indicator

Cyan Blinks X1

On Off

Red Blinks X1

󱂕(Mute)

Press the (Mute) button to mute the sound.

Press it again to unmute the sound.

LED

Indicator

Blinks X Repeatly

Otros manuales para HW-S60A

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de altavoces de Samsung

Samsung

Samsung HW-Q950T/XN Instrucciones de instalación

Samsung

Samsung HW-H450 Manual de usuario

Samsung

Samsung HW-H500 Manual de usuario

Samsung

Samsung HW-Q900A Manual de usuario

Samsung

Samsung MultiXpress K430 SERIES Manual de usuario

Samsung

Samsung HW-S60T Instrucciones de instalación

Samsung

Samsung HW-Q700C Manual de usuario

Samsung

Samsung HW-Q600B Instrucciones de instalación

Samsung

Samsung HW-E550 Manual de usuario

Samsung

Samsung HW-K360 Manual de usuario

Samsung

Samsung Crystal Surround Air Track HW-F750 Manual de usuario

Samsung

Samsung HW-R450/XN Instrucciones de instalación

Samsung

Samsung HW-T530 Manual de usuario

Samsung

Samsung HW-Q900C Instrucciones de instalación

Samsung

Samsung HW-H550 Manual de usuario

Samsung

Samsung Crystal Surround Air Track HW-F750 Manual de usuario

Samsung

Samsung Crystal Surround Air Track HW-F550 Manual de usuario

Samsung

Samsung harman/kardon HWQ90RXY Instrucciones de instalación

Samsung

Samsung HW-C400 Instrucciones de instalación

Samsung

Samsung HW-Q800A Manual de usuario

Samsung

Samsung HW-JM6000C Manual de usuario

Samsung

Samsung HW-F350 Manual de usuario

Samsung

Samsung A Series Instrucciones de instalación

Samsung

Samsung HW-Q900T Instrucciones de instalación

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
