HW-M4500

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to make

any kind of contact with any internal

part of this product.

This symbol indicates that important

literature concerning operation and

maintenance has been included with

this product.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to consult

the user manual for further safety

related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

•To prevent injury, this apparatus must be

securely attached to the oor/wall in

accordance with the installation instructions.

CAUTION

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases, on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

CAUTION (for Canada)

This equipment complies with Industry Canada

licence-exempt RSS standard(s). Operation is

subject to the following two conditions: (1) this

device may not cause interference, and (2) this

device must accept any interference, including

interference that may cause undesired operation

of the device.

This device and its antenna(s) must not be co-

located or operation in conjunction with any other

antenna or transmitter.

This device may automatically discontinue

transmission if there is no information to

transmit, or an operational failure. Note that this

is not intended to prohibit the transmission of

control or signaling information or the use of

repetitive codes where required by the

technology.

This Class B digital apparatus complies with

Canadian ICES-003.

ENG - iii

FCC Radiation Exposure Statement

This equipment complies with IC RSS-102

radiation exposure limits set forth for an

uncontrolled environment.

This equipment should be installed and operated

with minimum distance 20 cm between the

radiator & your body.

Important Safety Instructions

Read these operating instructions carefully

before using the unit. Follow all the safety

instructions listed below. Keep these operating

instructions handy for future reference.

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including ampliers) that produce

heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug.

A polarized plug has two blades with one

wider than the other. A grounding type plug

has two blades and a third grounding prong.

The wide blade or the third prong are

provided for your safety. If the provided plug

does not t into your outlet, consult an

electrician for replacement of the obsolete

outlet.

10.Protect the power cord from being walked

on or pinched particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

11. Only use attachments/accessories specied

by the manufacturer.

12. Use only with the cart, stand,

tripod, bracket, or table

specied by the manufacturer,

or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods of

time.

14. Refer all servicing to qualied service

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as when the power-supply cord or plug

is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does

not operate normally, or has been dropped.

ENG - iv

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the back of your product.

Install your product horizontally, on a

suitable base (furniture), with enough space

around it for ventilation (3~4 inches). Make

sure the ventilation slots are not covered. Do

not place the unit on ampliers or other

equipment which may become hot. This unit

is designed for continuous use. To fully turn

off the unit, disconnect the AC plug from the

wall outlet. Unplug the unit if you intend to

leave it unused for a long period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ENG - v

ABOUT THIS MANUAL

The user manual has two parts: this simple paper USER MANUAL and a detailed FULL MANUAL you can

download.

USER MANUAL

See this manual for safety instructions, product installation,

components, connections, and product specications.

FULL MANUAL

You can access the customer support center by scanning the

QR code. To see the manual on your PC or mobile device,

download the manual in document format from the website.

(http://www.samsung.com/support)

Design and specications are subject to change without prior notice.

ENG - vi

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 2

02 Product Overview 3

Top Panel / Front Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 4

03 Connecting the Soundbar 5

Connecting Electrical Power ------------------------- 5

Connecting the Soundbar to the Subwoofer ------------------------- 6

– Automatic connection between the subwoofer and the Soundbar ------------------------- 6

– Manually connecting the subwoofer if automatic connection fails ------------------------- 7

04 Connecting to your TV 9

Method 1. Connecting with a Cable ------------------------- 9

– Connecting using an Optical Cable ------------------------- 9

– Connecting a TV using an HDMI Cable ------------------------- 10

Method 2. Connecting Wirelessly ------------------------- 11

– Connecting a TV via Bluetooth ------------------------- 11

05 Connecting an External Device 13

Connecting using an Optical or Analog Audio (AUX) Cable ------------------------- 13

Connecting using an HDMI Cable ------------------------- 14

06 Connecting a USB 15

ENG - vii

07 Connecting a Mobile Device 17

Connecting via Bluetooth ------------------------- 17

Using the Samsung Audio Remote App ------------------------- 20

– Installing the Samsung Audio Remote App ------------------------- 20

– Launching the Samsung Audio Remote App ------------------------- 20

08 Using the Remote Control 21

How to Use the Remote Control ------------------------- 21

Adjusting the Soundbar volume with a TV remote control ------------------------- 24

Using the Hidden Buttons ------------------------- 25

Output specications for the different sound effect modes ------------------------- 25

09 Installing the Wall Mount 26

Installation Precautions ------------------------- 26

Wallmount Components ------------------------- 26

10 Software Update 28

Updating Procedure ------------------------- 28

If UPDATE is not displayed ------------------------- 29

11 Troubleshooting 30

12 License 31

13 Open Source License Notice 31

14 Important Notes About Service 31

15 SpecicationsandGuide 32

Specications ------------------------- 32

ENG - 2

01 CHECKING THE COMPONENTS

Surround

VOL WOOFER

SOUNDBAR

SOUND

MODE

Bluetooth

POWER

Soundbar Main Unit Subwoofer Remote Control / Batteries

1 2

Power Cord

(Subwoofer)

AC/DC Adapter

(Main Unit)

Optical Cable

•The power connection steps are labelled (1, 2). For more information about power connections,

see page 5.

•For Soundbar wall mounting components, see page 26.

•HDMI cable is sold separately. To purchase, contact a Samsung Service Center or Samsung

Customer Care.

•The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

ENG - 3

02 PRODUCT OVERVIEW

Top Panel / Front Panel of the Soundbar

Position the product so

that the SAMSUNG logo

is located on the top.

󱂖

󱂓󱂔󱂕

󱂓(Power) Button

Turns the power on and off.

󱂔

-/+ (Volume) Button

Adjusts the volume.

•When adjusted, the volume level appears on the Soundbar’s front display.

󱂕

(Source) Button

Selects the source input mode.

Input mode Display

Optical Digital input D.IN

ARC (HDMI OUT) input D.IN TV ARC (Auto conversion)

AUX input AUX

HDMI input HDMI

BLUETOOTH mode BT

USB mode USB

•To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the

(Source) button for more than 5 seconds.

󱂖Display

Displays the product’s status and current mode.

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio

Setup menu of your TV. Refer to the owner’s manual supplied with your TV.

ENG - 4

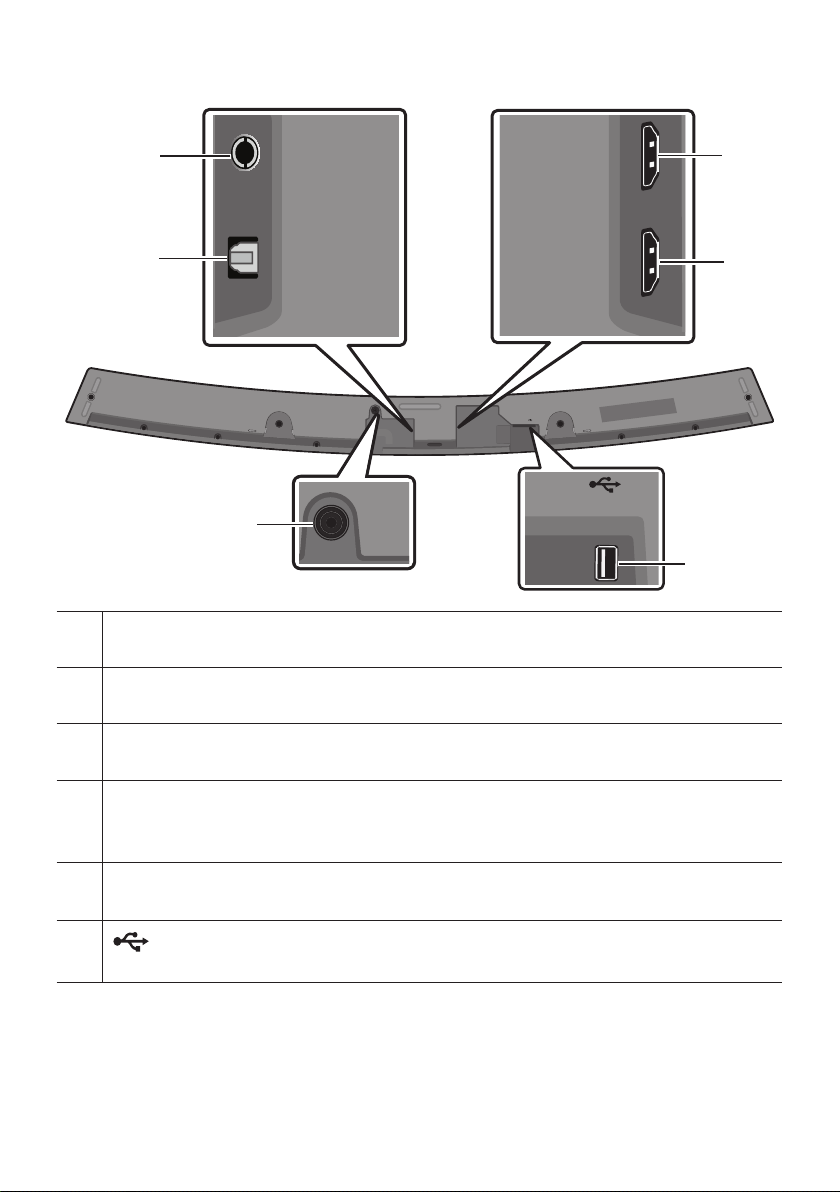

Bottom Panel of the Soundbar

HDMI IN

5V 0.5A

HDMI OUT

(TV-ARC)

AUX IN

DC 19V

OPTICAL IN

DC 19V

5V 0.5A

HDMI IN

HDMI OUT

(TV-ARC)

AUX IN

OPTICAL IN

5V 0.5A

󱂓󱂖

󱂘

󱂔󱂗

󱂕

󱂓AUX IN

Connect to the Analog output of an external device.

󱂔OPTICAL IN (D.IN)

Connect to the digital (optical) output of an external device.

󱂕DC 19V (Power Supply In)

Connect the AC/DC power adapter.

󱂖

HDMI IN

Inputs digital video and audio signals simultaneously using an HDMI cable.

Connect to the HDMI output of an external device.

󱂗HDMI OUT (TV-ARC)

Connect to the HDMI (ARC) jack on a TV.

󱂘(5V 0.5A)

Connect a USB device here to play music les on the USB device through the Soundbar.

•When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

Otros manuales para HW-M4500

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de altavoces de Samsung

Samsung

Samsung Crystal Surround Air Track Manual de usuario

Samsung

Samsung HW-MS560 Manual de usuario

Samsung

Samsung HW-H550/ZA Manual de usuario

Samsung

Samsung HW-T420 Instrucciones de instalación

Samsung

Samsung HW-Q59CT Instrucciones de instalación

Samsung

Samsung HW-T45C Instrucciones de instalación

Samsung

Samsung HW-S60B Instrucciones de instalación

Samsung

Samsung HW-Q950T/XN Instrucciones de instalación

Samsung

Samsung Crystal Surround Air Track HW-F750 Manual de usuario

Samsung

Samsung HW-LST70T/ZC Instrucciones de instalación

Samsung

Samsung HW-MS650 Instrucciones de instalación

Samsung

Samsung HW-K960 Manual de usuario

Samsung

Samsung MAX-DVD9920 Manual de usuario

Samsung

Samsung HW-N400/XN Instrucciones de instalación

Samsung

Samsung HW-Q900T Instrucciones de instalación

Samsung

Samsung HW-K360 Manual de usuario

Samsung

Samsung HW-T450 Manual de usuario

Samsung

Samsung HW-Q950A Instrucciones de instalación

Samsung

Samsung HW-Q60CC Instrucciones de instalación

Samsung

Samsung HW-M360 Instrucciones de instalación

Samsung

Samsung HW-N400 Instrucciones de instalación

Samsung

Samsung HW-T60C Instrucciones de instalación

Samsung

Samsung HW-LST70T Instrucciones de instalación

Samsung

Samsung HW-NW700 Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
