Samsung RT24 Series Manual de usuario
REFRIGERATOR
OWNER’S INSTRUCTIONS
Before operating the unit, please read this manual thoroughly, and
retain for future refefence.
DA99-00555N REV (0.0)
Type-2
Electronic Control
Type-1
Mechanical Control
RT24 /
RT29 / RT32 / RT35
RT26 / RT27
Ultra
Co l modeo
MIN
Contents
MAIN FEATURES ..........................................................................
BASIC PREPARATION ..................................................................
- Getting Started .............................................................................
INSTALLATION ..............................................................................
CAUTIONS WHILE USING ............................................................
PARTS ............................................................................................
REPLACING THE LAMP ................................................................
HOW TO USE ................................................................................
- Temperature control .....................................................................
- Temperature control ( Electronic Model) ......................................
- Ice cube maker ............................................................................
- Chiller Compartment ....................................................................
REMOVING ACCESSORIES .........................................................
STORING FOOD ...........................................................................
LEVELING THE APPLIANCE ........................................................
BEFORE CALLING SERVICE .......................................................
1
1
2
2
3-4
5-6
7
8
8
9
10
11
12-13
14
15
16-17
MAIN FEATURES
Large Freezer Storage Area
- Stores large quantities of food in the freezer.
Jumbo Storage Guard
- Holds large bottles securely.
Adjustable Storage Guards
Position them for your convenience and according
to the height of your food containers.
-
Bio-Fresh Zone (Select model)
Keeps vegetables fresh for longer periods.
-
Sliding Drawer (Select model)
- Extra storage space for vegetables and fruits.
ICooling
- Advanced air circulation for faster surround cooling.
Super Freeze Zone (Select model)
Freezes stored items quickly.
-
Twist Ice-Tray (Select model)
Spring mechanism for automatic release of ice cubes.
-
BASIC PREPARATION
Read Instructions.
Please read all safety and operating instructions before
operating this appliance.
Retain Instructions.
Please keep this Owner's Manual for future reference.
Heed Warnings.
All warnigns, Cautions and Notes on this refrigerator are
important; please pay attention to them.
Follow Instructions.
For best results, follow all instructions given in this manual.
Model and Serial Numbers.
Include both the model number and the serial number when
corresponding with your Dealer concerning this product.
Date of Purchase :
Model No. :
Serial No. :
1
Mr. Cool Pack (Select model)
Keep the stored items cool for more time
after power cut off.
-
Fresh Tech (Select model)
Increases Vitamins in vegetables & fruits.
-
Before plugging in for the first time, allow the
refrigerator to stabilize for at least one hour.
Allow the freezer compartment to cool for 2 to 3
hours before storing food.
2
2
1
1

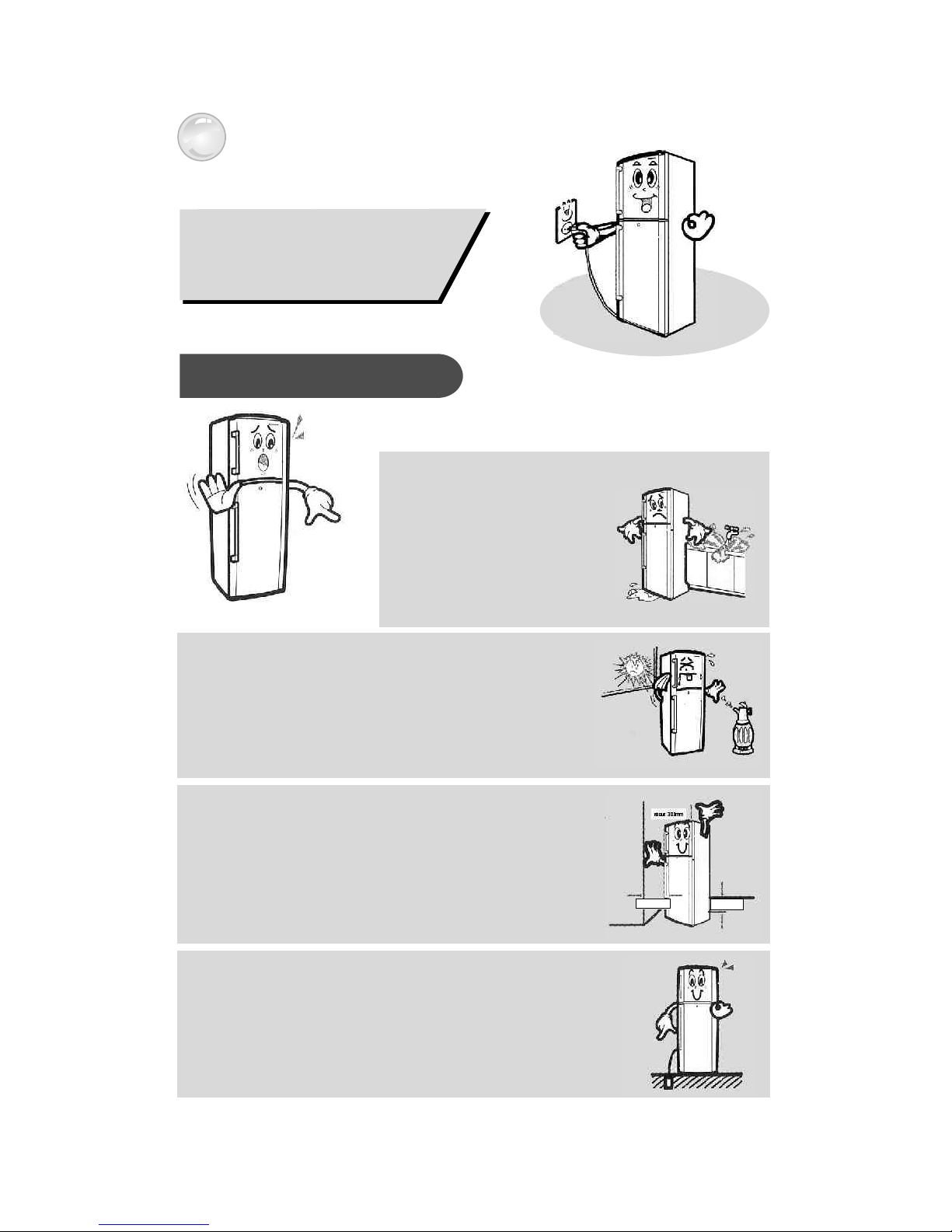

Avoid locations affected by draughts
or dampness.
For optimum operation, normal room
temperature is recommended. Avoid
locations in direct sunlight, near heaters,
radiators, stoves or ovens.
3
3
Allow a 100mm space between the refrigeratgor and the wall.
If your refrigerator is going into a receased area, allow at
least 300mm clearance above the refrigerator.
4
4
For personal safety, properly ground this appliance.
Do not ground this refrigerator with a telephone line,
gas pipe, etc.
2
Getting Started
INSTALLATION
above 300mm
above 100mm above 100mm
CAUTIONS WHILE USING
1
1
Do not allow water to splash onto
the refrigerator.
Water impairs the insulation of
electric parts and may cause an
electrical shock or a fire hazard.
-
-
Do not use flammable sprays such
as lacquer and paint near the
refrigerator.
Heat from the refrigeration unit may
ignite flammable aerosols.
2
2
-
-
Do not allow unattended children to play in
or around refrigerators and other large
appliances. The child may get hurt or they
could damage the appliance.
Do not allow children to hand on to the
refrigerator door.
3
3
-
-
Clean the refrigerator with a mild detergent
and cloth. Dry it with a clean cloth.
4
4
-
3
For optimum operation, do not leave the door open
for any longer than necessary.
Leaving the door open allows warmer air to enter
the refrigerator and causes the refrigeration unit to
use more energy to maintain the temperature.
-
-
Do not store volatile chemicals such as
ether and benzene in the refrigerator.
The fumes, besides damaging food, can
build up and cause an explosion.
-
-
Do not use the refrigerator if it is not operating
correctly or has been damaged. Disconnect it from
the power supply and call your local service center.
If the power cord is damaged, avoid a hazard by
replacing it through the manufacturer or its service
agent or a similarly qualified person
-
-
Always be careful of not banging your head on the
bracket lock while storing or taking out food.
-
Frequent opening of door can cause excessive
frost in the unit that will reduce the cooling
momentarily, this is a general phenomenon
especially in coastal or high humidity area. It is
not a malfunction. Opening of door should be avoided
while defrosting.
Avoid keeping freezer door open for long time to prevent
frost accumulation.
-
5
5
6
6
7
7
9
9
-
4
8
8
Dew (moisture) formation on case Ice Pack. It is a natural
phenomena and not a refrigerator problem.
-
-
10
10
Twist Ice Cube Tray (Select model)
Ice Storage Bin (Select model)
Freezer Compartment Temperature
Control
Super-Freeze Zone (Select model)
Freezer shelf
Chiller Compartment (Select model)
Refrigerator Compartment
Temperature Control
i-Cooling / Spin-Cool (Optional)
Refrigerator Shelf ( )3 No. Select Model
Lamp
Adjustable Storage Guard
Dairy Guard (Select model)
Jumbo Guard
Bottle Storage Guard
Bio-Fresh Zone (Select model)
Sliding Drawer (Select model)
Bottle Guide (Select model)
It is recommended to store fruits & vegetables in Bio-fresh Zone/Case vegetable.
Shelf-Plus (RT 32 - Select Model)
Fresh Tech (Select model)
RT 24/27/32/35
5
Case Ice Pack Ref (Select Model)
Twist Ice Cube Tray (Select model)
Ice Storage Bin (Select model)
Freezer Compartment Temperature
Control
Guard FRE upp (Selected model)
Mr. Cool Pack (Selected model)
Super-Freeze Zone (Selected model)
Chiller Compartment (Selected model)
Refrigerator Compartment Temperature
Control
i-Cooling / Spin-Cool (Optional)
Tray Egg (3-Line)
Refrigerator Shell (Plastic or Steel or Glass)
Lamp
Foldable Storage Guard
Pocket Storage Guard
Fresh Tech (Selected model)
Jumbo Guard (2 Bottle Storage Guard)
Bottle Storage Guard
Twin-Vegetable Box
It is recommended to store fruits & vegetables in Vegetable Box.
6
RT 26/29
-
-
1
1
2
2
Press upper tab of the lamp cover
with some tool such as driver and
pull it out.
Turn the existing lamp bulb and replace it with a new one.
Replace the lamp cover by aligning the cover at the top ( ) and carefully pressing
it into place ( )
1
2
REPLACING THE LAMP
7
Temperature control
COLDEST
Freezer Temperature control
Turn the Temperature Control to "COLDEST" if you;
have a lot of food to store (refrigerator or freezer)
want to make ice (freezer)
require fast freezing (freezer)
-
-
-
Refrigerator Temperature control
Turn the Temperature Control to the midway point
between "COLDEST" and "COLD" for normal
refrigerating or freezing mode.
Turn the Temperature Control to "COLD" if you
want to store only a small amount of food in the
refrigerator or freezer.
When the air surrounding the refrigerator is below 5°C, turn the
Temperature Control to "COLD" to avoid freezing.
Apart from above mentioned Knob setting settings if you desire to
increase or reduce the cooling, turn the Knob clockwise or
anticlockwise beyond the marked positions respectively.
NOTE
-
-
8
HOW TO USE
NORMAL
COLD
Refrigerator
Freezer (Select Model)
Freezer (Select Model)
Freezer (Select Model)
Refrigerator
Refrigerator
987
6
5
4
3
2
1
1
2
345
6
1
2
3
4
5
6
78
9
D
L
O
C
C
O
L
D
E
S
T
C
O
L
D
C
O
L
D
E
S
T
987
6
5
4
3
2
1
1
2
345
6
1
2
3
4
5
6
78
9
D
L
O
C
C
O
L
D
E
S
T
C
O
L
D
C
O
L
D
E
S
T
987
6
5
4
3
2
1
1
2
345
6
1
2
3
4
5
6
78
9
D
L
O
C
C
O
L
D
E
S
T
C
O
L
D
C
O
L
D
E
S
T
* For Temperature Control in "Display Panel Type Model" refer to Page No. 9
