Samsung RF48A401 Series Manual de usuario

User servicing manual

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional

repair of the product, Samsung is not liable for any damage to the product, any injury or

any other product safety issue caused by any attempt to repair the product which does

not carefully follow these repair and maintenance instructions. Any damage to the product

caused by an attempt to repair the product by any person other than a Samsung certifie

service provider will not be covered by the warranty.

CAUTION

•The part name listed on the site may differ from that in this manual. Please make sure you

choose the right part name.

•Replacing hinges requires extreme caution because it involves detaching the door.

•Be sure to wear safety gloves while making repairs.

MODEL CODE: RF48A401*, RF48A400*

1. You may find the installation, maintenance, repair, cleaning information about the device

the list of spare parts of the device, and the necessary information for ordering spare

parts that can be supplied by authorized service http://samsung.com/support or call

center 4447711

2. The model code is labelled on the outer side of your product.

- You can check the model code and version on the barcode label at the bottom left of

the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual.

- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and

hinges.

English

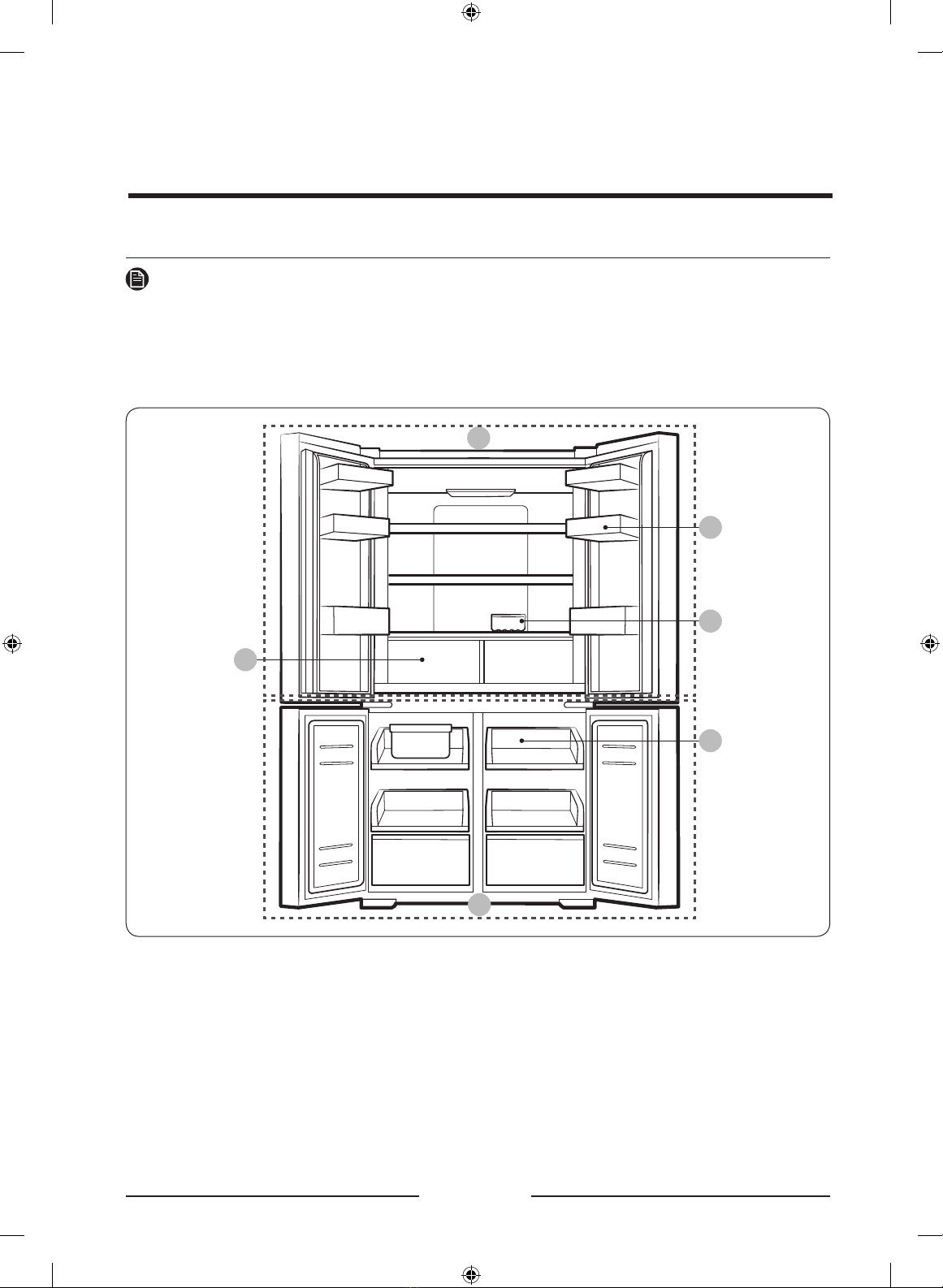

Refrigerator at a glance

NOTE

The actual image and provided component parts of the refrigerator may differ, depending

on the model and the country.

For more information, see the Layout section.

Normal type

English

Dispenser type

01 Fridge door bin

02 Fresh Vegetable & Fruit Drawers

03 Sliding shelf

04 Egg tray

05 Water tank *

A. Fridge

B. Freezer

* Dispenser type models only

Gasket replacement

CAUTION

Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

Open the door and remove the gasket from

the door.

To replace the gasket

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new

gasket and the door.

English

Freezer shelf (ASSY SHELF FRE)

To secure more room in the freezer

remove the middle drawer of the freezer,

and then insert the freezer shelf between

the middle and bottom drawers.

•The freezer shelf does not affect the

thermal or mechanical performance of

the refrigerator.

•Remove the protective film on th

freezer shelf before use.

1. Slide open and remove the middle

drawer.

Rear

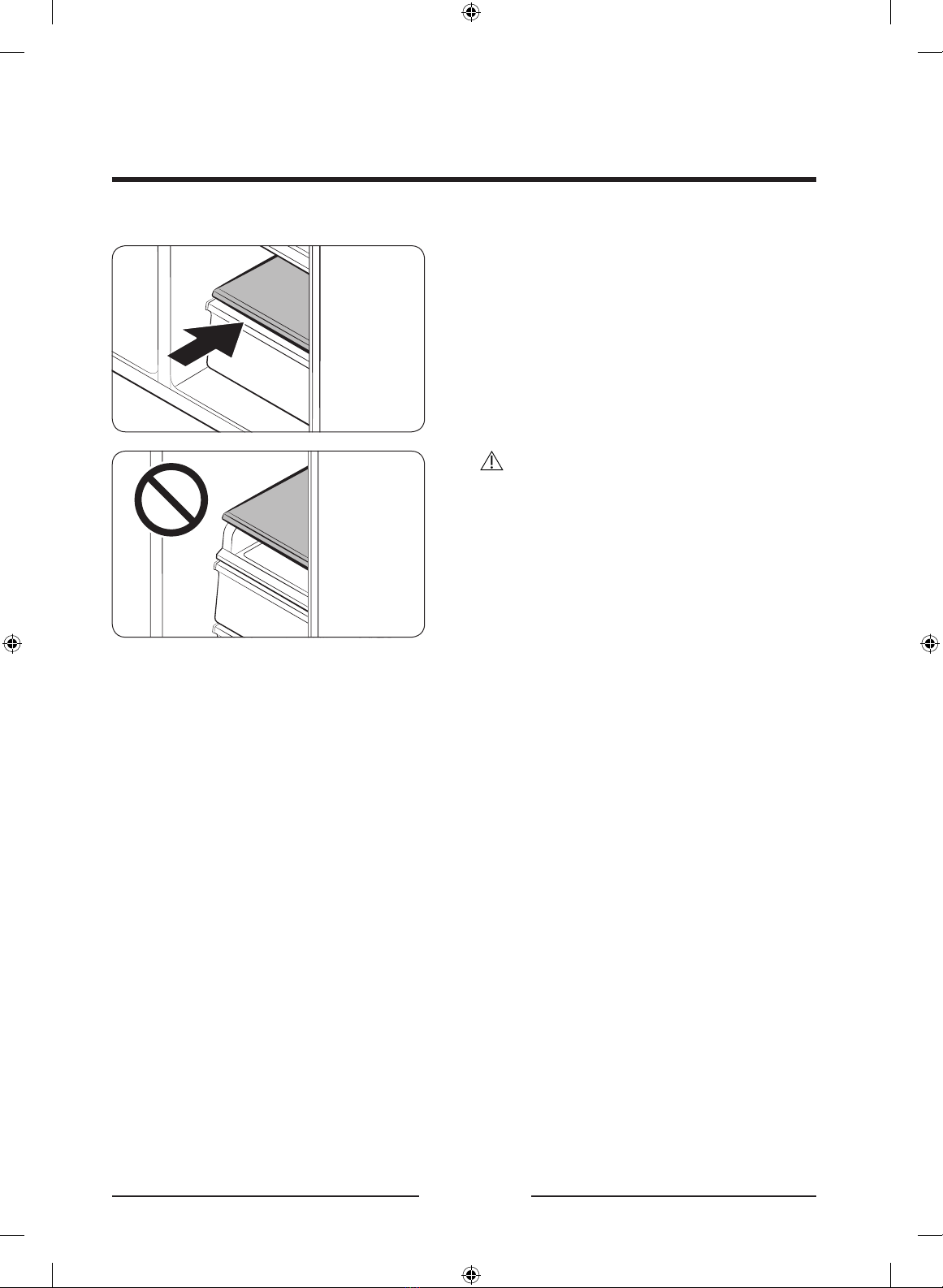

2. Insert the freezer shelf in the position

of the middle drawer. Make sure the

REAR mark faces upward, which is

located at the rear of the shelf.

English

CAUTION

• The freezer shelf (ASSY SHELF FRE)

is specifically designed to replace th

middle drawer for additional storage

room. Do not put the freezer shelf over

on the Sliding Shelf.

•Make sure to insert the freezer shelf in

the correct direction. Otherwise, it may

be damaged.

•Keep the removed middle drawer in a

safe place for future use.

English

Handle and care

Tempered glass shelves (fridge)

•Slightly lift up the rear side of the shelf

to pull out.

•Twist the shelf diagonally to remove.

CAUTION

•The tempered glass shelves are heavy.

Use caution when removing them.

•The shelf must be inserted correctly. Do

not insert upside down.

•Glass containers may scratch the

surface of glass shelves.

Door bins

To remove the top door bin, hold the front

sides of the bin, and then gently lift up to

remove.

To reinsert, insert the door bin to the end

of the marked line.

Hold the rear of the door bin with both

hands, and then press down to fit into th

marked line.

English

Vegetable & fruit drawers

Gently lift up the front of the drawer and

slide out.

It is recommended to remove the door

bins before removing the drawer. This is to

prevent damage to the door bins.

Vegetable shelf

1. Slide out the left-sided vegetable

drawer.

2. While supporting the vegetable shelf

with one hand, slide out with the other

hand.

NOTE

Using the space that is revealed after

removing the upper shelf, take out the

vegetable shelf.

To reinsert, follow the steps above in the

reverse order.

English

Door removal for entrance

If the refrigerator cannot pass through the entrance due to its size, follow these

instructions:

Tools required (not provided)

Phillips screwdriver Flat-heat screwdriver Socket spanner (8 mm)

Pliers Allen spanner (4 mm)

Detach the fridge doors

1. With the door closed, use a Phillips

screwdriver to remove the screws

(x4) from the cover hinge. Pull up

and remove the top cover with the

connectors.

English

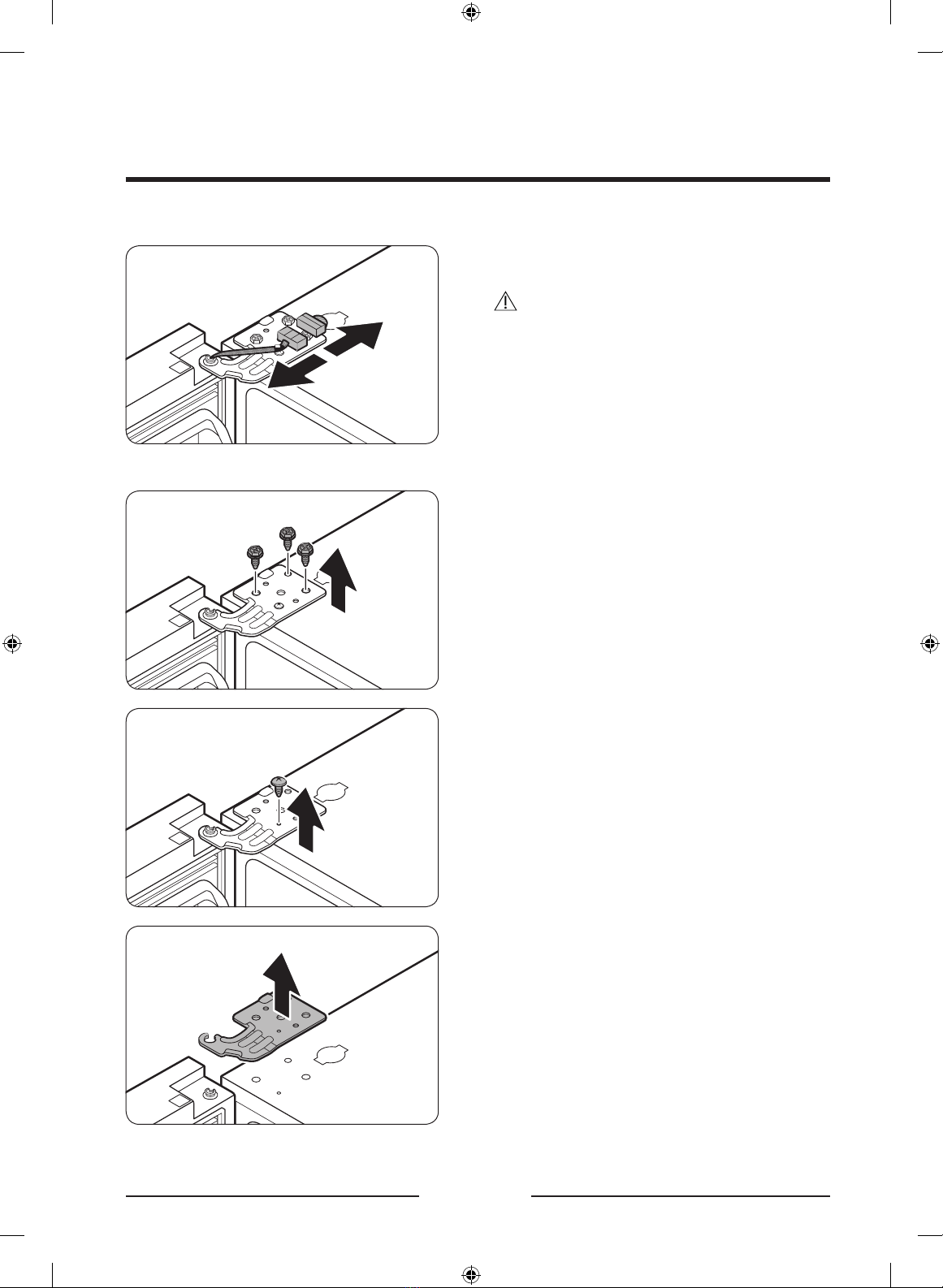

2. Disconnect electric wire on the top of

the refrigerator.

CAUTION

•Do not remove both doors

simultaneously. Make sure to remove

one door at a time. Otherwise, any of

the doors may fall and cause physical

injury.

•Make sure the refrigerator powers off

before disconnecting the connectors.

3. Remove the 3 hex bolts that hold the

hinge on the top of the refrigerator

with the 8 mm socket spanner.

4. Remove the screw that holds the

ground wire with a Phillips screwdriver

(+).

5. Separate the hinge from the electric

wire and ground wire as shown above.

English
