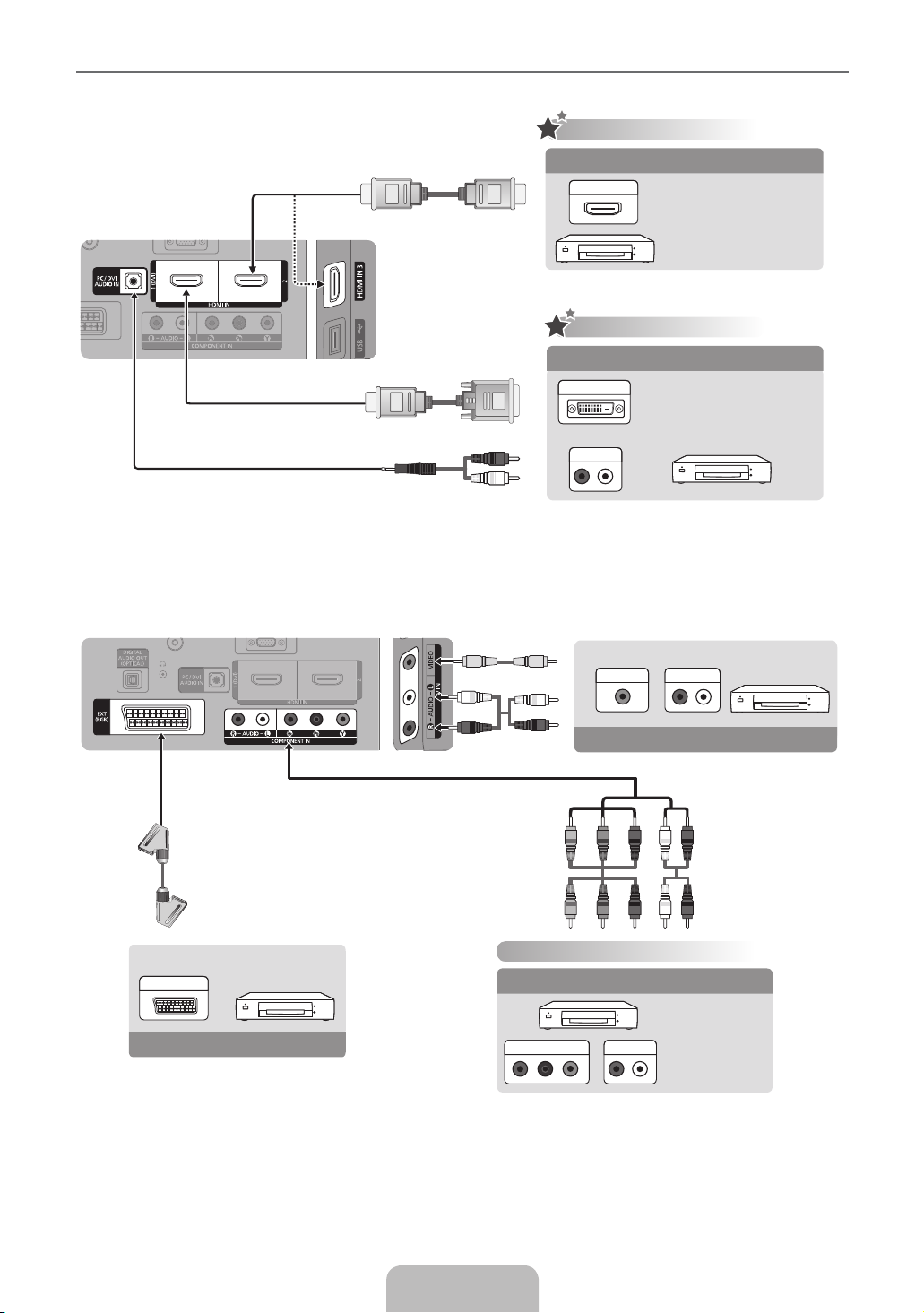

¦¦Connecting¦a¦AV¦device

HD¦connection

DVD / Blu-ray player

/ HD Cable Box / HD

STB (Set-Top-Box)

satellite receiver

Using an HDMI Cable

HDMI OUT

VCR / DVD

Using a Scart Cable

EXT

RRG

HD¦connection

DVD /

Blu-ray player

Using an HDMI to DVI Cable

DVI OUT

AUDIO OUT

Component connection

DVD, Blu-ray

player, cable

box, STB satellite

receiver, VCR

Using a Component Cable

AUDIO OUTCOMPONENT OUT

VCR

AUDIO OUTVIDEO OUT

Using an Audio/Video Cable

RRG

[QSG]BN68-02789A-01Eng.indd 1 2010-03-09 오후 4:55:51

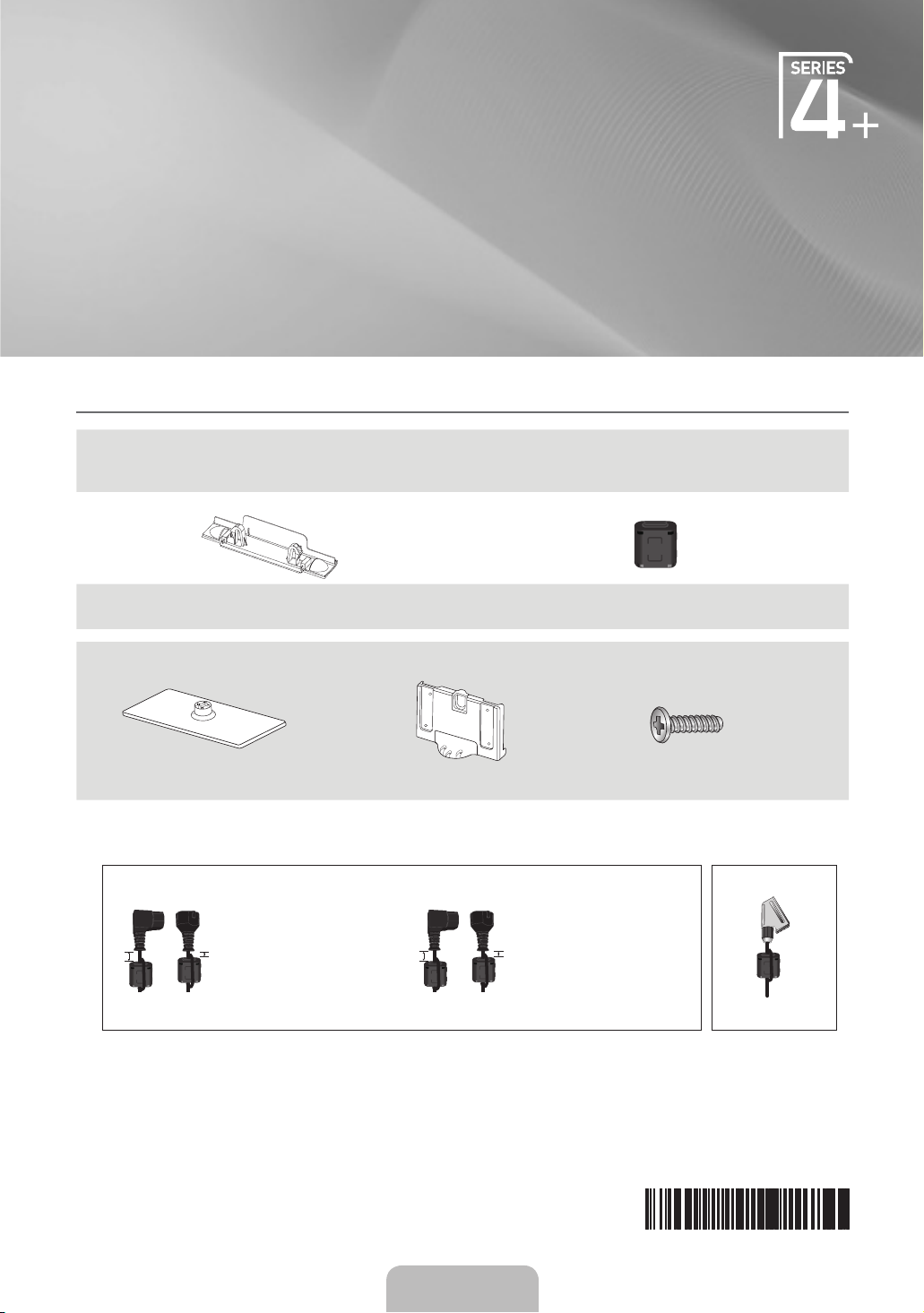

¦¦The¦Supplied¦Accessories

yRemote Control & Batteries (AAA x 2)

yOwner’s Instructions

yWarranty Card / Safety Guide (Not available in some locations)

yCleaning Cloth

yPower Cord

yBlanking Bracket

yFerrite Core (3EA)

(depending on the country)

See separate guide for installing the stand.

(M4 X L16)

yStand (1EA)

yGuide Stand (1EA)

yScrews (10EA)

✎

Ferrite Core: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core

and clip it around the cable near the plug as shown in the figure.

yDistance between the ferrite core and one end of the cord put into the TV set

yA : below 50 mm

yB : below 20 mm

yC : 100 ~ 150 mm

yD : below 15 mm

(Switzerland only)

Plasma TV

QUICK SETUP GUIDE

English - 1

BN68-02789A-01

[QSG]BN68-02789A-01Eng.indd 2 2010-03-09 오후 4:55:52

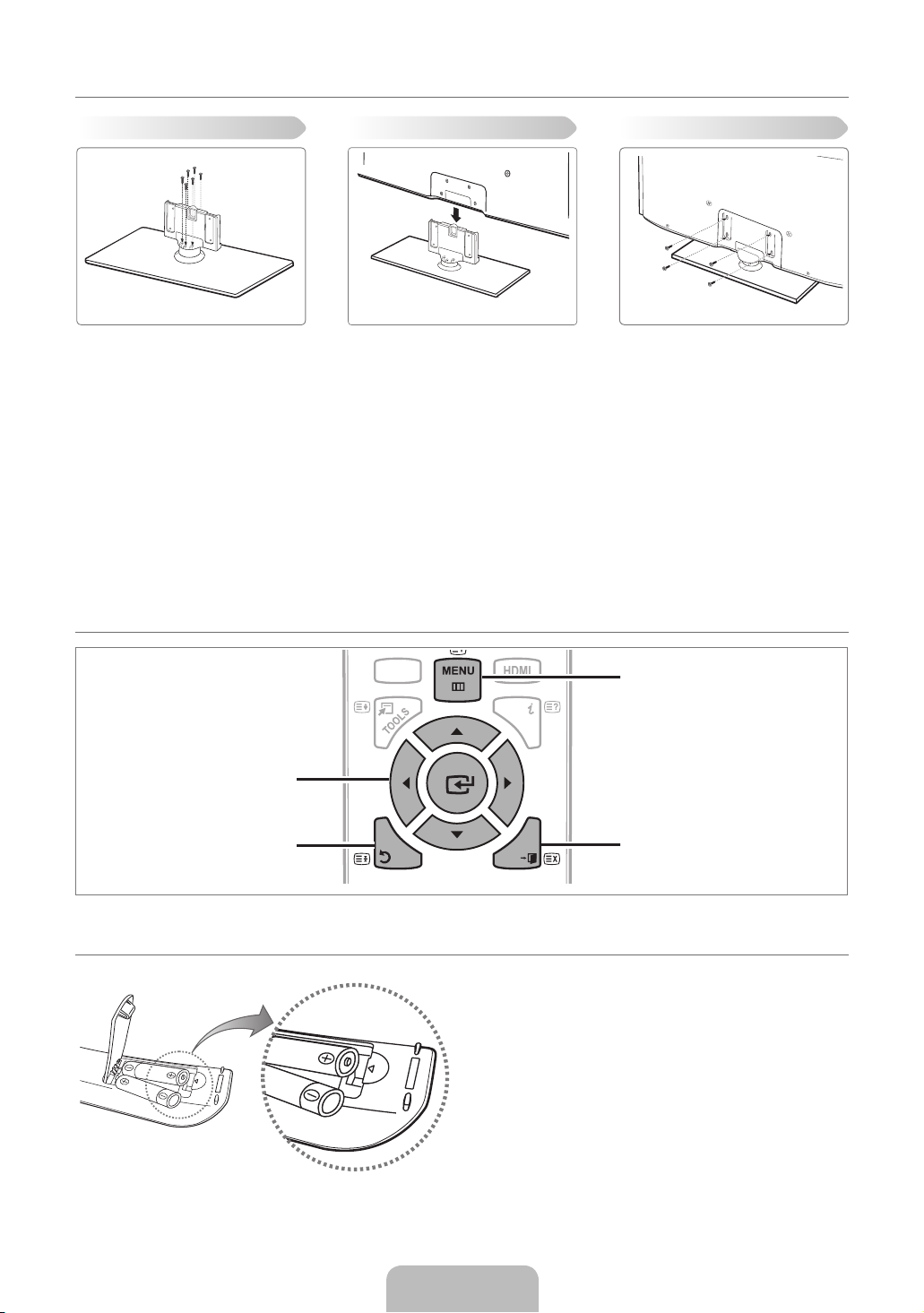

¦¦Installing¦the¦Stand

✎

Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the screws. Applicable to models

(Depending on the model)

Step¦1.¦ Attach your PDP TV to the stand.

✎

Two or more people should carry the TV.

✎

Make sure to distinguish between the front and back of the stand when assembling them.

✎

To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper

left of right sides of the TV.

Step¦2.¦ Fasten two screws at position 1 and then fasten two screw at position 2.

✎

Stand the product up and fasten the screws. If you fasten the screws with the PDP TV placed down, it may lean to

one side.

¦¦Using¦the¦remote¦control¦buttons

¦¦Installing¦Batteries¦in¦the¦Remote¦Control

English - 2

MEDIA

HDMI

RETURN

ΕΧΙΤ

INFO

LEEP

.SIZ

.SAVIN

OURC

H LI

3 4

RETURN Button

Return to the previous menu.

ENTER

/ DIRECTION Buttons

Move the cursor and select an

item. Select the currently selected

item. Conﬁrm the setting.

EXIT

Exit the on-screen menu.

MENU Button

Display the main on-screen menu.

Preset Step¦1 Step¦2

Back

Front

Back

Front

[QSG]BN68-02789A-01Eng.indd 3 2010-03-09 오후 4:55:52

English - 3

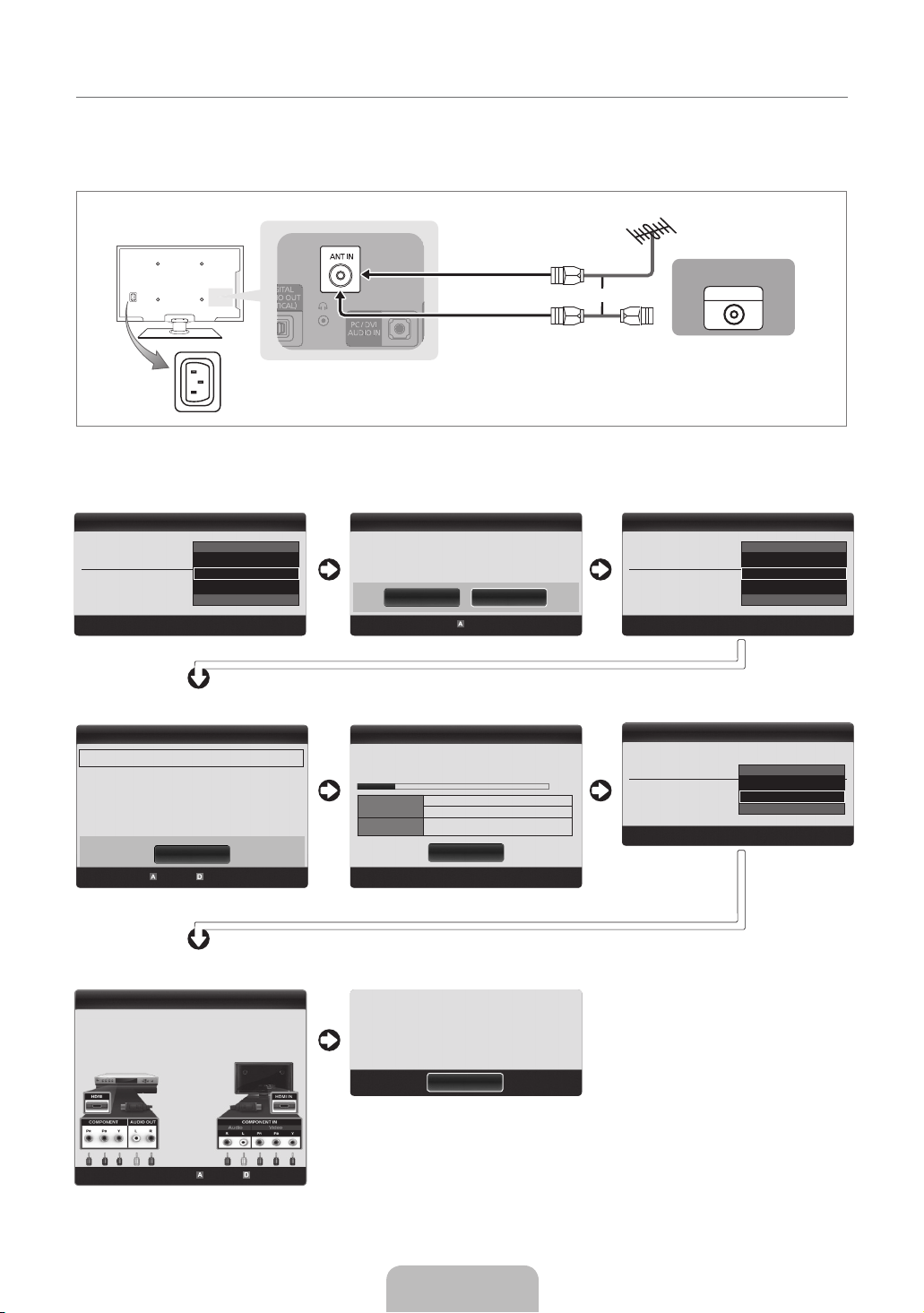

¦¦Plug¦&¦Play

When the TV is initially powered on, basic settings proceed automatically and subsequently.

If you want to reset this feature, press the MENU button to display menu.

You can set the Plug & Play by selecting ‘Setup → Plug & Play’.

On the screen, you can set as follows.

✎

The each step may vary depending on the Antenna source.

ANT OUT

VHF/UHF Antenna

Cable

Power Input

Step 1 Step¦2 Step¦3

Step¦4 Step¦5 Step¦6

Step¦7 Step¦8

Plug & Play

Select the OSD Language.

Menu Language : : English

▲

Nederlands

English

Eesti

▼

Move

Enter

Plug & Play

Select Country.

Country :

▲

Turkey

United Kingdom

Estonia

▼

Move

Enter

Plug & Play

Enjoy your TV.

Plug & Play

Select the usage mode.

Store Demo Home Use

Move

Enter

Plug & Play

Antenna Source : Air ►

Channel Source : Digital & Analogue

Previous Skip

Move

Enter

Serch

Plug & Play

Auto Store in progress.

Channels : 7

15%

Digital 2

TV:2 Radio:0 Data/Other: 0

Analogue 0

Enter

Stop

Plug & Play

Set the Clock Mode.

Clock Mode : Manual ►

Move

Enter

Auto

Manual

Plug & Play

How to get the best perfotmance from your new HDTV

1/2

Step 1. Connect the HD Box to the using HDMI or Component

cables.

TV rear view ►

HDMI Cable

Previous Skip ► Next

[QSG]BN68-02789A-01Eng.indd 4 2010-03-09 오후 4:55:53
