Samsung NV60K5140BB/TR Manual de usuario
User Manual
NV60K5140BB / TR
Built-in Oven
2
Dear Customer,
Thank you for relying on this product.
We aim to allow you to optimally and efciently use this
environment-friendly product produced in our modern facilities under
precise conditions with respect to sense of quality in total.
We advise you to read these operating manual thoroughly before using
the oven and keep it permanently so that the features of the built-in oven
you have purchased will stay the same as the rst day for a long time.
NOTE:
This Operating Manual is prepared for multiple models. Your appliance
may not feature some functions specied in the manual.
The product images are schematic.
This product has been produced in modern environment-friendly
facilities without adversely affecting nature.
Products marked with (*) are optional.
"Complies with AEEE Regulation"
GB
3
CONTENTS
Important Warnings 4
Introducing The Appliance 6
Technical Specications 7
Installation Of Appliance 7
Important Warnings 13
Control Panel 14
Program Types 15
Cooking Recommendations 16
Cooking Table 16
Using The Oven 17
Replacing Oven Lamp 18
Cleaning Oven Glass 18
Cleaning And Mounting Oven Door 19
Maintenance And Cleaning 20
Accessories 21
Troubleshooting 22
Handling Rules 24
Customers’ Right Of Choice 25
Environmentally-Friendly Disposal 26
Package Information 26
Service List 27
GB
4
IMPORTANT WARNINGS
1. WARNING: To avoid electric shock, ensure that the
appliance circuit is open before changing the lamp.
2. WARNING: All supply circuit connections must be
disconnected before accessing terminals.
3. WARNING: The accessible parts may be hot during
use of grid. Children must be kept away.
4. WARNING: Fire hazard; do not store materials on
cooking surface.
5. WARNING: If the surface is cracked, open the
appliance circuit to avoid risk of electric shock.
6. WARNING: Appliance and its accessible parts are
hot during operation.
7. Setting conditions of this appliance are specied
on the label.(Or on the data plate)
8. Accessible parts might be hot during use of grill.
Small children should be kept away.
9. WARNING: Appliance is intended for cooking only.
It should not be used for other purposes like heating a
room.
10. There are additional protective tools avoiding
contact with oven doors. This part must be attached
when it’s likely that there are children around.
11. Do not use steam cleaners to clean the appliance.
12. NEVER try to put out the re with water.Only
shut down the appliance circuit and then cover the
ame with a cover or a re blanket.
GB
5
13. Hard and abrasive cleaners or hard metal scrapers
should not be used to clean the oven glass door, as
these can scratch the surface and cause breaking.
14. Ensure that door is fully closed after food is
placed.
15. Children under 8 years of age should be kept away,
if they cannot be monitored continuously.
16. Touching the heating elements should be avoided.
17. This appliance can be used by children over 8
years of age, people with physical, hearing or mental
challenges or people with lack of experience or
knowledge; as long as control is ensured or
information is provided regarding the dangers.
18. The appliance hasn’t been designed for
operation with an external time or a separate remote
control system.
19.This device has been designed for domestic use.
20. Cleaning and user maintenance can’t be made
by children without adult supervision.
21. Children must not play with the appliance.
Cleaning and user maintenance shouldn’t be made
by children unless they are older than 8 years old and
under adult supervision.
22. Make sure that children at and under 8 can’t reach
appliance and appliance cable.
23. Keep curtains, tissue paper or combustible
(inammable) materials away from appliance before
starting to use it. Do not place inammable or
combustible materials in or on the appliance.
GB
6

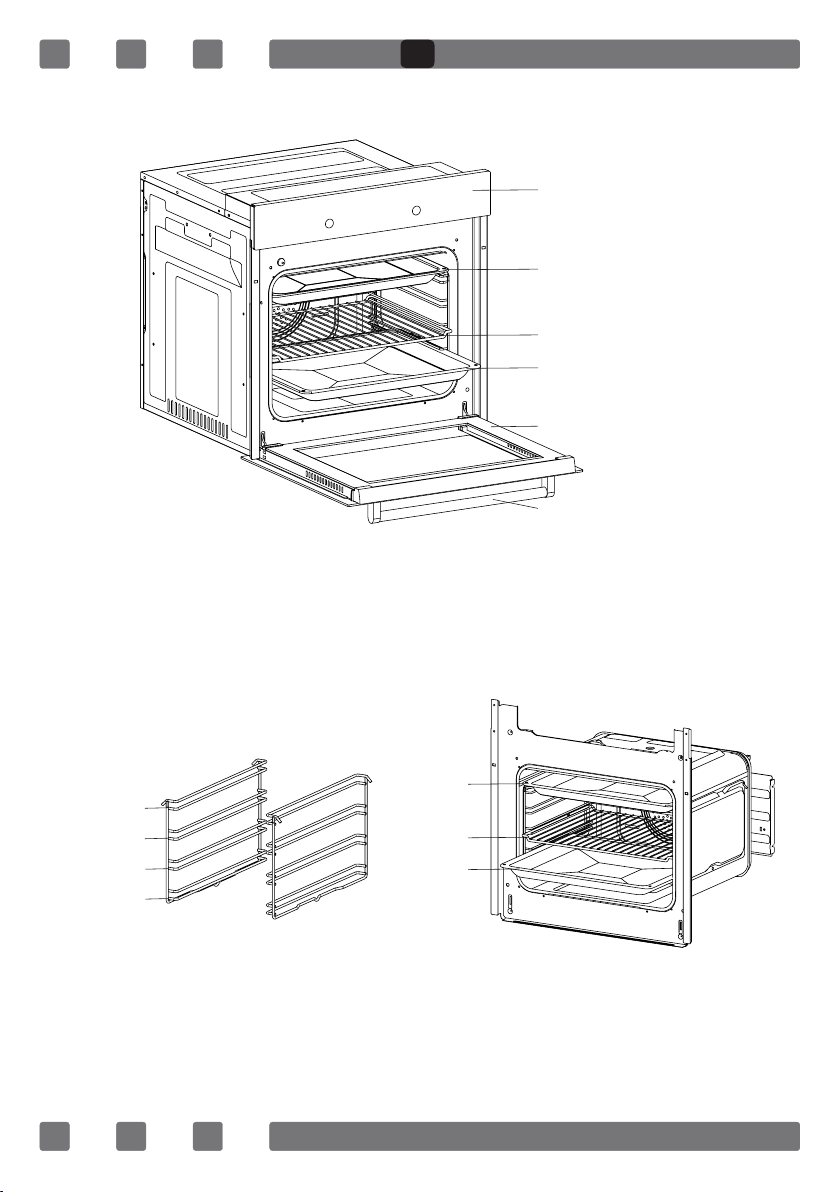

INTRODUCING THE APPLIANCE
1.Control Panel 4. Deep Tray
2.Standard Tray 5. Oven door
3.Wire Grill 6. Handle
7. Standard Tray
8. Wire Grill
9. Deep Tray
1
2
3
4
5
6
7
8
9
Rack 4
Rack 3
Rack 2
Rack 1
GB
7
TECHNICAL SPECIFICATIONS
SPECIFICATIONS 60 cm Built-In Oven
Lamp Power 15W
Thermostat 40-250 / Max °C
Lower Heater 1200W
Upper Heater 1000W
Grill Heater Small Grill 1000W Big Grill 2000W
Supply Voltage 220V-240V 50 Hz
Technical specications can be changed without prior notice to improve
product quality.
The values provided with the appliance or its accompanying documents
are laboratory readings in accordance with the respective standards.
These values may differ depending on the use and ambient conditions.
Figures in this guide are schematic and may not be exactly match your
product.
INSTALLATION OF APPLIANCE
Ensure that electrical installation is suitable for operationalising the
appliance. If not, call an electrician and plumber to make necessary
arrangements. Manufacturing rm can't be hold responsible for damages
to arise due to operations by unauthorized people and product warranty
becomes void.
WARNING: It is customer's responsibility to prepare the location the
product shall be placed on and also have power utility prepared.
WARNING: The rules about electrical local standards must be adhered to
during product installation.
WARNING: Check for any damage on the product before installing it.
Do not have product installed if it's damaged. Damaged products pose
danger for your safety.
GB
8
Important Warnings for Installation:

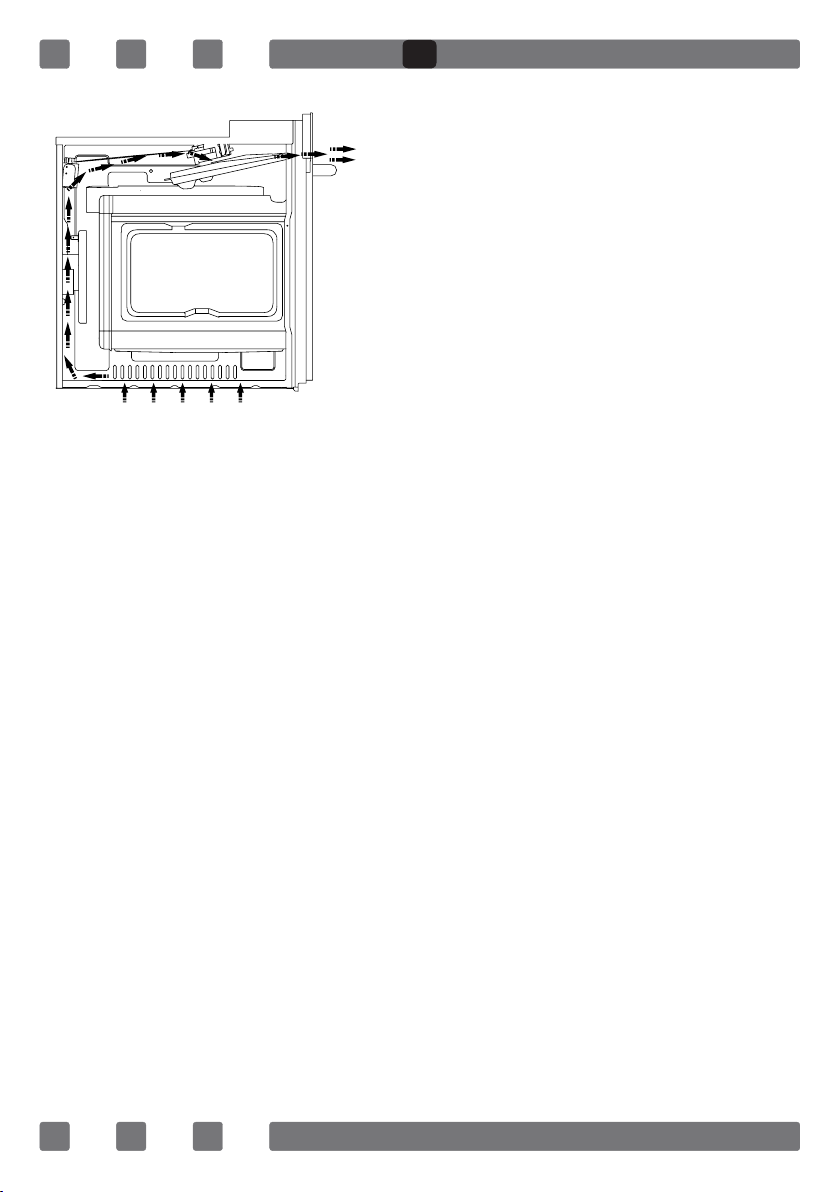

Cooling fan shall take extra steam out
and prevent outer surfaces of appliance
from overheating during operation of
oven. This is a necessary condition for
better appliance operation and better
cooking.
Cooling fan shall continue operation
after cooking is nished. Fan shall
automatically stop after cooling is
completed.
A clearance must be left behind the enclosure where you'll place the
appliance for efcient and good operation. This clearance shouldn't be
ignored as it's required for ventilation system of the appliance to operate.
Right Place For Installation
Product has been designed to be mounted to worktops procured from
market. A safe distance must be left between the product and kitchen
walls or furniture. See the drawing provided on the next page for proper
distances. (values in mm).
• Used surfaces, synthetic laminates and adhesives must be heat
resistant. (minimum 100°C).
• Kitchen cupboards must be level with product and secured.
• If there is a drawer below the oven, a rack must be placed between
oven and drawer.
WARNING: Do not install the product next to refrigerators or coolers.
The heat emitted by the product increases the energy consumption of
cooling devices.
Figure 1
GB
9
60 cm Built-In Oven Installation and Mounting
Place of use for product must be located before starting installation.
Product mustn't be installed in places which are under the effect of
strong air ow.
Carry the product with minimum two people. Do not drag the product so
that oor isn't damaged.
Remove all transportation materials inside and outside the product.
Remove all materials and documents in the product.
Installation Under Counter
Cabin must match the dimensions provided in Figure 2.
A clearance must be provided at the rear part of the cabin as indicated
in the gure so that necessary ventilation can be achieved.
After mounting, the clearance between lower and upper part of
the counter is indicated in Figure 5 with "A". It's for ventilation and
shouldn't be covered.
Installation In An Elevated Cabinet
Cabin must match the dimensions provided in Figure 4.
The clearances with the dimensions indicated in the gure must be
provided at the rear part of cabin, upper and lower sections so that
necessary ventilation can be achieved.
Installation Requirements
Product dimensions are provided in the Figure 3.
Furniture surfaces for mounting and mounting materials to be used
must have a minimum temperature resistance of 100 °C.
Mounting cabin must be secured and its floor must be plane for product
not to tilt over.
Cabin floor must have a minimum strength that would handle a load of
60 kg.
Placing and Securing the Oven
Place the oven into the cabin with two or more people.
Ensure that oven's frame and front edge of the furniture match
uniformly.
GB
10
Supply cord mustn't be under the oven, squeeze in between oven and
furniture or bend.
Fix the oven to the furniture by using the screws provided with the
product. Screws must be mounted as shown in Figure 5 by passing
them through plastics attached to frame of the product. Scre ws mustn't
be overtightened. Otherwise, screw sockets might be worn.
Check that oven doesn't move after mounting. If oven isn't mounted in
accordance with instructions, there is a risk of tilt over during operation.
Electrical Connection
Mounting place of the product must have appropriate electrical
installation.
Network voltage must be compatible with the values provided on type
label of product.
Product connection must be made in accordance with local and
national electrical requirements.
Before starting the mounting disconnect network power. Do not connect
the product to network until its mounting is completed.
Mounting
Figure 2
