English - 2
contents
SAFETY INFORMATION
3
03 Safety information
OVEN FEATURES
16
16 Control panel
17 Oven
18 Accessories
BEFORE YOU BEGIN
19
19 Setting the clock
20 Setting the energy save mode
OVEN USE
21
21 Types of heating
23 How a microwave oven works
24 Using the microwave mode
34 Using the oven mode
45 Using the multi-level cook mode
47 Setting the cook time
48 Setting the end time
49 Setting the delay start
50 Combi-functions
56 Using the keep warm mode
57 Using the auto menu mode
63 Using the speed cook mode
65 Test dish
CLEANING AND CARE
66
66 Using the steam clean mode
67 Switching o the beeper
68 Child safety lock
TROUBLESHOOTING AND
INFORMATION CODE
69
69 Storing and repairing your
microwave oven
69 Troubleshooting
72 Information codes
TECHNICAL DATA
73
73 Technical specifications
NQ50H7535DS_ET_DG68-00470H-00_EN.indb 2 2014-03-12 �� 4:01:54
safety information
USING THIS INSTRUCTION BOOKLET
You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contain valuable
information on cooking with your microwave oven:
• Safetyprecautions
• Suitableaccessoriesandcookware
• Usefulcookingtips
• Cookingtips
LEGEND FOR SYMBOLS AND ICONS
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property
damage.
Warning; Fire hazard Warning; Hot surface
Warning; Electricity Warning; Explosive material
Do NOT attempt. Do NOT touch.
Do NOT disassemble. Follow directions explicitly.
Unplug the power plug from the wall
socket.
Make sure the machine is grounded to
prevent electric shock.
Call the service center for help. Note
Important
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE.
Make sure that these safety precautions are obeyed at all
times.
Before using the oven, confirm that the following
instructions are followed.
WARNING
(Microwave function only)
WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
English - 3
01 SAFETY INFORMATION
NQ50H7535DS_ET_DG68-00470H-00_EN.indb 3 2014-03-12 �� 4:01:55
WARNING:
It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
WARNING:
Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
This appliance is intended to be used in household only.
WARNING: Only allow children to use the oven without
supervision when adequate instructions have been
given so that the child is able to use the oven in a safe
way and understands the hazards of improper use.
WARNING: This appliance can be used by children
aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children unless they are aged from 8 years and above
and supervised.
Only use utensils that are suitable for use in microwave
ovens.
When heating food in plasitic or paper containers, keep
an eye on the oven due to the possibility of ignitions.
The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or fire.
If smoke is emitted, switch o or unplug the appliance
and keep the door closed in order to stifle any flames.
WARNING: Microwave heating of beverages can result
in delayed eruptive boiling, therefore care must be
taken when handling the container.
English - 4
NQ50H7535DS_ET_DG68-00470H-00_EN.indb 4 2014-03-12 �� 4:01:55
WARNING: The contents of feeding bottles and baby
food jars shall be stirred or shaken and the temperature
checked before consumption, in order to avoid burns.
Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
The oven should be cleaned regularly and any food
deposites removed.
Failure to maintain the oven in a clean conditioin could
lead to deterioration of the surface that could adversely
aect the life of the appliance and possibly result in a
hazardous situation.
The appliance is not intended for installing in road
vehicles, caravans and similar vehicles etc.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: Liquids or other foods must not be heated
in sealed containers since they are liable to explode;
The appliance should not be cleaned with a water jet.
This oven should be positioned proper direction and
height permitting easy access to cavity and control area.
Before using the your oven first time, oven should be
operated with the water during 10 minute and then used.
If the oven generates a strange noise, a burning
smell, or smoke is emitted, unplug the power plug
immediately and contact your nearest service center.
English - 5
01 SAFETY INFORMATION
NQ50H7535DS_ET_DG68-00470H-00_EN.indb 5 2014-03-12 �� 4:01:55
Appliance should allow to disconnection of the
appliance from the supply after installation. The
disconnection may be achieved by having the plug
accessible or by incorporating a switch in the fixed
wiring in accordance with the wiring rules.
WARNING
(Oven function only) - Optional
WARNING: When the appliance is operated in the
combination mode, children should only use the oven
under adult supervision due to the temperatures
generated.
During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
WARNING: Accessible parts may become hot during
use. Young children should be kept away.
A steam cleaner is not to be used.
WARNING: Ensure that the appliance is switched o
before replacing the lamp to avoid the possibility of
electric shock.
WARNING: The appliance and its accessible parts
become hot during use.
Care should be taken to avoid touching heating
elements.
Children less than 8 years of age shall be kept away
unless continuously supervised.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
English - 6
NQ50H7535DS_ET_DG68-00470H-00_EN.indb 6 2014-03-12 �� 4:01:56
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
The temperature of accessible surfaces may be high
when the appliance is operating.
The door or the outer surface may get hot when the
appliance is operating.
Keep the appliance and its cord out of reach of
children less than 8 years.
Appliances are not intended to be operated by means
of an external timer or separate remote-control system.
Please put the bent up frame side to the
back, in order to support the restposition
when cooking big loads.
Do not use oven rack for microwave oven mode.
This product is a Group 2 Class B ISM equipment. The
definition of group 2 which contains all ISM equipment in
which radio-frequency energy is intentionally generated
and/or used in the form of electromagnetic radiation
for the treatment of material, and EDM and arc welding
equipment.
For Class B equipment is equipment suitable for use in
domestic establishments and in establishments directly
connected to a low voltage power supply network which
supplies buildings used for domestic purposes.
INSTALLATION INSTRUCTIONS
General
Technical Information
Electrical Supply: 230 V ~ 50 Hz
Dimensions (w×h×d)
Set size : W 595 x H 454.2 x D 570
Built in size : W 555 x H 445 x D 548.8
English - 7
01 SAFETY INFORMATION
NQ50H7535DS_ET_DG68-00470H-00_EN.indb 7 2014-03-12 �� 4:01:56
This appliance complies with EU regulations.
Disposal of Packaging and Appliance
Packaging is recyclable.
Packaging may consist of the following materials:
- cardboard;
- polyethylene film (PE);
- CFC-free polystyrene(PS rigid foam).
Please dispose of these materials in a responsible manner
in accordance with government regulations.
The authorities can provide information on how to dispose
of domestic appliances in a responsible manner.
Safety
This appliance should only be connected by a qualified
technician. The Oven is NOT designed for use in a
commercial cooking setting. It should be used exclusively
for cooking food in a home setting. The appliance is hot
during and after use.
Exercise caution when young children are present.
Electrical Connection
The house mains to which the appliance is connected
should comply with national and local regulations.
Appliance should allow to disconnection of the appliance
from the supply after installation. The disconnection
may be achieved by having the plug accessible or by
incorporating a switch in the fixed wiring in accordance
with the wiring rules.
Install in the Cabinet
Kitchen Cabinets in contact with the oven must be heat-
resistant up to 100 °C.
Samsung will take no responsibility for damage of cabinets
from the heat.
English - 8
NQ50H7535DS_ET_DG68-00470H-00_EN.indb 8 2014-03-12 �� 4:01:56

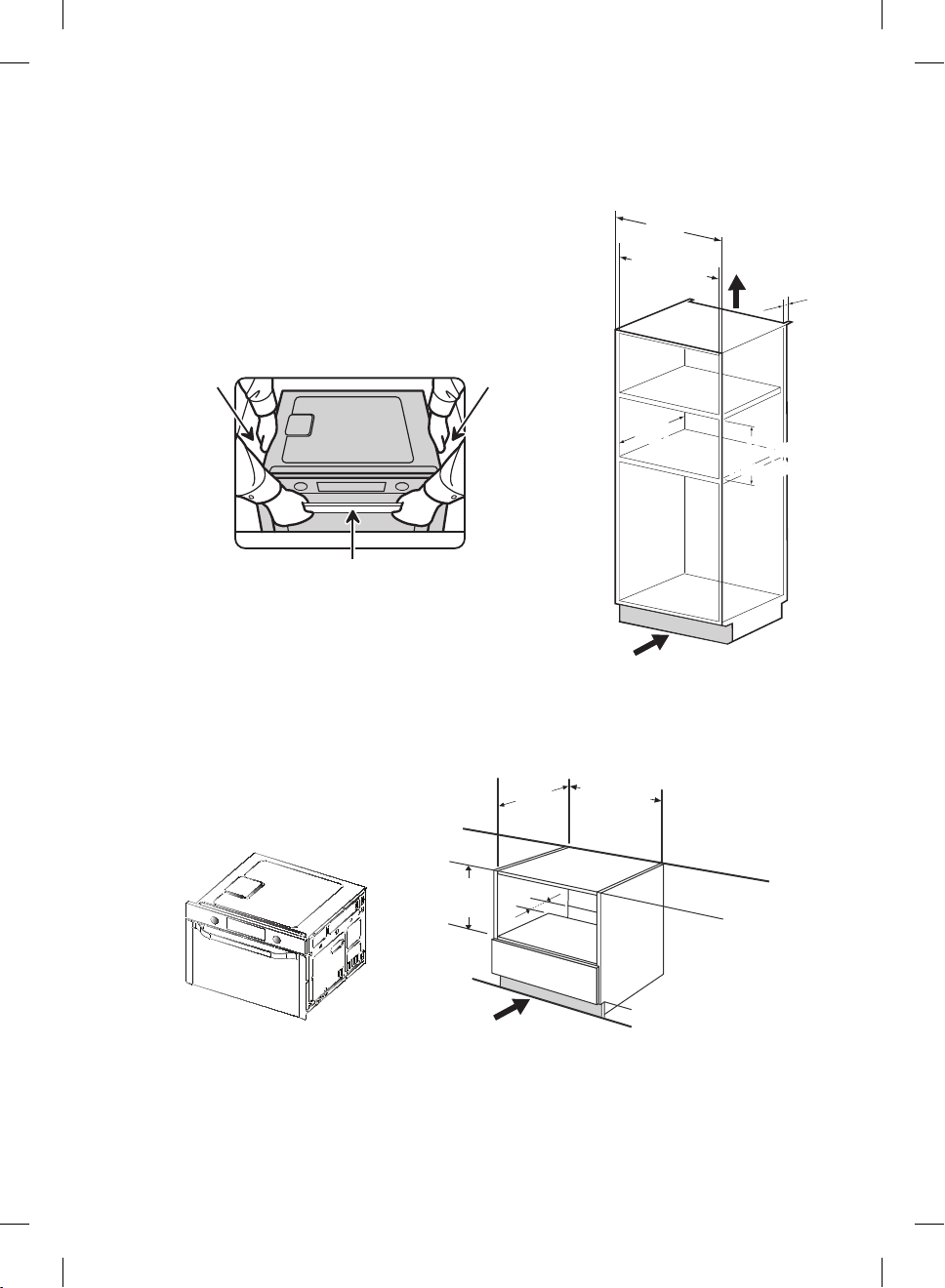

Fig1. Slide the oven partly into the recess. Lead the
connection cable to the power source.
Fig2. Slide the oven completely into the recess.
Fig3. Fasten the oven using the two screws (4 X 25 mm)
provoded.
Fig4. Make the electrical connection.
Check that the appliance works.
Fig1
Fig3
Fig2
Fig4
English - 9
01 SAFETY INFORMATION
NQ50H7535DS_ET_DG68-00470H-00_EN.indb 9 2014-03-12 �� 4:02:15
Be sure to hold the appliance with
2side handles and door handle when
unpacking the product.
Side
handle
Side
handle
Door handle
Building-in
dimensions
600
min 564
max 568
min 446
max 450
min
550
200 cm²
50
200 cm²
Built-under Dimensions
min
550
min 564
max 568
min 446
max 450 50
200 cm²
English - 10
NQ50H7535DS_ET_DG68-00470H-00_EN.indb 10 2014-03-12 �� 4:04:26
Tabla de contenidos
Otros manuales de Horno de Samsung
Samsung
Samsung BF1C4T043 Manual de usuario
Samsung
Samsung NV75R7676RS Guía
Samsung
Samsung NQ5B7993A Series Manual de usuario
Samsung
Samsung NV75J3140RS Guía
Samsung
Samsung NV75J7570RS Guía
Samsung
Samsung BQ1AQ4T013 Manual de usuario
Samsung
Samsung NV75T9979CD Guía
Samsung
Samsung NV7B796 Series Guía
Samsung
Samsung NV51K6650S SERIES Manual de usuario
Samsung
Samsung MC324GAKCBB Manual de usuario
Samsung
Samsung PKG001 Manual de usuario
Samsung
Samsung NX60 Series Manual de usuario
Samsung
Samsung NV7B40 Series Manual de usuario
Samsung
Samsung NV70K1340BS/OL Guía
Samsung
Samsung FTQ352IW Series Instrucciones de funcionamiento
Samsung
Samsung NV75J3140RS Guía
Samsung
Samsung BF1N4T223 Manual de usuario
Samsung
Samsung NV75J5170BS Guía
Samsung
Samsung BF62 Series Manual de usuario
Samsung
Samsung BT65FQBFST Manual de usuario
