Samsung SyncMaster T200 Manual de usuario

LCD MONITOR

quick start guide

T220,T200,T190,T220G,T200G,T190G

Introduction

Package Contents

Note

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpacking

Monitor

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

D-Sub Cable Power Cord DVI Cable (option)

Others

Cleaning Cloth Cable holding ring Stand Body

Others

Stand Base

Note

Cleaning Cloth is only provided for highly polished black products as a product feature.

Your Monitor

Initial Settings

Select the language using the up or down key.

The displayed content will disappear after 40 seconds.

Turn the Power button off and on. It will be displayed again.

It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before reaching

the maximum count.

Note

The resolution displayed on the screen is the optimal resolution for this product.

Adjust your PC resolution so that it is the same as the optimal resolution for this product.

Front

Introduction

MENU button [MENU/ ]

Opens the on-screen menu and exits from the menu. Also use to exit the OSD menu

or return to the previous menu.

Brightness button [ ]

When OSD is not on the screen, push the button to adjust brightness.

>> Click here to see an animation clip

Customized Key[ ]

You can customize key assignment for the Custom button according to your pref-

erences.

Note

You can configure the customized key for a required function via Setup > Cus-

tomized Key.

Adjust buttons [ ]

These buttons allow you to adjust items in the menu.

Enter button [ ] / SOURCE button

Activates a highlighted menu item.

Push the ' /SOURCE', then selects the video signal while the OSD is off. (When

the /SOURCE button is pressed to change the input mode, a message appears

in the upper left of the screen displaying the current mode -- analog or digital input

signal.)

Note

If you select the digital mode, you must connect your monitor to the graphic card's

DVI port using the DVI cable.

>> Click here to see an animation clip

AUTO button

Use this button for auto adjustment.

>> Click here to see an animation clip

Power button [ ]

Use this button for turning the monitor on and off.

Note

The button to the right of the monitor are touch-sensitive buttons.

Touch a button lightly with your finger.

Power Indicator

This light glows blue during normal operation, and blinking blue once as the mon-

itor saves your adjustments.

Introduction

Note

See PowerSaver described in the manual for further information regarding power

saving functions. For energy conservation, turn your monitor OFF when it is not

needed or when leaving it unattended for long periods.

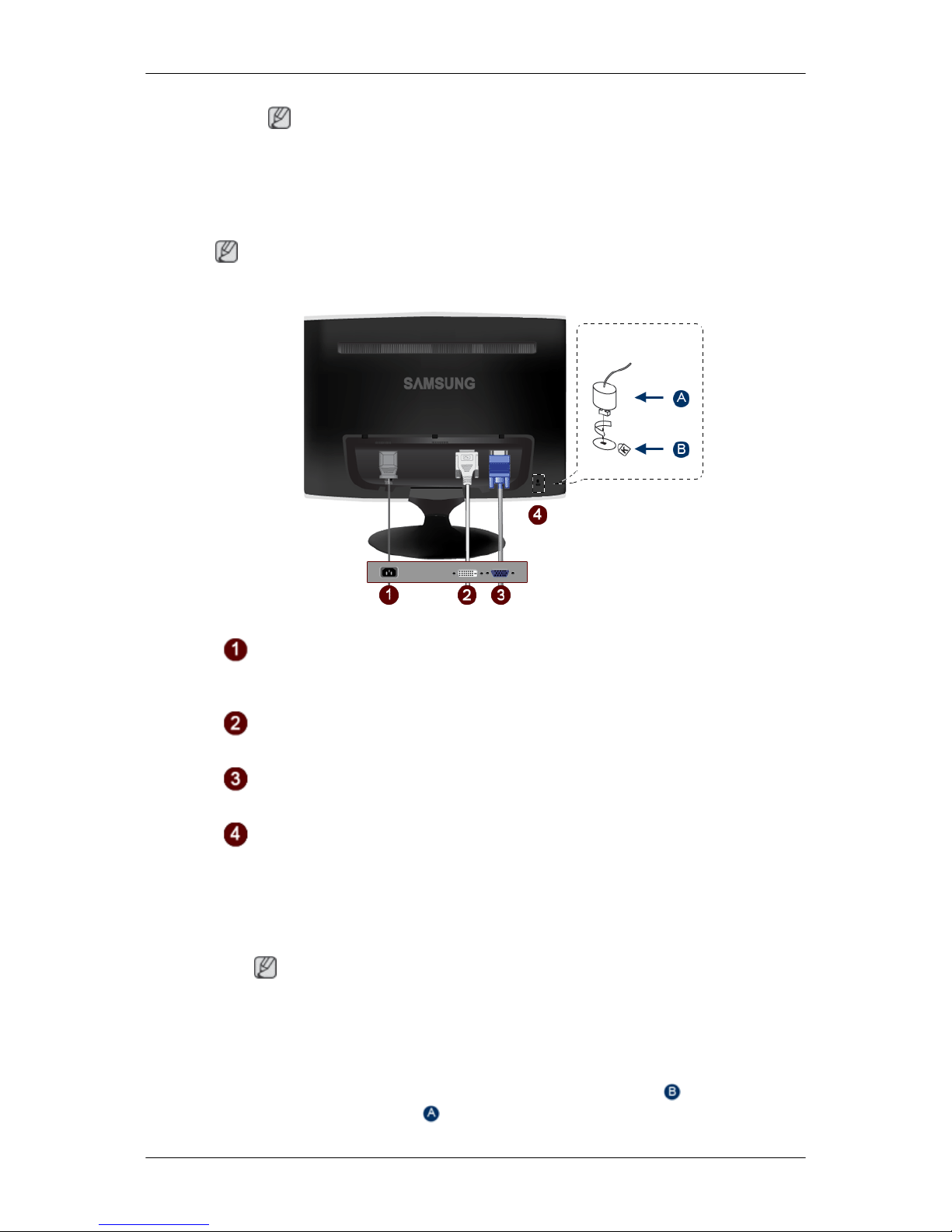

Rear

Note

The configuration at the back of the monitor may vary from product to product.

POWER port

Connect the power cord for your monitor to the POWER port on the back of the

monitor.

DVI IN port

Connect the DVI Cable to the DVI IN port on the back of your monitor.

RGB IN port

Connect the D-sub cable to the 15-pin, RGB IN port on the back of your monitor.

Kensington Lock

The Kensington Lock is a device used to physically fix the system when using it in

a public place. The locking device has to be purchased separately. The appearance

and locking method may differ from the illustration depending on the manufacturer.

Refer to the manual provided with the Kensington Lock for proper use. The locking

device has to be purchased separately.

Note

The location of the Kensington Lock may be different depending on its model.

Using the Anti-Theft Kensington Lock

1. Insert the locking device into the Kensington slot on the Monitor and turn it

in the locking direction .

Introduction

2. Connect the Kensington Lock cable.

3. Fix the Kensington Lock to a desk or a heavy stationary object.

Note

See Connecting Cables for further information regarding cable connections.

Introduction

Connections

Connecting Cables

Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

Use a connection appropriate for your computer.

Using the D-sub (Analog) connector on the video card.

• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

[RGB IN]

Using the DVI (Digital) connector on the video card.

• Connect the DVI Cable to the DVI IN Port on the back of your Monitor.

[DVI IN]

Connected to a Macintosh.

• Connect the monitor to the Macintosh computer using the D-sub connection cable.

Note

If the monitor and the computer are connected, you can turn them on and use them.

Using the Stand

Monitor Assembly

Monitor and Bottom

Folding the base

Note

You can tilt the monitor upwards at an angle of -1° to 21°.

Connections

Troubleshooting

{T190,T190G}

Self-Test Feature Check

Note

Your monitor provides a self test feature that allows you to check whether your monitor is functioning

properly.

Self-Test Feature Check

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.

If the monitor is functioning properly, you will see a box in the illustration below.

This box appears during normal operation if the video cable becomes disconnected or damaged.

4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the

monitor.

If your monitor screen remains blank after using the previous procedure, check your video controller

and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the screen goes

blank although the power indicator LED is still on. The message may indicate that the monitor is out

of scan range or that you need to check the signal cable.

Environment

The location and the position of the monitor may influence the quality and other features of the monitor.

If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room.

Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one

meter) of the monitor.

Useful Tips

A monitor recreates visual signals received from the computer. Therefore, if there is a problem with

the computer or the video card, this can cause the monitor to become blank, have poor coloring, become

noisy, and video mode not supported, etc. In this case, first check the source of the problem, and then

contact the Service Center or your dealer.

Judging the monitor's working condition

If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1440 x 900 60

Hz" message comes up, disconnect the cable from the computer while the monitor is still powered on.

If there is a message coming up on the screen or if the screen goes white, this means the monitor is in

working condition.

In this case, check the computer for trouble.

{T190,T190G}

Check List

Note

Before calling for assistance, check the information in this section to see if you can remedy any prob-

lems yourself. If you do need assistance, please call the phone number on the Information section or

contact your dealer.

No images on the screen. I cannot turn on the monitor.

Q: Is the power cord connected properly?

A: Check the power cord connection and supply.

Q: Can you see "Check Signal Cable" on the screen?

A: (Connected using the D-sub cable)

Check the signal cable connection.

(Connected using the DVI cable)

If you still see an error message on the screen when the monitor is connected properly, check to

see if the monitor status is set to analog.

If you still see an (error) message on the screen when the monitor is connected properly, check

to see if the monitor status is set to analog. Press ‘ /SOURCE’ button to have the monitor

double-check the input signal source.

Q: If the power is on, reboot the computer to see the initial screen (the login screen), which can be

seen.

A: If the initial screen (the login screen) appears, boot the computer in the applicable mode (the

safe mode for Windows ME/XP/2000) and then change the frequency of the video card.

(Refer to the Preset Timing Modes)

If the initial screen (the login screen) does not appear, contact the Service Center or your deal-

er.

Q: Can you see "Not Optimum Mode", "Recommended Mode 1440 x 900 60 Hz" on the screen?

Troubleshooting
