Before Using the Product

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is

prohibited.

The SAMSUNG and SyncMaster logos are registered trademarks of Samsung Electronics.

Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Icons used in this manual

Symbols for safety precautions

zAn administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual).

(b) you bring the unit to a repair center and there is no defect in the product

(i.e. where you have failed to read this user manual).

zThe amount of such administration charge will be advised to you before any work or home visit is

carried out.

The following images are for reference only. Real-life situations may

differ from what is shown in the images.

Warning A serious or fatal injury may result if instructions are not followed.

Caution

Personal injury or damage to properties may result if instructions are

not followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.

Great user manuals database on UserManuals.info 8

Before Using the Product

Cleaning

Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

Take the following steps when cleaning.

1. Power off the monitor and computer.

2. Disconnect the power cord from the monitor.

Hold the power cable by the plug and do not touch the cable with wet

hands. Otherwise, an electric shock may result.

3. Wipe the monitor screen using a clean, soft and dry cloth.

zDo not apply a cleaning agent that contains alcohol,

solvent, or surfactant to the monitor.

zDo not spray water or detergent directly on the product.

4. Wet a soft and dry cloth in water and wring thoroughly to clean the

exterior of the monitor.

5. Connect the power cord to the product after cleaning the product.

6. Power on the monitor and computer.

Great user manuals database on UserManuals.info 9

Before Using the Product

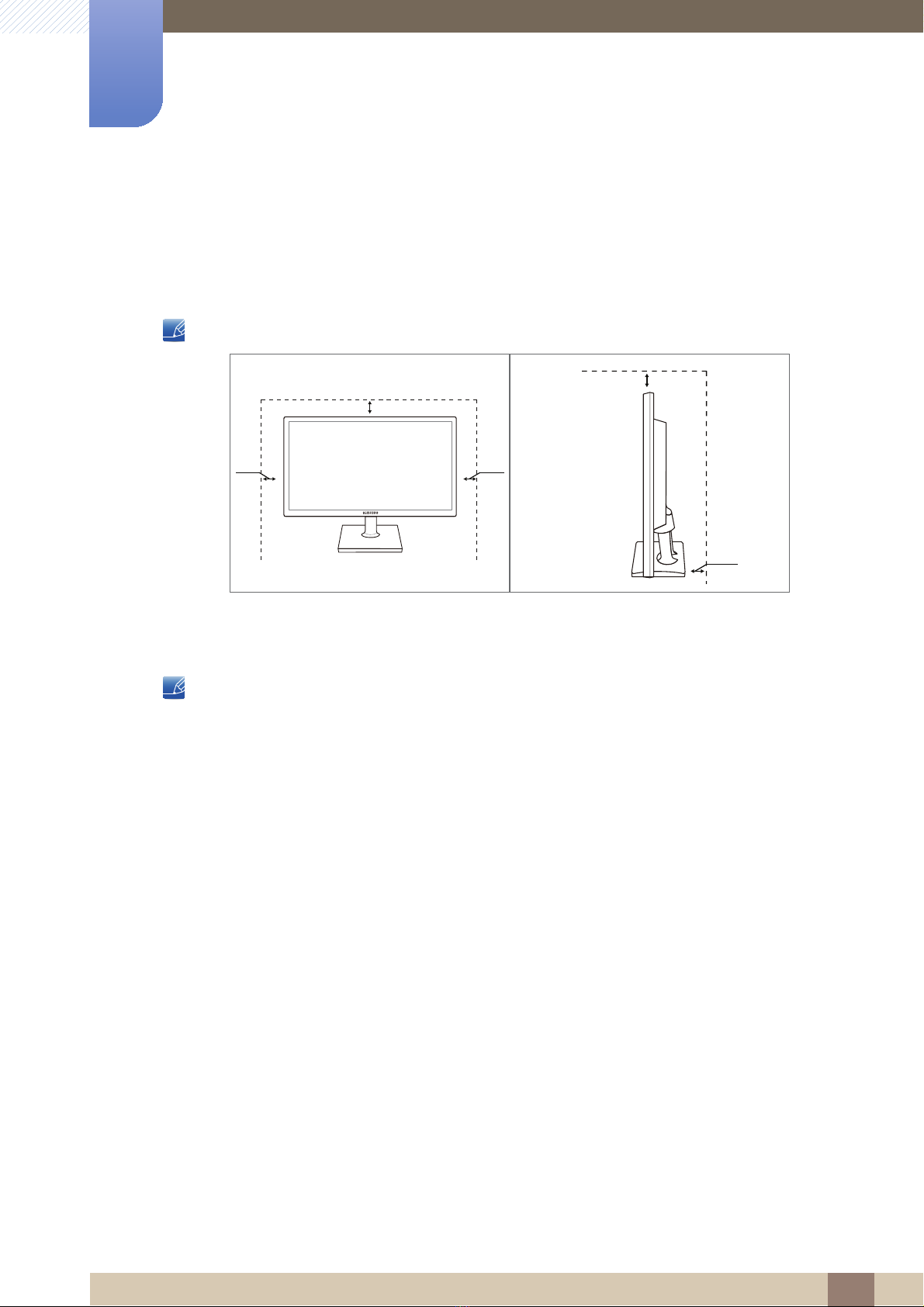

Securing the Installation Space

zEnsure some space around the product for ventilation. An internal temperature rise may cause fire

and damage the product. Be sure to allow the amount of space as shown below or greater when

installing the product.

The exterior may differ depending on the product.

Precautions for storage

Be sure to contact Samsung Customer Service Center (page 95) if the inside of the monitor needs

cleaning. (Service fee will be charged.)

3.93

inches

(10 cm)

3.93 inches(10 cm)

3.93 inches

(10 cm)

3.93

inches

(10 cm)

3.93 inches(10 cm)

Great user manuals database on UserManuals.info 10

Before Using the Product

Safety Precautions

Electricity and Safety

The following images are for reference only. Real-life situations may differ from what is shown in the

images.

Warning

Do not use a damaged power cord or plug, or a loose power socket.

zAn electric shock or fire may result.

Do not plug many products into the same power socket.

zOtherwise, the socket may overheat and cause a fire.

Do not touch the power plug with wet hands.

zOtherwise, an electric shock may result.

Insert the power plug all the way in so it is not loose.

zAn unstable connection may cause a fire.

Ensure you connect the power plug to a grounded power socket. (type 1

insulated devices only).

zAn electric shock or injury may result.

Do not bend or pull the power cord with force. Do not weigh the power cord

down with a heavy object.

zA damaged power cord may cause an electric shock or fire.

Do not place the power cord or product near heat sources.

zAn electric shock or fire may result.

Remove foreign substances such as dust around the plug pins and power socket

with a dry cloth.

zOtherwise, a fire may result.
