Samsung SyncMaster 460DR Manual de usuario

LCD MONITOR

quick start guide

460DRn 460DR

Introduction

Package Contents

Note

Please make sure the following items are included with your LCD Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Note

This stand is not for the Floor Standing Type.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

D-Sub Cable Power Cord

Others

Remote Control Batteries (AAA X 2)

(Not available in all loca-

tions)

BNC to RCA Adaptor Jack

Sold separately

DVI Cable Wall Mount KIT Semi Stand KIT

Calibrater

BNC Cable LAN Cable

(Applicable to the DRn mod-

el only)

For more information on the

use of the calibrater, see Nat-

ural Color Expert Help.

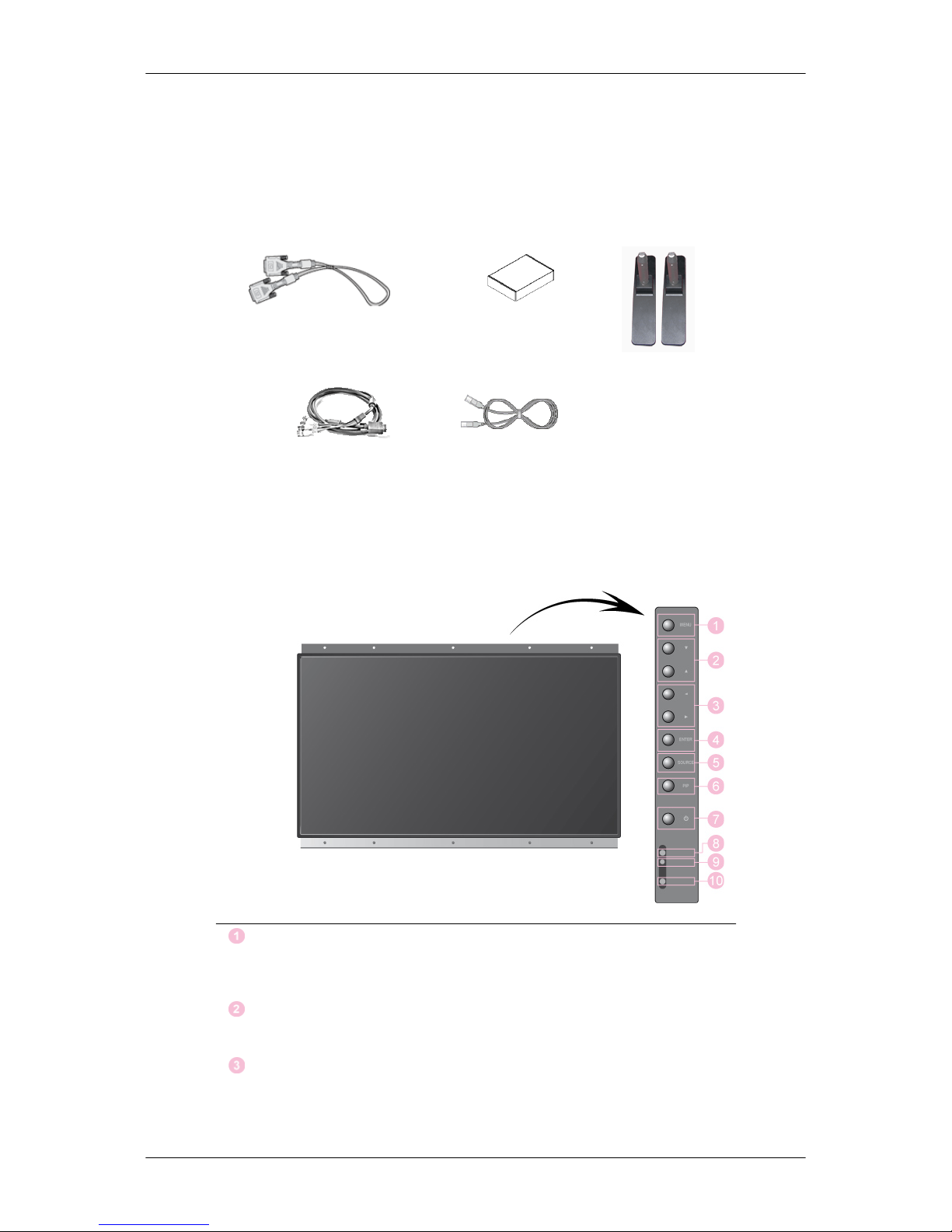

Your LCD Display

Front

MENU button [MENU]

Openstheon-screenmenu andexits fromthe menu.Also useto exitthe OSDmenu

or return to the previous menu.

Navigate buttons (Up-Down buttons)

Moves from one menu item to another vertically or adjusts selected menu values.

Adjust buttons (Left-Right buttons) / Volume buttons

Moves from one menu item to another horizontally or adjusts selected menu val-

ues. When OSD is not on the screen, push the button to adjust volume.

Introduction

ENTER button [ENTER]

Activates a highlighted menu item.

SOURCE button [SOURCE]

Switches from PC mode to Video mode. Changing the source is only allowed for

external devices that are connected to the LCD Display at the time.

[PC] →[BNC] →[DVI] →[AV] →[S-Video] →[Component] →[HDMI]

→[MagicInfo]

>> Click here to see an animation clip

Note

• The MagicInfo menu is available DRn model.

PIP

Push the PIP button to turn the PIP screen On / Off.

More than one PIP cannot overlap on screen as BNC and the component use the

same terminal.

>> Click here to see an animation clip

•PC

AV / S-Video / Component / HDMI Mode

•BNC

AV / S-Video / HDMI Mode

•DVI

AV / S-Video / Component Mode

•AV / S-Video

PC / BNC / DVI Mode

•Component

PC / DVI Mode

•HDMI

PC / BNC Mode

Power button [ ]

Use this button for turning the LCD Display on and off.

Brightness Sensor

The product's Brightness Sensor function automatically detects the surrounding

brightness using a brightness sensor and adjusts its brightness accordingly.

Power indicator

Shows PowerSaver mode by blinking green

Introduction

Note

See PowerSaver described in the manual for further information regarding power

saving functions. For energy conservation, turn your LCD Display OFF when it

is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

Rear

Note

For detailed information concerning cable connections, refer to Connecting Cables under Setup. The

LCD Display 's configuration at the back may vary slightly depending on the LCD Display model.

POWER S/W ON [ │] / OFF [O]

Switches the LCD Display On/Off.

POWER IN

The power cord plugs into the LCD Display and

the wall plug.

Introduction

REMOTE OUT/IN

Youcanuseawiredremotecontrolbyconnecting

it to your LCD Display.

RS232C OUT/IN (RS232C Serial PORT)

MDC(Multiple Display Control) Program Port

DVI / PC / HDMI IN [PC/DVI/BNC AUDIO

IN](PC/DVI/BNC/HDMI AudioConnection Ter-

minal (Input))

DVI / PC / HDMI IN [HDMI]

Connect the HDMI terminal at the back of your

LCD Display to the HDMI terminal of your dig-

ital output device using a HDMI cable.

DVI / PC / HDMI IN [RGB](PC Video Con-

nection Terminal)

Using a D-Sub Cable (15 pin D-Sub) - PC mode

(Analog PC)

DVI / PC / HDMI IN [DVI(HDCP)] (PC

Video Connection Terminal)

Using a DVI Cable (DVI-D to DVI-D) - DVI

mode (Digital PC)

COMPONENT AUDIO IN [L-AUDIO-R]

(ComponentAudioConnection Terminal (Input))

BNC/COMPONENT OUT [R/PR, G/Y, B/

PB, H, V] (BNC/Component Connection Termi-

nal (Output))

BNC (Analog PC) Connection: connecting the R,

G, B, H, V ports

Component Connection: connecting the PR, Y,

PB ports

BNC/COMPONENT IN [R/PR, G/Y, B/PB,

H, V](BNC/Component Connection Terminal

(Input))

Introduction

AV AUDIO IN [L-AUDIO-R] (LCD Display

Audio Connection Terminal (Input))

AV OUT [VIDEO](VIDEO Connection Ter-

minal)

AV mode (Output)

AV IN [VIDEO](VIDEO Connection Termi-

nal) (Input)

AV OUT [S-VIDEO] (S-VIDEO Connection

Terminal)

S-VIDEO mode (Output)

AV IN [S-VIDEO](S-VIDEO Connection

Terminal) (Input)

EXT SPEAKER (8 Ω)[- - L - +, - - R - +]

(EXT Speaker Connection Terminal)

AUDIO OUT [L-AUDIO-R] (LCD Display

Audio Connection Terminal (Output))AUDIO

OUT is the terminal for sound output of PC, DVI

or BNC.

LAN (LAN Connection Terminal)

(Applicable to the DRn model only)

USB(USB Connection Terminal)

Keyboard / Mouse, Mass Storage Device Com-

patible.

(Applicable to the DRn model only)

Note

The number of LCD Displays that can be con-

nected to loopout may differ depending on the

cables, signal source etc. With cables where there

is no degradation or signal source, up to ten LCD

Displays can be connected.

Note

See Connecting Cables for further information regarding cable connections.

Introduction

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device operating

near the LCD Display , causing a malfunction due to interference with the frequency.

ON / OFF

MagicInfo

MDC

LOCK

MagicInfo buttons

+100 DEL

VOL

MUTE

TTX/MIX

ENTER

P.MODE

AUTO

ENTER/PRE-CH

CH/P

SOURCE

INFO

EXIT

Up-Down Left-Right buttons

S.MODE

STILL

FM RADIO

P.SIZE

SRS

DUAL/MTS

PIP

SOURCE

SWAP

SIZE

REW

STOP

PLAY/PAUSE

Introduction

1. ON / OFF Turns the LCD Display On/Off.

2. MagicInfo MagicInfo Quick Launch Button.

(Applicable to the DRn model only)

3. MDC MDC Quick Launch Button.

4. LOCK Activates or deactivates all function keys on both the remote con-

troland theLCD Displayexcept forthe Powerand LOCKbuttons.

5. MagicInfo buttons MagicInfo Quick Launch Button.

(Applicable to the DRn model only)

• Alphanumeric: Used to enter the Internet address.

• DEL: Functions as the backspace.

• SYMBOL: Used to enter the symbols. (.O_-)

• ENTER: Used to enter values.

6. +100 DEL Press to select channels over 100. For example, to select channel

121, press "+100", then press "2" and "1".

- This fuction does not work for this LCD Display.

7. VOL Adjusts the audio volume.

8. MUTE Pauses (mutes) the audio output temporarily. This is displayed on

the lower left corner of the screen. The audio resumes if MUTE

or - VOL + is pressed in the Mute mode.

9. TTX/MIX TV channels provide text information services via teletext.

- This fuction does not work for this LCD Display.

10. MENU Opens the on-screen menu and exits from the menu screen or

closes the screen adjustment menu.

11. ENTER Activates a highlighted menu item.

12. P.MODE When you press this button, current picture mode is displayed on

the lower center of the screen.

AV / S-Video / Component : P.MODE

The LCD Display has four automatic picture settings that are pre-

set at the factory. Then push button again to circle through avail-

able preconfigured modes. ( Dynamic →Standard →Movie →

Custom )

PC /DVI / BNC : M/B (MagicBright)

MagicBright is a new feature providing the optimum viewing

environment depending on the contents of the image you are

Introduction

watching. Then push button again to circle through available pre-

configured modes. (Entertain →Internet →Text →Custom )

13. AUTO AdjuststhescreendisplayautomaticallyinPCmode.Bychanging

the resolution in the control panel, auto function is performed.

14. ENTER/PRE-CH Returns to the immediately previous channel.

- This fuction does not work for this LCD Display.

15. CH/P In TV mode, selects TV channels.

- This fuction does not work for this LCD Display.

16. SOURCE Changes the video source.

17. INFO The current picture information is displayed in the top left corner

of the screen.

18. EXIT Exits from the menu screen.

19. Up-Down Left-Right but-

tons Moves from one menu item to another horizontally, vertically or

adjusts selected menu values.

20. S.MODE When pressing this button, the current mode is displayed at the

bottom centre of the screen. The LCD Display has a built-in high

fidelity stereo amplifier. Then press the button again to circle

through available preconfigured modes. ( Standard →Music →

Movie →Speech →Custom )

21. STILL Press the button once to freeze the screen. Press it again to un-

freeze.

22. FM RADIO Turns the FM Radio on/off. In PC/DVI mode, sets the SOUND

to FM Radio. In general Video mode, selects FM Radio, and turns

off the screen. In areas where the signal is weak, noise may occur

during FM radio broadcasts.

- This fuction does not work for this LCD Display.

23. P.SIZE Press to change the screen size.

24. SRS SRS

25. DUAL/MTS DUAL-

STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM

MONO/NICAM STEREO can be operated depending on the

broadcastingtypebyusingtheDUALbuttonontheremotecontrol

while watching TV.

MTS-

You can select MTS (Multichannel Television Stereo) mode.

Audio Type MTS/S_Mode Default

FM Stereo Mono Mono Manual Change

Stereo Mono ↔Stereo

SAP Mono ↔SAP Mono

Introduction
