Samsung SyncMaster 225UN Manual de usuario

LCD MONITOR

quick start guide

225UN

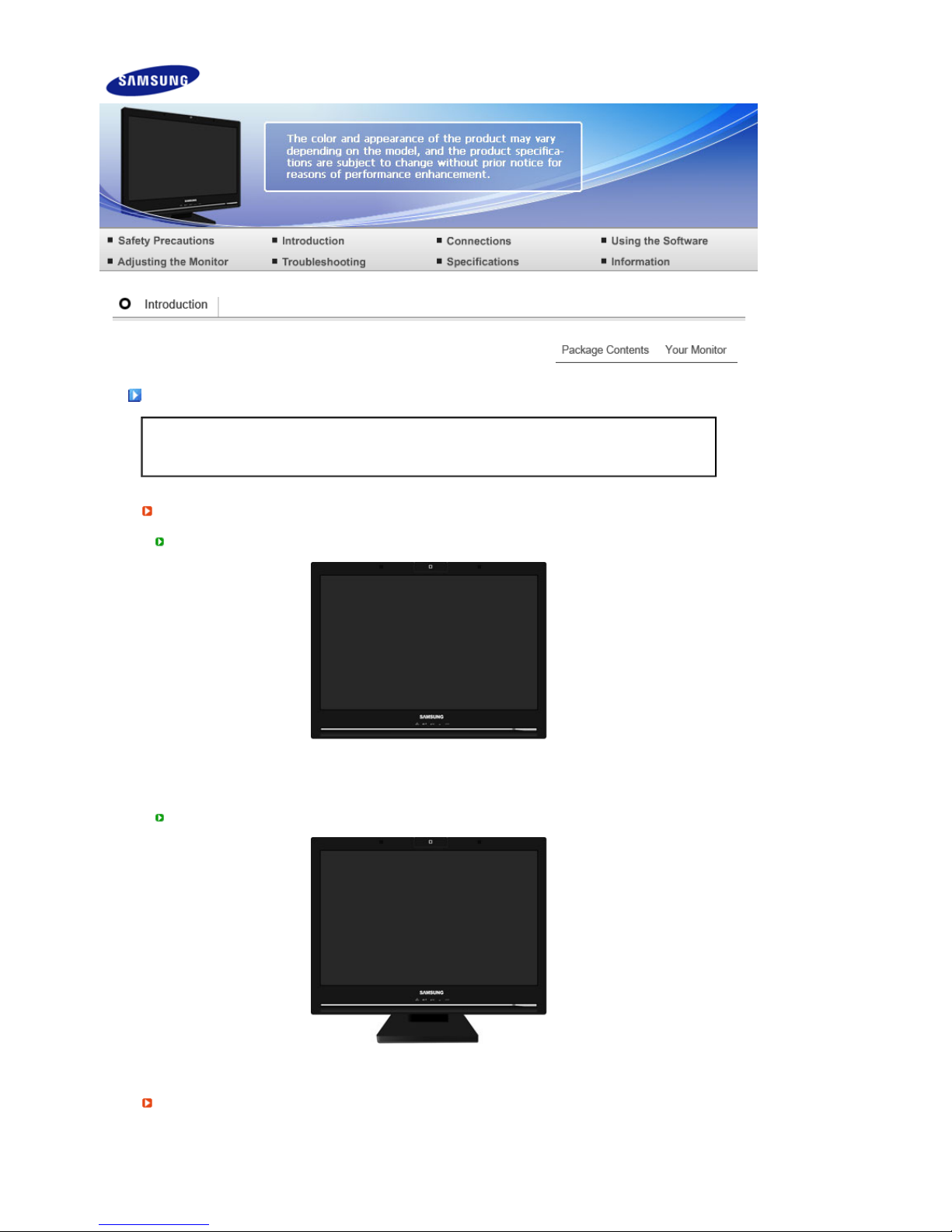

Packa

e Contents

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpackin

Without Stand

Monitor

With Stand

Monitor & Simple stand

Manual

Quick Setup Guide Warranty Card

(Not available in all locations)

User's Guide, Monitor Driver,

Natural Color,

MagicTuneTM

Cable

Power Cord RGB-IN Cable USB Cable

Others

Cleaning Cloth

Will be applied to black and high gloss models only.

our Monitor

Front

MENU button [ ]

Opens the OSD menu.

Also use to exit the OSD menu or return to the previous menu.

Adjust buttons [ ] These buttons allow you to adjust items in the menu.

MagicBright™ button

[]

MagicBright™ is a new feature providing optimum viewing environment

depending on the contents of the image you are watching. Currently six

different modes are available: Custom, Text, Internet, Game, Sports

and Movie. Each mode has its own pre-configured brightness value.

You can easily select one of six settings by simply pressing

MagicBright™ control buttons.

1) Custom

Although the values are carefully chosen by our engineers, the pre-

configured values may not be comfortable to your eyes depending

on your taste. If this is the case, adjust the brightness and contrast

by using the OSD menu.

2) Text

For documentations or works involving heavy text.

3) Internet

For working with a mixture of images such as texts and graphics.

4) Game

For watching motion pictures such as a game.

5) Sports

For watching motion pictures such as a Sports.

6) Movie

For watching motion pictures such as a DVD or Video CD.

>> Click here to see an animation clip

Volume button [ ]

When OSD is not on the screen, push the button to adjust volume.

>> Click here to see an animation clip

Enter button [ ] Activates a highlighted menu item.

AUTO button [AUTO] Use this button for auto adjustment.

>> Click here to see an animation clip

Power button [ ] Turns the monitor On/Off.

Power indicator This will enable you to see the overall power status of the system. For

more information, see the PowerSaver section.

Speaker

You can hear sound by connecting the soundcard of your PC to the

monitor.

See PowerSaver described in the manual for further information regarding power saving

functions. For energy conservation, turn your monitor OFF when it is not needed, or

when leaving it unattended for long periods.

Rea

The configuration at the back of the monitor may vary from product to product.

POWER

zPOWER

: Connect the power cord for your monitor to the POWER on

the back of the monitor.

RGB-IN /

RGB-IN

: Connect the signal cable to the 15-pin, RGB-IN port on

the back of your monitor.

: Connect the of the monitor and the USB of the

computer with the USB cable.

Kensington Lock

zThe Kensington lock is a device used to physically fix the

system when using it in a public place.

(The locking device has to be purchased separately.)

For using a locking device, contact where you purchase it.

/ MIC/

: Headphone output terminal

MIC

: Connect a microphone to the MIC terminal.

: Connect the of the USB monitor and a USB device

with the USB cable.

See Connecting Cables for further information regarding cable connections.

Connectin

Cables

Connectin

to a Compute

Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

Use appropriate connection for your computer.

Using the RGB-IN (Analog) connector on the video card.

- Connect the signal cable to the 15-pin, RGB-IN port on the back of your monitor.

[ RGB-IN ]

Connected to a Macintosh.

Connect the monitor to the Macintosh computer using the RGB-IN connection cable.

If the monitor and the computer are connected, you can turn them on and use them.

Connectin

USB

Turn on your monitor and PC. If you connect the cable to the connector of your

monitor and the cable to the connector of your PC, the installation programs related

to microphone and camcorder are performed automatically.

You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk drive

by connecting them to the port of the monitor without connecting them to the PC.

The USB port of the monitor supports High-Speed Certified USB 2.0.

High speed Full speed Low speed

Data Rate 480 Mbps 12 Mbps 1.5 Mbps

Connect the port of the monitor and the USB port of the computer with the USB cable.

Connect the port of the USB monitor and a USB device with the USB cable.

The use procedures are as the same as those for using an external device connecting to the PC.

zYou can connect and use a keyboard and mouse.

zYou can play a file from a media device.

(Examples of media devices: MP3, digital camera, etc.)

zYou can run, move, copy or delete the files on the storage device.

(Examples of storage devices: external memory, memory card, memory reader, HDD-type MP3

player, etc.)

zYou can use other USB devices that can be connected to a computer.

To use port, you have to connect the to the PC.

Make sure to use the USB cable supplied with this monitor to connect the monitor's

port and your computer's USB port.

zDo not disconnect the USB cable while the installation is in progress.

The program may not be installed completely or may not work normally.

zWhen connecting a device to the port of the monitor, connect the device

using a cable appropriate to the device.

(For the purchase of the cable and external devices, ask the service center of the

corresponding product.)

zThe company is not liable for problems or damages to an external device caused by

using an unauthorized cable for the connection.

zSome products do not follow the USB standard, and it may cause a malfunction of

the device.

zIf the device malfunctions even if it is connected to the computer, contact the

service center of the device/computer.

Usin

the Stand

This monitor supports various types of VESA-standard bases. You need to either fold or

remove the base in use to install a VESA base.

Tilt an

The monitor may be reclined -3 to 22 degrees

Attachin

a Base

This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.

Monitor

Mounting interface pad (Sold separately)

1. Turn off your monitor and unplug its power cord.

2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the

screen.

3. Remove four screws and then remove the stand from the LCD monitor.

4. Align the mounting interface Pad with the holes in the rear cover mounting pad and

secure it with four screws that came with the arm-type base, wall mount hanger or other

base.

zDo not use screws longer than the standard dimension, as they may damage the inside of

the Monitor.

zFor wall mounts that do not comply with VESA standard screw specifications, the length of

the screws may differ depending on their specifications.

zDo not use screws that do not comply with the VESA standard screw specifications.

Do not fasten the screws too tightly, as this may damage the product or cause the product

to fall, leading to personal injury.

Samsung is not liable for these kinds of accidents.

zSamsung is not liable for product damage or personal injury when a non-VESA or non-

specified wall mount is used or the consumer fails to follow the product installation

instructions.

zTo mount the monitor on a wall, you should purchase the wall mounting kit that allows you

to mount the monitor at least 10cm away from the wall surface.

zContact the nearest Samsung Service Center for more information. Samsung Electronics

will not be responsible for damages caused by using a base other than those specified.

zPlease use Wall Mount according to the International standards.
