Samsung S32R75 Series Manual de usuario

User Manual

The colour and the appearance may differ depending on the product, and the specifications are subject to change without

prior notice to improve the performance.

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entiretywithout the authorization of Samsung Electronics is prohibited.

Trademarks other than that of Samsung Electronics are owned by their respective owners.

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where

the user manual has not been read).

(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e., where the

user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

S27R75* S32R75*

Table of contents

Before Using the Product

Securing the Installation Space 4

Safety Precautions 4

Cleaning 5

Electricity and Safety 5

Installation 6

Operation 7

Preparations

Parts 10

Control Panel 10

Direct Key Guide 11

Function Key Guide 12

Configuring Eye Saver Mode, Brightness and Contrast

from Direct Key Guide 13

Types of Ports 14

Upgrading the Software via USB 15

Adjusting the Product Tilt and Height 17

Precautions for moving the product 18

Precautions for installation and use 19

Installing the stand on a table 20

Installation 21

Attaching the Stand 21

Removing the Stand 22

Tidying Up the Connected Cables 23

Connecting and Using a Source Device

Read below before installing the product. 24

Connecting and Using a PC 24

Connection Using the HDMI Cable 24

Connection Using the MINI DP Cable 25

Connecting the Power 25

Correct posture to use the product 26

Driver Installation 26

Setting Optimum Resolution 26

Screen Setup

SAMSUNG MAGIC Bright 27

Brightness 28

Contrast 28

Sharpness 28

Color 28

SAMSUNG MAGIC Upscale 29

HDMI Black Level 29

Eye Saver Mode 29

Game Mode 29

Response Time 29

Picture Size 30

Screen Adjustment 30

Configuring the PIP/PBP Settings

PIP/PBP Mode 31

Size 32

Position 32

Picture Size 32

Contrast 33

Adjusting OSD (On Screen

Display) settings

Transparency 34

Position 34

H-Position 34

V-Position 34

Language 34

Display Time 34

Table of contents

Setup and Reset

Self Diagnosis 35

DisplayPort Ver. 37

HDMI Mode 37

Eco Saving Plus 37

Off Timer Plus 38

PC/AV Mode 38

Source Detection 38

Key Repeat Time 39

Power LED On 39

Reset All 39

Information

Information 40

Installing the Software

Easy Setting Box 41

Restrictions and Problems with the Installation 41

Upgrade by downloading the firmware from the

website 41

System Requirements 41

Troubleshooting Guide

Requirements Before Contacting Samsung Customer

Service Centre 42

Product diagnosis (Screen issue) 42

Checking the Resolution and Frequency 42

Check the following. 42

Q & A 44

Specifications

General 45

Standard Signal Mode Table 46

Appendix

Responsibility for the Pay Service (Cost to

Customers) 51

Not a product defect 51

A Product damage caused by customer's fault 51

Others 51

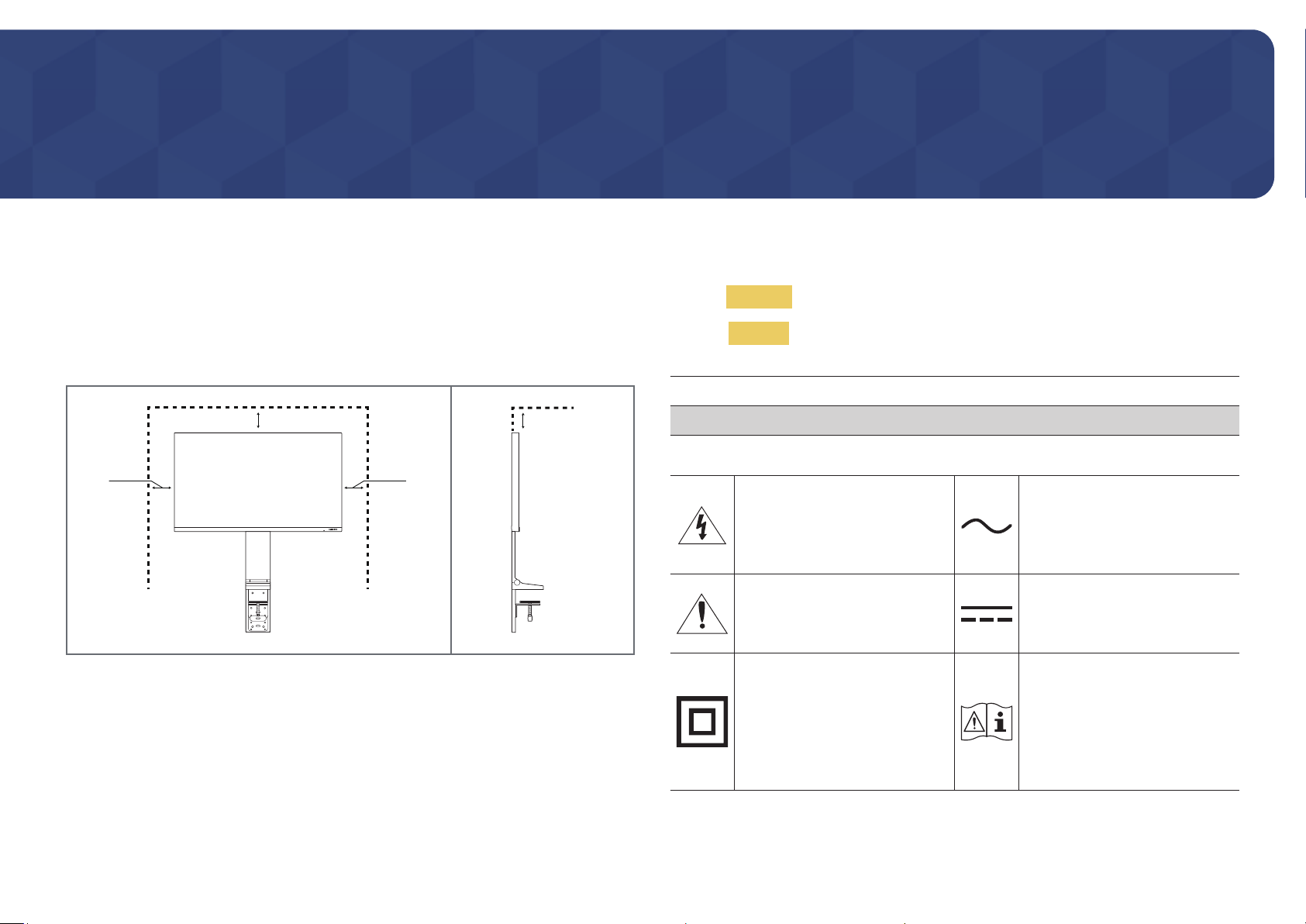

Securing the Installation Space

Make sure to have enough space forventilation when placing the product. An internal temperature rise

may cause fire and damage the product. Maintain enough space around the product as shown in the

diagram when installing the product.

―The exterior may differ depending on the product.

10 cm

Safety Precautions

Warning A serious orfatal injury may result if instructions are not followed.

Caution Personal injury or damage to properties may result if instructions are

not followed.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE

ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high

voltage is present inside. It is

dangerous to make any kind of

contact with any internal part of this

product.

AC voltage: Rated voltage marked

with this symbol is AC voltage.

This symbol indicates that this

product has included important

literature concerning operation and

maintenance.

DC voltage: Rated voltage marked

with this symbol is DC voltage.

Class II product: This symbol indicates

that a safety connection to electrical

earth (ground) is not required. If this

symbol is not present on a product

with a mains lead, the product

MUST have a reliable connection to

protective earth (ground).

Caution. Consult instructions for use:

This symbol instructs the userto

consult the user manual for further

safety related information.

Before Using the Product

Chapter 01

Cleaning

High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used

nearby.

―Contact your nearest Samsung Customer Service Centre if you want to clean the inside of the product

(Service fee will be charged.)

Do not press the product screen with hands or other objects. There is a risk of damaging the screen.

―Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

―Take the following steps when cleaning.

Power off the product and PC.

Disconnect the power cord from the product.

―Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric

shock may result.

Wipe the product with a clean, soft and dry cloth.

‒Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the product.

‒Do not spray water or detergent directly on the product.

Wet a soft cloth in water, wing it out well, and then use the cloth to wipe the exterior of the product

clean.

Connect the power cord to the product when cleaning is finished.

Power on the product and PC.

Electricity and Safety

Warning

•Do not use a damaged power cord or plug, or a loose power socket.

•Do not use multiple products with a single power socket.

•Do not touch the power plug with wet hands.

•Insert the power plug all the way in so it is not loose.

•Connect the power plug to a grounded power socket (type 1 insulated devices only).

•Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy

object.

•Do not place the power cord or product near heat sources.

•Clean any dust around the pins of the power plug or the power socket with a dry cloth.

Caution

•Do not disconnect the power cord while the product is being used.

•Only use the power cord provided with your product by Samsung. Do not use the power cord with

other products.

•Keep the power socket where the power cord is connected unobstructed.

‒The power cord must be disconnected to cut off power to the product when an issue occurs.

•Hold the plug when disconnecting the power cord from the power socket.

Warning

•DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT

INSTALL THE PRODUCT NEAR HEAT SOURCES.

•Keep the plastic packaging out of the reach of children.

‒Children may suffocate.

•Do not install the product on an unstable orvibrating surface (insecure shelf, sloped surface, etc.)

‒The product may fall and become damaged and/or cause an injury.

‒Using the product in an area with excess vibration may damage the product or cause a fire.

•Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or

smoke.

•Do not expose the product to direct sunlight, heat, or a hot object such as a stove.

‒The product lifespan may be reduced or a fire may result.

•Do not install the product within the reach of young children.

‒The product may fall and injure children.

•Edible oil (such as soybean oil) may damage or distort the product. Keep the product away from oil

pollution. And do not install or use the product in the kitchen or near the kitchen stove.

Caution

•Do not drop the product while moving.

•Do not set down the product on its front.

•When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of

the product is not protruding.

‒The product may fall and become damaged and/or cause an injury.

‒Install the product only on cabinets or shelves of the right size.

•Set down the product gently.

‒Product failure or personal injury may result.

•Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical

substances, extreme temperatures or a significant presence of moisture, or a place where

the product will operate continuously for an extended period of time) may seriously affect its

performance.

‒Be sure to consult Samsung Customer Service Centre if you want to install the product at such a

place.

Installation

Warning

•There is a high voltage inside the product. Never disassemble, repair or modify the product

yourself.

‒Contact Samsung Customer Service Centre for repairs.

•To move the product, first disconnect all the cables from it, including the power cable.

•If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord

immediately and contact Samsung Customer Service Centre.

•Do not let children hang from the product or climb on top of it.

‒Children may become injured or seriously harmed.

•If the product is dropped orthe outer case is damaged, turn off the power and disconnect the

power cord. Then contact Samsung Customer Service Centre.

‒Continued use can result in a fire or electric shock.

•Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.

‒The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a

serious injury.

•During a lightning or thunderstorm, power off the product and remove the power cable.

•Do not drop objects on the product or apply impact.

•Do not move the product by pulling the power cord or any cable.

•If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area

immediately.

•Do not lift or move the product by pulling the power cord or any cable.

•Do not use or keep combustible spray or an inflammable substance near the product.

•Ensure the vents are not blocked by tablecloths or curtains.

‒An increased internal temperature may cause a fire.

•Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper,

matches, etc) into the product (via the vent or input/output ports, etc).

‒Be sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Centre.

•Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the

product.

‒Be sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Centre.

Operation

Caution

•Leaving the screen fixed on a stationary image for an extended period of time may cause

afterimage burn-in or defective pixels.

‒Set the screen to power-saving mode or moving-picture screen saverwhen not using the

product for an extended period of time.

•Disconnect the power cord from the power socket if you do not plan on using the product for an

extended period of time (vacation, etc).

‒Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.

•Use the product at the recommended resolution and frequency.

‒Your eyesight may deteriorate.

•Do not put AC/DC adapters together.

•Remove the plastic bag from the AC/DC adapter before you use it.

•Do not let water enter the AC/DC adapter device or get the device wet.

‒An electric shock or fire may result.

‒Avoid using the product outdoors where it can be exposed to rain or snow.

‒Be careful not to get the AC/DC adapterwet when you wash the floor.

•Do not put the AC/DC adapter near to any heating apparatus.

‒Otherwise, a fire may result.

•Keep the AC/DC adapter in a well-ventilated area.

•If you place the AC/DC power adapter hanging with the cord input facing upwards, water or other

foreign substances could enter the Adapter and cause the Adapterto malfunction.

Make sure to rest the AC/DC power adapter flat on a table or the floor.

•Insert the power plug into the AC/DC adapter until a click sound is heard.

•Do not insert only the power plug into the power outlet.

•Do not use an AC/DC adapter other than the provided one.
