User Manual

The color and the appearance may differ depending on the product, and the specifications are subject to change without

prior notice to improve the performance.

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.

Trademarks other than that of Samsung Electronics are owned by their respective owners.

S24D330H S24D332H

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user manual

has not been read).

(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e., where the user manual has not

been read).

You will be informed of the administration fee amount before a technician visits.

Table of contents

Before Using the Product

Securing the Installation Space 4

Precautions for storage 4

Safety Precautions 4

Cleaning 5

Electricity and Safety 5

Installation 6

Operation 7

Preparations

Parts 9

Frontal Buttons 9

Reverse Side 10

Changing Brightness and Contrast settings 11

Adjusting the Product Tilt 11

Anti-theft Lock 12

Installation 13

Attaching the Stand 13

Removing the Stand 14

Connecting and Using a Source Device

Pre-connection Checkpoints 15

Connecting and Using a PC 15

Connection Using the D-SUB Cable (Analog Type)15

Connection Using the HDMI Cable 16

Connection Using an HDMI-DVI Cable 16

Connecting the Power 16

Correct posture to use the product 17

Driver Installation 17

Setting Optimum Resolution 17

Screen Setup

Brightness 18

Contrast 18

Sharpness 18

Game Mode 19

SAMSUNG MAGIC Bright 19

SAMSUNG MAGIC Angle 20

SAMSUNG MAGIC Upscale 20

Image Size 20

HDMI Black Level 21

Response Time 21

H-Position & V-Position 21

Coarse 21

Fine 21

Table of contents

Configuring Tint

Red 22

Green 22

Blue 22

Color Tone 23

Gamma 23

Resizing or Relocating the Screen

Language 24

Menu H-Position & Menu V-Position 24

Display Time 24

Transparency 24

Setup and Reset

Reset All 25

Eco Saving Plus 25

Off Timer 25

PC/AV Mode 26

Key Repeat Time 26

Source Detection 26

INFORMATION 26

Installing the Software

Easy Setting Box 27

Troubleshooting Guide

Requirements Before Contacting Samsung Customer

Service Center 28

Testing the Product 28

Checking the Resolution and Frequency 28

Check the following. 28

Q & A 30

Specifications

General 31

Standard Signal Mode Table 32

Appendix

Responsibility for the Pay Service

(Cost to Customers) 37

Not a product defect 37

A Product damage caused by customer's fault 37

Others 37

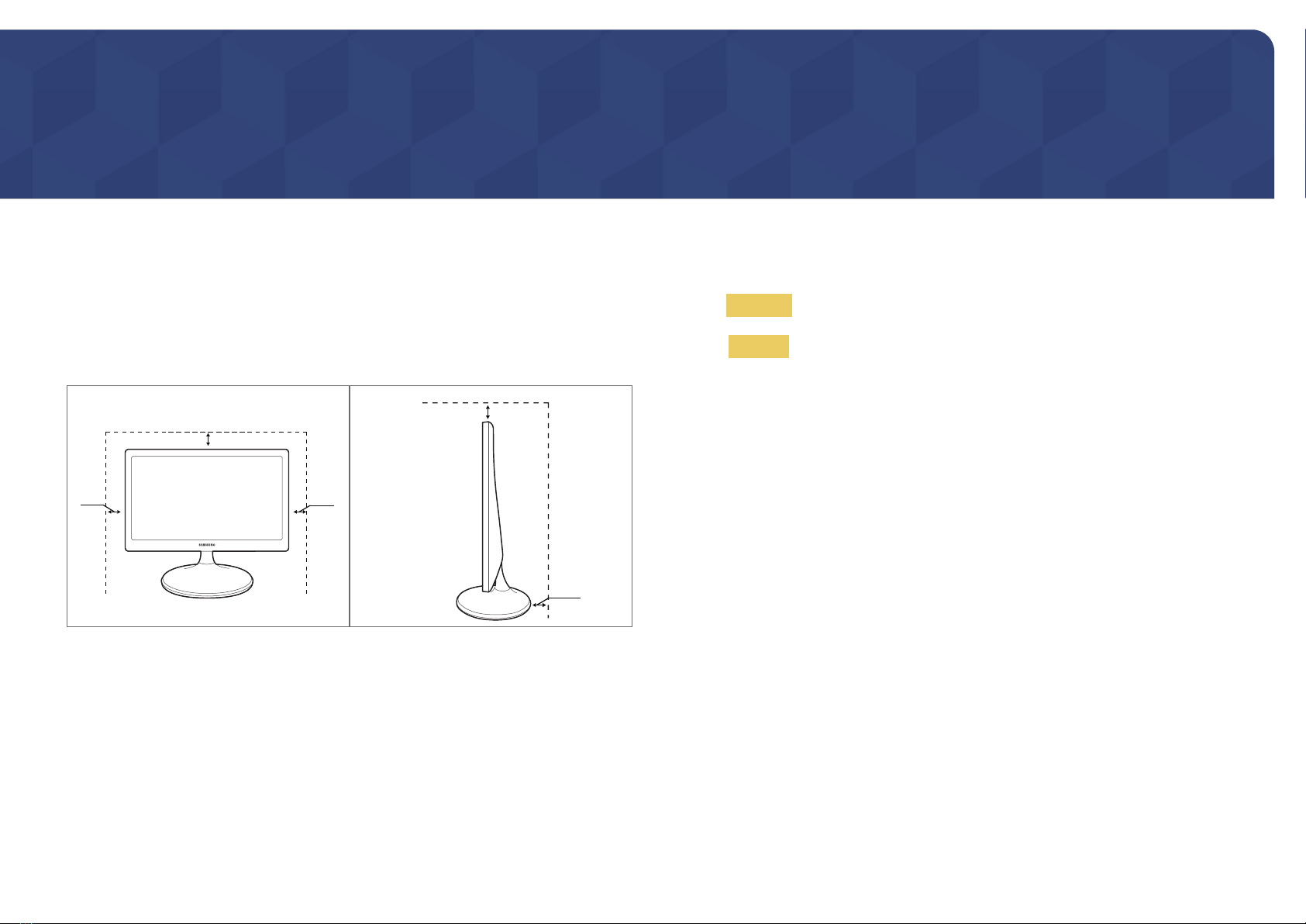

Securing the Installation Space

Ensure some space around the product forventilation. An internal temperature rise may cause fire and

damage the product. Be sure to allow the amount of space as shown below or greaterwhen installing

the product.

―The exterior may differ depending on the product.

3.93

inches

(10 cm)

3.93

inches

(10 cm)

3.93 inches (10 cm)

3.93 inches

(10 cm)

Precautions for storage

High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used

nearby.

―Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product

(Service fee will be charged.)

Safety Precautions

Warning A serious or fatal injury may result if instructions are not followed.

Caution Personal injury or damage to properties may result if instructions are

not followed.

Before Using the Product

Chapter 01

Cleaning

―Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

―Take the following steps when cleaning.

Power off the product and computer.

Disconnect the power cord from the product.

―Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric

shock may result.

Wipe the monitorwith a clean, soft and dry cloth.

‒Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor.

‒Do not spray water or detergent directly on the product.

Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the product.

Connect the power cord to the product when cleaning is finished.

Power on the product and computer.

Electricity and Safety

Warning

•Do not use a damaged power cord or plug, or a loose power socket.

•Do not use multiple products with a single power socket.

•Do not touch the power plug with wet hands.

•Insert the power plug all the way in so it is not loose.

•Connect the power plug to a grounded power socket (type 1 insulated devices only).

•Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy

object.

•Do not place the power cord or product near heat sources.

•Clean any dust around the pins of the power plug or the power socket with a dry cloth.

Caution

•Do not disconnect the power cord while the product is being used.

•Only use the power cord provided with your product by Samsung. Do not use the power cord with

other products.

•Keep the power socket where the power cord is connected unobstructed.

‒The power cord must be disconnected to cut off power to the product when an issue occurs.

•Hold the plug when disconnecting the power cord from the power socket.

Warning

•DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT

INSTALL THE PRODUCT NEAR HEAT SOURCES.

•Do not install the product in poorly ventilated spaces such as a bookcase or closet.

•Install the product at least 10 cm away from the wall to allow ventilation.

•Keep the plastic packaging out of the reach of children.

‒Children may suffocate.

•Do not install the product on an unstable orvibrating surface (insecure shelf, sloped surface, etc.)

‒The product may fall and become damaged and/or cause an injury.

‒Using the product in an area with excess vibration may damage the product or cause a fire.

•Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or

smoke.

•Do not expose the product to direct sunlight, heat, or a hot object such as a stove.

‒The product lifespan may be reduced or a fire may result.

•Do not install the product within the reach of young children.

‒The product may fall and injure children.

•Edible oil (such as soybean oil) may damage or distort the product. Keep the product away from oil

pollution. And do not install or use the product in the kitchen or near the kitchen stove.

Caution

•Do not drop the product while moving.

•Do not set down the product on its front.

•When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of

the product is not protruding.

‒The product may fall and become damaged and/or cause an injury.

‒Install the product only on cabinets or shelves of the right size.

•Set down the product gently.

‒Product failure or personal injury may result.

•Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical

substances, extreme temperatures or a significant presence of moisture, or a place where

the product will operate continuously for an extended period of time) may seriously affect its

performance.

‒Be sure to consult Samsung Customer Service Center if you want to install the product at such a

place.

Installation

Warning

•There is a high voltage inside the product. Never disassemble, repair or modify the product

yourself.

‒Contact Samsung Customer Service Center for repairs.

•To move the product, first disconnect all the cables from it, including the power cable.

•If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord

immediately and contact Samsung Customer Service Center.

•Do not let children hang from the product or climb on top of it.

‒Children may become injured or seriously harmed.

•If the product is dropped or the outer case is damaged, turn off the power and disconnect the

power cord. Then contact Samsung Customer Service Center.

‒Continued use can result in a fire or electric shock.

•Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.

‒The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a

serious injury.

•During a lightning or thunderstorm, power off the product and remove the power cable.

•Do not drop objects on the product or apply impact.

•Do not move the product by pulling the power cord or any cable.

•If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area

immediately.

•Do not lift or move the product by pulling the power cord or any cable.

•Do not use or keep combustible spray or an inflammable substance near the product.

•Ensure the vents are not blocked by tablecloths or curtains.

‒An increased internal temperature may cause a fire.

•Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper,

matches, etc) into the product (via the vent or input/output ports, etc).

‒Be sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Center.

•Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the

product.

‒Be sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Center.

Operation

Caution

•Leaving the screen fixed on a stationary image for an extended period of time may cause

afterimage burn-in or defective pixels.

‒Activate power-saving mode or a moving-picture screen saver if you will not be using the

product for an extended period of time.

•Disconnect the power cord from the power socket if you do not plan on using the product for an

extended period of time (vacation, etc).

‒Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.

•Use the product at the recommended resolution and frequency.

‒Your eyesight may deteriorate.

•Do not put AC/DC adapters together.

•Remove the plastic bag from the AC/DC adapter before you use it.

•Do not let water enter the power device or get the device wet.

‒An electric shock or fire may result.

‒Avoid using the product outdoors where it can be exposed to rain or snow.

‒Be careful not to get the AC/DC adapter wet when you wash the floor.

•Do not put the AC/DC adapter near to any heating apparatus.

‒Otherwise, a fire may result.

•Keep the AC/DC adapter in a well-ventilated area.

•If you place the AC/DC power adapter so that it is hanging with the cord input facing upwards,

water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

Make sure to rest the AC/DC power adapter flat on a table or the floor.

•Do not hold the product upside-down or move it by holding the stand.

‒The product may fall and become damaged or cause an injury.

•Looking at the screen too close for an extended period of time can deteriorate your eyesight.

•Do not use humidifiers or stoves around the product.

•Rest your eyes for more than 5 minutes for every1 hour of product use.

•Do not touch the screen when the product has been turned on for an extended period of time as it

will become hot.

•Store small accessories out of the reach of children.

•Exercise caution when adjusting the product angle or stand height.

‒Your hand or finger may get stuck and injured.

‒Tilting the product at an excessive angle may cause the product to fall and an injury may result.

•Do not place heavy objects on the product.

‒Product failure or personal injury may result.

Preparations

Chapter 02

Parts

Frontal Buttons

―The color and shape of parts may differ from what is shown. Specifications are subject to change without

notice to improve quality.

GAME

MODE

SOURCE

Function Key Guide

―To activate a button on the product, tap the area on the bottom of the panel.

―Tapping around the button label on the front will not activate the button.

Icons Description

Open or close the onscreen display (OSD) menu, or return to the parent menu.

OSD control lock: Maintain the current settings, or lock the OSD control to

prevent unintended changes to settings.

•Enable: To lock the OSD control, press the button for10 seconds.

•Disable: To unlock the locked OSD control, press the button for

more than 10 seconds.

―If the OSD control is locked, Brightness and Contrast can be adjusted. Game

Mode is available. INFORMATION can be viewed.

Press to enable or disable Game Mode.

The items below are not available if the Game Mode function is enable.

•PICTURE Contrast, Sharpness,

SAMSUNG

MAGIC

Bright,

SAMSUNG

MAGIC

Angel,

SAMSUNG

MAGIC

Upscale

•COLOR

•SETUP&RESET Eco Saving Plus

Move to the upper or lower menu or adjust the value for an option on the OSD

menu.

Use this button to control the brightness and contrast of the screen.

Confirm a menu selection.

Pressing the button when the OSD menu is not displayed will change

the input source (Analog / HDMI). If you power on the product or change

the input source by pressing the button, a message that shows the

changed input source will appear at the top left corner of the screen.

Icons Description

Press the button to automatically adjust the screen settings.

―Changing the resolution in Display Properties will activate the Auto Adjustment

function.

―This function is only available in Analog mode.

Turn the screen on or off.

Function Key Guide

When a control button on the product is pressed, the Function Key Guide will

be displayed before the onscreen menu opens. (The guide shows the function

of the button pressed.)

To access the onscreen menu when the guide is displayed, press the

corresponding button again.

The Function Key Guide may vary depending on the function or product model.

Refer to the actual product.

―The function buttons page shows if Game Mode is enabled.

: Off

: On

Reverse Side

―The color and shape of parts may differ from what is shown. Specifications are subject to change without

notice to improve quality.

Port Description

Connects to the AC/DC adapter.

Connects to a source device using an HDMI cable or HDMI-DVI cable.

Connect to a PC using the D-SUB cable.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Samsung

Samsung

Samsung GH17LS Manual de usuario

Samsung

Samsung C49HG90DM Series Manual de usuario

Samsung

Samsung SyncMaster 763MB Manual de usuario

Samsung

Samsung SyncMaster Magic P2250G Manual de usuario

Samsung

Samsung 970P - SyncMaster - 19" LCD Monitor Manual de usuario

Samsung

Samsung PL-42E91H Manual de usuario

Samsung

Samsung SyncMaster 510N Manual de usuario

Samsung

Samsung SyncMaster TB531 Manual de usuario

Samsung

Samsung SyncMaster S20A300B Guía del usuario

Samsung

Samsung SyncMaster 932MW Manual de usuario

Samsung

Samsung SyncMaster 320TSn-3 Manual de usuario

Samsung

Samsung SyncMaster 223BW Manual de usuario

Samsung

Samsung PL-42D5S Manual de usuario

Samsung

Samsung OH55F Manual de usuario

Samsung

Samsung UE46C Manual de usuario

Samsung

Samsung S22C31 Series Manual de usuario

Samsung

Samsung QB43R Manual de usuario

Samsung

Samsung 400UXn - SyncMaster - 40" LCD Flat Panel... Manual de usuario

Samsung

Samsung 820DXn - SyncMaster - 82" LCD Flat Panel... Manual de usuario

Samsung

Samsung T260HD - SyncMaster - 25.5" LCD Monitor Manual de usuario

Samsung

Samsung SyncMaster 460FP-3 Manual de instalación y operación

Samsung

Samsung SyncMaster 180T Manual de instrucciones

Samsung

Samsung 720XT - SyncMaster - 256 MB RAM Manual de instrucciones

Samsung

Samsung PPM63M7FS Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
