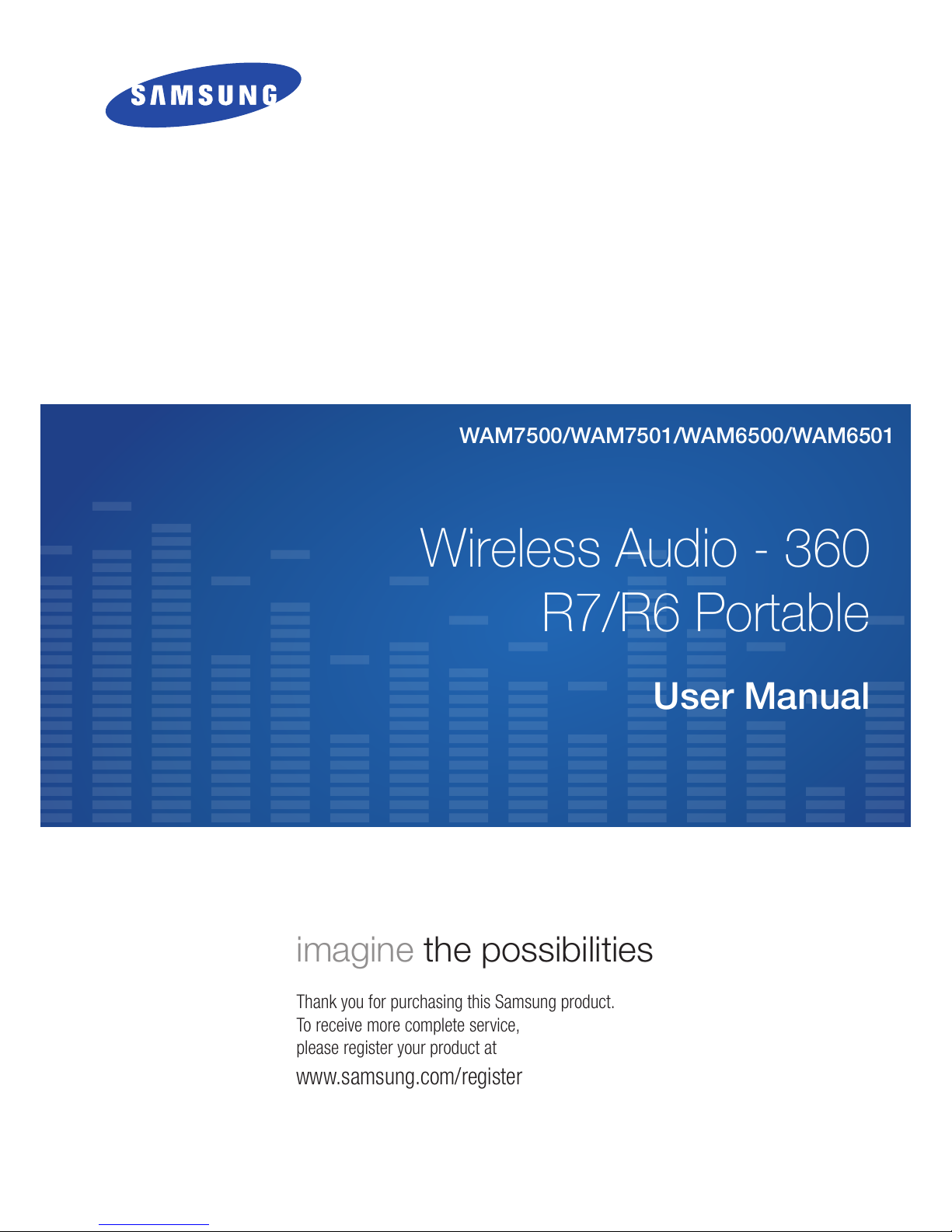

Samsung AM7500 Manual de usuario

Wireless Audio - 360

R7/R6 Portable

WAM7500/WAM7501/WAM6500/WAM6501

User Manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

Contents

GETTING STARTED

Accessories................................... 4

Front Panel.................................... 5

Rear Panel - WAM6500/WAM6501

.. 7

Standby Mode............................... 7

CONNECTING TO THE

WI-FI NETWORK

Preparing connection..................... 8

Requirements......................................8

Installing the Samsung Multiroom App

..8

Launching the Samsung Multiroom

App.....................................................8

Connecting to Wi-Fi....................... 9

Connecting to Wi-Fi automatically

(Android/iOS).......................................9

Connecting to Wi-Fi manually

(Android) ...........................................11

Connecting to Wi-Fi manually (iOS)....13

Connecting with a HUB

(Not Included) .............................. 16

Adding a HUB...................................19

Adding additional speaker(s)........ 20

CONNECT WITH

BLUETOOTH FUNCTION

Connecting to Bluetooth Devices

.. 22

USING THE SAMSUNG

MULTIROOM APP

App at a glance ........................... 23

Playing Music .............................. 24

Playing a music file stored in the

smart device .....................................24

Listen to the music through the

phone speaker ..................................25

Listening to streaming music.............26

Listening to Internet radio ............ 27

Following a station ............................28

Setting Presets..................................29

Connecting TV to the speaker ..... 30

Connecting to TV via bluetooth

(TV SoundConnect)...........................30

Connecting to TV via Wi-Fi ................32

Listening to music from other devices

in network .........................................33

Using playback menu .................. 33

Adjusting Equalizer and DRC.............34

Managing a queue ............................35

Managing a playlist............................37

Using the Settings menu.............. 40

Add Speaker.....................................40

Guide ................................................41

Services ............................................41

Speaker Mode ..................................42

Device Settings .................................42

Clock ................................................45

Support.............................................47

Information........................................47

CONNECTING MULTIPLES

PRODUCTS

Setting Groups ............................ 48

Configuring the Surround Sound

Mode........................................... 50

USING MISCELLANEOUS

FUNCTIONS

Playing Media Content Saved in a

PC............................................... 52

Samsung Link ...................................52

Wireless Audio - Multiroom for

Desktop ............................................53

APPENDIX

Troubleshooting........................... 55

Open Source License Notice ....... 57

Licences...................................... 57

Specifications .............................. 58

Regulatory Compliance

Statements.................................. 59

Warning ............................................59

FCC Statement: (for U.S.A) ...............59

IC Statement: (for Canada)................60

Important Safety Instructions.............61

Safety precautions....................... 62

Power Supply Precautions ................62

Installation Precautions......................62

Usage Precautions ............................63

Cleaning Precautions ........................64

Additional Information.................. 64

About the Network Connection .........64

Compatible products.........................64

Getting Started

A Accessories

Confirm you have the supplied accessories shown below.

o WAM7500/WAM7501

Quick Setup Guide

(AH68-02866A)

o WAM6500/WAM6501

Power Adapter

(WAM6500 : BN44-00799C

/ WAM6501 : BN44-00799D)

Quick Setup Guide

(AH68-02867A)

A Front Panel

Source button

( )

Touch this button to switch to TV SoundConnect or Bluetooth.

Touch and hold this button for more than 5 seconds to re-search TV SoundConnect.

Standby button

( )

Touch this button to switch the speaker to Standby mode.

- Standby mode: This mode turns off the product’s basic functions and maintains

Wi-Fi connections only.

If you touch and hold this button for 5 seconds, the speaker turns off.

(WAM7500, WAM7501 only)

Play/Pause button

( )

Touch this button to play or pause playback.

The sound is muted when TV SoundConnect function is enabled.

Volume Control

button

( )

Controls the volume level.

Touch and hold the + button to increase the volume level. Touch and hold the

- button to decrease the volume level.

Touch and hold both the + and - buttons simultaneously for 5 seconds to reset the

product.

< WAM7500/WAM7501 > < WAM6500/WAM6501 >

e tr

Be careful not to insert your hand

or finger into the tweeter opening

on top of the product.

Battery Status

( )

(WAM6500,

WAM6501 Only)

You can check speaker's battery status through the LED indicator under the battery

icon.

Battery LED indicator when power

adapter is connected.

Battery LED indicator when power

adapter is not connected.

o Red LED : Charging.

o LED OFF : Fully charged.

o Rapid red blinking : Not charging.

o Green LED : 100% to 10% of charge

remaining.

o Slow red blinking : 10~0% remaining.

- Slow red blinking indicates that the

battery requires charging. Connect the

power adapter.

- You can play the product for 6 hours

with fully charged battery.

(The playback time may differ

depending on music source, volume,

battery status, etc.)

- The sound volume may decrease and

the speaker may turn off automatically

when the battery is low.

NOTES

9+ Add Speaker : Touch and hold both buttons simultaneously for 5 seconds to use the Add

Speaker function.

9+ Wi-Fi Setup : Touch and hold both buttons simultaneously for 5 seconds when connecting this

speaker to your network using the Wi-Fi Setup method.

- For more details, follow the instructions in the app on your smart device.

9You can check battery status connected to the product in the App. (WAM6500, WAM6501 Only)

Whole icon flashes. (flashing)

Less than 10% of battery energy is left.

Charging.

If volume 25 or above.

- Will not charge. Reduce to below volume 25

to charge.

Whole icon flashes. (flashing) Abnormal charge.

- Try charging the product within the charging

temperature range (5°C to 35°C).

1 bar represents about 30% of battery life. 3 bars represent the whole battery life. (WAM6500, WAM6501 Only)

(Remaining battery display may vary depending on sound source and volume.)

A Rear Panel - WAM6500/WAM6501

POWER To turn the product on or off, press and hold this button for more than 2 seconds.

DC 24V

The connection for the speaker's power adapter.

Charging stops if the volume level reaches 25 or more.

(The maximum volume level of this product is 30.)

SERVICE For service only. Lets service technicians update the firmware of the product.

A Standby Mode

`In Wi-Fi / Bluetooth / TV SoundConnect mode

- The product switches to Standby mode if there is no operation (music playing, button

operation, app use) for 15 minutes.

NOTES

9While playing music in the Wi-Fi, Bluetooth, or TV SoundConnect connection modes, the WAM

speaker will not switch to Standby mode.

9The WAM6500 and WAM6501 models use battery power if the power adapter is disconnected and

the Standby mode is activated.

(You can minimize battery consumption by pressing the

POWERPOWER

POWER button on the rear of the speaker

and turning the speaker off.)

DC24V SERVICEPOWER DC24V SERVICEPOWER

< WAM6500/WAM6501 >

q w e

A Preparing connection

❚Requirements

1 Requirements: Wireless Router, Smart Device

2 The wireless router must be connected to the Internet.

3 The smart device must be connected to the router via a Wi-Fi connection.

❚Installing the Samsung Multiroom App

To use the WAM speaker, you must download and then install the Samsung Multiroom App on

your smart device. You can download the app from Google play or the App Store.

With the Samsung Multiroom App installed, you can play music stored in your smart device,

from connected devices and other content providers, and from Internet radio stations through

the WAM speaker

Android iOS

Market search : Samsung Multiroom

ANDROID APP ON

Market search : Samsung Multiroom

❚Launching the Samsung Multiroom App

To launch the Samsung Multiroom app, press the Multiroom app icon on your smart device.

NOTE

9Please terminate the Samsung Multiroom App when speaker are not used because the battery of your

smart device can be consumed quickly if the app is working.

Connecting to the Wi-Fi network

Wireless RouterInternet Smart Device

Samsung

Multiroom

A Connecting to Wi-Fi

❚Connecting to Wi-Fi automatically (Android/iOS)

1 Plug the speaker into an electrical outlet.

2 On your Smart device, select the Samsung Multiroom app.

3 Run the Tutorial if you want, and then press Done.

4 Press Connect Now.

o Your smart device searches for devices available for pairing.

Wireless Router

5 Once your smart device finds the WAM speaker, it attempts to connect it to your wireless

network.

If your network requires a password, the password prompt appears on the smart device's

screen.

Use the on-screen keyboard to enter the password.

o Depending on your network environment, the speaker may not connect automatically.

If this occurs, select Manual Setup, and then go to pages 11~15 for instructions.

Click here.

6 Press Done.

o The network connection is completed.

NOTES

9To connect the WAM speaker to a secure wireless network safely, you must enter a valid password.

- If you have network specific questions about connecting this product to your home or work wireless

network, consult your service provider or the network administrator.

9If the WAM speaker fails to connect to your network or the network connection does not work normally,

move the speaker closer to the HUB or router, and then try again.

9The distance between devices, obstructions, or interference from other wireless devices may impact

communication between the WAM speaker and your network.

9This product may be found by some other Wi-Fi devices. However, they are not allowed to connect to it.

9Once the Wi-Fi connection is established initially, it is maintained unless the wireless router is replaced

or its network settings are changed.

4 4

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reproductor multimedia de Samsung

Samsung

Samsung YEPP YH-920 Manual de usuario

Samsung

Samsung CY-SUC10SH/ZA Manual de usuario

Samsung

Samsung GX-SM650SJ Manual de usuario

Samsung

Samsung HT-J4500 Manual de usuario

Samsung

Samsung YP-GS1CB Manual de usuario

Samsung

Samsung GX-SM530CF Manual de usuario

Samsung

Samsung SBB-SSN Manual de usuario

Samsung

Samsung YP-Q1JEB - 16 GB Digital Player Manual de usuario

Samsung

Samsung Yepp YP-700i Manual de usuario

Samsung

Samsung HARMAN JBL MP350 Classic Manual de usuario

Samsung

Samsung YP-NDU Manual de usuario

Samsung

Samsung YH-925GS Manual de usuario

Samsung

Samsung YP-G1CWY Manual de usuario

Samsung

Samsung YP-CP3AB Manual de usuario

Samsung

Samsung YP-G70CW Manual de usuario

Samsung

Samsung YH-820 Manual de usuario

Samsung

Samsung YP-T5H - YEPP 128 MB Digital Player Manual de usuario

Samsung

Samsung YP-20S/T Manual de usuario

Samsung

Samsung yepp YP-NDU64B Manual de usuario

Samsung

Samsung YP-M1JCB Manual de usuario

Samsung

Samsung SBB-SS08E Manual de usuario

Samsung

Samsung SBB-SS08EL1/EN Manual de usuario

Samsung

Samsung YH-925GS Manual de usuario

Samsung

Samsung SBB-PB28EI4 Manual de usuario

Manuales populares de Reproductor multimedia de otras marcas

Visual Land

Visual Land Impulse Manual de usuario

limHD

limHD 200i Manual de usuario

Transcend

Transcend DMP10 Manual de usuario

Philips

Philips GoGear Muse SA2MUS08 Manual de usuario

Fantec

Fantec MM-HDRL Manual de usuario

Dune HD

Dune HD Duo 4K Manual de usuario

IAdea

IAdea HMP-505S Manual de usuario

Camos

Camos MMS-1000 Manual de usuario

Energy

Energy 75 Series Manual de usuario

Z3 Technology

Z3 Technology DME-03 Manual de usuario

Sony

Sony SVR-2000 Guía del usuario

Meicheng

Meicheng HD-1080K12 Manual de usuario

DENAFRIPS

DENAFRIPS ARCE Manual de usuario

Topaz

Topaz CMS Media Player Instrucciones de uso

InFocus

InFocus LightCast Manual de usuario

IconBiT

IconBiT XDS1003D Manual de usuario

Quanmax

Quanmax QDSP-2090 Series Manual de usuario

Trigon Elektronik

Trigon Elektronik CHRONOLOG Manual de usuario
