English - 1
1.
Connect an HDMI Cable(Not supplied) between the HDMI IN/DVI IN jack on the TV and the HDMI jack on the
Cable Box/Satellite receiver (Set-Top Box).
No additional Audio connection is needed for an HDMI to HDMI connection.
N
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
TV REAR PANEL
1
Connections
CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA HDMI
Caution
● When connecting an external device, match the colour of the connection terminal to the cable.
● The product colour and shape may vary depending on the model.
● Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel con guration.
● Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
English - 2

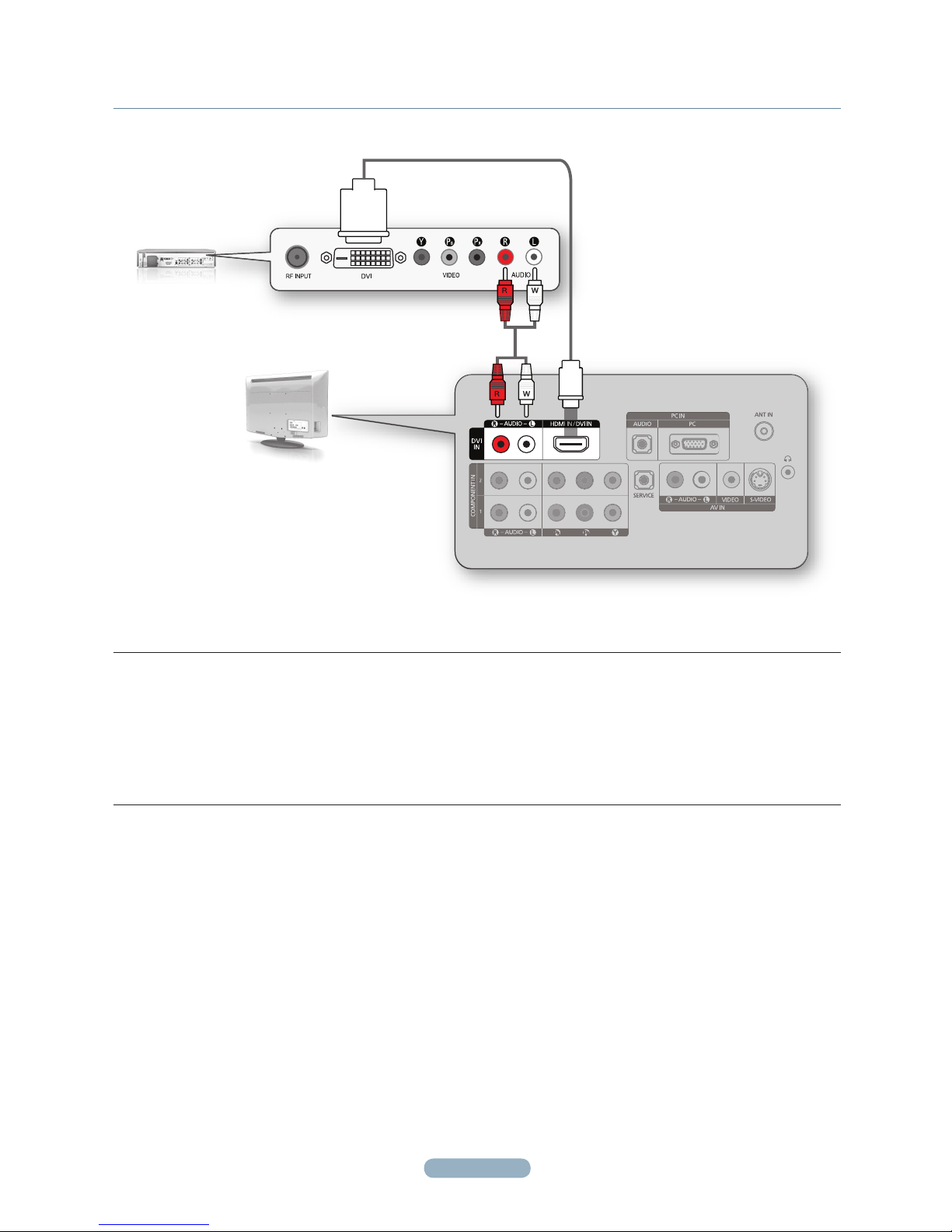

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA DVI
CABLE BOX/SATELLITE
RECEIVER(SET-TOP BOX)
REAR PANEL
TV REAR PANEL
12
1.
Connect an HDMI Cable(Not supplied) between the HDMI IN/DVI IN jack on the TV and the HDMI jack on the
Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables(Not supplied) between the DVI IN [R-AUDIO-L] jack on the TV and the Cable Box/Satellite
receiver (Set-Top Box).
When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN/DVI IN jack.
N
English - 3
CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA COMPONENT CABLES
CABLE BOX/SATELLITE
RECEIVER (SET-TOP BOX)
REAR PANEL
1.
Connect a Component Cable(Not supplied) between the COMPONENT IN (1 or 2) [Y, PB, PR ]jacks on the TV and
the COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables(Not supplied) between the COMPONENT IN (1 or 2) [R-AUDIO-L] jacks on the TV and the
AUDIO OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).
TV REAR PANEL
12
English - 4
Memorizing the Channels
Your TV can memorize and store all of the available channels for both “off-air” (Air) and “Cable” channels. After the
available channels are memorized, use the CH or CH button to scan through the channels. This eliminates the
need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a
broadcast source, memorizing the channels (automatic) and adding or deleting channels (Channel Manager).
Selecting the Video Signal-source
Before your television can begin memorizing the available channels, you must
specify the type of signal source that is connected to the TV (i.e. an Air or a
Cable system).
1.
Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the ENTER
button.
2.
Press the ENTER button.
Repeatedly press the ▲ or ▼ button to cycle through these choices: “Air”, “STD”, “HRC”, or “IRC” (all cable TV)
Press the ENTER button to select.
STD, HRC and IRC identify various types of cable TV systems.
Contact your local cable company to identify the type of cable system that exists in your particular area.
At this point, the signal source has been selected
Storing Channels in Memory (Automatic Method)
1.
First, select the correct signal source (Air, STD, HRC, or IRC).
2.
Press the ▲ or ▼ button to select “Auto Program”, then press the ENTER
button.
3.
Press the ENTER button to select “Start”.
The TV will begin memorizing all of the available channels.
The TV automatically cycles through all of the available channels and stores
them in memory. This takes about one to two minutes. Press the ENTER button at any time to interrupt the memorization
process and return to the “Channel” menu.
4.
After all the available channels are stored, the “Channel” menu reappears. Press the EXIT button to exit.
To stop the search before it has nished, press the ENTER button with “Stop” selected.
N
N
N
Channel
Air / Cable :
Air
Auto Program
Channel Manager
Fine Tune
Color System : Auto
Move Enter Return
TV
Channel
Air / Cable :
Air
Auto Program
Channel Manager
Fine Tune
Color System : Auto
Move Enter Return
TV
English - 5
Troubleshooting
My TV is out of order. Why? Try this.
TV HD is displayed, but
the visual quality is not
good.
• The visual quality may be degraded
when the broadcasting stations convert
the analog signal to digital. (Although
you are watching digital broadcasting,
the video source is analog.)
• Check the transmitting signal of the
corresponding cable TV network or
broadcasting station.
The picture on the
TV screen is broken
intermittently (a mosaic or
distorted).
• This may occur when the broadcast
signal received by the TV is too weak
or unstable.
• Check the transmitting signal of the
corresponding cable TV network or
broadcasting station.
• If you are using a publically shared
antenna, check the signal by asking
your apartment manager.
I cannot control the TV
using the remote control.
• When the battery is at.
• When it is not in TV mode.
• When the remote control malfunctions
temporarily.
• Replace the battery and then retry.
• Press the TV button on the remote
control to select TV mode.
A strange sound is
generated by the TV.
• Sound may be generated by the
temporary swelling and shrinking of the
plastics in the TV due to temperature
and humidity changes.
• Temporary electronic oscillation
sounds may be generated due to the
characteristics of the TV
• Some noise can be heard due to the
characteristics of the product.
COUNTRY Customer Care Center
Web Site
ARGENTINE 0800-333-3733 www.samsung.com/ar
BRAZIL 0800-124-421
4004-0000 www.samsung.com
CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl
COLOMBIA 01-8000112112 www.samsung.com.co
COSTA RICA 0-800-507-7267 www.samsung.com/latin
ECUADOR 1-800-10-7267 www.samsung.com/latin
EL SALVADOR 800-6225 www.samsung.com/latin
GUATEMALA 1-800-299-0013 www.samsung.com/latin
HONDURAS 800-7919267 -
JAMAICA 1-800-234-7267 www.samsung.com/latin
PANAMA 800-7267 www.samsung.com/latin
PUERTO RICO 1-800-682-3180 www.samsung.com/latin
REP. DOMINICA 1-800-751-2676 www.samsung.com/latin
NICARAGUA 00-1800-5077267 -
MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com
TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latin
VENEZUELA 0-800-100-5303 www.samsung.com/latin
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
IMPORTADO POR:
AV. PRESIDENTE MASARIK #111 INT701
COL. CHAPULTEPEC MORALES C.P.11570
DELEGACION MIGUEL HIDALGO MEXICO. DISTRITO FEDERAL
Tel: 01-55-5747-5100 / 01-800-726-7864
