English

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and speciﬁcations may be changed without notice.

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock

or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of LCD screen, which will affect image

quality. To reduce risk of this effect, please follow below recommendations:

Avoid displaying the same TV channel for long periods.•

Always try to display any image on full screen, use TV set picture format menu for best possible match.•

Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout•

process.

Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.•

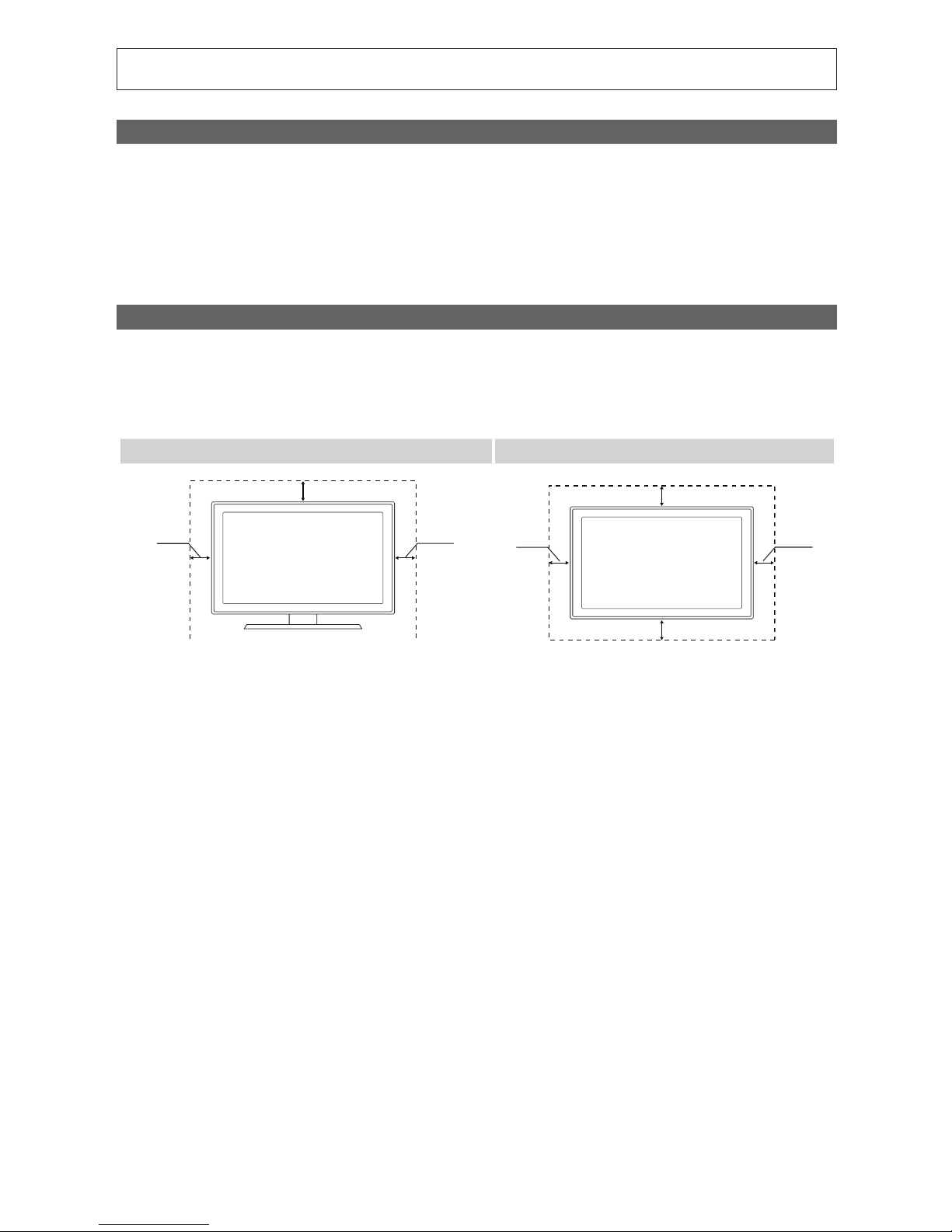

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

✎

Installation with a stand. Installation with a wall-mount.

4inches

BN68-02751A_Eng.indb 2 2010-07-14 �� 1:13:32

Contents

English

ENGLISH

Getting Started

List of Featuresy......................................................... 4

Accessoriesy.............................................................. 4

Installing the LCD TV Standy...................................... 4

Viewing the Control Panely......................................... 5

Viewing the Remote Controly...................................... 6

Connecting to an Antennay........................................ 7

Plug & Play (Initial Setup)y........................................... 7

Connections

Connecting to an AV Devicey...................................... 8

Connecting to an Audio Devicey................................. 9

Connecting to a PCy.................................................. 9

Changing the Input sourcey...................................... 10

Basic Features

How to Navigate Menusy.......................................... 11

Channel Menuy........................................................ 11

Seeing Channels 11

Using Favorite Channels 12

Memorizing channels 12

Editing channels 12

Other Features 12

Picture Menuy.......................................................... 13

Changing the Preset Picture Mode 13

Adjusting picture settings 13

Setting up the TV with your PC 14

Changing the Picture Options 14

Sound Menuy........................................................... 16

Changing the Preset Sound Mode 16

Adjusting sound settings 16

Sound Settings 16

Setup Menuy............................................................ 17

Setting the Time 17

Using the Sleep Timer 17

Setting the On/Off Timer 17

Locking Programs 18

Other Features 19

Support Menuy......................................................... 20

Advanced Features

Media Playy.............................................................. 21

Connecting a USB Device 21

Anynet+y................................................................. 25

Setting Up Anynet+ 26

Switching between Anynet+ Devices 26

Recording 26

Listening through a Receiver 27

Troubleshooting for Anynet+ 27

Other Information

Installing the Wall Mounty......................................... 28

Securing the TV to the Wally..................................... 31

Anti-Theft Kensington Locky..................................... 31

Troubleshootingy...................................................... 32

Speciﬁcationsy......................................................... 35

License 35

Indexy...................................................................... 36

Check the Symbol!

t✎O

This function can be used by pressing the

TOOLS button on the remote control.

Note :

Important information

Step by step guide :

Informs you how to access

the menu.

BN68-02751A_Eng.indb 3 2010-07-14 �� 1:13:32

Getting Started

English

List of Features

Excellent Digital Interface & Networking : With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed■

without a cable box / STB (Set-Top-Box) satellite receiver.

Media Play■: Allows you to play music ﬁles, and pictures saved on a USB device. (P. 21)

Self Diagnosis■: You can check picture and sound operation. (P. 20)

Accessories

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

✎

The items' colors and shapes may vary depending on the models.

✎

Remote Control & Batteries (AAA x 2)■

Warranty Card / Safety Guide / Quick Setup Guide■

Owner’s Instructions■

Cleaning Cloth■

Power Cord■

(M4 X L16: 3EA)

Stand Screwsy

(LN22C450 only)

Wall Mount kity

See separate guide for installation.

✎

Decoration Cover

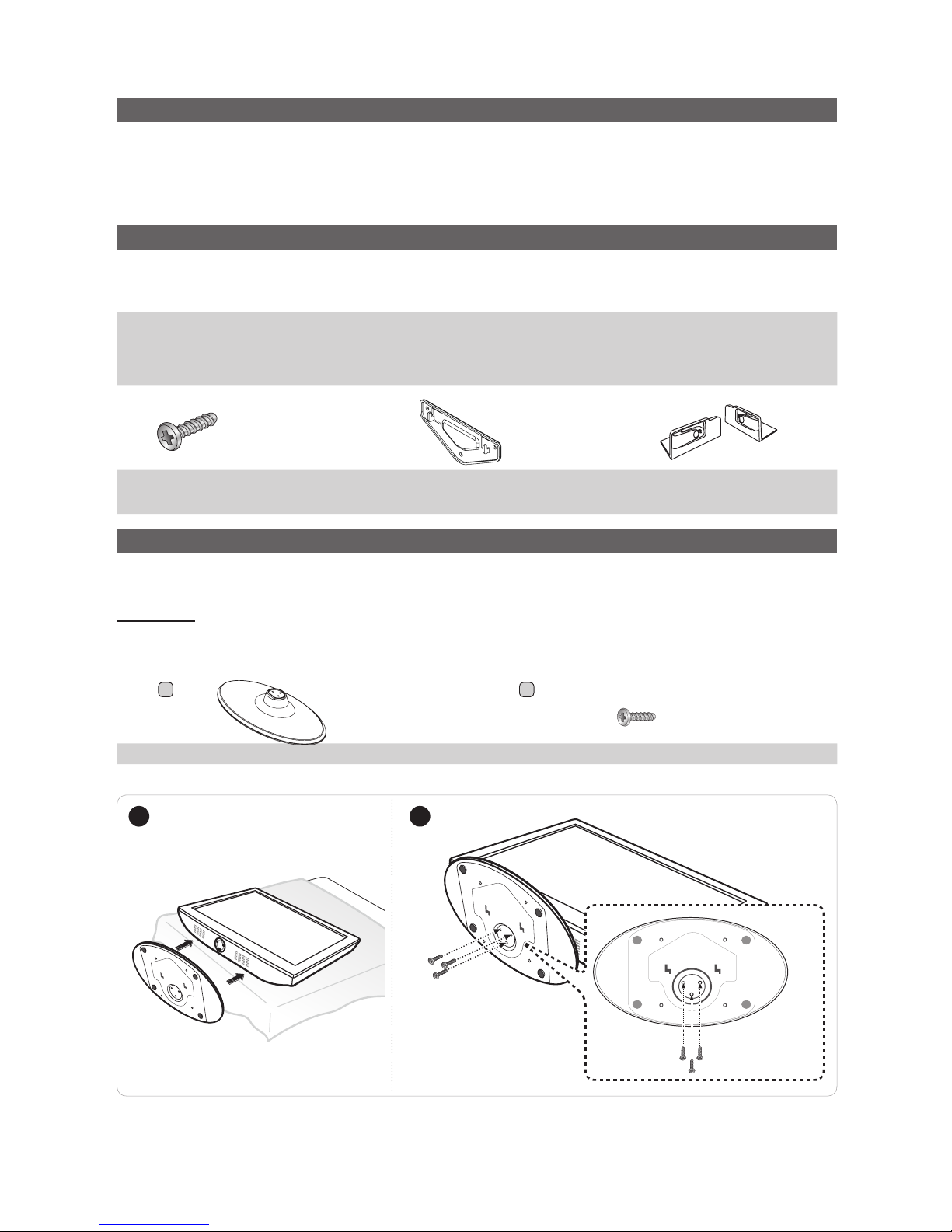

Installing the LCD TV Stand

Components

When installing the stand, use the provided components and parts.

StandyScrewsy

1 EA

3EA (M4 X L16)

Front

Rear

BN68-02751A_Eng.indb 4 2010-07-14 �� 1:13:35

01 Getting Started

English

Make sure to distinguish between the front and rear of the Stand when attaching it to the TV.

✎

Make sure that at least two persons lift and move the LCD TV.

✎

Lay the product down, with the screen facing up and fasten the screws.

✎

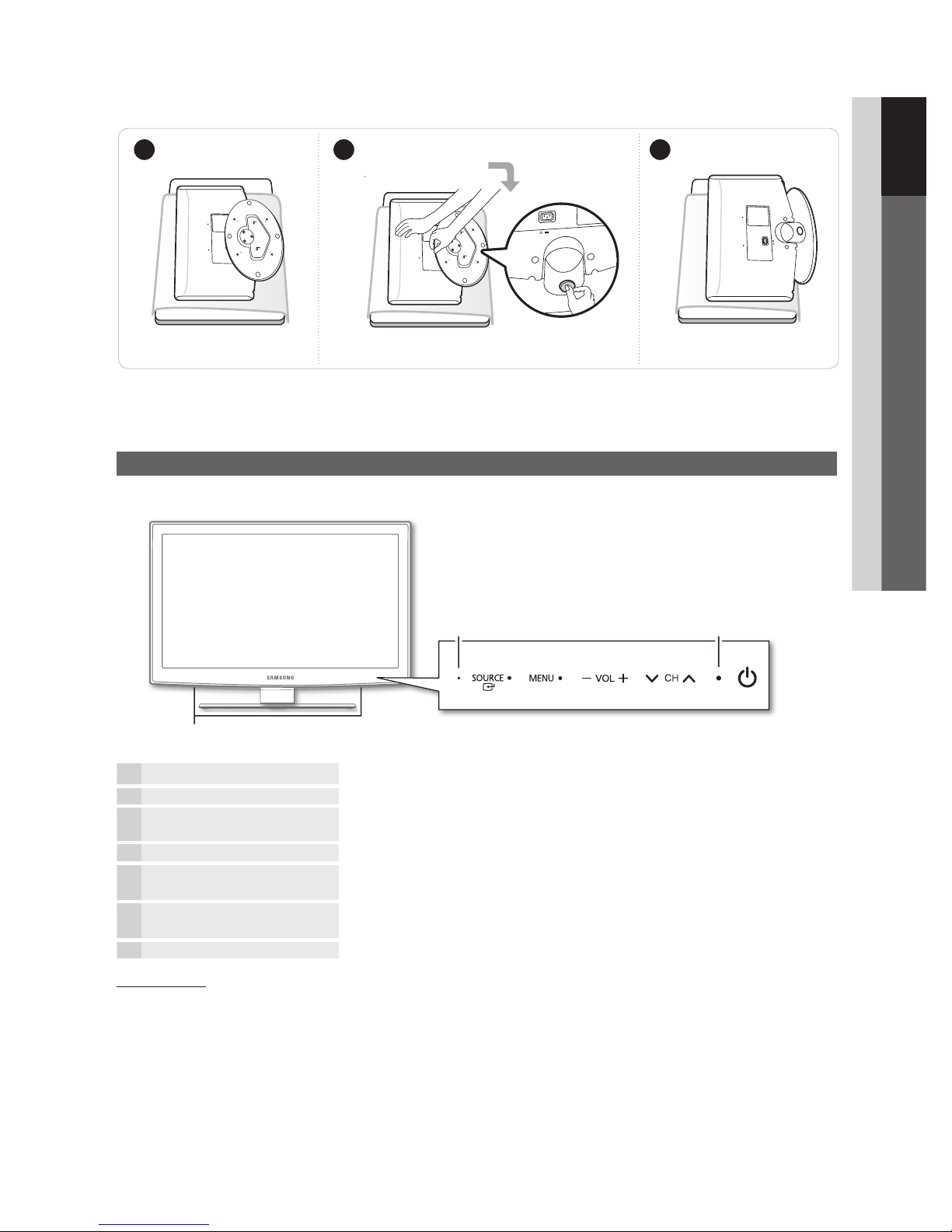

Viewing the Control Panel

The product color and shape may vary depending on the model.

✎

P (Power) Press to turn the TV on and off.

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCEEToggles between all the available input sources. In the on-screen menu, use this

button as you would use the ENTEREbutton on the remote control.

MENU Displays an on-screen menu of your TV’s features.

yAdjusts the volume. In the on-screen menu, use the ybuttons as you would

use the ◄and ►buttons on the remote control.

zChanges the channels. In the on-screen menu, use the zbuttons as you

would use the ▼and ▲buttons on the remote control.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount

of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

1 2 3

Push button

90°

Speakers

Power IndicatorRemote control sensor

BN68-02751A_Eng.indb 5 2010-07-14 �� 1:13:36

Getting Started

English

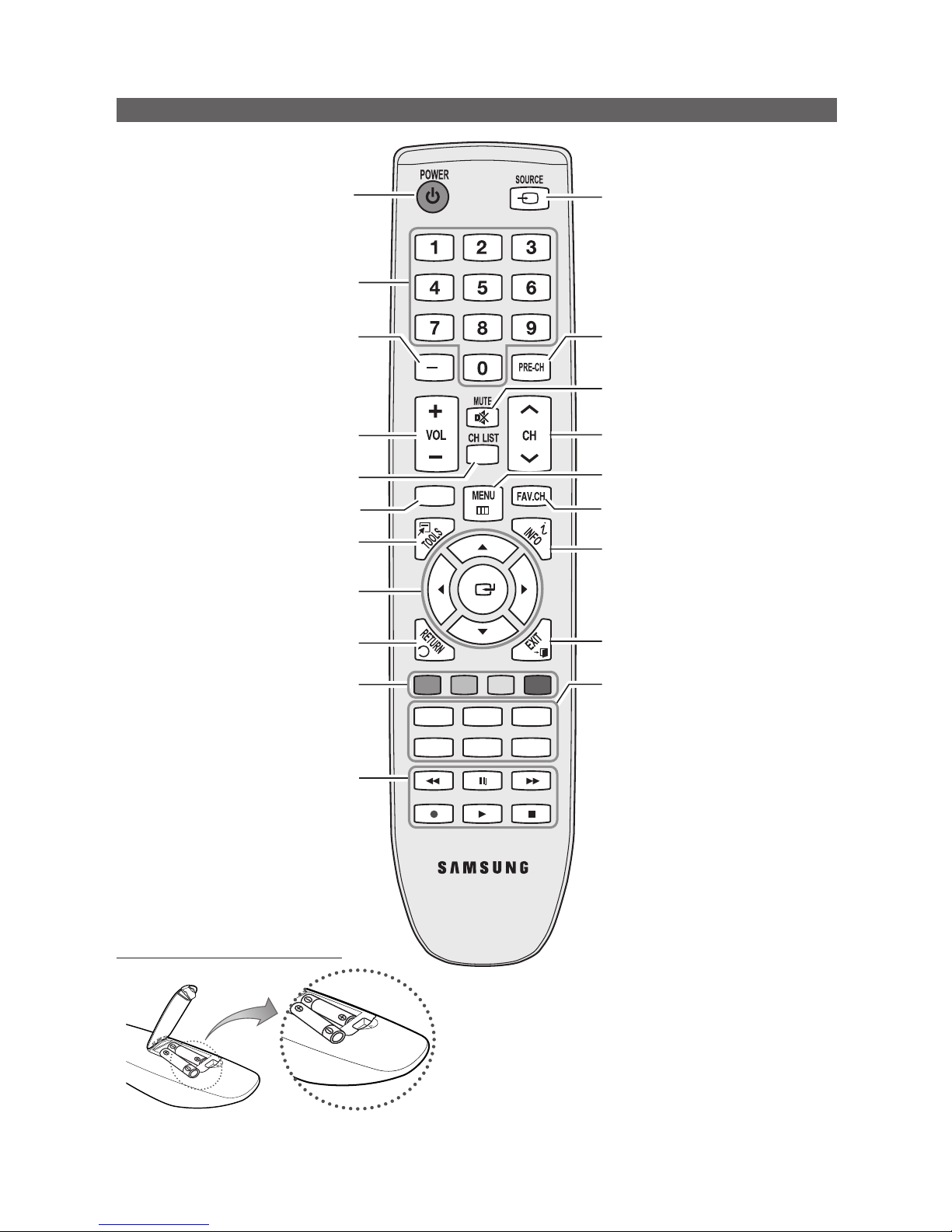

Viewing the Remote Control

Installing batteries (Battery size: AAA)

NOTE

✎

Use the remote control within 23

feet from TV.

Bright light may affect the

performance of the remote control.

Avoid use when nearby fluorescent

lights or neon signs.

The Color and shape may vary

depending on the model.

P . MODE

MEDIA.P

ABCD

S.MODE

P.SIZE

SLEEP

MTS

Use these buttons in the Media Play

and Anynet+ modes.

(�: Controls recording on Samsung

recorders with the Anynet+ feature)

Press to select additional channels

(digital) being broadcast by the same

station. For example, to select channel

‘54-3’, press ‘54’, then press ‘-’ and ‘3’.

Return to the previous channel.

Press to directly access to channels.

Turns the TV on and off. Display and select the available video

sources. (P. 10)

S.MODE: Selects the sound mode. (P. 16)

SLEEP:Automatically shuts off the TV at a

preset time. (P. 17)

MTS:Press to choose stereo, mono or

Separate Audio Program (SAP

broadcast). (P. 16)

P.MODE: Selects picture mode. (P. 13)

P.SIZE: Choose the picture size. (P. 15)

CC: Controls the caption decoder. (P. 19)

Cut off the sound temporarily.

Displays Favorite Channel Lists on the

screen. (P. 12)

Displays the channel list on the screen. (P. 11)

Press to display information on the TV

screen. (P.17)

Quickly select frequently used functions.

Select on-screen menu items and

change menu values.

Exit the menu.

Return to the previous menu.

View the Media Play. (P. 21)

Buttons used in the Channel list, Media

Play menu, etc.

Change channels.

Displays the main on-screen menu.

Adjusts the volume.

BN68-02751A_Eng.indb 6 2010-07-14 �� 1:13:36

Plug & Play

Language : English

Time

Game Mode : Off

V-Chip

Caption

Melody : Medium

Setup

01 Getting Started

English

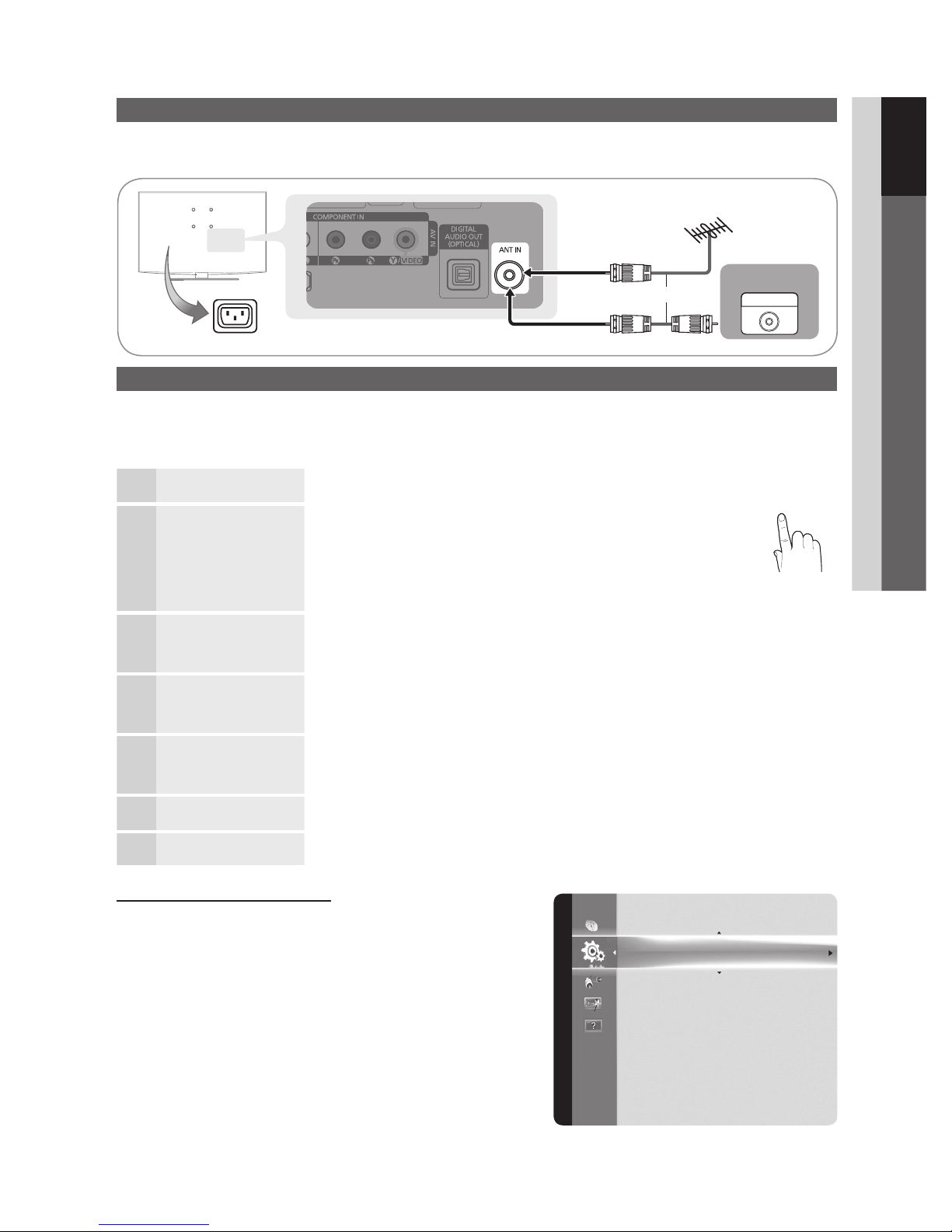

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

Connecting the power cord and antenna.

✎

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER

button. Plug & Play is available only when the Input source is set to TV.

To return to the previous step, press the red button.

✎

1Selecting a language Press the ▲or ▼button, then press the ENTER

button.

Select the desired OSD (On Screen Display) language.

2Selecting Store Demo

or Home Use

Press the ◄or ►button, then press the ENTER

button.

Select theyHome Use mode. Store Demo Mode is for retail

environments.

To return the unit’s settings fromyStore Demo to Home Use

(standard): Press the volume button on the TV. When you see the

volume in the OSD, press and hold MENU for 5 sec.

3Selecting an antenna Press the ▲or ▼button, then press the ENTER

button. Select Air, Cable or Auto.

✎

Cable mode, you can select the correct signal source among STD, HRC, and IRC

by pressing the ▲, ▼, ◄or ►button, then press the ENTER

button.

4Selecting a channel The channel search will start automatically.

For more information, refer to Channel →Auto Program. (P. 12)

Press the

✎

ENTER

button at any time to interrupt the memorization process.

5Setting the Clock

Mode

Set the Clock Mode automatically or manually.

If you select the

✎

Auto, set the daylight saving time.

Select the time zone where you live.

6Viewing the HD

Connection Guide

The connection method for the best HD screen quality is displayed.

7Enjoy your TV. Press the ENTER

button.

If You Want to Reset This Feature...

→Setup →Plug & Play →ENTER

or Cable

R-AUDIO-L PRPBY

ANT OUT

VHF/UHF Antenna

Power Input

MEDIA.P

POWER

SLEEP

S.MODE

P . MODE

BN68-02751A_Eng.indb 7 2010-07-14 �� 1:13:37

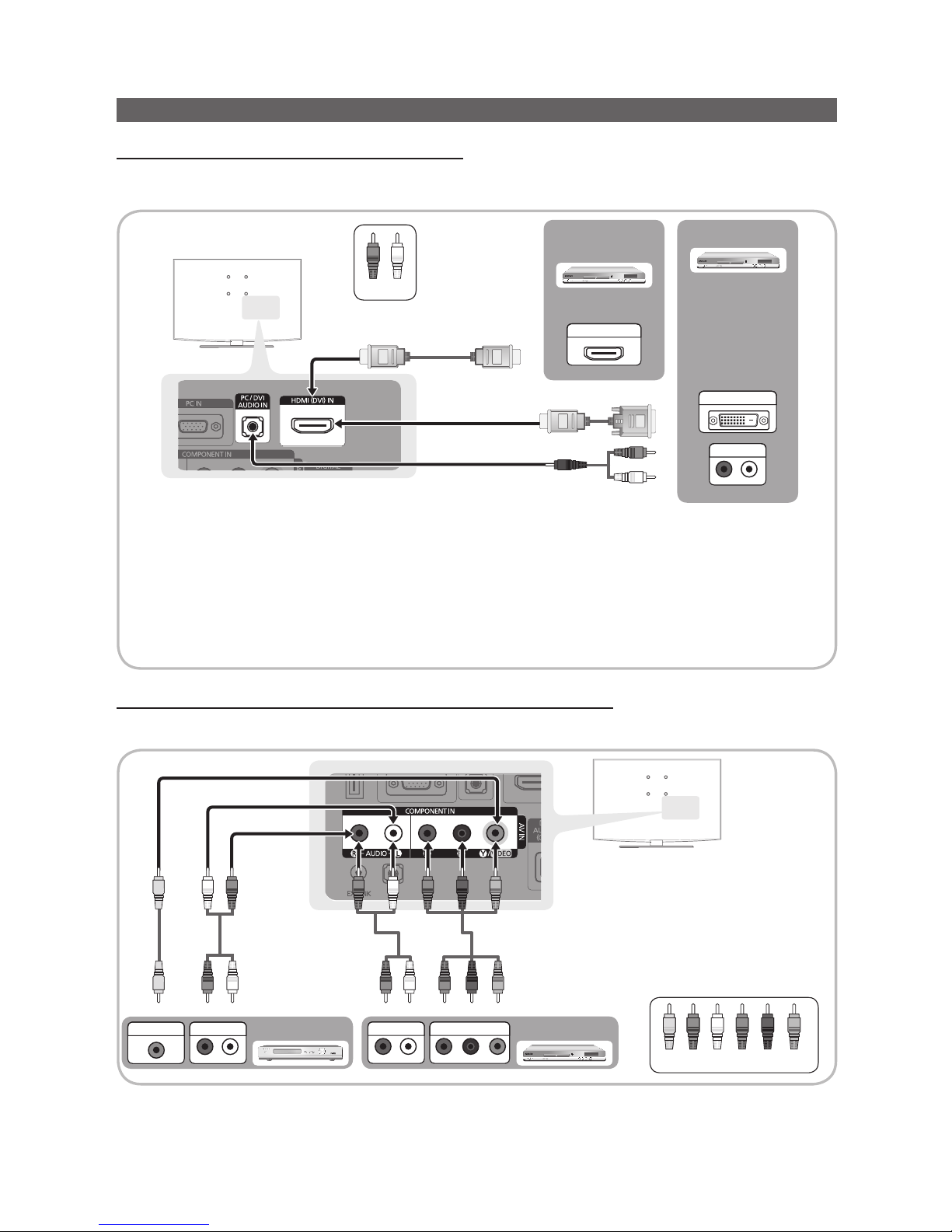

Connecting to an AV Device

Using an HDMI / DVI Cable: HD connection (up to 1080p)

We recommend using the HDMI connection for the best quality HD picture.

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver

HDMI (DVI) IN

✎

/PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the

HDMI (DVI) IN jack for video. A DVD, Blu-ray

player, HD cable box, HD STB satellite receiver, cable box, or STB satellite receiver may require a DVI-HDMI (DVI

to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The PC/DVI AUDIO IN jack is required for audio.

The picture may not display normally (if at all) or the audio may not work if an external device that uses an older

version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external

device about the HDMI version and, if out of date, request an upgrade.

Be sure to purchase a certiﬁed HDMI cable. Otherwise, the picture may not display or a connection error may

occur.

Using a Component Cable: (up to 1080p), Using an Audio/Video Cable: (480i only)

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

Device

R-AUDIO-L PRPBY

DVI OUT

BD/DVD player/

HD cable/sat box

R-AUDIO-L PRPBY

HDMI OUT

R-AUDIO-L PRPBY

AUDIO OUT

R-AUDIO-L PRPBY

COMPONENT OUT

R-AUDIO-L PRPBY

AUDIO OUT

Blu-ray player

W Y

R-AUDIO-L PRPBY

VIDEO OUT

VCR

R-AUDIO-L PRPBY

AUDIO OUT

When connecting to

✎

AV IN, the color of

the AV IN [Y/VIDEO] jack (Green) does not

match the color of the video cable (Yellow).

For better picture quality, the Component

✎

connection is recommended over the A/V

connection.

Red White

W W BG

Yellow Red White Red Blue Green

English

Connections

BN68-02751A_Eng.indb 8 2010-07-14 �� 1:13:40

R-AUDIO-L PRPBY

OPTICAL

Digital Audio

System

Headphones

English

02 Connections

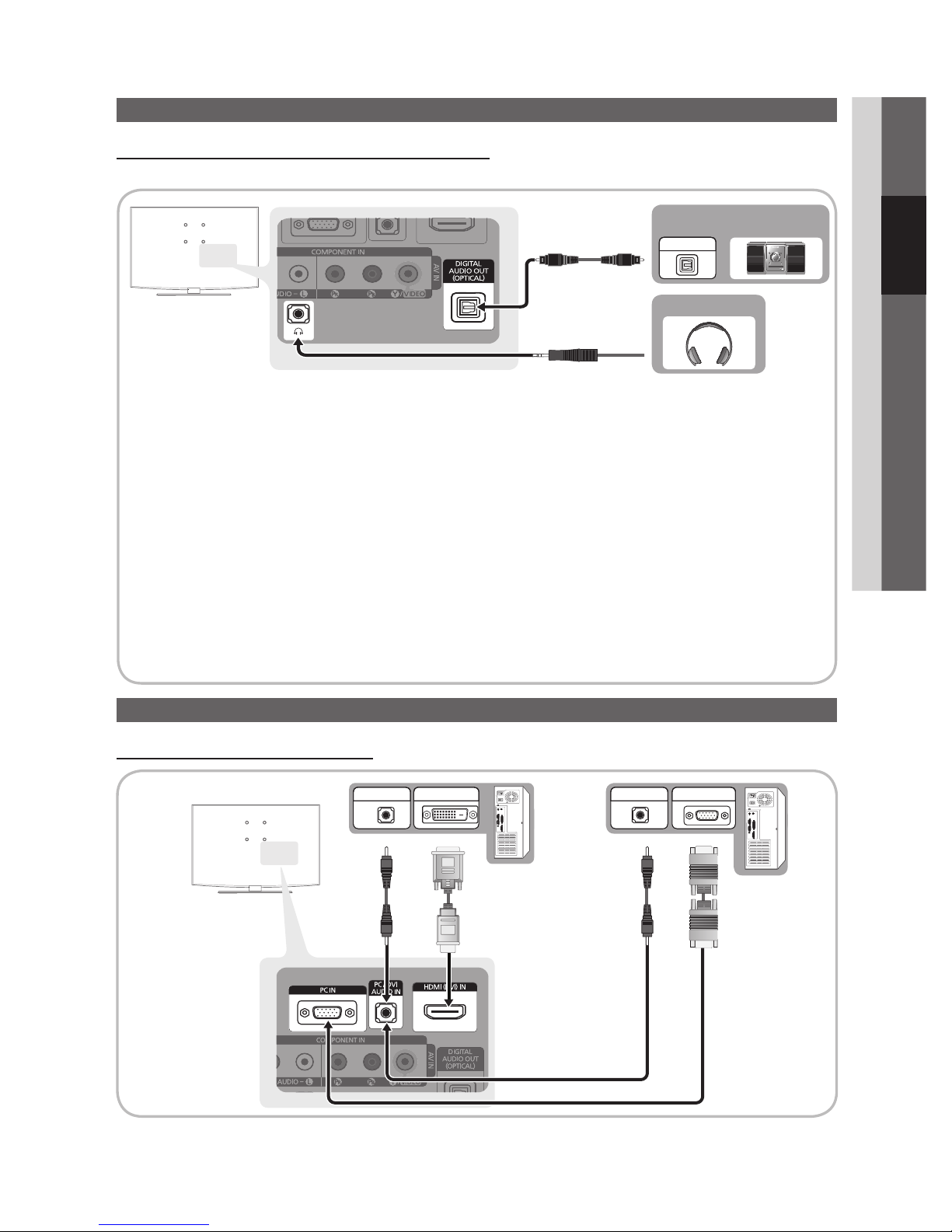

Connecting to an Audio Device

Using an Optical (Digital) or Audio (Analog) Cable Connection

Available devices: Digital Audio System, Ampliﬁer, Home Theater

DIGITAL AUDIO OUT (OPTICAL)

✎

When a Digital Audio System is connected to the

DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is

a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is

connected to the TV via HDMI, only 2 CH audio will be heard from the home theater receiver. If you want to

hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite

receiver directly to an amplifier or home theater.

Headphones

✎

Headphones may be connected to the headphones output on your set. While the headphones are connected, the

sound from the built-in speakers will be disabled.

The available sound function can be restricted when connecting headphones to the TV.

The headphone volume and TV volume are adjusted separately.

Connecting to a PC

Using an HDMI/DVI Cable / a D-sub Cable

R-AUDIO-L PRPBY

AUDIO OUT

R-AUDIO-L PRPBY

AUDIO OUT

R-AUDIO-L PRPBY

DVI OUT

R-AUDIO-L PRPBY

PC OUT

BN68-02751A_Eng.indb 9 2010-07-14 �� 1:13:42

English

Connections

Changing the Input source

Source List

→Input →Source List →ENTER

Use to select TV or an external input sources

such as a DVD / Blu-ray player / cable box /

STB satellite receiver.

TV / AV / Component/ PC / HDMI/DVI■

You can only choose external

✎

devices that are connected to the

TV. In the Source List, connected

inputs will be highlighted.

✎

always stay activated.

Edit Name

→Input →Edit Name →ENTER

VCR / DVD / Cable STB / Satellite STB / PVR STB■

/ AV Receiver / Game / Camcorder / PC / DVI PC /

DVI / TV / IPTV / Blu-ray / HD DVD / DMA: Name the

device connected to the input jacks to make your input

source selection easier.

When connecting an HDMI/DVI cable to the

✎

HDMI

(DVI) IN port, you should set to DVI PC or DVI mode

under Edit Name.

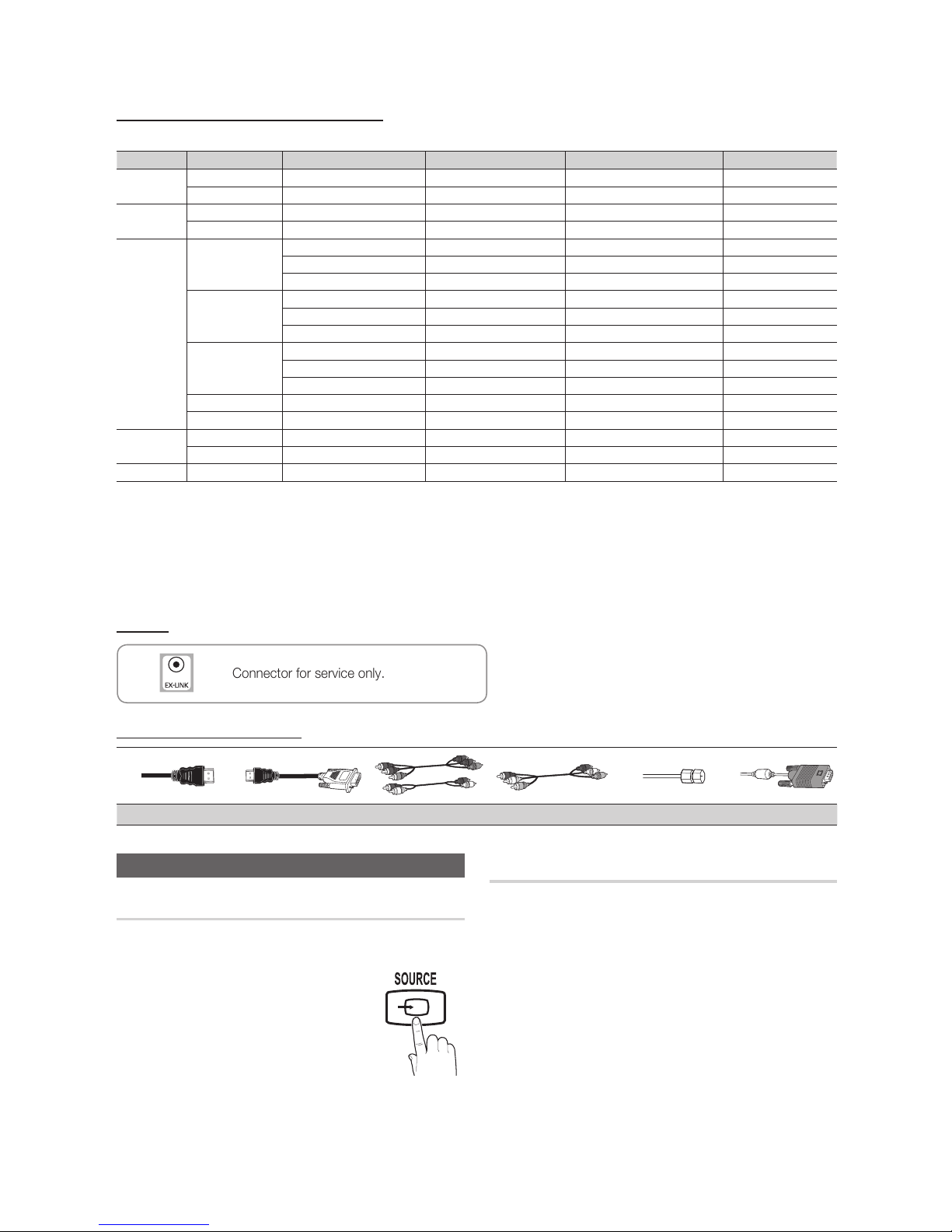

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1360x768@60Hz.

Mode Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H/V)

IBM 640 x 350 31,469 70,086 25,175 + / -

720 x 400 31,469 70,087 28,322 - / +

MAC 640 x 480 35,000 66,667 30,240 - / -

832 x 624 49,726 74,551 57,284 - / -

VESA DMT

640 x 480

31,469 59,940 25,175 - / -

37,861 72,809 31,500 - / -

37,500 75,000 31,500 - / -

800 x 600

37,879 60,317 40,000 + / +

48,077 72,188 50,000 + / +

46,875 75,000 49,500 + / +

1024 x 768

48,363 60,004 65,000 - / -

56,476 70,069 75,000 - / -

60,023 75,029 78,750 + / +

1280 x 720 45,000 60,000 74,250 + / +

1360 x 768 47,712 60,015 85,500 + / +

VESA CVT 720 x 576 35,910 59,950 32,750 - / +

1280 x 720 56,456 74,777 95,750 - / +

VESA GTF 1280 x 720 52,500 70,000 89,040 - / +

NOTE

✎✎

For HDMI/DVI cable connection, you must use the

HDMI (DVI) IN jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video form

at is selected.

Separate and Composite modes are supported. SOG(Sync on Green) is not supported.

EX-LINK

Connector for service only.

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

MEDIA.P

POWER

SLEEP

S.MODE

P . MODE

BN68-02751A_Eng.indb 10 2010-07-14 �� 1:13:43

Otros manuales para LN19C450

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Televisor LCD de Samsung

Samsung

Samsung LN32B530 - 32" LCD TV Manual de usuario

Samsung

Samsung LN22B350 Manual de usuario

Samsung

Samsung Crystal UHD UE50TU8500UXZT Manual de usuario

Samsung

Samsung LN26D450G1G Manual de usuario

Samsung

Samsung LE23T5 Manual de usuario

Samsung

Samsung LN20S51B Manual de usuario

Samsung

Samsung LN32A550P3R Manual de usuario

Samsung

Samsung LN46M52BD Manual de usuario

Samsung

Samsung 7 Series Manual de usuario

Samsung

Samsung UN32D6500VF Manual de usuario

Samsung

Samsung LA22A350C1 Manual de usuario

Samsung

Samsung LN6B60 Manual de usuario

Samsung

Samsung SP43J6HDX/XEN Manual de usuario

Samsung

Samsung LA22B352 Manual de usuario

Samsung

Samsung LN46B610 Manual de usuario

Samsung

Samsung BN68-01412M-00 Manual de usuario

Samsung

Samsung PN42B400P3D Manual de usuario

Samsung

Samsung LN-S3252D Manual de usuario

Samsung

Samsung LN40A550 - 40" LCD TV Manual de usuario

Samsung

Samsung UE32F6100AW Manual de usuario

Samsung

Samsung LE15E31S Manual de usuario

Samsung

Samsung LE15E31S Manual de usuario

Samsung

Samsung LN32A450 Manual de instalación y operación

Samsung

Samsung LA40F8 Manual de usuario

Manuales populares de Televisor LCD de otras marcas

LG 32LC4R* Manual de usuario

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manual de usuario

Salora

Salora 22LED1600 Manual de usuario

Dell

Dell W1900 19 Instrucciones de uso

Grundig

Grundig 40 VLE 8230 BP Manual de usuario

Philips

Philips 43PFL4901/F7 Manual de usuario

Sony

Sony Bravia XBR-43X830C Manual de usuario

LG 32LS350 Manual de usuario

VIORE

VIORE LED32VF60 Manual de usuario

Toshiba

Toshiba Regza 42HL167 Manual de usuario

JVC

JVC LT-32A220 Manual de usuario

Philips

Philips 20TA1000/93 Manual de usuario

Philips

Philips 32PFL3158T/12 Manual de usuario

Sony

Sony Bravia KDL-V32XBR2 Manual de usuario

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Manual de usuario

Philips

Philips 40PFL7705D Manual de usuario

Dynex

Dynex DX-40L261A12 Manual de usuario

JVC

JVC LT-23C50BU Manual de usuario
