BN68-00746E (Eng) 2004/11/04 03:53 PM Page 1

English - 2

Connecting to an Aerial or Cable Television Network

1Connect the aerial or network input cable to the ANT.IN terminal on the TV.

For more detailed antenna/cable TV connections, see pages 13 of the owner's instructions.

Connecting a VCR or (S-VHS VCR)

Connect the cable or antenna to the ANTENNA IN terminal on the back of the VCR.

Connect an RF cable between the ANTENNA OUT terminal on the VCR and the ANT. IN terminal on the TV.

Connect an audio cable between the AUDIO OUT jacks on the VCR and the L-AUDIO-R jacks on the TV.

Connect a video (or S-Video) cable between the VIDEO (or S-VIDEO) OUT jack on the VCR and

the VIDEO (or S-VIDEO) jack on the TV.

◆

If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the

L-AUDIO-R

jacks on the TV. If your VCR is stereo, you must connect two cables.

◆

An S-Video cable is usually included with an S-VHS VCR.

Cable Television Network or

S-Video Cable

(Not supplied)

VCR Rear Panel

TV Rear Panel

Video Cable

(Not supplied)

Audio Cable (Not supplied)

RF Cable

BN68-00746E (Eng) 2004/11/04 03:53 PM Page 2

English - 3

Connecting a DVD/Samsung Set-top box via DVI

Connect a DVI-D cable between the DVI IN jack on the TV and the DVI OUT jack

on the DVD player/Samsung Set-top box.

Connect an audio cable between the DVI AUDIO IN (L/R) jacks on the TV and the

AUDIO OUT jacks on the DVD player/Samsung Set-top box.

DVI-D does not support PC function.

Connecting a DVD/ Samsung Set-top box via HDMI

1Connect a HDMI cable between the HDMI IN jack on the TV and the HDMI OUT jack

on the DVD player/Samsung Set-top box.

DVD Player Rear Panel

TV Rear Panel

DVI-D Cable (Not supplied)

DVD Player

Rear Panel

TV Rear Panel

HDMI Cable (Not supplied)

Audio Cable (Not supplied)

BN68-00746E (Eng) 2004/11/04 03:53 PM Page 3

English - 4

Connecting a DVD Player & Digital TV Set-top box

Connect an audio cable between the COMPONENT AUDIO IN (L/R) jacks on the TV and

the AUDIO OUT jacks on the DVD player/Samsung Set-top box.

Connect a video cable between the COMPONENT IN (Y, PB, PR) jacks on the TV and the

COMPONENT VIDEO OUT (Y, Pb, Pr) jacks on the DVD player/ Samsung Set-top box.

Each external input source device (DVD, STB, VCR etc.) has a different back panel

configuration.

Connecting a PC

Connect the D-Sub cable to PC IN on the TV.

Connect the stereo audio cable to PC AUDIO IN on the TV and the other end to

“Audio Out” of the sound card on the computer.

Set-Top Box Rear Panel

DVD Player Rear Panel TV Rear Panel

Audio Cable (Not supplied)

Video Cable (Not supplied)

TV Rear Panel

PC Video Cable (Not supplied)

PC Audio Cable (Not supplied)

BN68-00746E (Eng) 2004/11/04 03:53 PM Page 4

English - 5

Connecting a Headphone & Subwoofer

Connect an audio cable between the INPUT jack on an active (powered) Sub woofer and the

SUB WOOFER OUT jack on the TV.

Prolonged use of headphones at a high volume may damage your hearing.

Plug a set of headphones into the 3.5mm mini-jack socket on the TV.

An external subwoofer helps to emphasize low frequencies.

Connecting a Home Theater System

1Connect the optical audio cable between the OPTICAL AUDIO OUT jack on the TV and the

“Audio In” jack on the Home Theater System.

TV Rear Panel

Home Theater

Optical Cable (Not supplied)

BN68-00746E (Eng) 2004/11/04 03:53 PM Page 5

English - 6

To Select Source

You can select the TV mode or an input source (DVD, VCR, STB, PC) connected to the TV.

Use this button to choose an input source that you would like to watch.

Press the SOURCE button on the remote control

Ext.1

Ext.2

Ext.3

Component

S-Video

HDMI

DVI

PCAV

BN68-00746E (Eng) 2004/11/04 03:53 PM Page 6

English - 7

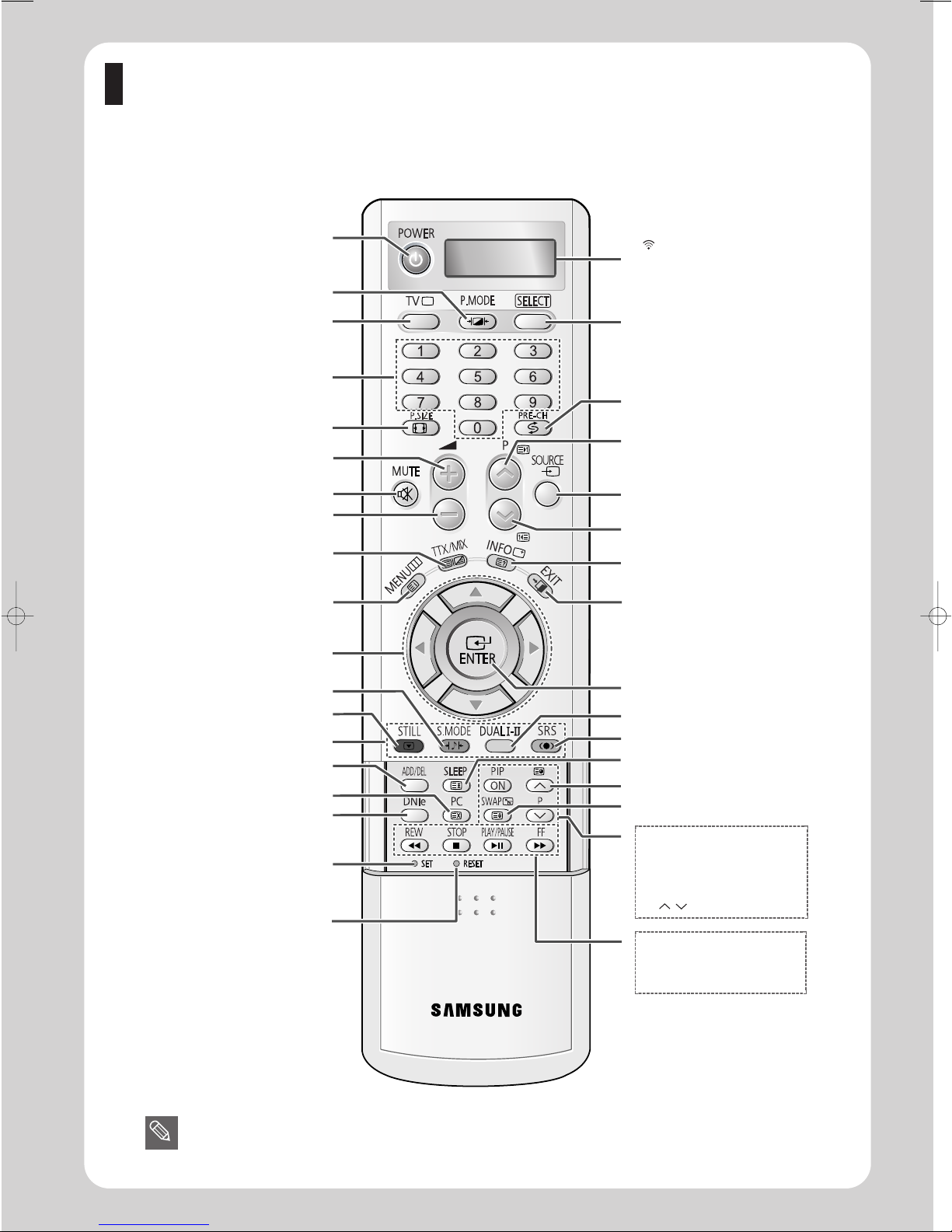

Infrared Remote Control

If you are trying to program this remote to use another manufacturer's DVD, VCR or

Cable box, see page 9 of the owner's

instructions

PICTURE SIZE

MENU DISPLAY/

TELETEXT INDEX

TELEVISION STANDBY

INFORMATION DISPLAY/

TELETEXT REVEAL

EXIT FROM ANY DISPLAY

TELETEXT SUB-PAGE

TELETEXT SIZE SELECTION

AUTOMATIC SWITCH-OFF/

TELETEXT PAGE HOLD

SOUND MODE SELECTION

CONFIRM YOUR CHOICE

(STORE OR ENTER)

TRUSURROUND XT

MODE SELECTION

DIRECT CHANNEL SELECTION

EXTERNAL INPUT

SELECTION

SWITCH REPEATEDLY

BETWEEN THE LAST TWO

CHANNELS DISPLAYED

NEXT CHANNEL/

TELETEXT NEXT PAGE

IF YOUR REMOTE CONTROL IS

NOT FUNCTIONING PROPERLY,

REMOVE THE BATTERIES AND

PRESS THE RESET BUTTON FOR

ABOUT 2~3 SECONDS. RE-INSERT

THE BATTERIES AND TRY USING

THE REMOTE CONTROL AGAIN.

PREVIOUS CHANNEL/

TELETEXT PREVIOUS PAGE

DNIE ON/OFF/DEMO

PIP FUNCTIONS;

-PIP ACTIVATION OR

DEACTIVATION (PIP ON)

-SWAPPING THE MAIN AND

THE SUB PICTURE (SWAP)

-SELECTING THE CHANNEL

OF THE SUB PICTURE

(P / )

SELECT THE DEVICE (TV, VCR,

CABLE BOX, DVD PLAYER,

STB) FOR THE REMOTE

CONTROL

VCR/DVD FUNCTIONS;

-BACKWARDS (REW)

-STOP

-PLAY/PAUSE

-FAST FORWARDS (FF)

PICTURE EFFECT SELECTION

INCREASE VOLUME

TEMPORARY SOUND SWITCH-OFF

DECREASE VOLUME

TELETEXT DISPLAY/

MIX BOTH TELETEXT

INFORMATION AND THE NORMAL

BROADCAST

CHANNEL ADD/DELETE

PC INPUT SELECTION/

TELETEXT CANCEL

WHEN YOU PRESS A BUTTON,

‘ ’ APPEARS ALONG WITH

THE SELECTED MODE (TV,

VCR, CATV, DVD, OR STB) AND

THE REMAINING BATTERIES

ON THE LCD

TUNER/CABLE NETWORK

SELECTION

CONTROL THE CURSOR

IN THE ON-SCREEN MENU

SOUND EFFECT SELECTION

PICTURE FREEZE

FASTEXT TOPIC SELECTION

REMOTE CONTROL SETUP

BN68-00746E (Eng) 2004/11/04 03:53 PM Page 7

English - 8

Plug & Play

When the television is initially powered on several basic customer settings proceed automatically

and subsequently. The following settings are available.

If the television is in Standby mode, press the

POWER ()

button on the remote control.

The message Plug & Play is displayed.

Plug & Play

Language

English

Deutsch

Français

Nederlands

††

Plug & Play

Move

Enter Skip

Check antenna input.

Plug & Play

Enter Skip

Clock Set

œœ√√

Move Adjust Skip

Hour Minute

00 00

Auto Store

P1 C 2 76MHz

Enter Skip

Start

Country

▲

United Kingdom

Eastern Europe

Others

Plug & Play

Move

Enter Skip

To start Plug & Play, press the

ENTER ()

button.

The Language menu is displayed.

Select the appropriate language by pressing the

▲or ▼

button.

Press the

ENTER ()

button to confirm your

choice.

The message Check antenna input. is displayed.

Make sure that the antenna is connected to the TV,

then press the

ENTER ()

button.

The Country menu is displayed.

Select your country by pressing the

▲or ▼

button.

Press the

ENTER ()

button to confirm your

choice.

The Auto Store menu is displayed.

To start channel store, press the

ENTER ()

button.

The search will end automatically. Channels are

sorted and stored in the order which reflects their

position in the frequency range (with lowest first

and highest last).

To stop the search before it has finished or return

to normal viewing, press the MENU

()

button.

When it has finished, the Clock Set menu is

displayed.

Press the

œor √

button to move to the Hour or

Minute. Set these by pressing the

▲or ▼

button.

You can also set the Hour and Minute by pressing

the number buttons directly.

Press the

ENTER ()

button.

When the setting has all finished, the message

Enjoy your viewing is displayed, then the channel

which has been stored will be activated.

Enjoy your viewing

BN68-00746E (Eng) 2004/11/04 03:53 PM Page 8

English - 9

FAQ

If a still image is displayed for an

extended period of time, residual

images or blurring may appear.

When you need to leave the TV unused

for an extended period of time, adjust

the settings so that the TV automatically

goes into energy saving mode or

activates the screen saver to display

moving images.

No picture or sound.

Try another channel.

Press the SOURCE button.

Make sure the TV is plugged in.

Check the antenna connections.

Poor picture

Try another channel.

Adjust the antenna.

Check all wire connections.

Image is not centered on the

screen.

Adjust the horizontal and vertical

position. The screen position must be

adjusted on the output source

(i.e. STB) with a digital signal.

“Not Supported Mode”

message.

Check the maximum resolution and

the frequency of the Video Adapter.

Compare these values with the data

in the Display Modes.

Remote control malfunctions

Replace the remote control batteries.

Clean the upper edge of the remote

control (transmission window).

Check the battery terminals.

No sound or sound is too low

at maximum volume.

First, check the volume of units connected

to your TV (digital broadcasting receiver,

DTV, DVD, cable broadcasting receiver,

VCR, etc.). Then, adjust the TV volume

accordingly.

Image is not stable and may

appear to vibrate.

If the setting is not correct, use your

computer utility program to change

the display settings.

Check the following

items before calling

a Samsung authorized

service center.

BN68-00746E (Eng) 2004/11/04 03:53 PM Page 9

ELECTRONICS

BN68-00746E (Eng) 2004/11/04 03:53 PM Page 10

Otros manuales para LW46G15W

Tabla de contenidos

Otros manuales de Televisor de pantalla plana de Samsung

Samsung

Samsung SyncMaster P50FP Manual de usuario

Samsung

Samsung LN65B650 - 65" LCD TV Manual de usuario

Samsung

Samsung CT-21K40ML Manual de usuario

Samsung

Samsung UN22D5003BF Manual de usuario

Samsung

Samsung 800 PN42A450PD Manual de usuario

Samsung

Samsung LN55C650L1F Manual de usuario

Samsung

Samsung LN22A650AD Manual de usuario

Samsung

Samsung LN22B350F2D Manual de usuario

Samsung

Samsung UN55D6003SF Instrucciones de montaje

Samsung

Samsung LNS4051DX Manual de usuario

Samsung

Samsung PN50B650S1F Manual de usuario

Samsung

Samsung LN46D503F6F Manual de usuario

Samsung

Samsung LN40D503F6FXZA Guía

Samsung

Samsung LW22A13W Guía de inicio rápido

Samsung

Samsung LW15M23C Manual de usuario

Samsung

Samsung Smart TV UN55D6000 Guía

Samsung

Samsung PS-42D4SK Guía de inicio rápido

Samsung

Samsung UN46C6800UFXZA Manual de usuario

Samsung

Samsung UN55ES8000G Guía

Samsung

Samsung HP-R4272 Manual de usuario

Samsung

Samsung UN55ES6900F Guía

Samsung

Samsung LN46A850S1F Manual de usuario

Samsung

Samsung PN50C590 Manual de usuario

Samsung

Samsung LT-P 1545 Manual de usuario

Manuales populares de Televisor de pantalla plana de otras marcas

Philips

Philips 32PFL7602D - annexe 1 Manual de usuario

Philips

Philips 42PF7321 Manual de usuario

Sony

Sony WEGA KE-50XBR900, KE-42XBR900 Manual de usuario

JVC

JVC LT-26DX7BFN Manual de usuario

Philips

Philips Match Line 29PT9006/12 Manual de usuario

Philips

Philips 37PFL5522D - annexe 2 Manual de usuario

Westinghouse

Westinghouse TX-42F970Z Manual de usuario

Philips

Philips 32PFL5332S Manual de usuario

Philips

Philips 40PFL5705D Manual de usuario

Toshiba

Toshiba 32BV500B Manual de usuario

Philips

Philips MathLine 32PW9765 Manual de usuario

Philips

Philips MatchLine FlatTV 50PF9965 Manual de usuario

RCA

RCA MR53R400 Manual de usuario

Philips

Philips 28PW8818/12 Manual de usuario

JVC

JVC GGT0362-001A-H Manual de usuario

Philips

Philips Magnavox 37MF331D/37 Manual de usuario

Sanyo

Sanyo FVM4212 Manual de usuario

Philips

Philips 47PFL7623D Manual de usuario
