YOUR NEW TV

Rear Panel Jacks

Use the rear panel jacks to connect an A/V component that will be connected

continuously, such as a VCR or a DVD player.

For more information on connecting equipment, see pages 6~12.

PC IN

Connect to the video output port on your PC.

COMPONENT IN(480i/480p)

Connect a component video/audio.

S-VIDEO IN

Connect an S-Video signal from a

camcorder or VCR.

ANT IN

Connect to an antenna or to a cable

TV system.

PC AUDIO IN

Connect to the audio output jack on your PC.

AV IN

Video and audio inputs for external

devices, such as a camcorder or VCR.

KENSINGTON LOCK

(See page 56)

POWER INPUT

Connect the supplied power cord.

01 BN68-00816A-00.qxd 2/1/05 4:14 PM Page 3

English-2

Connecting VHF and UHF Antennas

If your antenna has a set of leads that

look like this, see “Antennas with

300-ohm Flat Twin Leads” below.

If your antenna has one lead that looks

like this, see “Antennas with 75-ohm

Round Leads” on page 7.

If you have two antennas, see “Separate

VHF and UHF Antennas” on page 7.

Antennas with 300-ohm Flat Twin Leads

If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has

300-ohm twin flat leads, follow the directions below.

Chapter Two

INSTALLATION

Place the wires from the

twin leads under the

screws on a 300-75 ohm

adaptor (not supplied).

Use a screwdriver to

tighten the screws.

Plug the adaptor into

the ANT IN terminal on

the back of the TV.

01 BN68-00816A-00.qxd 2/1/05 4:14 PM Page 6

English-3

Connecting Cable TV

To connect to a cable TV system, follow the instructions below.

Cable without a Cable Box

Plug the incoming

cable into the ANT IN

terminal on the back

of the TV.

Because this TV is cable-ready,

you do not need a cable box to

view unscrambled cable channels.

Plug the combiner into

the ANT IN terminal on

the back of the TV.

INSTALLATION

Antennas with 75-ohm Round Leads

Plug the antenna lead

into the ANT IN terminal

on the back of the TV.

Separate VHF and UHF Antennas

If you have two separate antennas for your TV (one VHF and one UHF), you must combine

the two antenna signals before connecting the antennas to the TV.

This procedure requires an optional combiner-adaptor (available at most electronics shops).

Connect both antenna

leads to the combiner.

UHF

VHF

ANT IN

UHF

VHF

01 BN68-00816A-00.qxd 2/1/05 4:14 PM Page 7

English-4

INSTALLATION

Connecting to a Cable Box that Descrambles All Channels

Find the cable that is

connected to the

ANT OUT terminal on

your cable box.

This terminal might be labeled

“ANT OUT”, “VHF OUT”, or

simply, “OUT”.

Connect the other end

of this cable to the

ANT IN terminal on the

back of the TV.

Connecting to a Cable Box that Descrambles Some Channels

If your cable box descrambles only some channels (such as premium channels), follow the

instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths

of RF cable. (These items are available at most electronics stores.)

Find and disconnect

the cable that is

connected to the

ANT IN terminal on

your cable box.

This terminal might be labeled

“ANT IN”, “VHF IN”, or simply,

“IN”.

Connect this cable to a

two-way splitter.

Connect a RF cable

between an OUTPUT

terminal on the splitter

and the IN terminal on

the cable box.

ANT IN ANT OUT

ANT IN

Incoming

cable Splitter

Incoming

cable

Splitter

Cable Box

01 BN68-00816A-00.qxd 2/1/05 4:14 PM Page 8

English-5

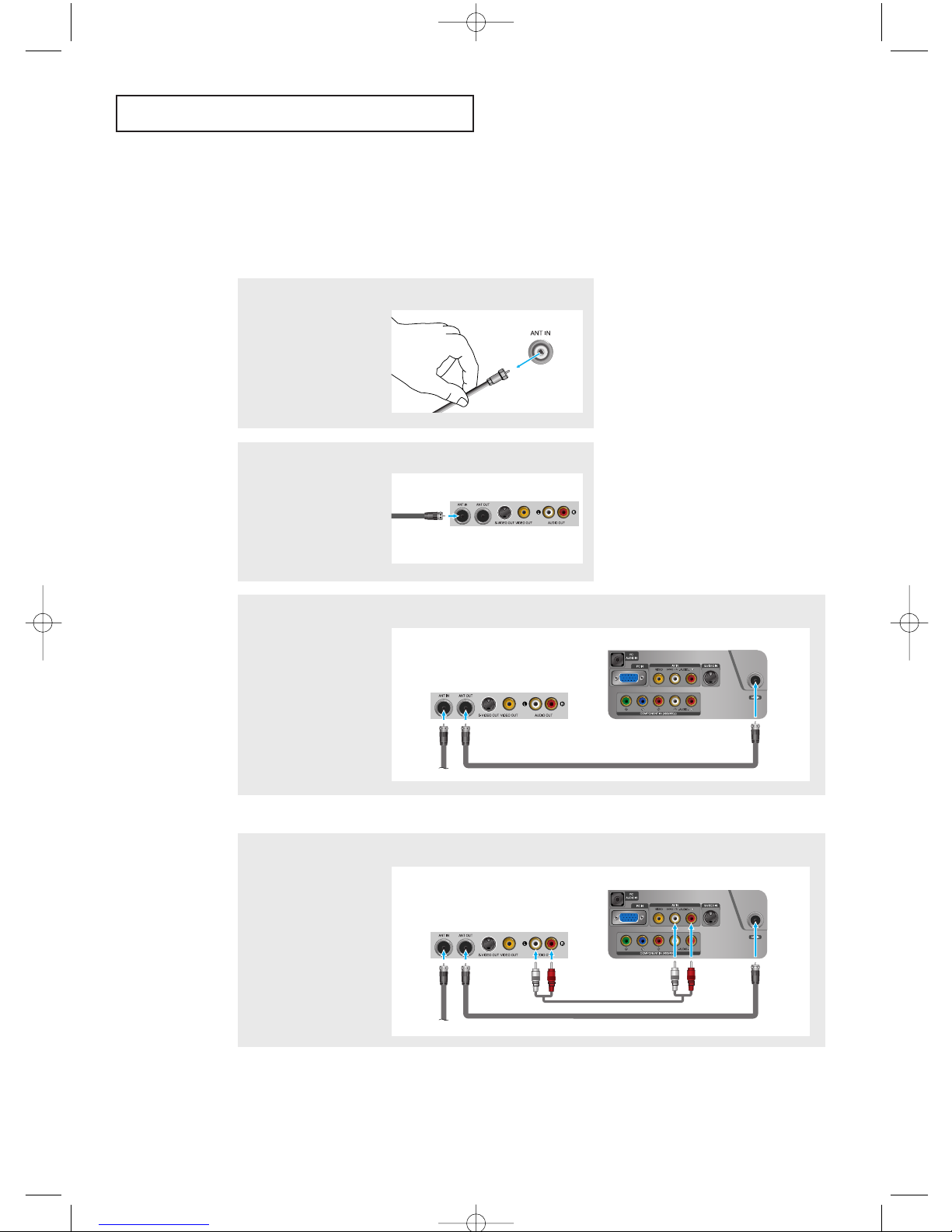

Connect an RF cable

between the ANT OUT

terminal on the cable

box and the B–IN

terminal on the A/B

switch.

Connect another cable

between the other

OUT terminal on the

splitter and the A–IN

terminal on the RF

(A/B) switch.

Connect the last

RF cable between the

OUT terminal on the

RF (A/B) switch and

the ANT IN terminal on

the rear of the TV.

INSTALLATION

After you’ve made this connection, set the A/B switch to the “A” position for normal

viewing. Set the A/B switch to the “B” position to view scrambled channels.

(When you set the A/B switch to “B”, you will need to tune your TV to the cable box’s

output channel, which is usually channel 3 or 4.)

Incoming

cable Splitter

Cable Box

RF (A/B)

Switch

Incoming

cable

Splitter

Cable Box

RF (A/B)

Switch

Incoming

cable Splitter

Cable Box

RF (A/B)

Switch

TV Rear

ANT IN

01 BN68-00816A-00.qxd 2/1/05 4:14 PM Page 9

English-6

INSTALLATION

Connect an RF cable

between the ANT OUT

terminal on the VCR

and the ANT IN

terminal on the TV.

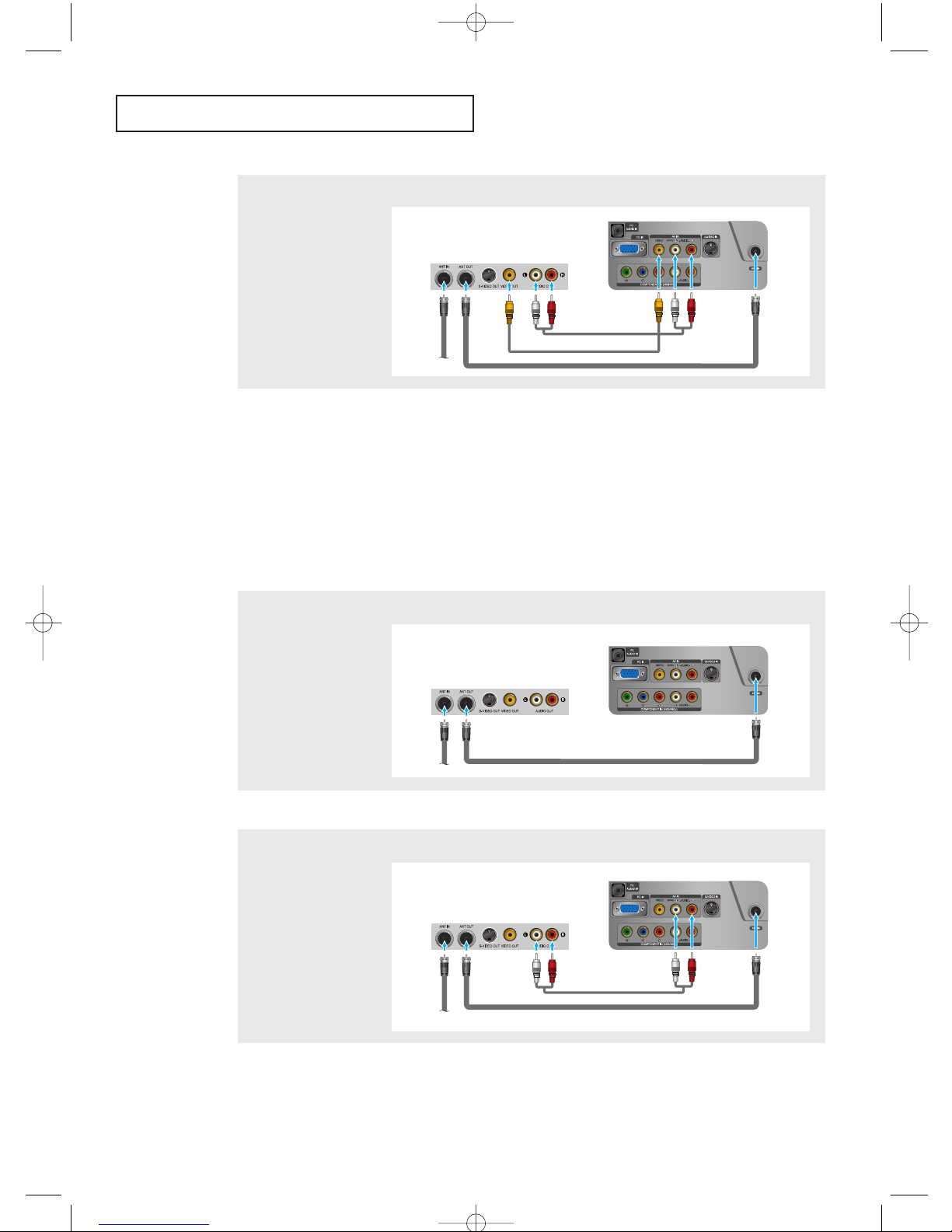

Connect an audio cable

between the AUDIO OUT

jacks on the VCR and

the AV IN [L-AUDIO-R]

jacks on the TV.

An RF cable is usually included with a VCR. (If not, check your local electronics store).

If you have a “mono” (non-stereo) VCR, use the Y-connector (not supplied) to hook up to the left

and right audio input jacks of the TV.

Connecting a VCR

These instructions assume that you have already connected your TV to an antenna or a

cable TV system (according to the instructions on pages 6-9).

Skip step 1 if you have not yet connected to an antenna or a cable system.

Unplug the cable or

antenna from the

back of the TV.

Connect the cable or

antenna to the ANT IN

terminal on the back of

the VCR.

TV Rear Panel

VCR Rear Panel

Incoming Cable

or Antenna

RF Cable <Optional>

VCR Rear Panel

TV Rear Panel

Audio Cable <Optional>

VCR Rear Panel

01 BN68-00816A-00.qxd 2/1/05 4:14 PM Page 10

English-7

INSTALLATION

Connecting an S-VHS VCR

Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR.

(This connection delivers a better picture as compared to a standard VHS VCR.)

Connect a video cable

between the

VIDEO OUT jack on the

VCR and the AV IN

[VIDEO] jack on the TV.

Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.

* Each external input source device has a different back panel configuration.

TV Rear Panel

Video Cable <Optional>

VCR Rear Panel

To begin, follow steps

1–3 in the previous

section to connect the

antenna or cable to

your VCR and your TV.

Connect an audio cable

between the AUDIO

OUT jacks on the VCR

and the AV IN

[L-AUDIO-R] jacks on

the TV.

An RF cable is usually included with a VCR. (If not, check your local electronics store).

TV Rear Panel

RF Cable <Optional>

VCR Rear Panel

TV Rear Panel

Audio Cable <Optional>

VCR Rear Panel

01 BN68-00816A-00.qxd 2/1/05 4:14 PM Page 11

English-8

INSTALLATION

Note : For an explanation of Component video, see your DVD player owner's manual.

The component terminal of this set only supports 480i/480p resolution.

* Each external input source device has a different back panel configuration.

Connecting a DVD Player

The rear panel jacks on your TV make it easy to connect a DVD player to your TV.

Connect an S-Video

cable between the

S-VIDEO OUT jack on

the VCR and the

S-VIDEO IN jack on the

TV.

TV Rear Panel

S-Video Cable <Optional>

VCR Rear Panel

An S-video cable is usually included with an S-VHS VCR.

(If not, check your local electronics store.)

* Each external input source device has a different back panel configuration.

Connect an audio cable

between the

COMPONENT IN

[L-AUDIO-R] jacks on

the TV and the AUDIO

OUT jacks on the DVD

player.

Connect a component

cable between the

COMPONENT IN

[Y, PB, PR] jacks on the

TV and the

COMPONENT

[Y, PB, PR]jacks on

the DVD player.

TV Rear Panel

Audio Cable <Optional>

DVD Player Rear Panel

TV Rear Panel

Component Cable <Optional>

DVD Player Rear Panel

01 BN68-00816A-00.qxd 2/1/05 4:14 PM Page 12

APPENDIX

English-9

Retractable Stand

Note: The maximum tilt angle is 13 degrees in the backward direction.

Please do not tilt the TV outside the specified range. Using excessive force

to tilt the TV may cause permanent damage to the mechanical part of the stand.

04 BN68-00816A-00.qxd 2/1/05 4:21 PM Page 57

English-10

APPENDIX

Installing VESA compliant mounting devices

<1> Fold the stand pressing the button on the back of the stand.

<2> Align the mounting interface pad with the holes in the stand bottom and secure it with the four

screws that come with the arm-type base, wall mount hanger or other bases.

Wall Mount Instructions

The following instructions apply to a hollow sheet-rock wall only. Tools/Hardware needed - Philips

screwdriver, four toggle bolts, 5/8in dia. Drill bit and drill. Contact Ergotron at (800) 888-8458 to

purchase the triple pivot direct mount adapter and wall mount bracket kit.

• LN-R1550 (15") : No. 47 - 007 - 099 (Pivot direct mount adapter)

No. 97 - 101 - 003 (Wall mount bracket kit)

• LN-R2050 (20") : No. 47 - 007 - 099 (Pivot direct mount adapter)

No. 97 - 101 - 003 (Wall mount bracket kit)

Align the wall mount bracket on the wall at the desired height, making sure that the bracket will be

mounted between the wall studs. Mark the four corner openings and drill four 5/8-diameter holes.

Assemble the wall mount kit according to the instructions provided with it. Securely attach Ergotron’s

flat panel, triple pivot direct mount adapter to the back of the TV using the four 4mm,

0.7 pitch x 10mm screws provided with the arm. Secure the assembly to the wall using four 3/16 by

3-inch long toggle bolts.

Mounting pad

<1> <2>

04 BN68-00816A-00.qxd 2/1/05 4:21 PM Page 58
