8 CHANNEL/

16 CHANNEL DVR

User Manual SRD-1680D/880D

Trademark

is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or

changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided.

Use of this document and the subsequent results shall be entirely on the user's own responsibility. Samsung Techwin reserves the right to change the

contents of this document without prior notice.

Design and specifications are subject to change without prior notice.

The default administrator ID is “admin”, and the password must be set when the user log in at the first time.

Set password for your wireless network if you use the product with a wireless router. Being not protected with password or using the

default wireless router password may expose your video data to potential threat.

To prevent from your personal information being exposed, please change your password every 3 months. Note that the security and

other related issues caused by careless management of password shall be be in the charge of the user.

8 Channel/

16 Channel DVR

User Manual

English _3

● overview

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit.

Follow all the safety instructions listed below.

Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two

blades with one wider than the other. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong are provided for your safety. if the provided plug does not fit

into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

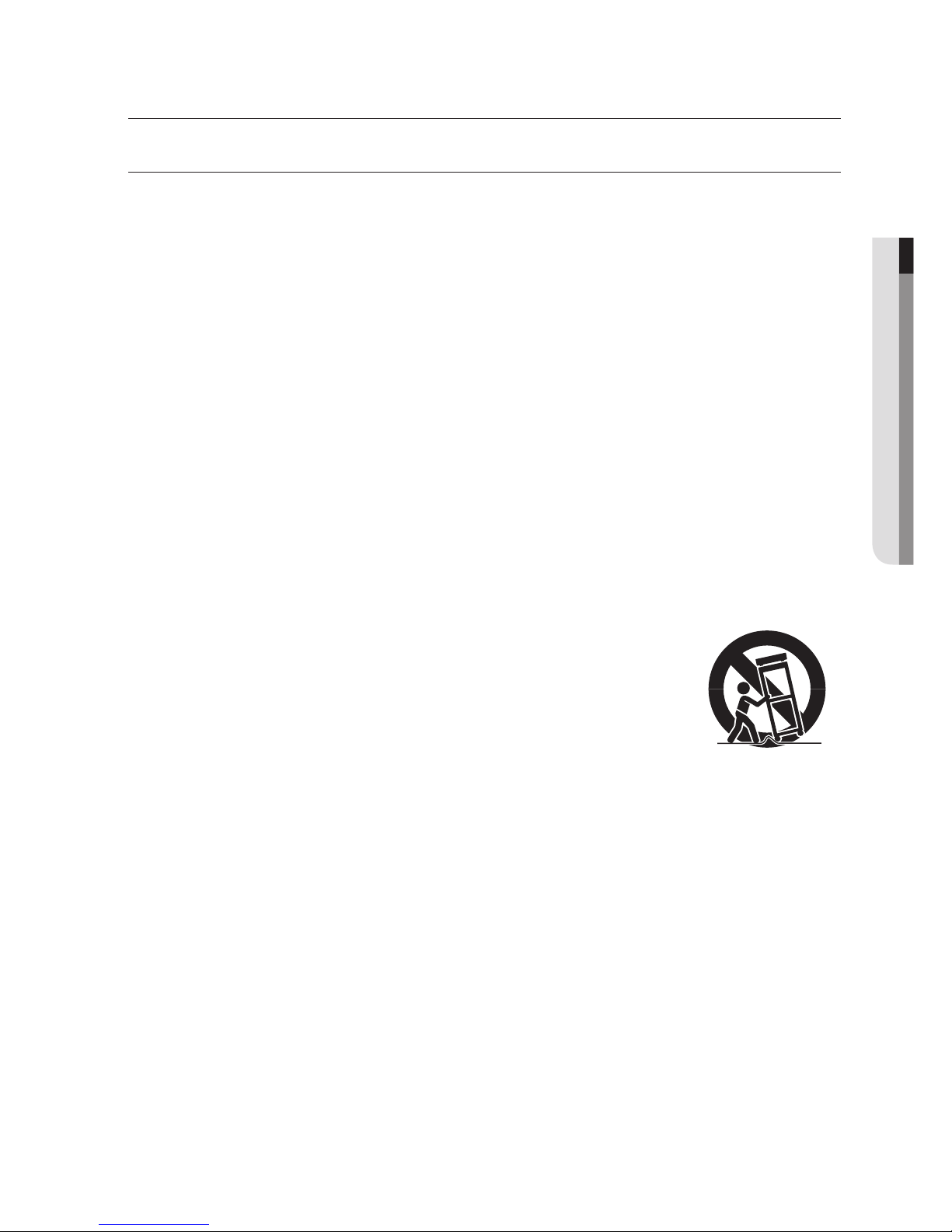

12) Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods

of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

overview

4_ overview

overview

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide)

Lithium coin cells in the product sold or distributed ONLY in California USA.

“Perchlorate Material - special handling may apply,

See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

BEFORE START

This manual provides operational information necessary for using the product and contains a description about each

component part and its function as well as menu or network settings.

You have to keep in mind the following notices :

• SAMSUNG retains the copyright on this manual.

• This manual cannot be copied without SAMSUNG’s prior written approval.

• We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of

instructions mentioned in this manual.

• Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be

removed from the unit.

• Before installing additional HDD or connecting the SATA device to this product, check if it is compatible with the

product.

Warning

Battery

It is essential that when changing the battery in the unit, the replacement battery must be of the same type

otherwise there may be a possibility of an explosion.

The following are the specifications of the battery you are using now.

• Normal voltage : 3V

• Normal capacity : 220mAh

• Discharge Current : 0.2mA

• Operating temperature : -20°C ~ +85°C

(-4°F ~ +185°F)

Caution

• Connect the power cord into a grounded outlet.

• The Mains plug is used as a disconnect device and shall stay readily operable at any time.

• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

• Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the

Instructions.

System Shutdown

Turning off the power while the product is in operation, or undertaking improper actions may cause damage

or malfunction to the hard drive or the product.

To safely cut off power, press the front Power button on the product to display the confirmation message.

Click <OK> and then unplug the power cable.

You may want to install a UPS system for safe operation in order to prevent damage caused by an

unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)

English _5

● overview

Operating Temperature

The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F).

This product may not work properly if you run right after a long period of storage at a temperature below the

guaranteed one.

Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand

at room temperature for a period.

Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F).

Likewise, the hard drive may not work at a temperature below the guaranteed one.

Ethernet Port

This equipment is in door use and all the communication wirings are limited to inside of the building.

Security Precautions

The default administrator ID is “admin”, and the password must be set when the user log in at the first time.

Set password for your wireless network if you use the product with a wireless router. Being not protected with

password or using the default wireless router password may expose your video data to potential threat.

To prevent from your personal information being exposed, please change your password every 3 months.

Note that the security and other related issues caused by careless management of password shall be be in the

charge of the user.

6_ overview

overview

CONTENTS

OVERVIEW

3Important Safety Instructions

4Before Start

6Contents

8Features

10 Part Names and Functions (Front)

12 Part Names and Functions (Rear)

14 Remote Control

INSTALLATION

16 Checking the installation environment

17 Rack Installation

17 Installing The HDD

CONNECTING WITH OTHER DEVICE

20 Connecting External Devices

23 Connecting the Network

LIVE

25 Getting Started

28 Live Screen Configuration

33 Live Mode

35 Spot Out

36 Zoom

36 Audio ON/OFF

36 Freeze

37 Event Monitoring

MAIN MENU

38 System Setup

48 Setting the Device

58 Setting the Recording

61 Setting the Event

64 Backup

66 Network Configuration

79 Controlling a PTZ device

English _7

● overview

SEARCH & PLAY

82 Search

85 Playback

WEB VIEWER

87 Introducing Web Viewer

88 Connecting Web Viewer (Windows)

90 Using Live Viewer (Windows)

95 Controlling a Connected PTZ Camera

98 Using Search Viewer

101 Viewer Setup

112 About

113 Connecting Web Viewer (Mac)

114 Using Live Viewer (Mac)

116 Mobile Viewer

BACKUP VIEWER

117

117 SEC Backup Viewer

APPENDIX

119

119 Product Specification

122 Product Overview

124 Default Setting

127 Troubleshooting

130 Open Source Announcement

8_ overview

overview

FEATURES

This product can compress 8-channel or 16-channel camera input into a H.264 video clip, or compress 8-channel

HD-SDI input or 8-channel composite input, and record in HDD and replay the video at the same time.

These DVRs also supports network connectivity, providing remote monitoring from a remote PC transferring video

and audio data.

• Provides a convenient User Interface

• 8/16 CH Composite Input Connectors

• HD(CH1~8): Supports CIF/2CIF/4CIF/WD1/HD recording

• SD(CH1~8/9~16): Supports CIF/2CIF/4CIF/WD1 recording

`You can only choose either HD or SD for CH1-8.

• With the network specific codec, network transfer enabled regardless of the recording conditions

• Display of HDD information and status by using HDD SMART

• HD CODEC performance: 8CH Full HD 240IPS(NTSC)/200IPS(PAL)

• SD CODEC performance: 8CH SD: 240IPS(NTSC)/200IPS(PAL)

16CH SD: 480IPS(NTSC)/400IPS(PAL)

• HDD overwrite function

• Mass storage HDD backup through high-speed USB 2.0

• Simultaneous Record and Playback of 8/16-channel video data

• Various Search Modes (Time, Event, Backup, POS, Motion Detection)

• Various Recording Modes (Manual, Event, Scheduled Recording)

• Alarm Interface

• Remote Monitoring function by Network Viewer, Smart Viewer and Mobile Viewer

• Supports coaxial protocols(SD Channel only)

• Tampering Detection

English _9

● OVERVIEW

Standards Approvals

M `This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user will be required to correct the interference at

his own expense.

Package Contents

Please unwrap the product, and place the product on a flat place or in the place to be installed.

Please check the following contents are included in addition to the main unit.

USB

DVR Power Cable

Mouse User Manual or Quick Manual Remote Control /

Remote Control Battery (AAA)

Network Viewer Software /

User Manual CD Terminal Block (15 pin) Terminal Block (20 pin)

Bracket Fixing Screw Bracket Rack HDD Fixing Screw

10_ overview

overview

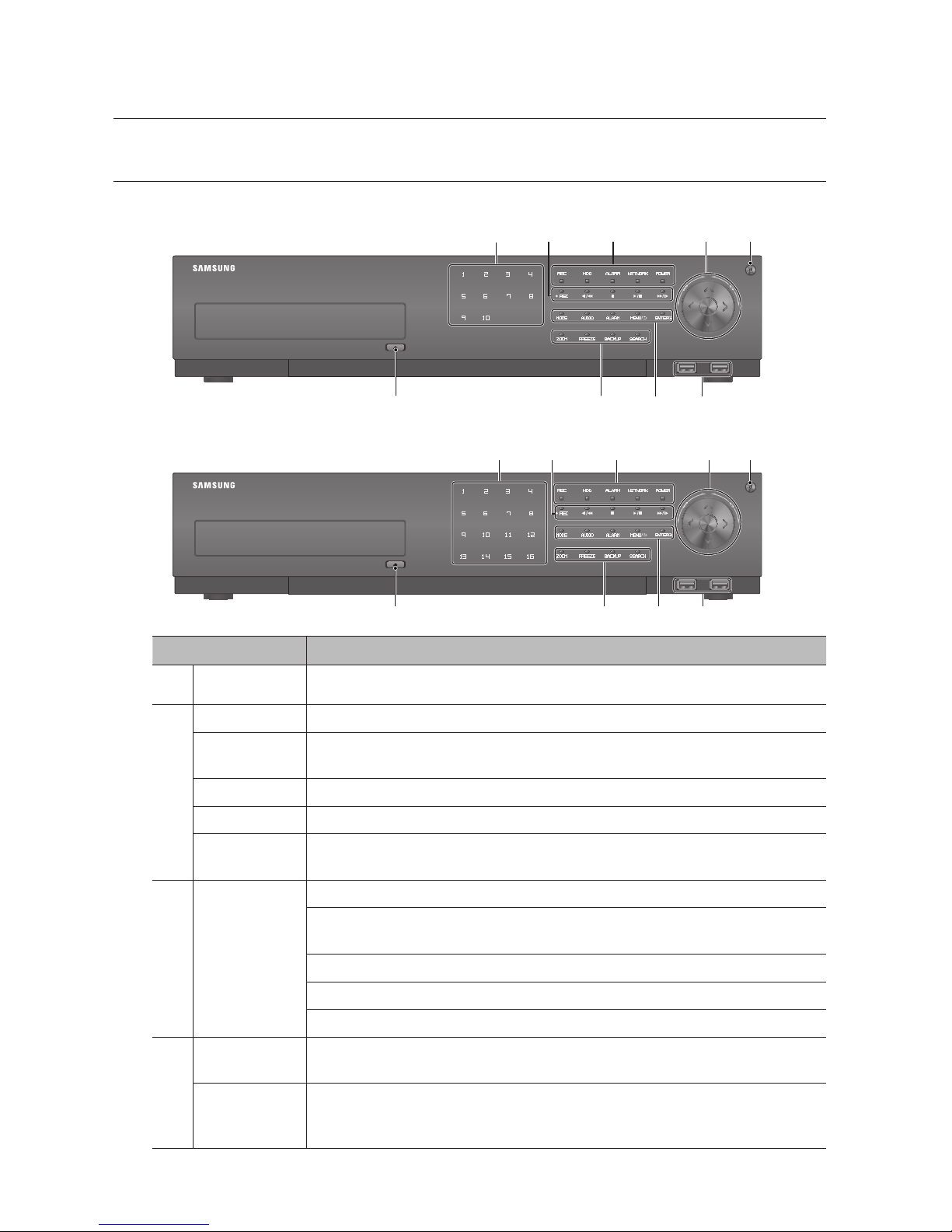

PART NAMES AND FUNCTIONS (FRONT)

SRD-880D

SRD-1680D

Part Names Functions

aChannel Used to select channel numbers directly in the Live Mode, or numbers in the numeric input mode.

REC Starts or ends the recording.

&/(Step Rewind (&

): Used for backward frame-by-frame search while in PAUSE.

Fast Rewind ((): Used for quick backward search while in Play. (2x-64x)

@Stop : Used to stop the playback.

+/#Play/Pause : Used to pause or resume the screen.

)/*Fast Forward ()): Used for quick forward playback. (2x-64x)

Step Forward (

*): Used for forward frame-by-frame search while in PAUSE.

cLED Indicator

REC : Lights on when recording is in progress.

HDD : Displays the normal access to HDD.

Upon access to HDD, LED repeats on and off.

ALARM : Lights on when an event occurs.

NETWORK : Displays both network connection and data transfer status.

POWER : Displays the power ON/OFF status.

Direction /

Select Button

Used to change a value or move the cursor up/down/left/right (▲▼_ +).

Selects a menu item or executes the selected menu.

Jog shuttle

When a scroll bar appears in each menu, acts as a scrolling.

In Play mode, - Jog : Pauses the playback and steps backward or forward.

- Shuttle : Fast playback forward or backward.

USB

cb d e

USB

cb d e

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de DVR de Samsung

Samsung

Samsung SRN-473S Manual de usuario

Samsung

Samsung iPOLIS SRN-470D Manual de usuario

Samsung

Samsung SRD-830 Manual de usuario

Samsung

Samsung SVR-1680C Manual de usuario

Samsung

Samsung SVR-1620 Manual de usuario

Samsung

Samsung SRD-1650 Manual de usuario

Samsung

Samsung SMT-190Dx Manual de usuario

Samsung

Samsung SHR-2080 Manual de usuario

Samsung

Samsung DCB-P850Z(S) Manual de usuario

Samsung

Samsung SRD-440 Manual de usuario

Samsung

Samsung SVR-1630 Manual de usuario

Samsung

Samsung SVR-1630 Manual de usuario

Samsung

Samsung SDE-500X Manual de usuario

Samsung

Samsung SMT-H3462 Manual de usuario

Samsung

Samsung SRD-850DC Manual de usuario

Samsung

Samsung SVR-440 Manual de usuario

Samsung

Samsung SRD-1630D Manual de usuario

Samsung

Samsung SPR-9816 Manual de usuario

Samsung

Samsung iPOLIS SRN-470D Manual de usuario

Samsung

Samsung SRN-4000 Guía de instalación

Samsung

Samsung SMT-190DN - Monitor + DVR Instrucciones de instalación

Samsung

Samsung SVR-3200 Manual de usuario

Samsung

Samsung SRD-1652D Manual de usuario

Samsung

Samsung SHR-1041K Manual de usuario

Manuales populares de DVR de otras marcas

FLIR

FLIR M3100E Series Manual de usuario

VTRACKPRO

VTRACKPRO FPRO300 Manual de usuario

Swann

Swann NVR-7085 models Manual de usuario

XtendLan

XtendLan DVR-1670C Manual de usuario

urmet domus

urmet domus 1093/004AHD Manual de usuario

Holux

Holux M1 Manual de usuario

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manual de usuario

Whistler

Whistler D16VRS Manual de usuario

Defender Security

Defender Security 82-20235 Manual de usuario

MISUMI

MISUMI MP-WF100M Manual de usuario

Speco

Speco D8HU Manual de usuario

UST

UST DDR-E04AA Instrucciones de uso

Consolidated

Consolidated Digital Video Recorder Manual de usuario

Mace

Mace DVR0404RW Guía de inicio rápido

RCA

RCA RTD315W Manual de usuario

FSM

FSM Colibri Grande PRO Manual de usuario

Hauppauge

Hauppauge HD PVR 2 Manual de usuario

Identivision

Identivision ICR-PH161i PIONEER Manual de usuario
