HDMI/DVI Setup Guide

SIDE ONE

DVI IN

HDMI Input

DVI Input

DVI Audio

Input

1. Connect an HDMI cable to the TV and set TV input to “HDMI”.

2. Turn on the DVD player.

3. The DVD player Output is setted HDMI COMPONENT

(P-SCAN) out automatically within 10 seconds.

1. Connect an HDMI-DVI cable and an audio cable to the TV and

set TV input to “DVI”.

2. Turn on the DVD Player.

3. The DVD player Output is setted HDMI COMPONENT

(P-SCAN) out automatically about within 10 seconds.

* If an HDMI or an HDMI-DVI cable is unplugged in TV, the

player output goes back COMPOSITE/S-VIDEO out.

* If you want to use an analog Video Output, unplug an HDMI

or HDMI-DVI cable.

* If you set the HDMI output resolution 720P or 1080i, HDMI

output provides better picture quality.

HDMI-DVI Setup

HDMI Setup

HD950-Setup Guide-XEU 4/19/05 9:59 PM Page 1

All manuals and user guides at all-guides.com

all-guides.com

Thank you for purchasing this

Samsung DVD Player unit.

We have manufactured this

product to provide you with

many hours of Audio Video

Entertainment.

This "HDMI DVI Setup Guide"

has been included to get you

up and running in the least

amount of time as possible.

However, if you still have

questions about this product,

please contact our customer

service center.

SIDE TWO

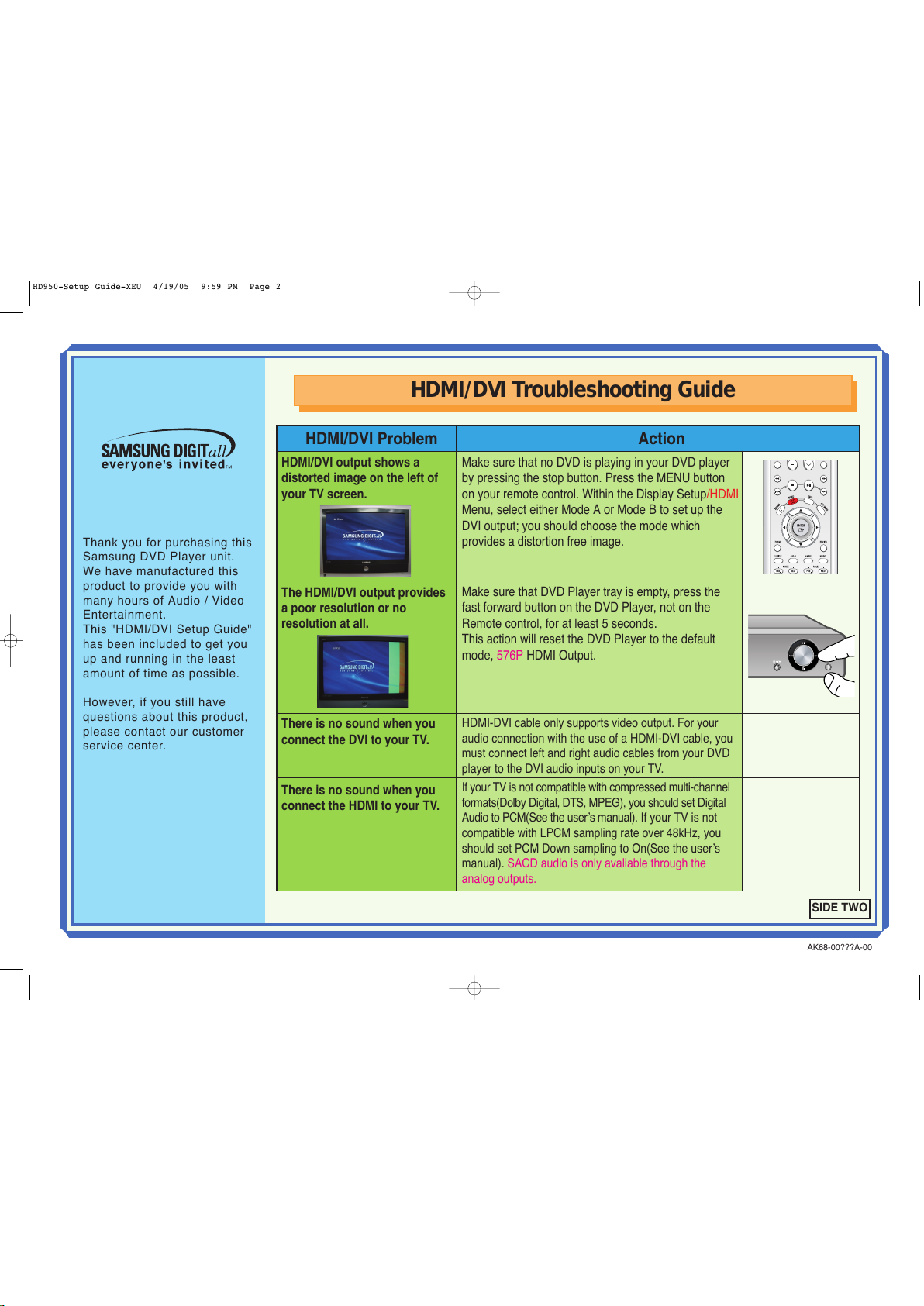

HDMI/DVI Troubleshooting Guide

AK68-00???A-00

HDMI/DVI Problem Action

HDMI/DVI output shows a

distorted image on the left of

your TV screen.

The HDMI/DVI output provides

a poor resolution or no

resolution at all.

There is no sound when you

connect the DVI to your TV.

There is no sound when you

connect the HDMI to your TV.

Make sure that no DVD is playing in your DVD player

by pressing the stop button. Press the MENU button

on your remote control. Within the Display Setup HDMI

Menu, select either Mode A or Mode B to set up the

DVI output; you should choose the mode which

provides a distortion free image.

Make sure that DVD Player tray is empty, press the

fast forward button on the DVD Player, not on the

Remote control, for at least 5 seconds.

This action will reset the DVD Player to the default

mode, 576P HDMI Output.

HDMI-DVI cable only supports video output. For your

audio connection with the use of a HDMI-DVI cable, you

must connect left and right audio cables from your DVD

player to the DVI audio inputs on your TV.

If your TV is not compatible with compressed multi-channel

formats(Dolby Digital, DTS, MPEG), you should set Digital

Audio to PCM(See the user’s manual). If your TV is not

compatible with LPCM sampling rate over 48kHz, you

should set PCM Down sampling to On(See the user’s

manual). SACD audio is only avaliable through the

analog outputs.
