Samsung DV431AG series Manual de usuario

Gas and Electric Dryer

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service or accessory

parts, please register your product at or

contact

www.samsung.com/register

DV431AE*

DV431AG*

This manual is made with 100% recycled paper.

DV431AEP-03021D_EN.indd 1 2012-02-01 �� 2:59:28

2_ Features

features

1. Extra Large Capacity

Ultra drying capabilities are at your ﬁngertips! Now you can dry extra-large loads. Our ultra

large 17 kg capacity dryer circulates more air through your clothes, drying them faster for a

wrinkle-free result.

3. Sanitize course

This course allows you to sanitize garments by permeating high temperature heat deep into

the fabric during the drying cycle. Use this course to keep your bedding and curtains clean.

When selecting this cycle, 99.9 % of all bacteria is eliminated through high temperature heat.

Use this cycle for clothing, bedding, towels, or other items needing sanitization.

4. Various Drying Cycles & Fuzzy Logic Algorithm

Simply turn the Jog Dial to select one of the 13 automatic drying cycles, or let the Fuzzy

Logic Control measure the degree of dampness and automatically set the drying time.

Precision drying has never been easier than with Samsung.

5. Time Saving

Our cycles are designed with you in mind. All our dryers are designed to dry your clothes in

less time... just 42 minutes! Giving you time for more important things in life.

6. Energy Saving

Samsung dryers are super energy ecient. You can dry up to 3.01 pounds of laundry with

1kWh. Also, both the large capacity and Fuzzy Logic Control save energy by automatically

drying your clothes the most ecient way.

7. Easy Reversible Door

Our dryers will ﬁt just about anywhere. The direction of our easy reversible door can be

changed with just four screws.

8. Pedestal with Storage Drawers

An optional 15” pedestal is available to raise the dryer for easier loading and unloading. It also

oers a built-in storage drawer that can hold a 100 oz. bottle of detergent

9. Stacking (MODEL NO: SK-5A/XAA)

Samsung’s Washers and Dryers can be stacked to maximize usable space.

The Dryer legs need to be removed to stack the Washer and Dryer. You can purchase an

optional stacking kit from your Samsung retailer.

10. 4-way Vent (electric model only : DV431AE*)

You can install the exhaust vent in the following four (4) positions: back, either side, bottom.

DV431AEP-03021D_EN.indd 2 2012-02-01 �� 2:59:28

Safety information _3

SAVE THESE INSTRUCTIONS

safety instructions

Congratulations on your new Samsung Dryer. This manual contains valuable

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer’s many beneﬁts and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

WARNING

Hazards or unsafe practices that may result in severe personal injury or

death.

Follow the information in this manual to minimize the risk of ﬁre or explosion or

to prevent property damage, personal injury, or death.

Do not store or use gasoline or other ﬂammable vapors and liquids near this or

any other appliance.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or

property damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicity.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

• Clothes dryer installation must be performed by a qualiﬁed installer.

• Install the clothes dryer according to the manufacturer’s instructions and local codes.

• Do not install a clothes dryer with ﬂexible plastic venting materials. If ﬂexible metal

(foil type) duct is installed, it must be of a speciﬁc type identiﬁed by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are

known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airﬂow and increase the risk of ﬁre.

• To reduce the risk of severe injury or death, follow all installation instructions.

WARNING - Risk of Fire

DV431AEP-03021D_EN.indd 3 2012-02-01 �� 2:59:28

4_ Safety information

SAVE THESE INSTRUCTIONS

safety instructions

WARNING: To reduce the risk of ﬁre, electric shock, or injury to persons when using your

appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other ﬂammable or explosive

substances, as they give o vapors that could ignite or explode.

3. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove the door to the

drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any servicing unless

speciﬁcally recommended in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills to carry out.

9. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

10.Clean lint screen before or after each load.

11.Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

12.Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

13.The interior of the appliance and exhaust duct should be cleaned periodically by

qualiﬁed service personnel.

14.Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch ﬁre.

WARNING

DV431AEP-03021D_EN.indd 4 2012-02-01 �� 2:59:28

Safety information _5

SAVE THESE INSTRUCTIONS

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not turn on the appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

Installation and service must be performed by a qualiﬁed installer, service agency, or the gas

supplier.

Read all instructions before using the appliance.

To reduce the risk of ﬁre or explosion:

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other ﬂammable or explosive substances. They

emit vapors that could ignite or explode. Any material that has been in contact with a

cleaning solvent or ﬂammable liquids or solids should not be placed in the dryer until all

traces of these ﬂammable liquids or solids and their fumes have been removed.

There are many highly ﬂammable items used in homes, such as acetone, denatured

alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes, and wax removers

• Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-

like materials must not be dried on a heat setting. Heated foam rubber materials can,

under certain circumstances, produce ﬁre by spontaneous combustion.

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with controls.

Do not repair, replace, or attempt to service any part of the appliance unless speciﬁcally

recommended in the user-repair instructions and you understand and have the skills to

carry those out.

Do not use fabric softeners or products to eliminate static unless recommended for dryer

use by the manufacturer of the fabric softener or product.

Clean the lint screen before or after each load.

Keep the area around the exhaust opening and surrounding areas free from lint, dust, and

dirt.

WARNING

DV431AEP-03021D_EN.indd 5 2012-02-01 �� 2:59:28

6_ Safety information

SAVE THESE INSTRUCTIONS

safety instructions

The interior of the dryer and exhaust duct should be cleaned periodically by qualiﬁed service

personnel.

This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately and in accordance with local and national codes. See

installation instructions for grounding this appliance.

Do not sit on top of the dryer.

Because of continuing product improvements, Samsung reserves the right to change

speciﬁcations without notice. For complete details, see the Installation Instructions

packed with your product before selecting cabinetry, making cutouts, or beginning

installation.

Ensure pockets are free from small irregularly shaped hard objects, foreign material, etc. ie.

coins, knives, pins, etc. These objects could damage your dryer.

Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.

Gas leaks may occur in your system, resulting in a dangerous situation.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer’s instructions.

Do not place items in your dryer that have been spotted or soaked with vegetable oil or

cooking oil. Even after being washed, these items may contain signiﬁcant amounts of these

oils.

Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous

combustion increases when items containing vegetable oil or cooking oil are exposed to

heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction

in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become

hot enough to catch ﬁre. Piling, stacking, or storing these kinds of items may prevent heat

from escaping and can create a ﬁre hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be

dangerous. Washing these items in hot water with extra detergent will reduce, but not

eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their

temperature. Never remove these items from the dryer hot or interrupt the drying cycle until

the items have run through the Cool Down cycle. Never pile or stack these items when they

are hot.

The product you have purchased is designed for domestic use only.

The use for business purposes qualiﬁes as product misuse.

In this case, the product will not be covered by the standard warranty provided by

Samsung and no responsibility can be attributed to Samsung for malfunctions or damages

resulting from such misuse.

WARNING

DV431AEP-03021D_EN.indd 6 2012-02-01 �� 2:59:28

contents _7

contents

INSTALLING YOUR DRYER

8 Tools needed for installation

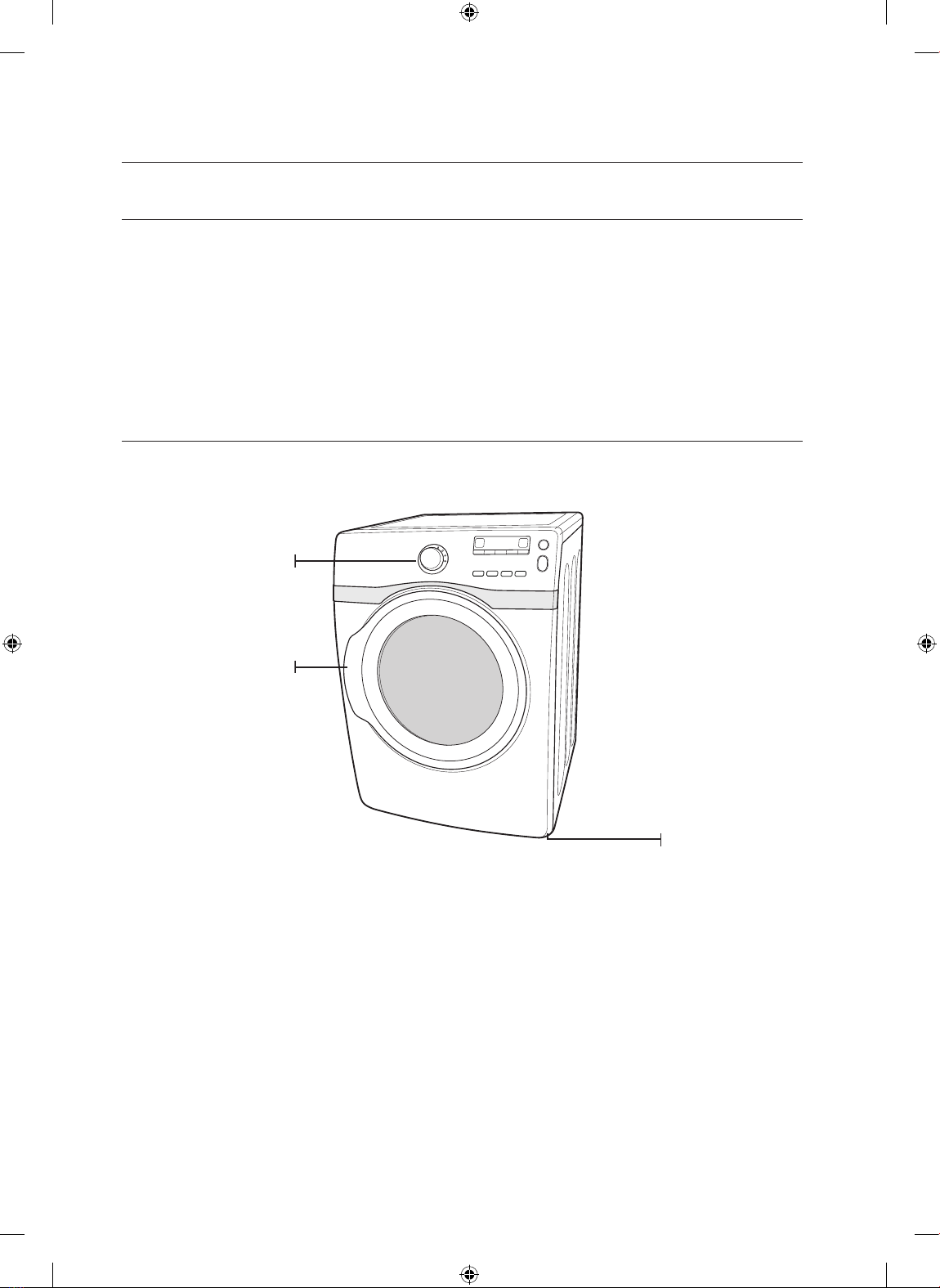

8 See Dryer Exterior

9 Ducting requirements

10 Important to installer

10 Location considerations

11 Alcove or closet installation

13 Mobile home installation

13 Exhausting

14 Gas requirements

14 Electrical requirements

15 Grounding

16 Electrical connections

16 Replacement parts and accessories

17 Installation

19 Final installation checklist

20 Dryer Exhaust Tips

21 Door Reversal

OPERATING INSTRUCTIONS, TIPS

22 Overview of the control panel

25 Child lock

25 Drum Light

25 My cycle

26 Rack Dry

27 Clean the lint ﬁlter

27 Load the dryer properly

27 Getting started

CARE AND CLEANING

28 Control Panel

28 Tumbler

28 Stainless Steel Tumbler

28 Dryer Exterior

28 Dryer Exhaust System

SPECIAL LAUNDRY TIPS

29 Special laundry tips

TROUBLESHOOTING

30 Check these points if your dryer…

32 Information codes

APPENDIX

33 Fabric care chart

34 Protecting the environment

34 Declaration of conformity

34 Speciﬁcations

35 Cycle chart

DV431AEP-03021D_EN.indd 7 2012-02-01 �� 2:59:29

8_ installing your dryer

installing your dryer

TOOLS NEEDED FOR INSTALLATION

Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup,

adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer, you are

responsible.

Make sure you have everything necessary for proper installation.

1. A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.

2. A POWER CORD for electric dryers (except Canada).

3. GAS LINES (if a gas dryer) must meet national and local codes.

4. EXHAUST SYSTEM – must be rigid metal or ﬂexible sti-walled metal exhaust ducting.

See the exhaust requirements on pages 8-10.

SEE DRYER EXTERIOR

Adjustable legs

Control panel

Door

DV431AEP-03021D_EN.indd 8 2012-02-01 �� 2:59:29

installing your dryer _9

DUCTING REQUIREMENTS

• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

• Do not use a smaller duct.

• Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation.

Lint accumulation should be cleaned regularly.

• If a ﬂexible metal duct must be used, use the type with a sti sheet metal wall. Do not use a ﬂexible duct

with a thin foil wall. Serious blockage can result if the ﬂexible metal duct is bent too sharply.

• Never install any type of ﬂexible duct in walls, ceilings, or other concealed spaces.

• Only a rigid or ﬂexible metal duct should be used for exhausting.

• Keep the exhaust duct as straight and short as possible.

• Secure joints with duct tape. Do not use screws.

• DO NOT EXHAUST DRYER INTO ANY WALL, CEILING, CRAWL SPACE, OR CONCEALED SPACE OF

A BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY.

THIS COULD CREATE A FIRE HAZARD FROM LINT EXPELLED BY THE DRYER.

• A plastic ﬂexible duct can kink, sag, be punctured, reduce airﬂow, extend drying times, and aect dryer

operation.

• Exhaust systems longer than recommended can extend drying times, aect machine operation, and

may collect lint.

• The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and

entry of wildlife. Never use an exhaust hood with a magnetic damper.

• The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and

the ground or other obstruction. The hood opening should point down.

• Never install a screen over the exhaust outlet.

• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house

or porch.

• If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly

down towards the exhaust hood to reduce condensation and lint buildup.

• Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before

cleaning.

• Check frequently to be sure the exhaust hood damper opens and closes freely.

• Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then

check ducting for obstructions.

ELECTRIC AND GAS DRYER

Weather Hood Type

Recommended Use only for short-run installation

4” (10.16 cm) 2.5” (6.35 cm)

No. of 90° elbows Rigid Metallic Flexible* Rigid Metallic Flexible*

0 24.4 m (80 ft.) 12.4 m (41 ft.) 22.6 m (74 ft.) 10.1 m (33 ft.)

1 20.7 m (68 ft.) 11.2 m (37 ft.) 18.9 m (62 ft.) 8.8 m (29 ft.)

2 17.4 m (57 ft.) 10.1 m (33 ft.) 15.5 m (51 ft.) 7.6 m (25 ft.)

3 14.3m (47 ft.) 9.0 m (29 ft.) 12.5 m (41 ft.) 6.5 m (21 ft.)

* Do not use non-metallic ﬂexible duct.

01 installing your dryer

DV431AEP-03021D_EN.indd 9 2012-02-01 �� 2:59:29

10_ installing your dryer

installing your dryer

If the new dryer is installed into an existing exhaust system you must make

sure:

• The exhaust system meets all local, state, and national codes.

• That a ﬂexible plastic duct is not used.

• To Inspect and clean all lint buildup from inside the existing duct.

• The duct is not kinked or crushed.

• The exhaust hood damper opens and closes freely.

The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be

less than 0.

This can be measured with the dryer running with a manometer at the point where the exhaust

duct connects to the dryer. A no-heat setting should be used. The dryer tumbler should be

empty and the lint ﬁlter clean.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept

for future reference.

REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD

SUFFOCATING.

LOCATION CONSIDERATIONS

The dryer should be located where there is enough space at the front for loading the dryer, and enough

space behind for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the

bottom or the right or the left, use the accessory exhaust kit. Instructions are included with the kit. It’s

important to make sure the room has enough fresh air. The dryer must be located where there is no air-ﬂow

obstruction.

On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate air

for combustion and proper dryer operation.

THE DRYER MUST NOT BE INSTALLED OR STORED IN AN AREA WHERE IT WILL BE EXPOSED TO

WATER AND/OR WEATHER. THE DRYER AREA IS TO BE KEPT CLEAR OF COMBUSTIBLE MATERIALS,

GASOLINE, AND OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES COMBUSTIBLE

LINT. THE AREA AROUND THE DRYER SHOULD BE KEPT LINT-FREE.

WARNING

DV431AEP-03021D_EN.indd 10 2012-02-01 �� 2:59:29

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Secadora de Samsung

Samsung

Samsung DVG45R6100P Manual de usuario

Samsung

Samsung DV455EVGSGR/AA Manual de usuario

Samsung

Samsung DVE53BB8900 Series Manual de usuario

Samsung

Samsung DV50F9A8GVP Manual

Samsung

Samsung DV5471AEP/XAA Manual de usuario

Samsung

Samsung DV52J8700E(G) series Manual de usuario

Samsung

Samsung DVG50M7450W Series Manual de usuario

Samsung

Samsung DV50K7500E Series Manual de usuario

Samsung

Samsung DV22K6800E Manual de usuario

Samsung

Samsung DV48H7400E DV48H7400G Manual de usuario

Samsung

Samsung SDC16809 Manual de usuario

Samsung

Samsung DV330AG Manual de usuario

Samsung

Samsung DVE52M775 SERIES Manual de usuario

Samsung

Samsung DVEG50T5300 Series Manual de usuario

Samsung

Samsung DV56H9100E Series Manual de usuario

Samsung

Samsung DV665J Series Manual de usuario

Samsung

Samsung DV448AEW-02555B-05 Manual de usuario

Samsung

Samsung DVG50R8500 Series Manual de usuario

Samsung

Samsung DV457E1GSGR/A1 Manual de usuario

Samsung

Samsung DVE54M8750 Series Manual de usuario

Samsung

Samsung DVE45M5500 Series Manual de usuario

Samsung

Samsung DVE51CG8005 Series Manual de usuario

Samsung

Samsung DV455 Series Manual de usuario

Samsung

Samsung DV8 T5 Series Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
