Samsung SGH-Z630 Manual de usuario
UMTS TELEPHONE
SGH-Z630
UMTS TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
Contents
1. Safety Precautions
1-1. Repair Precaution ......................................................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution ...............................................1-2
2. Specification
2-1. GSM General Specification .......................................................................................2-1
2-2. GSM TX power Level ...............................................................................................2-2
3. Product Function
4. Array course control
4-1. Downloading Binary Files ......................................................................................4-2
4-2. Pre-requsite for Downloading ................................................................................4-2
4-3. S/W Downloader Program .....................................................................................4-3
5. Exploded View and Parts list
5-1. Cellular phone Exploded View ..............................................................................5-1
5-2. Cellular phone Parts list ........................................................................................5-2
5-3. Disassembly ............................................................................................................5-4
5-4. Assembly .................................................................................................................5-6
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
Contents
9. Flow Chart of Troubleshooting
9-1. Baseband ............................................................................................................9-1
9-1-1. Power ON .....................................................................................................9-1
9-1-2. Initial .............................................................................................................9-4
9-1-3. SIM Part .........................................................................................................9-6
9-1-4. Microphone Part ...........................................................................................9-7
9-1-5. Speaker Part_1(MP3, SPEAKER PHONE) ................................................9-8
9-1-6. Speaker Part_2(RECEIVER) .....................................................................9-10
9-1-7. Charging Part .............................................................................................9-11
9-2. RF ......................................................................................................................9-13
9-2-1. EGSM RX ...................................................................................................9-13
9-2-2. DCS RX ......................................................................................................9-15
9-2-3. PCS RX ......................................................................................................9-16
9-2-4. EGSM TX ...................................................................................................9-17
9-2-5. DCS TX ......................................................................................................9-18
9-2-6. PCS TX ......................................................................................................9-19
10. Reference data
SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because specipicty of cellular phone is sensitive for surrounding
interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.
SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is connected
completely to the proper place or a circuit board.
SAMSUNG Proprietary-Contents may change without notice
2. Specification
2-1
This Document can not be used without Samsung's authorization
2-1. GSM/WCDMA General Specification
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900 WCDMA
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1920~1980
2110~2170
ARFCN range 0~124 &
975~1023 512~885 512~810 10562~10838
Tx/Rx spacing 45 MHz 95 MHz 80 MHz 190 MHz
Mod. Bit rate/
Bit Period
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us 3.84 Mcps/s
Time Slot
Period/Frame
Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms 10 ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK UL:2BPSk
DL:QPSK
MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm MAX:24(+1,-3) dBm
MIN:<-50 dBm
Power Class 5 pcl ~ 19 pcl 0 pcl ~ 15 pcl 0 pcl ~ 15 pcl CLASS3
Sensitivity -102 dBm -100 dBm -100 dBm -106.7 dBm
TDMA Mux 8 8 8 -
Cell Radius 35 Km 2 Km - -
SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
2-2. GSM TX power class
TX Power
control level EGSM900
533±2dBm
631±2dBm
729±2dBm
827±2dBm
925±2dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9± 3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
3-1. Main Function
-Camera and camcorder
-Image editor
-Music player
-File viewer
-Bluetooth
-Photo printing
-i-mode browser
-Get personal with photo/vIDEO caller ID
-Name card
-Multimedia Message Service (i-MMS)
-Email (i-mail)
-Java
-Voice recorder
SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

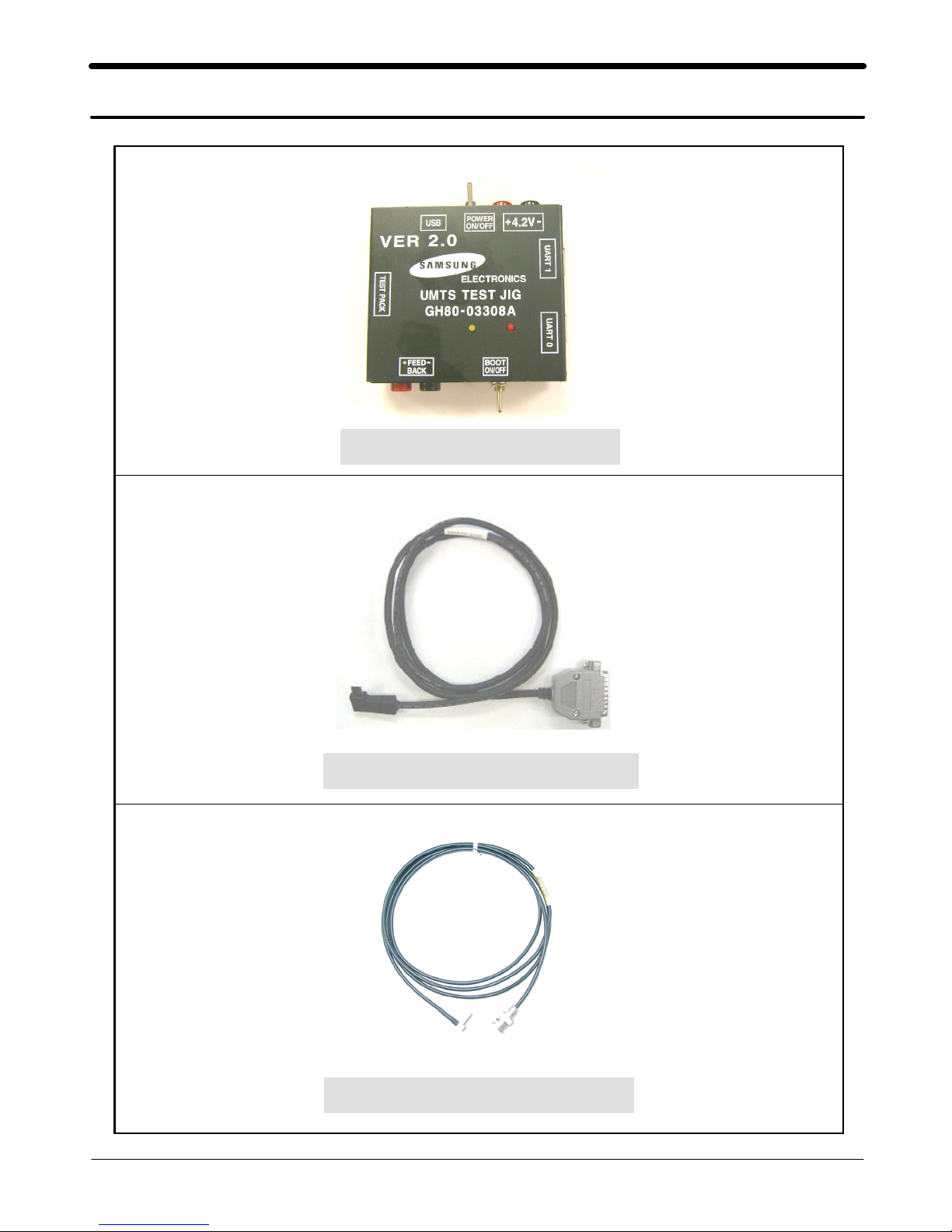

IF Test Cable (GH39-00478A)
RF Test Cable (GH39-00397A)
Test JIG (GH80-03308A)
SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4.1 Downloading Binaries.
Start the Downloader application.
You can get the downloader program from binary zip file. Unzip the file and move to the \tools\downloa
der directory. You will see below if run the [M6275]U-Medic v1.3_SVC.exe file.
Please follow the order. The detailed fact is explained below. (store the user data using PC-Studio3 if ne
cessary)
1. Load the Z630.mdc file.
2. Connect the Mobile Handset to the PC via USB port.
3. Download.
First, click the 'Load' button to select “Z630.mdc” file. The mdc file is located in the \tools\downloader dir
ectory. And then Connect the Mobile Handset to the PC via USB port. Press power button with red color
and button captioned 4 to put the mobile into download mode. To verify that the mobile is put into down
load mode, just check the front LCD screen of the mobile. (USB DOWNLOAD SAMSUNG UMTS)
Once the mobile is detected/sensed by the Downloader Application, the appropriate Mobile Entry will be
enabled in the application screen.Optionally Port Search button could be pressed to detect/sense the mob
ile.
