Samsung SGH-R200 Manual de usuario

SERVICE

DUAL BAND Mobile

Cellular Phone

SGH-R200

Manual

DUAL BAND MOBILE CELLULAR PHONE CONTENTS

1. Exploded Views and Parts List

2. PCB Diagrams

3. Electrical Parts List

4. Block Diagrams

5. Flow Chart of Troubleshooting

Samsung Electronics Co.,Ltd.

Printed in Korea

06/2001 Rev 1.0

GH68-02098A

ELECTRONICS

1. Exploded Views and Parts List

1-1 Main

1-2 Main Parts List

1-3 Travel Adapter

1-4 Travel Adapter Parts List

1-5 Ciger Light Adapter

1-6 Ciger Light Adapter Parts List

1-7 Test Jig

1-8 EAR Microphone

1-9 Data Kit

2. PCB Diagrams

2-1 Main Top

2-2 Main Bottom

3. Electrical Parts List

3-1 Main Parts List Top

3-2 Main Parts List Bottom

4. Block Diagrams

4-1 Main Baseband

4-2 Main RF

4-2-1 RF Transmit Part

4-2-2 RF Receive Part

5. Flow Chart of Troubleshooting and Circuit Diagrams

5-1 Power ON

5-2 Initial

5-3 Charging Part

5-4 Sim Part

5-5 Microphone Part

5-6 Speaker Part

5-7 Key Data Input

5-8 Alert Tone

5-9 Ring Indicator

5-10 Back Light

5-11 GSM Receiver

5-12 GSM Transmitter

5-13 DCS Receiver

5-14 DCS Transmitter

Exploded Views and Parts List 1-1

1. Exploded Views and Parts List

1-1 Main

1-1

1-5

14-2

14-1

14-3

14-4

14-5

14-7

14-8

14-6

1-2

1-3

1-4

NO PARTS NAME SEC CODE QÕTY SVC

REMARK

BLUE GREEN D/GRAY

1 1 FRONT COVER ASSÕY GH75-01302A GH75-01303A GH75-01304A 1 SA

1-1 DUMMY-FRONT GH72-02547A GH72-02547A GH72-02547A 1 SNA

1-2 WINDOW LCD GH72-02549A GH72-02549A GH72-02549A 1 SNA

1-3 FLIP COVER ASSÕY GH75-01141A GH75-01141B GH75-01141C 1 SNA

1-4 FRONT COVER GH72-02545A GH72-02545B GH72-02545C 1 SNA

1-5 SPONGE LCD GH74-01449A GH74-01449A GH74-01449A 1 SNA

2 SPEAKER 3001-001221 3001-001221 3001-001221 1 SA

3 MIC 3003-001063 3003-001063 3003-001063 1 SA

4 KEY PAD GH72-02553B GH72-02553B GH72-02553B 1 SA

5 KEY TOP GH72-02834A GH72-02834A GH72-02834A 1 SA

6 KEY-DOME GH59-00219A GH59-00219A GH59-00219A 1 SA

7 BUZZER HOLDER GH73-00729A GH73-00729A GH73-00729A 1 SA

8 BUZZER 3002-001098 3002-001098 3002-001098 1 SA

9 MAIN PBA GH92-00998A GH92-00998A GH92-00998A 1 SA

10 LCD GH07-00075A GH07-00075A GH07-00075A 1 SA

11 RUBBER CONNECTOR GH73-00678E GH73-00678F GH73-00678G 1 SA

12 COVER SHIELD GH72-02554A GH72-02554A GH72-02554A 1 SA

13 MOTOR GH31-00025A GH31-00025A GH31-00025A 1 SA

14 14 REAR COVER ASSÕY GH75-01142A GH75-01142B GH75-01142C 1 SA

14-1 COVER EARPHONE GH73-00730A GH73-00730B GH73-00730C 1 SA

14-2 BUSHING ANT GH71-00491A GH71-00491A GH71-00491A 1 SA

14-3 ANTENNA GH42-00120C GH42-00120B GH42-00120A 1 SA

14-4 REAR COVER GH72-02551A GH72-02551B GH72-02551C 1 SNA

14-5 SPRING-LOCKER GH70-10516A GH70-10516A GH70-10516A 1 SNA

14-6 LOCKER MAIN GH72-02552A GH72-02552B GH72-02552C 1 SNA

14-7 SIM SPRING GH70-00006A GH70-00006A GH70-00006A 1 SNA

14-8 SIM COVER GH72-02557A GH72-02557B GH72-02557C 1 SNA

15 MOBILE CAP GH73-00079D GH73-00079E GH73-00079F 1 SNA

16 SCREW COVER GH73-00660C GH73-00660D GH73-00660E 1 SNA

17 SCREW M1.7 X 5 6001-001346 6001-001346 6001-001346 5 SA

18 LABEL(R) ID MAIN GH68-01944A GH68-01944A GH68-01944A 1 SA

19 BATT ASSÕY(STD) GH43-00344A GH43-00344B GH43-00344C 1 SA

1-2 Main Parts List

1-2 Exploded Views and Parts List

Exploded Views and Parts List 1-3

1-4 Travel Adapter Parts List

TYPE SEC CODE REMARK

A GH44-00171A CHINA

B GH44-00184A EUROPE

C GH44-00171C UNITED KINGDOM

D Gh44-00171E TAIWAN

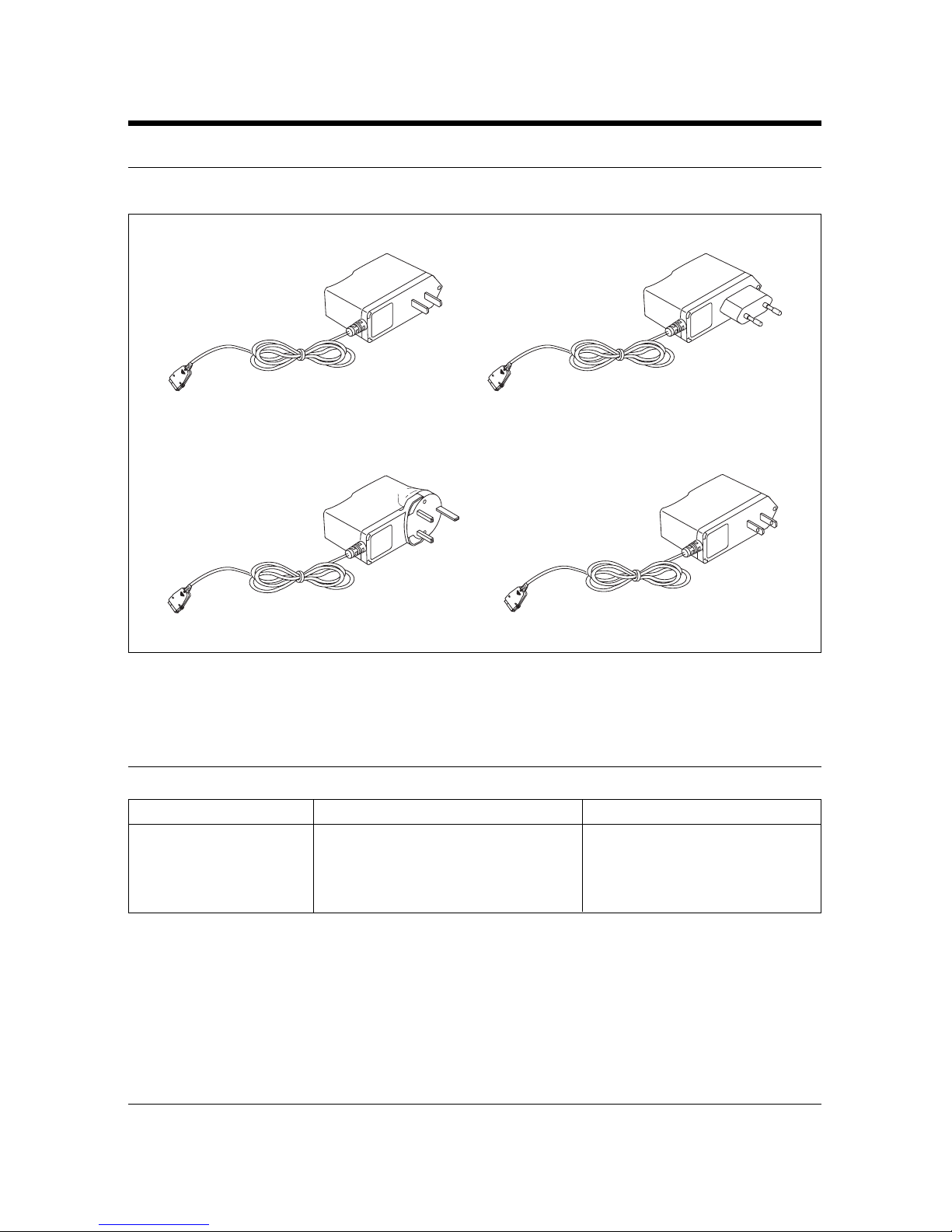

1-3 Travel Adapter

1-4

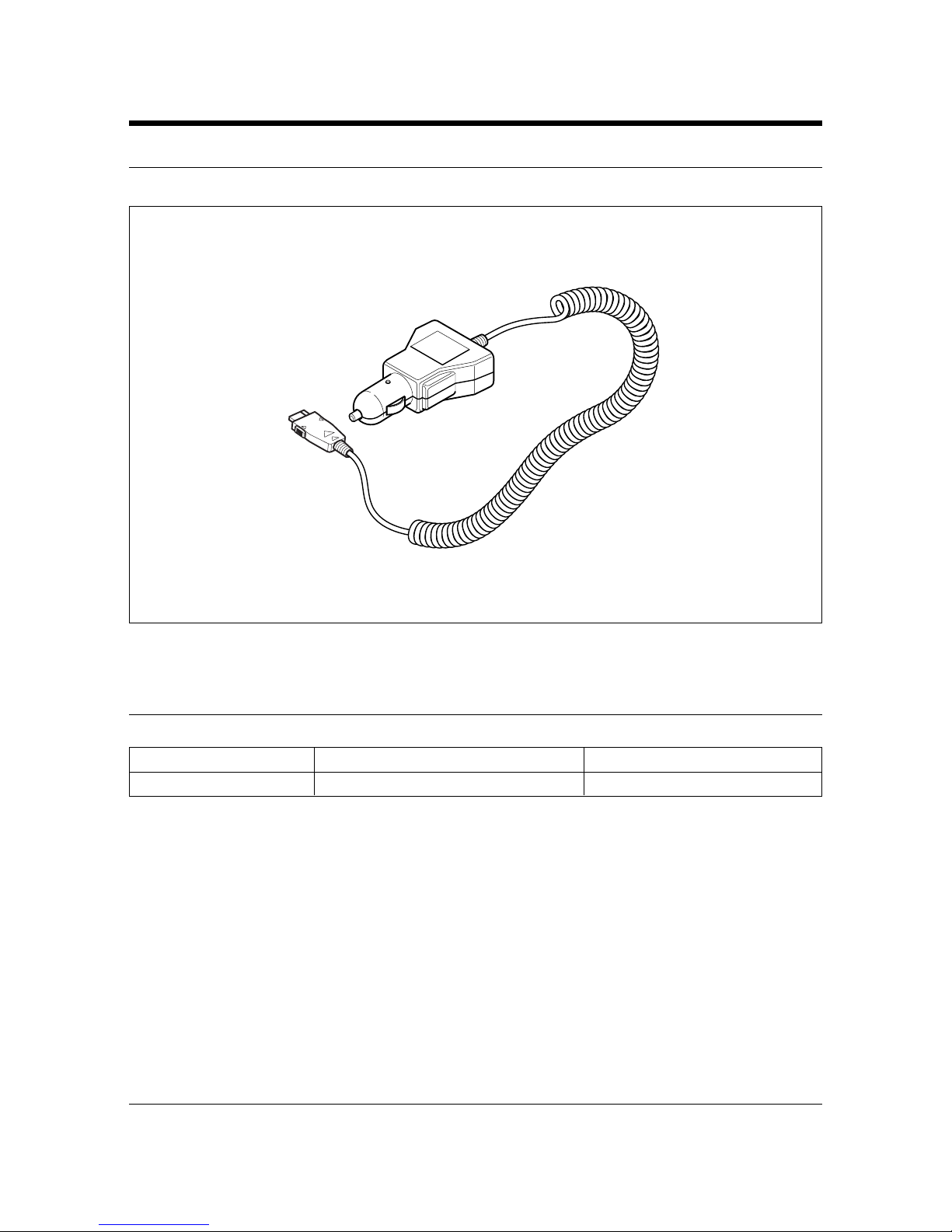

1-5 Ciger Light Adapter

Exploded Views and Parts List

1-6 Ciger Light Adapter Parts List

DESCRIPTION SEC CODE REMARK

Ciger Light Adapter Code GH44-00170A BLACK

1-5Exploded Views and Parts List

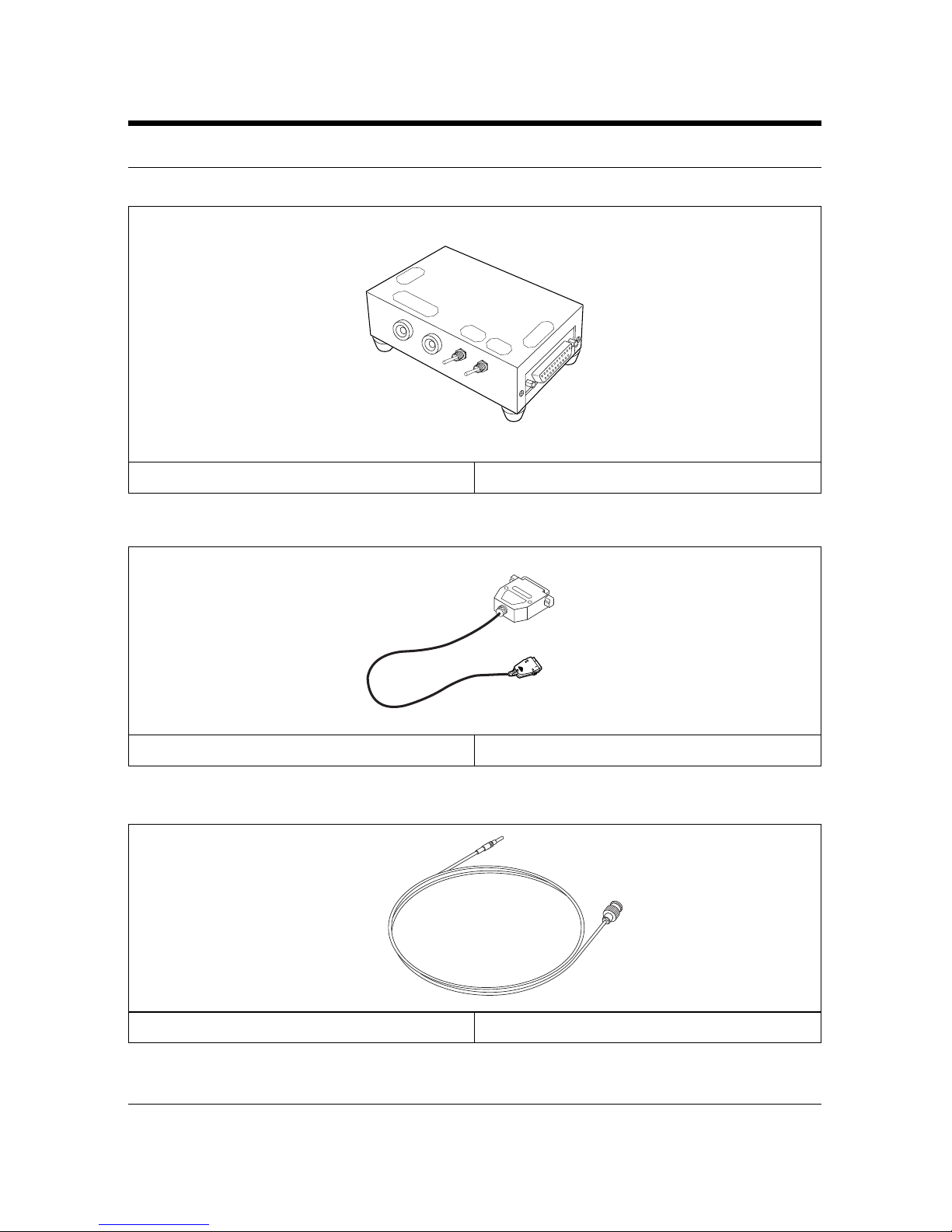

1-7 Test Jig

TEST JIG GH80-10508A

TEST JIG CABLE GH39-00079A

RF CABLE GH39-00094A

1-6 Exploded Views and Parts List

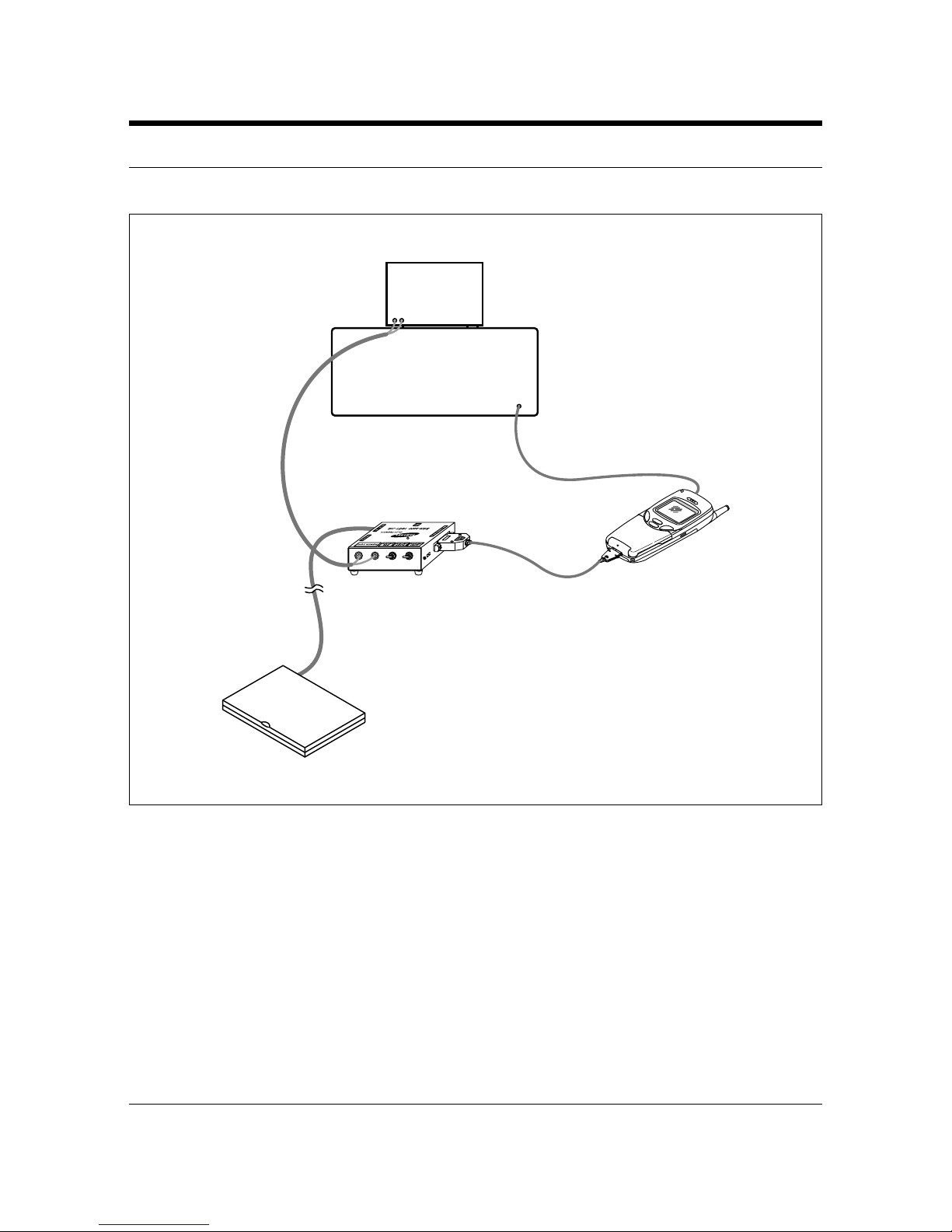

1-7-1 Test Jig

POWER

SUPPLY

232 CABLE TEST JIG CABLE

RF CABLE

8922 or 8960

TEST SET

Note PC

WIRELESS COMMUNICATION

Exploded Views and Parts List 1-7

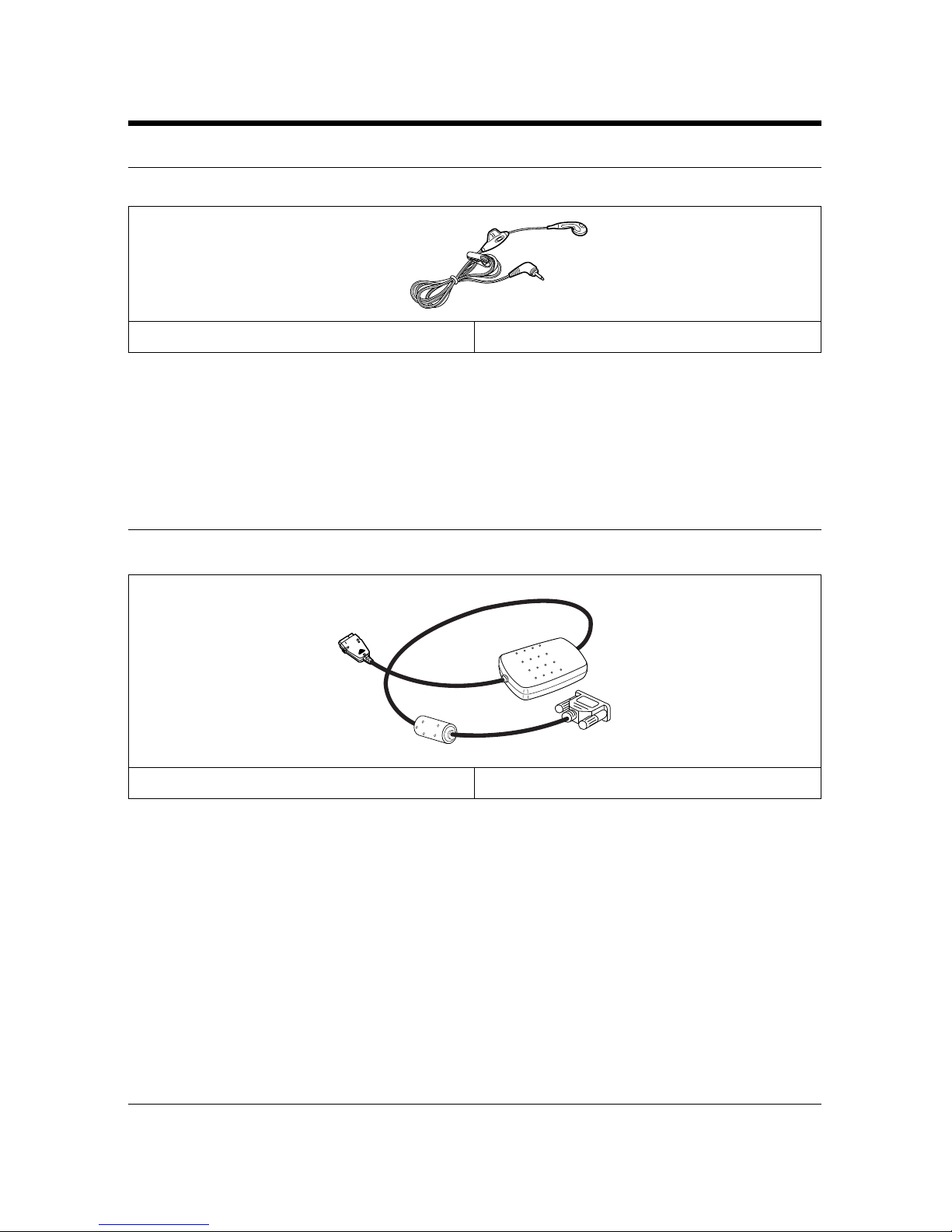

1-8 EAR Microphone

EAR MICROPHONE GH59-00168A

1-9 Data Kit

DATA KIT GH39-00078A
