Samsung GT-I8000 (Extended Usage Guide) Manual de usuario

GSM TELEPHONE

GT-i8000

1. Safety Precautions

2. Specification

3. Product Function

4. Array course control

5. Exploded View and Parts list

6. MAIN Electrical Parts List

7. Disassembly and Assembly

Instructions

8. Block Diagrams

9. PCB Diagrams

10. Chart of Troubleshooting

11. Reference data

GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice

1. Safety Precautions

1-1

This Document can not be used without Samsung's authorization

1-1. Repair Precaution

●Repair in Shield Box, during detailed tuning.

Take specially care of tuning or test, because the specification of cellular phone is sensitive for

surrounding interference(RF noise).

●Be careful to use akind of magnetic object or tool, because performance of parts is damaged by the

influence of magnetic force.

●Surely use astandard screwdriver when you disassemble this product, otherwise screw will be worn

away.

●Use athicken twisted wire when you measure level.

Athicken twisted wire has low resistance, therefore error of measurement is few.

●Repair after separate Test Pack and Set because for short danger (for example an

overcurrent and furious flames of parts etc) when you repair board in condition of

connecting Test Pack and tuning on.

●Take specially care of soldering, because Land of PCB is small and weak in heat.

●Surely tune on/off while using AC power plug, because arepair of battery charger is

dangerous when tuning ON/OFF PBA and Connector after disassembling charger.

●Don't use as you pleases after change other material than replacement registered on SEC System.

Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice

Safety Precautions

1-2

This Document can not be used without Samsung's authorization

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD

(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.

You can prevent from ESD damage by static electricity.

●Remove static electricity remained your body before you touch semiconductor or parts with

semiconductor. There are ways that you touch an earthed place or wear static electricity

prevention string on wrist.

●Use earthed soldering steel when you connect or disconnect ESD.

●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by

static electricity.

●Don't unpack until you set up ESD on product. Because most of ESD are packed by box and

aluminum plate to have conductive power,they are prevented from static electricity.

●You must maintain electric contact between ESD and place due to be set up until ESD is connected

completely to the proper place or acircuit board.

2. Specification

2-1

2-1. GSM General Specification

GSM850

Phase 1

EGSM

900

Phase 2

DCS1800

Phase 1 PCS1900 WCDMA2100 WCDMA1900 WCDMA900

Freq.

Band[MHz]

Uplink/Dow

nlink

824~849

869~894

880~915

925~960

1710~1785

1805~1880

1850~1910

1930~1990

1922~197

2112~216

1852~1907

1932~1987

882~912

927~957

ARFCN

range 128~251 0~124 &

975~1023 512~885 512~810

UL:9612~

9888DL:10

562~1083

UL:9262~9

538DL:966

2~9938

UL:2712~2

863DL:293

7~3088

Tx/Rx

spacing 45MHz 45MHz 95MHz 80MHz 190MHz 80MHz 45MHz

Mod. Bit

rate/

Bit Period

270.833kb

3.692us

270.833k

bps

3.692us

270.833kb

3.692us

270.833kbp

3.692us

3.84Mcps 3.84Mcps 3.84Mcps

Time Slot

Period/Fra

me Period

576.9us

4.615ms

576.9us

4.615ms

576.9us

4.615ms

576.9us

4.615ms

FrameLen

gth:

10ms

Slotlength

0.667ms

FrameLen

gth:

10ms

Slotlength

0.667ms

FrameLen

gth:

10ms

Slotlength

0.667ms

Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQP

QPSKHQP

MS Power 33dBm~5d

33dBm~5

dBm

30dBm~0d

24dBm~-

50dBm

24dBm~-

50dBm

24dBm~-

50dBm

Power

Class

5pcl ~

19pcl

5pcl ~

19pcl 0pcl ~15

pcl 0pcl ~15

pcl 3(max+24dB

3(max+24dB

Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm

TDMA Mux 8 8 8 8 888

Cell

Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km

Specification

2-2

2-2. GSM Tx Power Class

TX Power

control

level

GSM850

533±2

dBm

631±2

dBm

729±2

dBm

827±2

dBm

925±2

dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control

level

EGSM900

533±2

dBm

631±2

dBm

729±2

dBm

827±2

dBm

925±2

dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control

level

DCS1800

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

TX Power

control

level

PCS1900

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice

3. Product Function

3-1

This Document can not be used without Samsung's authorization

Main Function

-Microsoft Windows Mobile 6.1 PPC

-HSDPA 7.2Mbps /HSUPA 5.76Mbps

-5

MP AF Camera /dual Power LED

-3.7"WVGA 16M AMOLED

-SD (480p) Camcording /Playback

-WMA,WMV,MP3,AAC,AAC+,DivX,XviD

-Accelerometer (3 Axis),Geo Magnetic (3 Axis),Luminance,Proximity Sensor

-Advanced R-Touch,Touchwiz 2.0

-TV Out /DNIE /DNSe /Mic Noise Canceller

-Wi-Fi

-BT2.0

-USB2.0 High Speed

SAMSUNG Proprietary-Contents may change without notice

4. Array course control

4-1

This Document can not be used without Samsung's authorization

4-1. Software Adjustments

Test Jig (GH99-36900A)

RF Test Cable (GH39-00985A) Adapter (GH99-38251A)

Test Cable (GH39-01290A)

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-2

This Document can not be used without Samsung's authorization

4-2. Software Download

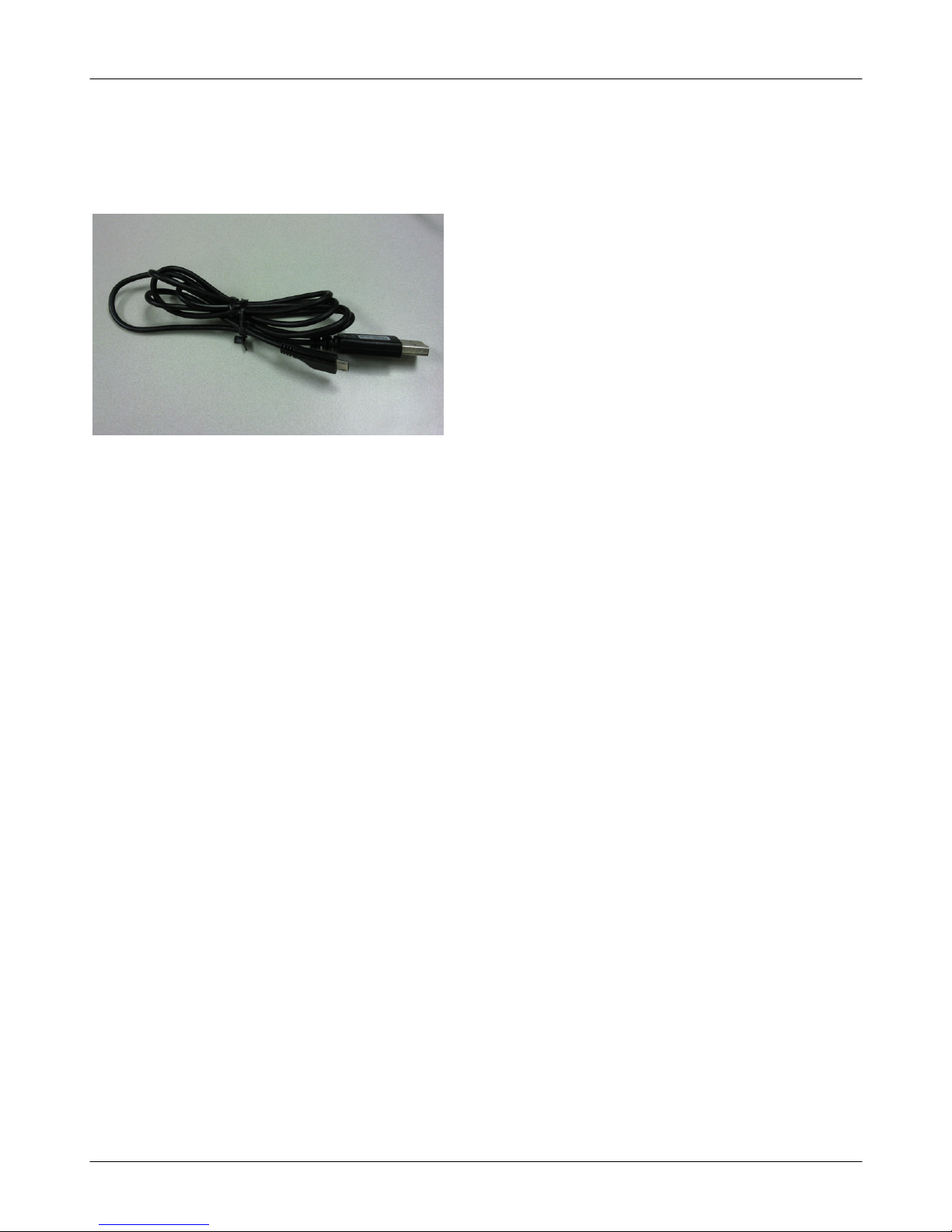

1-1. Equipment for Software Download

1-2. Pre-requisite for Download

▶Downloader Program

-OCTANS Downloader v1.71

▶USB Driver

-PDA :Samsung MITs USB Sync [Samsung MITs USB Sync.zip]

-Phone :Samsung CDMA Modem [Samsung CDMA Modem.zip]

▶Driver Installation

2-1. Driver Installation (PDA)

▶Make sure that you install drivers.

▶If you installed the latest ActiveSync program, you don’t need to install the pda driver. Please

install the latest ActiveSync program.

2-2. Driver Installation (Phone)

When you download the phone image, you need the driver of Samsung CDMA Modem.

If you want to download the phone image, install the Samsung CDMA Modem driver.

FAfter you install the driver of Samsung CDMA Modem, please restart ahost computer.

3. Execute the Downloader Program. [OCTANS Downloader v1.71]

4. Check the EBoot,PDA,MultiCSC,MoviNand,Phone.

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-3

This Document can not be used without Samsung's authorization

5. Click the detect.

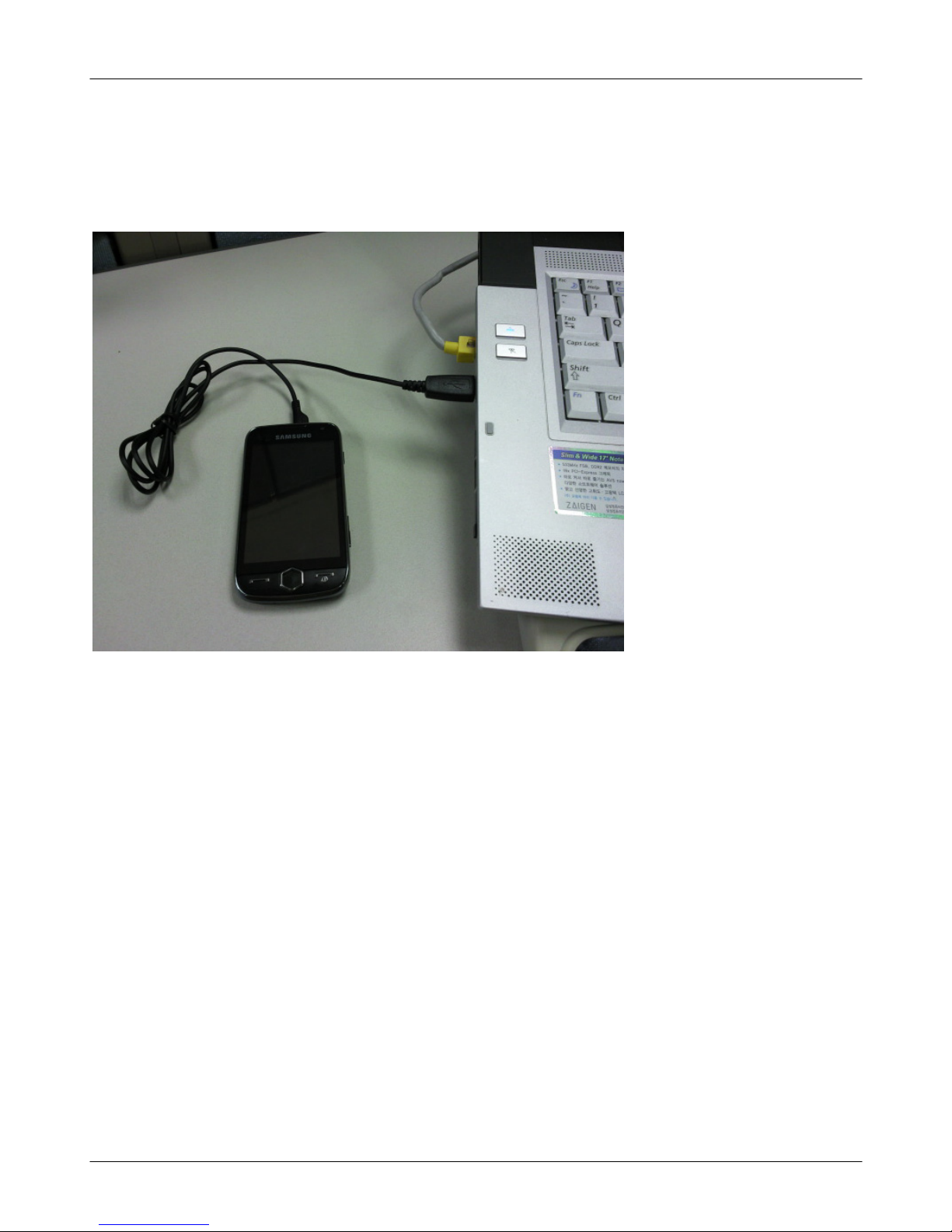

6. Connect your device to ahost computer by using USB DATA Link Cable.

7. Wait until 'START' button is activated.

FIf ‘START’button is not activated, terminate the application and reconnect USB data link cable a

nd retry.

8. Please click “START”button.

9. When the download is finished, the phone is rebooted automatically.

FDownload Procedure

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-4

This Document can not be used without Samsung's authorization

[Downloading EBOOT ]

[Downloading PDA ]
