Samsung GT-C3520 Manual de usuario

GSM TELEPHONE

GT-C3520

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1Repair

7. Level 2Repair

8. Level 3Repair

9. Reference data

Notice :

All functionality, features, specifications and other

product information provided in this document inclu

ding, but not limited to, the benefits, design, pricing,

components, performance, availability, and capabiliti

-es of the product are subject to change without

notice or obligation. Samsung reserves the right to

make changes to this document and the product

described herein, at anytime, without obligation on

Samsung to provide notification of such change.

GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Samsung Electronics Co.,Ltd.

2011. 09. Rev.1.0

ⓒ

2. Specification

2-1

2-1. GSM General Specification

GSM850

Phase 1 EGSM 900

Phase 2 DCS1800

Phase 1 PCS1900

Freq.

Band[MHz]

Uplink/Downlink

824~849

869~894 880~915

925~960 1710~1785

1805~1880 1850~1910

1930~1990

ARFCN range 128~251 0~124 & 975~1023 512~885 512~810

Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz

Mod. Bit rate/

Bit Period 270.833kbps

3.692us 270.833kbps

3.692us

Time Slot

Period/Frame

Period

576.9us

4.615ms 576.9us

4.615ms

Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK

MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm

Power Class 5pcl ~ 19pcl 5pcl ~19

pcl 0pcl ~15

pcl

Sensitivity -102dBm -102dBm -100dBm -100dBm

TDMA Mux 8 8 8 8

Cell Radius 35Km 35Km 2Km 2Km

Specification

2-2

2-2. GSM Tx Power Class

TX Power

control

level

GSM850

533±2

dBm

631±2

dBm

729±2

dBm

827±2

dBm

925±2

dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control

level

EGSM900

533±2

dBm

631±2

dBm

729±2

dBm

827±2

dBm

925±2

dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control

level

DCS1800

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

TX Power

control

level

PCS1900

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice

3. Operation Instruction and Installation

3-1

This Document can not be used without Samsung's authorization

Main Function

•GSM(2G EDGE) 850/900/1800/1900MHz

•Stylish Wide &Slim folder type phone

•2.4” QVGA 262K TFT LCD

•Music player, Voice Recorder

•1.3MCamera

•FM Radio Receiver

•Bluetooth v2.1

•USB 2.0 ,3.5pi earjack

•SMS /Chat On /Email

SAMSUNG Proprietary-Contents may change without notice

6. Level 1Repair

6-1

This Document can not be used without Samsung's authorization

6-1. Software Download

6-1-1. Pre-requisite for Download

ㆍDownloader Program (Flash Loader 7.5.4 CSC)

ㆍGT-C3520 Mobile Phone

ㆍData Cable

ㆍJIG BOX (GH99-36900B)

ㆍRF Test Cable (GH39-00985A)

ㆍJIG Cable (GH39-01290A)

ㆍAdapter (GH99-38251A)

ㆍBinary files

1. Click the 'Down' menu Key +'1'Key

2. Plug your cell phone in the JIG cable.

Chipset solution switch-4

No. solution

1Agere TC

2HP, Vision, Infineon

3NXP Sysol

4NXP Swift broadcom

5EMP

SAMSUNG Proprietary-Contents may change without notice

Level 1Repair

6-2

This Document can not be used without Samsung's authorization

6-1-2. S/W Download Process

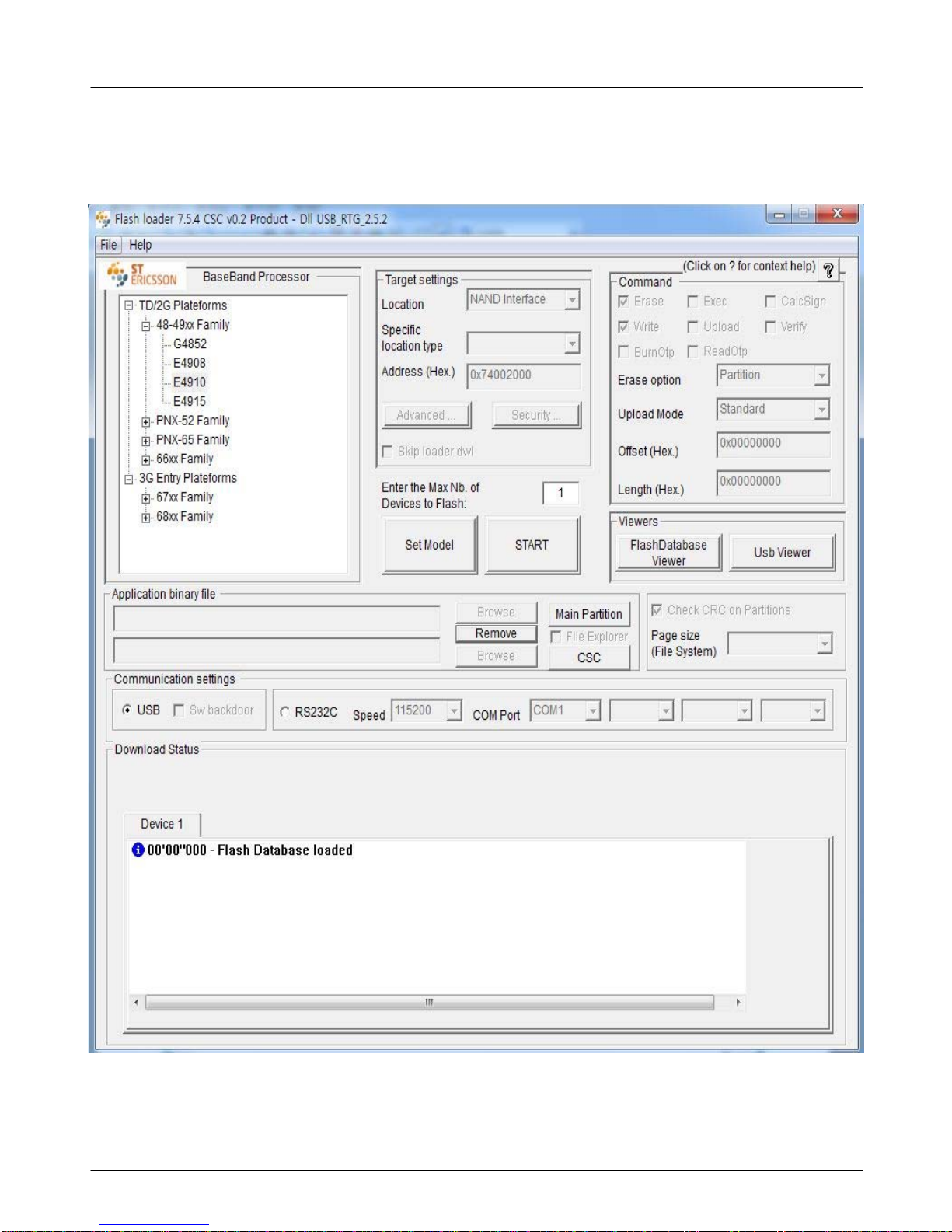

1. Load the binary download program by executing the "Flash Loader 7.5.4 CSC "

SAMSUNG Proprietary-Contents may change without notice

Level 1Repair

6-3

This Document can not be used without Samsung's authorization

2. Click the SET Model Button and Insert "mdl" binary file

SAMSUNG Proprietary-Contents may change without notice

Level 1Repair

6-4

This Document can not be used without Samsung's authorization

3. (1) Click Main Partition Table.

(2) Click Browser Button and Insert 'ptt' file(Main)

(3) Click the 'Open' Button

SAMSUNG Proprietary-Contents may change without notice

Level 1Repair

6-5

This Document can not be used without Samsung's authorization

3.(1)Click Partition Tabel "OK" Button

5(1)

Click Browser Button and Insert 'ptt' file(CSC)
