Samsung Galaxy S Plus GT-I9001 Manual de usuario
GSM TELEPHONE
GT-i9001
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS
This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2011. 05. Rev.1.0
ⓒ
2. Specification
2-1
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA21
00
WCDMA90
0
WCDMA19
00
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
880~915
925~960
1852~1907
1932~1987
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810
UL:9612~9
888DL:105
62~10838
UL:2712~2
863,DL:29
37 ~ 3088
UL:9262~9
538,DL:96
62~9938
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz 80MHz
Mod. Bit
rate/
Bit Period
270.833kb
ps
3.692us
270.833kb
ps
3.692us
270.833kb
ps
3.692us
270.833kb
ps
3.692us
3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQP
SK
QPSKHQP
SK
QPSKHQP
SK
MS Power 33dBm~5d
Bm
33dBm~5d
Bm
30dBm~0d
Bm
30dBm~0d
Bm
24dBm~-
50dBm
24dBm~-
50dBm
24dBm~-
50dBm
Power
Class
5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15
pcl 0pcl ~15
pcl 3(max+24dB
m)
3(max+24dB
m)
3(max+24dB
m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -103.7dBm -104.7dBm
TDMAMux8888888
Cell
Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km
Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•Android OS: Ginger
•HSDPA 14.4Mbps /HSUPA 5.76Mbps
•5
MP AF
•4.0"
WVGA sAMOLED, Full Touch (C-Type)
•A-GPS /BT v2.1 +EDR /USB v2.0 /WiFi (802.11 b/g/n)
•HD Recording (720p) /Full HD Playback (1080p)
•Sensors: Accelerometer, Compass, Proximity, Light
•TouchWiz 3.0 for Android, Multistage, Augmented Reality, Integrated phonebook with
SNS, IM, E-mail, Face Recognition, etc.
SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. S/W Download
6-1-1. Pre-requisite for S/W Downloading
•Downloader Program(Odin Multi Downloader v4._GalaxyS+.exe)
•GT-I9001 Mobile Phone
•Data Cable
•JIG BOX (GH99-36900B)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH39-01290A)
•Adapter (GH99-38251A)
•Binary files
SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Downloader Program
■Load the binary download program by executing the
"Odin Multi Downloader v4._GalaxyS+.exe "←Run this file.

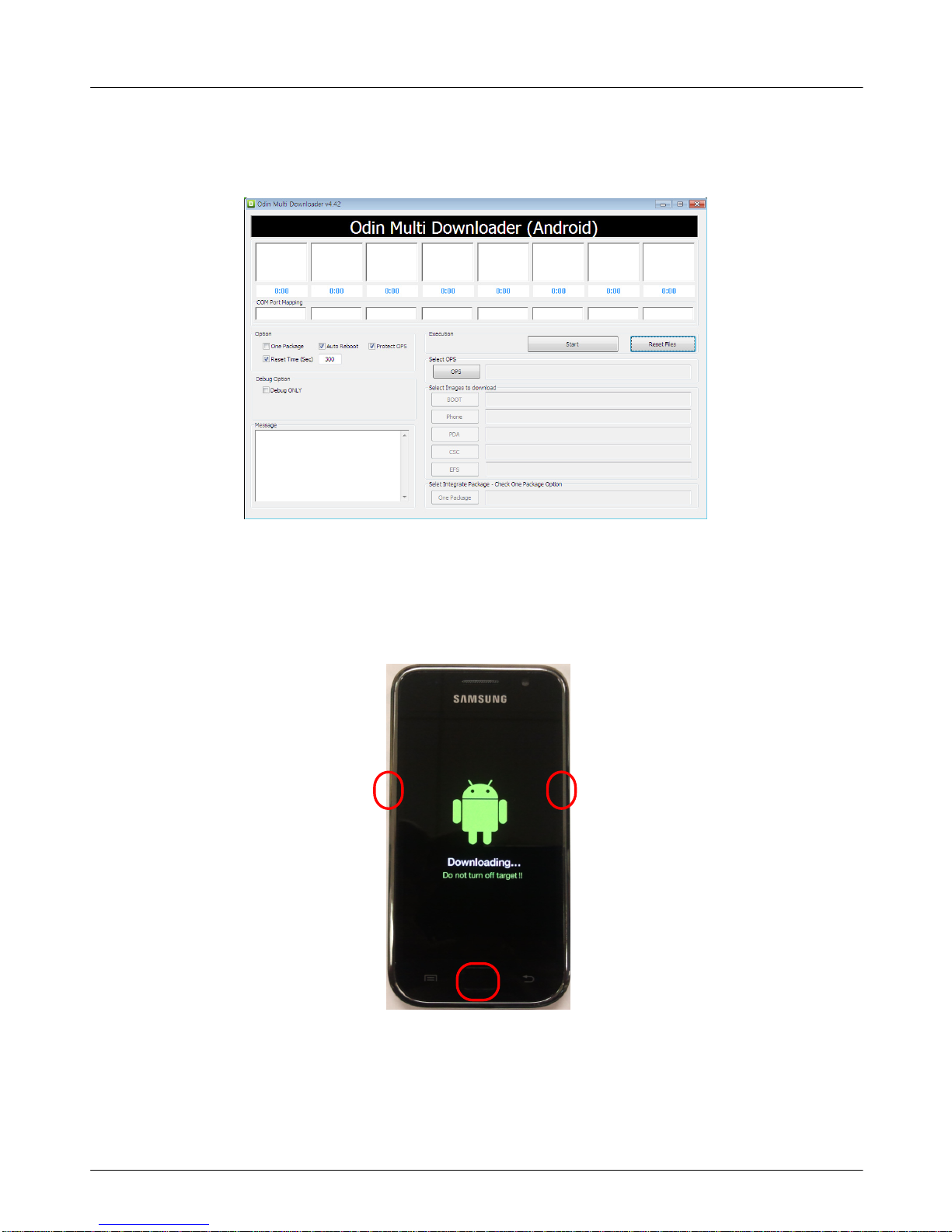

1.Enter Device into Download Mode
-Enter the device into Download Mode by pressing down on Volume Down button
and OK button and Power On button at the same time.
Volume Down Button Power On Button
OK Button
SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization

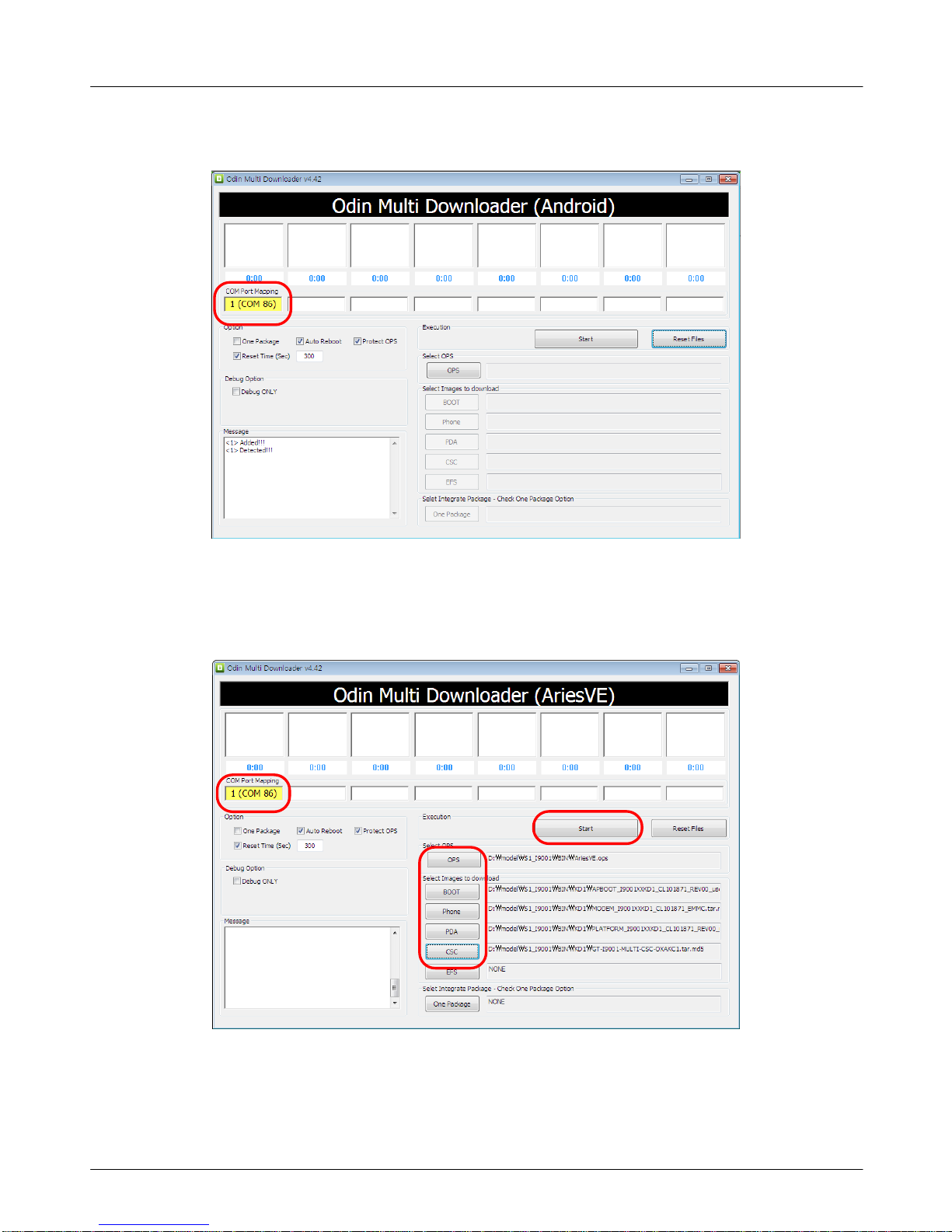

2.Connect the Handset to PC via Data Cable. Make sure ID:COM box highlighted
yellow that the handset is connected to the PC.
3.Select OPS, BOOT, PDA, PHONE and CSC Files.
SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization

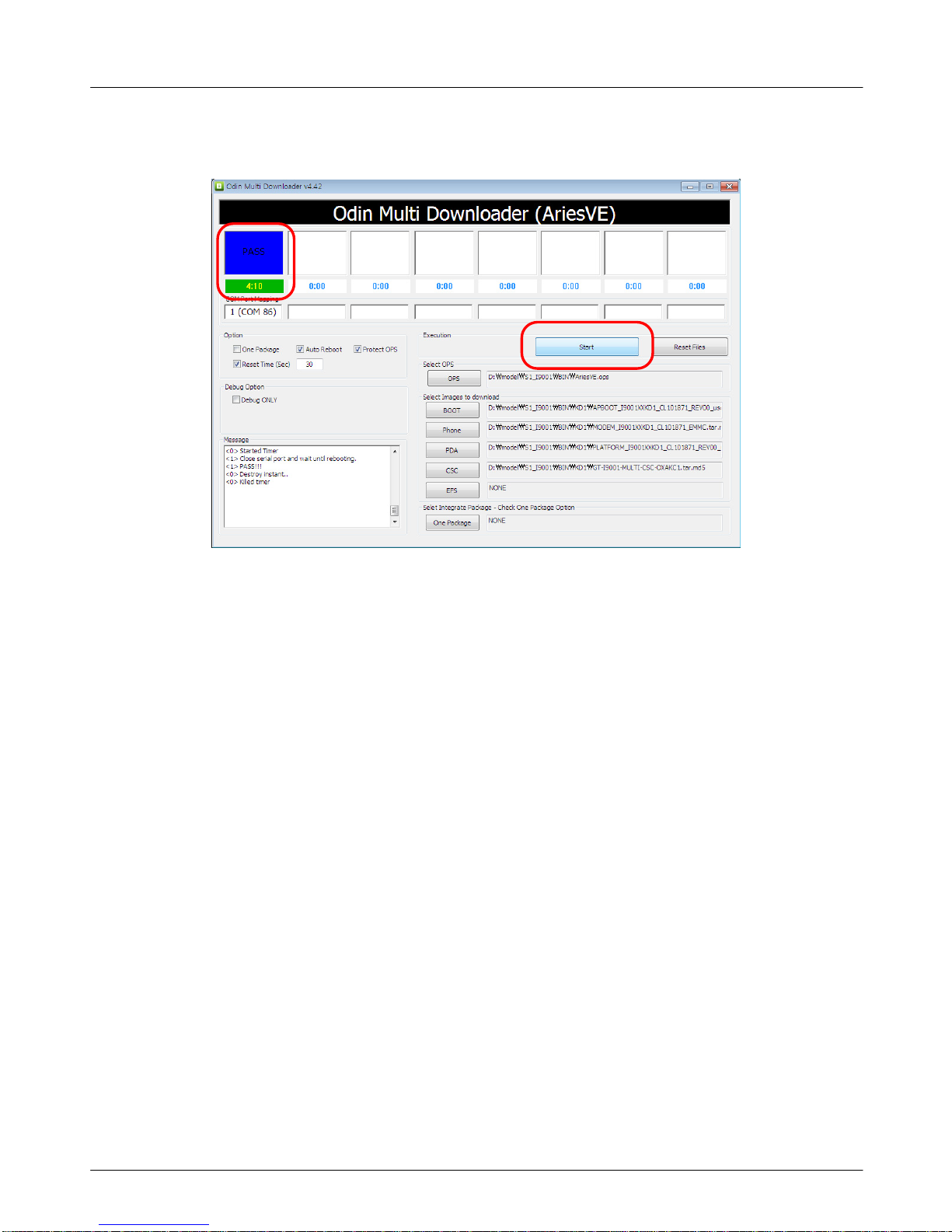

4.Start Downloading OPS, BOOT, PDA, PHONE and CSC Files by clicking Start
Button. Then wait for "Pass" to be appear on the screen.
5.Once the device boots up, confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#
SAMSUNG Proprietary-Contents may change without notice
9. Reference Abbreviate
This Document can not be used without Samsung's authorization
9-1
Reference Abbreviate
―AAC:Advanced Audio Coding.
―AVC :Advanced Video Coding.
―BER :Bit Error Rate
―BPSK:Binary Phase Shift Keying
―CA :Conditional Access
―CDM :Code Division Multiplexing
―C/I :Carrier to Interference
―DMB :Digital Multimedia Broadcasting
―EN :European Standard
―ES :Elementary Stream
―ETSI:European Telecommunications Standards Institute
―MPEG:Moving Picture Experts Group
―PN :Pseudo-random Noise
―PS :Pilot Symbol
―QPSK:Quadrature Phase Shift Keying
―RS :Reed-Solomon
―SI :Service Information
―TDM :Time Division Multiplexing
―TS :Transport Stream
