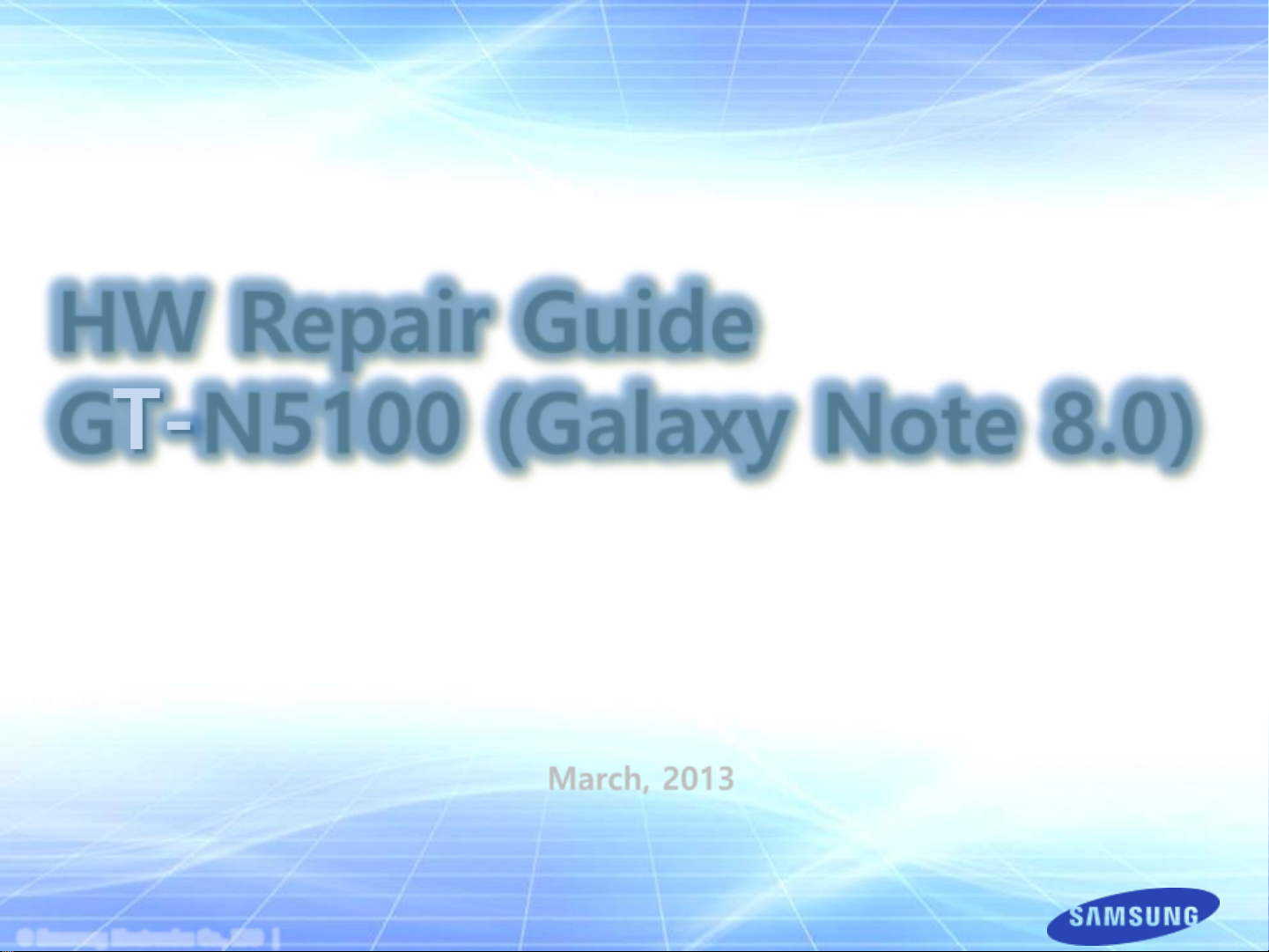

Samsung GALAXY Note 8.0 Instrucciones de montaje

HW Repair Guide

GT-N5100 (Galaxy Note 8.0)

March, 2013

1. All functionality, features, specifications and other product

information provided in this document including, but not limited

to, the benefits, design, pricing, components, performance,

availability, and capabilities of the product are subject to change

without notice or obligation. Samsung reserves the right to make changes to this docume

nt and the product described herein, at anytime, without obligation on Samsung to provid

e notification of such change.

2. In data of our company, important management / technical information is included,

and if it is leaked, loss can happen in various aspect such as closing a technology gap,

increasing ability to respond.

Therefore, it is strictly prohibited from information leak or forwarding this material, and if

leak of management / technical information due to disobeying the law happens, it can be

severely punished in accordance with information protection rule of our company.

NOTICE

Contents

1. Introduction of GALAXY Note 8

2. Service Guide

•RF calibration

•IMEI writing

•Block Diagram

3. Repair Guide

•Assembly & Disassembly

•Electronic Components

•SMD parts

•Trouble Shooting

4. Q&A

Introduction of GALAXY Note 8.0

Specification

Item spec.

1.6GHz Quad

Core(Exynos 4412)

Android

XMM

6262(IMC), HSPA+ 21.1Mbps, HSUPA 5.76Mbps

Supported RF Bands

GSM

Quad(850, 900, 1800, 1900), UMTS Quad(850, 900, 1800, 1900)

Internal Memory

16GB NAND + 2GB RAM

External Memory

MicroSD

(up to 64GB)

Display

8” TFT

(1280 x 800)

Camera

5MP CMOS

+ 1.3MP CMOS

Sensor

Accelerometer,

Magnetic, Proximity, Light, Grip

Connectivity

BT 4.0, Wi

-Fi a/b/g/n

GPS

-GPS + GLONASS

Battery

4600mA

This model is the portable media Tablet device and it has 8 inches size.

So, it expected to replace the diary and it has S-pen, S-planner, S-Note, etc.

RF calibration(1/3)

Please download the latest version of RF Calibration program on the PLM

System. (Daseul Launcher, Runtime and Model File)

Run Calibration program

Check the Calibration

and select correct file

Click the Extract

& Run button

Check the CAL Check and

select correct file

Click the Start button

RF calibration(2/3)

Check the Calibration

Check the

System Config items

Click the

Model Information

Type the correct

H/W version

Check the connection port of

Phone, MSTS and Power Supply

Click the

Hardware Config

Click the

OK button

Click the Start button and

connect the phone to Anyway Jig.

RF calibration(3/3)

The Result bar is changed to the GREEN

color if the calibration is Passed.

IMEI Writing (1/3)

Please download the latest version of RF Calibration program on the PLM

System. (Daseul Launcher, Runtime and Model File)

Run Daseul program for IMEI writing.

Check the IMEI

and select correct file

Click the Extract

& Run button

Check the IMEI

Check and

select correct file

Click the Start button

IMEI Writing (2/3)

Check the IMEI Write

and IMEI Check Check the

System Config items

Click the

Hardware

Config

Check the connection port of

Phone and Power Supply

Check the

OK button

IMEI Writing (3/3)

Type the correct

IMEI number

Click the Model Info

Type the correct

Software, Hardware,

CSC, PDA and

SKU_CODE etc.

Click the Start button and

connect the phone to Anyway Jig.

The Status bar is changed to

GREEN color if IMEI writing is Passed
