Samsung MCD-SM60 Manual de usuario

Portable MP3-CD

Player

MCD-SM60

Instruction Manual

Main Features

What is MP3?

SBS function

The SBS function produces rich,

deep bass tones for a more powerful

overall sound.

ESP function

The ESP function ensures high

resistance to shock or vibration so

that the sound signal remains

undisturbed ( up to 120 seconds for

MP3 and 45 seconds for a CD).

Random function

The Random function allows you to

play tracks in random order.

Album function

The Album function allows easy

browsing and searching of your

favorite tunes by album name, song

title and artist.

Last Memory function

The Last Memory function allows you

to listen to a song part way through,

and then resume listening again at the

point just before where you left off -

handy for when you have to answer

the phone or door.

MP3 means MPEG1 Layer 3, the global standard for audio signal compression

technology. It uses digital compression technology to compress original sound data by up

to 12 times without sound quality degradation.

File Compatibility

●The unit will playback files created in MP3 format (Mpeg1.Layer 3) with *.mp3 as their

extension.

●Files created in MP2 format (Mpeg1.Layer2) with *.mp2 as their extension can also be

played back.

How many MP3 files can a CD-R or CD-RW disc record?

●The maximum capacity of one CD-R or CD-RW disc is 680MB.

Normally, one MP3 file has a capacity of 4MB, therefore approximately 170 files can

be recorded on a single disc.

Contents

Safety Warning 3

Buttons and Controls 5

Preparation before using your unit 9

●How to Connect 9

●Using the rechargeable battery (not supplied) 10

●Using standard batteries 11

CD Playback 12

MP3-CD Playback 13

Skip/Search function 14

Mode function 15

SBS/Last Memory function 16

ESP/Album function 17

+10 button 17

Program function 19

●To confirm the program 20

●To change the program 20

●To cancel the program mode 20

Features 21

Maintaining and looking after your unit 22

Troubleshooting Guide 23

Specification 24

Open

Take care not to allow

dust or other

contaminants to come

into contact with your

CD player.

Do not apply heavy

pressure to the main

unit or remote

control unit.

Do not leave your CD

player in direct sunlight

or near a heat source.

Do not put anything other

than a CD (CD-R or CD-RW)

inside your CD player.

●Such actions will

damage your CD

player.

Do not use broken or

scratched MP3 CDs.

Do not use your CD

player on uneven or

unstable surfaces.

●Your CD player may not

operate properly in this

case.

Do not touch the lens

with your finger or

scratch it.

●Your CD player may

not operate properly in

this case.

Do not place your CD

player in a dusty or

humid location.

Do not attempt to take

apart, repair or modify

your CD player.

●Such actions will

damage your CD player.

Safety Warning

●All redundant packing material has been omitted,

We have done our utmost to make the packaging easily separable into

three materials: cardboard(box), polystyrene foam(buffer) and

polyethylene(bags, protective foam sheet).

●Your set consists of materials which can be recycled if disassembled by a

specialized company. Please observe the local regulations regarding the

disposal of packing materials, exhausted batteries and old equipment.

Road safety

●Do not use the earphones while riding a bicycle, driving any kind of motor

vehicle or motorcycle.

This is very dangerous and is illegal in certain regions.

It is dangerous to wear earphones at high volume while crossing roads.

In order to protect your hearing

●Do not wear the earphones with the volume set too high.

Doctors state that listening to music at high volume for prolonged periods is

harmful to hearing.

●If you experience a ringing in your ears, reduce the volume or stop listening.

Warning : Please do not use earphones of other companies besides those of

this company.

Earphones

Environmental information

Earphone CD Player

Carrying Case

Remote Control AC Adaptor

Accessories

Power Input Jack (Refer to page 9)

ESP/Album button

(Refer to pages 17, 18)

STOP button ( )

+10 button (Refer to page 17)

Play/Pause button ( )

SBS / Last Memory button

(Refer to page 16)

10.

11. Volume

12. Earphone Connection jack

(Refer to page 9)

Line Out output jack

(Refer to page 9)

13.

Program button

(Refer to pages 19, 20)

HOLD switch

Bottom of the Main Unit

Buttons and Controls

Main Unit

Skip/Search buttons ( )

(Refer to page 14)

Open switch

Mode button (Refer to page 15)

10 11 12

4 5 6 7

913

Remote Control

(RM-SM95)

REP 1 ALL ALBUM

RANDOM ESPSBS

PROGRAM

1 2 3 4 5

Display

1. PROGRAM indicator

The picture of the display panel below is based on MP3-CD playback.

2. SBS Indicator

3. RANDOM indicator

4. REPEAT indicator

5. ESP Indicator

6. Remaining Battery Power indicator

7. Playtime indicator

8. Album Name indicator

10.

Title (track title & artist) indicator

Anti-S.T (Anti-shock Time)

Buffer Level meter

11. Track Number indicator

12. Album Number indicator

Buttons and Controls

Skip/Search( / ) button

(see page 14)

2. Mode button (see page 15)

Volume

Play/Pause button

HOLD switch (see page 14)

Stop button

7. +10/Album button (see page 17)

8. Earphone jack (see page 9)

Note

•

Time taken to fully charge the battery : 10 hours

•

Battery life of fully charged battery

MP3-CD : 10 hours 30 minutes max.

CD : 12 hours max.

109

Using the rechargeable battery (not supplied)

Open

Strip the sheath covering the terminals

of the rechargeable battery before

charging it.

•

As shown in the illustration, with a knife carefully

strip the sheath of the negative (-) terminal by 6 mm.

Sheath to be stripped

6mm

Insert the battery into the battery

compartment.

•

Insert the battery into the battery

compartment.

Connect the AC adaptor to the

AC outlet and power input jack.

•

Charging of the rechargeable batteries

will commence.

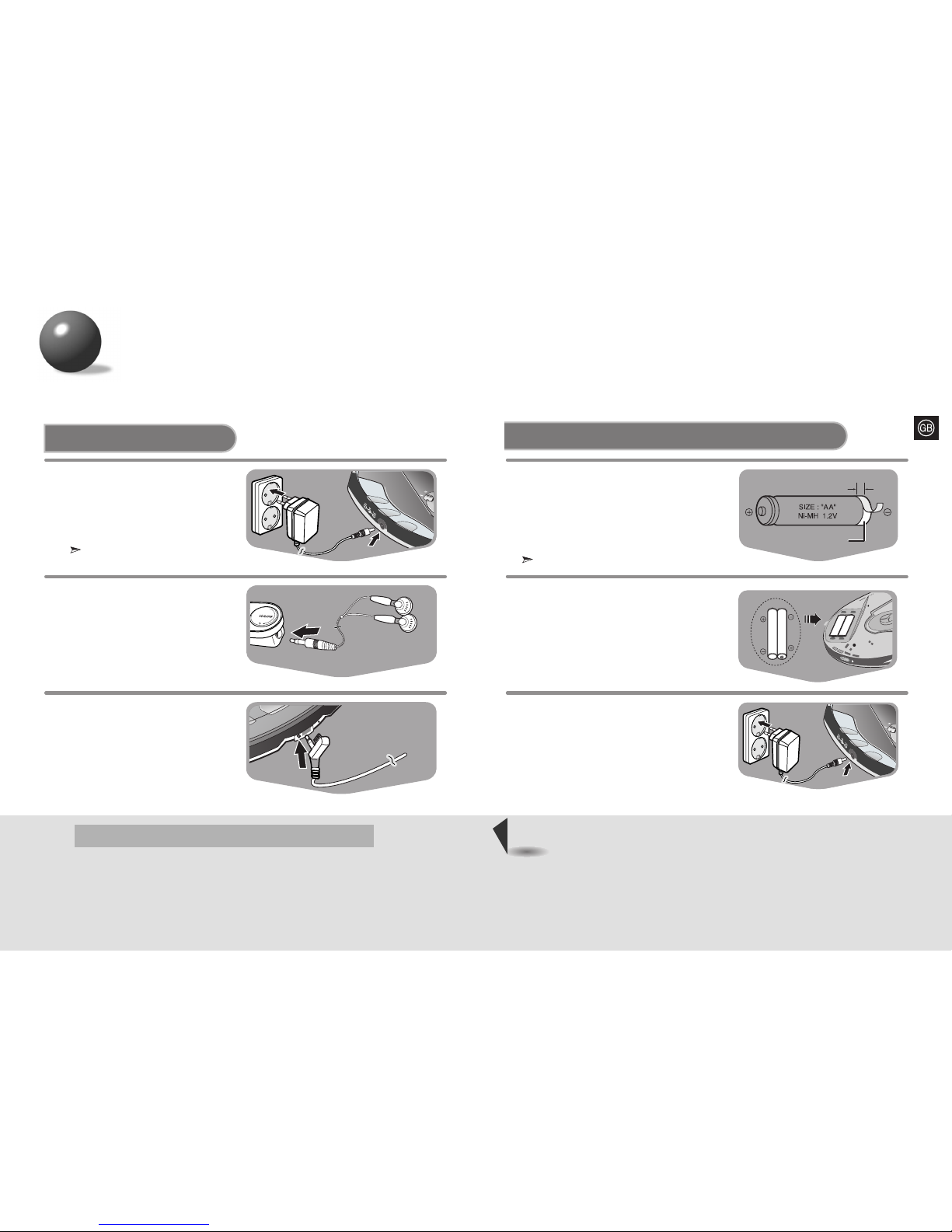

How to Connect

Connect the AC adaptor to the power

input jack. Then, connect the AC plug

of the adaptor to the AC outlet.

•Only use the AC adaptor supplied

with your product.

When you are not using this product,

disconnect the AC adaptor from the AC outlet.

If the sheath is not stripped, charging will not function.

Connect the earphone to the

remote control.

Connect the earphone jack

plug to the main unit.

•Reduce the volume on the

earphone control while increasing

the volume on the main unit.

Preparation before using your unit

Connection to External Device (if necessary)

* Your CD Player may be connected to the AUX IN jack of an external device.

1. Reduce the volume of the external device.

2. Connect the Line Out jack to the Input jack of the device.

• An external device connection cable (not supplied) may be available.

Contact the nearest Samsung Electronics Customer Services.

1211

Using standard batteries

Open

Open the cover of the battery

compartment.

Carefully check the correct

orientation of the positive and

negative terminals of the batteries.

•

Use two AA type 1.5 V batteries.

Use two AA alkaline batteries. Manganese

batteries have a shorter battery life.

•

MP3-CD : 13 hours max.

•

CD (When ESP is Off) : 16 hours max.

CD (When ESP is On) : 14 hours 30 minutes max.

Battery Life (Using alkaline batteries)

Preparation before using your unit

Open

Slide the OPEN button to

open the door.

Insert a CD.

•

Push the door to close it.

Press the Play/Pause

( ) button.

•

Once the CD is recognized,

playback commences.

To stop playback, press

the Stop ( ) button.

•

Press Stop ( ) button

again to switch off the unit.

Press the Play/Pause ( ) button.

•

Playback will be temporarily suspended.

•

Press the Play/Pause ( ) button again to resume

playback.

To temporarily pause playback

Time for Battery Replacement

Track Number Indicator

Playtime Indicator

CD Playback

•

Do not mix old and new batteries.

•

Remove the batteries if they will not be used for a long time.

•

Remove the standard batteries when you use an AC adapter.

Warning

•

Replace the batteries if the remaining battery power indicator “”flashes.

•

Even though the remaining battery power indicator “”may be flashing, if the

batteries have already expired, the LCD remote control will not be lit.

•

Should “”flash, the player will automatically turn off the CD ESP ON mode to

conserve battery power consumption.

1413

Open

Slide the OPEN button to

open the door, and insert

an MP3-CD.

•

Push the door to close it.

Press the Play/Pause

( ) button.

•

The inserted MP3-CD will be

scanned for about 30~90

seconds. Playback will then

commence.

Your CD Player will take a few

moments to scan through all

the tracks recorded on a

particular MP3 CD.

To stop playback, press

the Stop ( ) button.

•

Press Stop ( ) button

again to switch off the unit.

Album

Number

indicator

Track Number indicator

Album Name indicator

Title (track title and

artist) display

Anti-S.T (Anti-Shock

Time) Buffer Level

indicator

Playtime

indicator

MP3-CD Playback

Skip

Press and release the or button

during playback of a CD.

•Press the button to play the next track.

Press the button to go back to the beginning

of the current track. (Briefly press the button

twice to repeat the previous track).

•Press the button while the unit is in “Stop”

(no playback) mode. Track 2 will be played back.

Press the button to play back the previous song.

Press and hold the or button

during playback of a CD.

•

Press and hold the or button.

The CD will playback in fast forward or fast reverse

mode.

•

Release the button to return to normal playback mode.

Skip/Search function

•

When the OPEN switch is slid to open the door, playback will stop.

Note

•Any other button pressed during CD playback will not function.

(On the display, the “HOLD”indicator will flash.)

•

Use the HOLD function when carrying your CD Player around with you.

Use of this function will allow you to conserve battery life as it prevents the

CD Player from being turned on unintentionally if a button is pressed.

•The remote control will still operate while the Hold function on

the main unit is active.

•The main unit will still operate while the Hold function on the

remote control is active.

Hold function

Main Unit

Bottom of the Main Unit

Remote Control

1615

Repeat function

REP ALL

Press the Mode button.

•

Each time the button is pressed,

REP1, REP ALBUM and REP ALL

are selected.

(REP ALBUM mode only works for

MP3-CD disks which contain

albums.)

Random function

RANDOM

Press and hold the Mode button.

•

All tracks will be played back in

random order.

•

To cancel this function, press and

hold the button again, or press the

STOP ( ) button.

Briefly press the Mode button to activate the Repeat function or hold it

down for longer to activate the Random function.

Mode function

Briefly press the Last Memory/SBS button to activate the SBS function

or hold it longer to activate the Last Memory function.

SBS/Last Memory function

SBS

(Super Bass Sound)

function

SBS

Press the SBS button.

•

Each time the SBS button is pressed,

SBS will be turned on and off alternately.

This function allows you to maximise

your listening enjoyment with dynamic

reproduction of low-pitched sounds such

as beating drums or galloping horses.

Last Memory function

When MP3-CD playback is

selected again after your

CD player has been stopped or

turned off, this function allows

playback from the start of the

track that you last listened to.

•

Press and hold the Last Memory button.

Each time the button is pressed and held,

the selection switches between

“On Last.M”and “Off Last.M”.

REP1 allows you to repeat the current track.

REP ALBUM

allows you to repeat all tracks in the current album.

(MP3-CD only)

REP ALL

allows you to replay the entire CD once it has

finished playing.

*This function is only available during

playback of an MP3-CD.

1817

ESP/Album function

Album Function

Press the ESP/Album button.

Press and hold the ESP/Album

button for a while.

•

Each time the button is pressed,

the selection toggles between

“On Album”and “Off Album”.

•

If “Off Album”is selected, the by album playlist

changes to the by title playlist.

•

It moves to the next album.

•

This player is equipped with a graphic LCD that supports the English

language.

•

Tag information is displayed for those files containing them. Otherwise, the

file name is displayed.

•

When writing your own MP3-CDs, we recommend using English for tag

information as well as file names.

•

Languages other than English will be marked with an asterisk “*”.

Example) Pressing the ESP/Album

button during playback of the

first album will take you to the

start of the first track of the

second album.

•

This function is only available during playback of an MP3-CD.

Albums are sections of tracks representing one artist.

This function makes it easier to skip between them.

Main

Unit

•

This function does not apply to MP3-CDs that have not been created with albums.

•

If a file is defective and cannot be recognized, the player skips to the next one, and

similarly for all unrecognizable files.

Note

Press the +10 button.

•

Press the +10 button briefly while playing

back a CD. Playback will skip 10 tracks.

Example : If you want to select track 43 during playback of track 15, press the +10

button three times, and then press the button three times.

•

MP3-CD playback

: Press and hold the ESP/Album button longer to select “Album

Off”. The button is now enabled as the +10 button.

Main Unit

Remote Control

ESP prevents the music being interrupted by

vibration and shock.

ESP (Electronic Skip Protection) function

ESP

Press the ESP/Album button.

•

CD Playback: Press the ESP/Album

button to turn this function on and off.

(During playback of an MP3-CD,

ESP will always be active whether or

not the ESP/Album button is pressed.)

•

The player buffers up to 120 seconds of MP3 and 45 seconds of audio CD data; hence even if the

data flow is interrupted, data is read from memory so that the sound signal remains undisturbed.

•

While listening to music, the Anti-S.T (Anti-Shock Time) Buffer Level is automatically

saved.

Press the +10/Album button.

•

MP3-CD playback

: By default, the button is enabled for Album

function. Press and hold the button longer to

select “Album Off”. The button is now enabled

as the +10 button.

•

CD playback

: The button is enabled as the +10 button only.

+10 button

Otros manuales para MCD-SM60

Tabla de contenidos

Otros manuales de Reproductor de CD de Samsung

Samsung

Samsung Z-510M Manual de usuario

Samsung

Samsung yePP MCD-CM150 Instrucciones de montaje

Samsung

Samsung MM-E430 Manual de usuario

Samsung

Samsung RCD-M70 Manual de usuario

Samsung

Samsung yePP MCD-CF550 Manual de usuario

Samsung

Samsung MCD-SF85 Manual de usuario

Samsung

Samsung MAX-960 Manual de usuario

Samsung

Samsung BD-P1400 Manual de usuario

Samsung

Samsung RCD-M30G Manual de usuario

Samsung

Samsung VCD-311M Manual de usuario

Samsung

Samsung MCD-SF75 - CD YEPP Manual de usuario

Samsung

Samsung MCD-HF920 Manual de usuario

Samsung

Samsung MAX-632P Manual de usuario

Samsung

Samsung DVD-C639P Manual de usuario

Samsung

Samsung MCD-SF85 Manual de usuario

Samsung

Samsung MAX-C570 Manual de usuario

Samsung

Samsung MCD-SM60 Manual de usuario

Samsung

Samsung yePP MCD-CM600 Manual de usuario

Samsung

Samsung MAX-L42 Manual de usuario

Samsung

Samsung MCD-CF570 Manual de usuario

Samsung

Samsung yePP MCD-SM75 Manual de usuario

Samsung

Samsung MX-C630D Manual de usuario

Samsung

Samsung DV7720KV Manual de usuario

Samsung

Samsung MCD-SM55 Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Philips

Philips AZ1207 Manual de usuario

Philips

Philips CD582 Manual de usuario

Philips

Philips AZ 6821 Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Sony

Sony MZ-R3 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Sony

Sony MZ-M10 Manual de usuario

Philips

Philips Expanium AZ 1538 Manual de usuario
