Samsung MCD-SM55 Manual de usuario

Portable MP3-CD Player

MCD-SM55

MP3-CD/CD-R/RW Playback

Instruction Manual

SAMSUNG ELECTRONICS CANADA, INC.

HEADQUARTERS

7037 Financial Drive, Mississauga, Ontario, Canada L5N 6R3

TEL: 1-905-542-3535

www.samsung canada.com

SERVICE DIVISION

7037 Financial Drive, Mississauga, Ontario, Canada L5N 6R3

1-800-SAMSUNG (1-800-726-7864)

AH68-01007R

Main Features

1 2

Contents

What is MP3?

SBS function

The SBS function produces rich,

deep bass tones for a more powerful

overall sound.

ESP function

The ESP function ensures high

resistance to shock or vibration so

that the sound signal remains

undisturbed ( up to 120 seconds for

MP3 and 45 seconds for a CD).

Random function

The Random function allows you to

play tracks in random order.

Album function (MP3-CD Only)

The Album function allows easy

browsing and searching of your

favorite tunes by album name, song

title and artist.

Last Memory function

The Last Memory function allows you

to listen to a song part way through,

and then resume listening again at the

point just before where you left off -

handy for when you have to answer

the phone or door.

MP3 means MPEG1 Layer 3, the global standard for audio signal compression

technology. It uses digital compression technology to compress original sound data by up

to 12 times without sound quality degradation.

File Compatibility

●The unit will playback files created in MP3 format (Mpeg1.Layer 3) with *.mp3 as their

extension.

●Files created in MP2 format (Mpeg1.Layer2) with *.mp2 as their extension can also be

played back.

How many MP3 files can a CD-R or CD-RW disc record?

●The maximum capacity of one CD-R or CD-RW disc is 680MB.

Normally, one MP3 file has a capacity of 4MB, therefore approximately 170 files can

be recorded on a single disc.

Safety Warning 3

Buttons and Controls 5

Preparation before using your unit 9

●Using the AC adapter (not supplied) 9

●Using the rechargeable batteries (not supplied) 10

●Using standard batteries (not supplied) 11

CD Playback 12

MP3-CD Playback 13

Skip/Search function 14

Mode function 15

SBS/Last Memory function 16

ESP/Album function 17

+10 button 17

Program function 19

●To confirm the program 20

●To change the program 20

●To cancel the program mode 20

Features 21

Maintaining and looking after your unit 22

Troubleshooting Guide 23

Specification 24

Open

Volume

Phones

Open

Volume

Phones

Album

SBS

40SecondsAnti-shock

DigitalAudioPlayer

MCD-MP80

Open

Volume

Phones

Album

SBS

40SecondsAnti-shock

DigitalAudioPlayer

MCD-MP80

Open

Volume

Phones

Album

SBS

40SecondsAnti-shock

DigitalAudioPlayer

MCD-MP80

Open

Volume

Phones

Album

SBS

40SecondsAnti-shock

DigitalAudioPlayer

MCD-MP80

Open

Volume

Phones

Album

SBS

40SecondsAnti-shock

DigitalAudioPlayer

MCD-MP80

Open

Volume

Album

SBS

40SecondsAnti-shock

DigitalAudioPlayer

MCD-MP80

Open

Volume

Phones

Take care not to allow dust

or other contaminants to

come into contact with

your player.

Do not apply heavy

pressure to the player. Do not leave your player

in direct sunlight or near

a heat source.

Do not put anything other

than a CD (CD-R or CD-RW)

inside your player.

●Such actions will

damage your player.

Do not use broken or

scratched MP3 CDs. Do not use your player

on uneven or unstable

surfaces.

●Your player may not

operate properly.

Do not touch the lens

with your finger or

scratch it.

●Your player may not

operate properly.

Do not place your

player in a dusty or

humid location.

Do not attempt to take

apart, repair or modify

your player.

●Such actions will

damage your player.

Safety Warning

Road safety

●Do not use the headphones while riding a bicycle, driving any kind of motor

vehicle or motorcycle.

This is very dangerous and is illegal in certain regions.

It is dangerous to listen to headphones at high volume while crossing roads.

In order to protect your hearing

●

Do not wear the headphone with the volume set too high.

Doctors state that listening to music at high volume for prolonged periods is

harmful to hearing.

●If you experience a ringing in your ears, reduce the volume or stop listening.

Headphone

●Your unit consists of materials which can be recycled if disassembled by a

specialized company. Please observe local regulations regarding the

disposal of packing materials, exhausted batteries and old equipment.

Environmental information

Headphones

Accessories

Last

Memory

+10

ESP/

Album Program

SBS

Mode

Volume

Open

Line Out

Remote

1345 6 7

12 13108 9

1. Power Input Jack (Refer to page 9)

2. ESP/Album button

(Refer to pages 17, 18)

3. STOP button

4. +10 button (Refer to page 17)

5. Play/Pause button

7. Mode button (Refer to page 15)

6. Last Memory/SBS button

(Refer to page 16)

10.

11.

12.

Program button

(Refer to pages 19, 20)

13.

Headphone Connection jack

(Refer to page 9)

Line Out output jack

(Refer to page 9)

Buttons and Controls

Volume

Skip/Search buttons

(Refer to page 14)

8. Open switch

REP 1 ALL ALBUM

RANDOM ESPSBS

PROGRAM

1 2 3 4 5

Display

1. PROGRAM indicator

The picture of the display panel below is based on MP3-CD playback.

2. SBS Indicator

3. RANDOM indicator

4. REPEAT indicator

5. ESP Indicator

6. Remaining Battery Power indicator

7. Playtime indicator

8. Album Name indicator

(MP3-CD Only)

10.

Title (track title & artist) indicator

(MP3-CD Only)

Anti-S.T. (Anti-shock Time)

Buffer Level meter

11. Track Number indicator

12. Album Number indicator

Buttons and Controls

•Buttons pressed during CD playback will not function.

(On the display, the “HOLD” indicator will flash.)

•Use the HOLD function when carrying your CD Player

around with you.

Use of this function will allow you to conserve battery life as

it prevents the CD Player from being turned on

unintentionally if a button is pressed.

HOLD

Hold function

Bottom of the Main Unit

Note

•

Time taken to fully charge the battery : 10 hours

•

Battery life of fully charged battery

MP3-CD : 10 hours, 30 minutes max.

CD : 12 hours max.

109

Using rechargeable batteries (not supplied)

Strip the sheath covering the terminals

of the rechargeable battery before

charging it.

•

As shown in the illustration, carefully strip the

sheath of the negative (-) terminal by 6 mm.

Sheath to be stripped

6mm

Insert the batteries into the

batteries compartment.

•

Carefully check the correct orientation of

the positive and negative terminals of the

battery.

Connect the AC adaptor to the

AC outlet and power input jack.

•

Charging of the rechargeable batteries

will commence.

Using the AC adapter (not supplied)

Connect the AC adaptor to the power

input jack. Then, connect the AC

plug of the adaptor to the AC outlet.

•Only use the AC adaptor supplied

with your product.

When you are not using this product,

disconnect the AC adaptor from the AC outlet.

If the sheath is not stripped, charging will

not function.

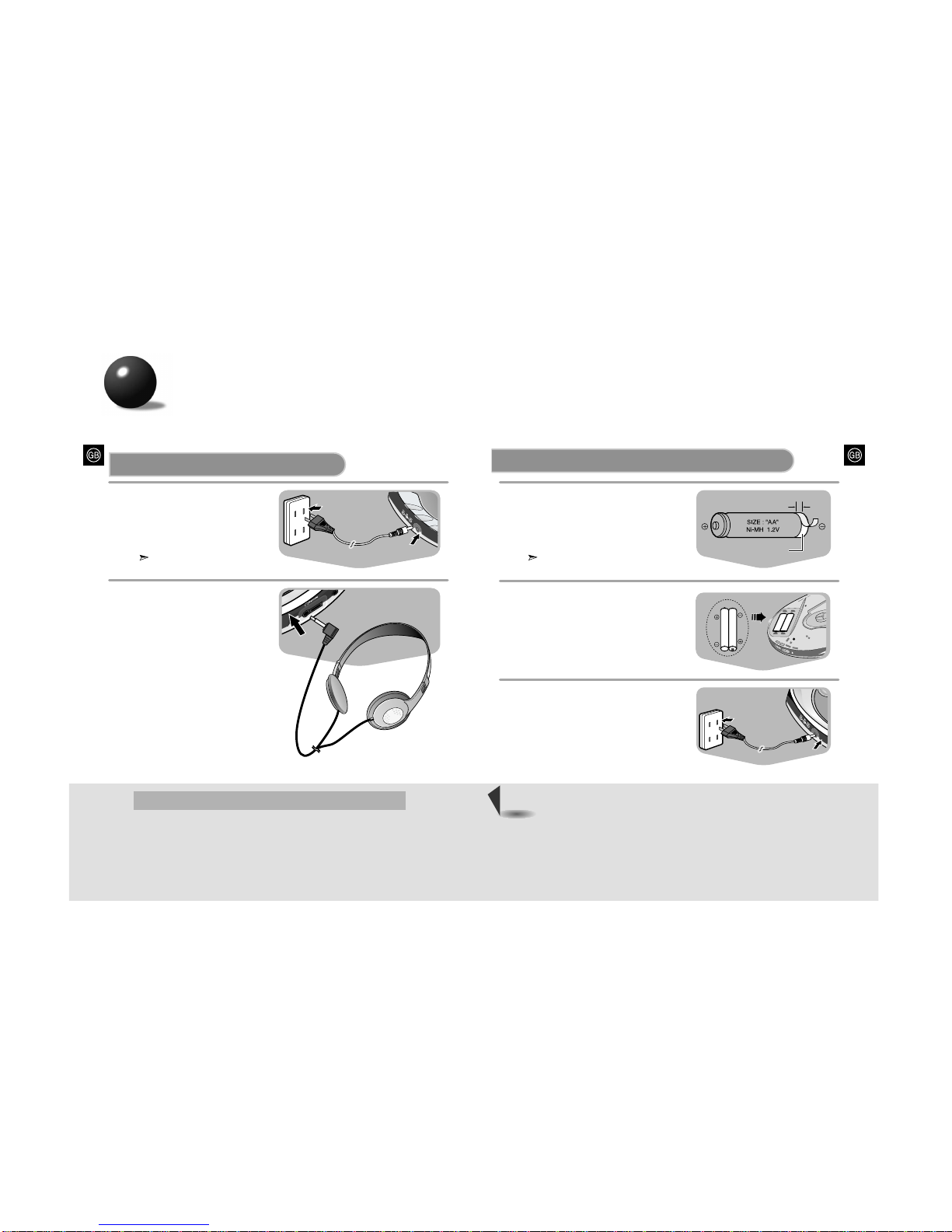

Connect the headphone jack

plug to the main unit.

Preparation before

using your unit

Connection to External Device (if necessary)

* Your CD Player may be connected to the AUX IN jack of an external device

1. Reduce the volume of the external device

2. Connect the Line Out jack to the Input jack of the device with connection

cable (not supplied).

1211

Open

Open the cover of the battery

compartment.

Carefully check the correct

orientation of the positive and

negative terminals of the batteries.

•

Use two AA type 1.5 V batteries.

•

Do not mix old and new batteries.

•

Remove the batteries if they will not be used for a long time.

•

Remove the standard batteries when you use an AC adapter.

Use two AA alkaline batteries. Manganese

batteries have a shorter battery life.

•

MP3-CD : 13 hours max.

•

CD (When ESP is Off) : 16 hours max.

CD (When ESP is On) : 14 hours 30 minutes max.

Battery Life (Using alkaline batteries)

Warning

Preparation before using your unit

Open

Slide the OPEN button to

open the door.

Insert a CD.

•

Push the door to close it.

Press the Play/Pause

( ) button.

•

Once the CD is recognized,

playback commences.

To stop playback, press

the Stop ( ) button.

•

Press the Stop ( )

button again to switch off

the unit.

Press the Play/Pause ( ) button.

•

Playback will be temporarily suspended.

•

Press the Play/Pause ( ) button again to resume

playback.

To temporarily pause playback

Time for Battery Replacement

Track Number Indicator

Playtime Indicator

CD Playback

•

Replace the batteries if the remaining battery power indicator “”flashes.

•

Even though the remaining battery power indicator “”may be flashing, if the

batteries have already expired, the LCD remote control will not be lit.

•

Should “”flash, the player will automatically turn off the CD ESP ON mode to

conserve battery power consumption.

Using standard batteries (not supplied)

Open

Slide the OPEN button to

open the door, and insert

an MP3-CD.

•

Push the door to close it.

Press the Play/Pause

( ) button.

•

The inserted MP3-CD will be

scanned for about 30~90

seconds. Playback will then

commence.

Your CD Player will take a few

moments to scan through all

the tracks recorded on a MP3

CD.

To stop playback, press

the Stop ( ) button.

•

Press the Stop ( ) button

again to switch off the unit.

Album

Number

indicator

Track Number indicator

Album Name indicator

Title (track title and

artist) display

Anti-S.T (Anti-Shock

Time) Buffer Level

indicator

Playtime

indicator

MP3-CD Playback

Skip

Press and release the or button

during playback of a CD.

•Press the button to play the next track.

Press the button to go back to the beginning

of the current track. (Briefly press the button

twice to repeat the previous track).

•Press the button while the unit is in “Stop”

(no playback) mode. Track 2 will be played back.

Press the button to play back the previous song.

Press and hold the or button

during playback of a CD.

•

Press and hold the or button.

The CD will playback in fast forward or fast reverse

mode.

•

Release the button to return to normal playback mode.

Skip/Search function

•

When the OPEN switch is slid to open the door, playback will stop.

Note

1615

Repeat function

Mode REP ALL

Press the Mode button.

•

Each time the button is pressed,

REP1, REP ALBUM and REP ALL

are selected.

(REP ALBUM mode only works for

MP3-CD disks which contain

albums.)

Random function

Mode

RANDOM

Press and hold the Mode button.

•

All tracks will be played back in

random order.

•

To cancel this function, press and

hold the button again, or press the

STOP ( ) button.

Briefly press the Mode button to activate the Repeat function or hold it

down for longer to activate the Random function.

Mode function

Briefly press the Last Memory/SBS button to activate the SBS function

or hold it longer to activate the Last Memory function.

SBS/Last Memory function

SBS

(Super Bass Sound)

function

SBS

Last

Memory

Press the SBS button.

•

Each time the SBS button is pressed,

SBS will be turned on and off alternately.

This function allows you to maximize

your listening enjoyment with dynamic

reproduction of low-pitched sounds.

Last Memory function

SBS

Last

Memory

When MP3-CD playback is

selected again after your

CD player has been stopped or

turned off, the unit plays back

from the start of the track that

you last listened to.

•

Press and hold the Last Memory button.

Each time the button is pressed and

held, the selection switches between

“On Last.M”and “Off Last.M”.

This function is only available during

playback of an MP3-CD.

REP1 allows you to repeat the current track.

REP ALBUM

allows you to repeat all tracks in the current album.

(MP3-CD only)

REP ALL

allows you to replay the entire CD once it has

finished playing.

ESP prevents the music being interrupted by vibration and shock.

ESP (Electronic Skip Protection) function

1817

ESP/Album function

Album Function

ESP/

Album

Press the ESP/Album button.

Press and hold the ESP/Album

button.

•

Each time the button is pressed,

the selection toggles between

“On Album”and “Off Album”.

•

If “Off Album”is selected, the album playlist

changes to the title playlist.

•

It moves to the next album.

•

This player is equipped with a graphic LCD that supports the English

language.

•

Tag information is displayed for those files containing them.

Otherwise, the file name is displayed.

•

When writing your own MP3-CDs, we recommend using English for tag

information as well as file names.

•

Languages other than English will be marked with an asterisk “*”.

Example) Pressing the ESP/Album

button during playback of the

first album will take you to

the start of the first track of

the second album.

•

This function is only available during playback of an MP3-CD.

Albums are sections of tracks representing one artist.

This function makes it easier to skip between them.

•

This function does not apply to MP3-CDs that have not been created with

albums.

•

If a file is defective and cannot be recognized, the player skips to the next

one.

Note

Press the +10 button.

•Press the +10 button briefly while playing

back a CD. Playback will skip 10 tracks.

Example : If you want to select track 43 during playback of track 15, press the

+10 button three times, then press the button three times.

•MP3-CD playback : Press and hold the ESP/Album button longer to select

“Album Off”. The button now functions as the +10 button.

ESP/

Album

ESP

Press the ESP/Album button.

•CD Playback: Press the ESP/Album

button to turn this function on and off.

(During playback of an MP3-CD,

ESP will always be active whether or

not the ESP/Album button is pressed.)

•The player buffers up to 120 seconds of

MP3 and 45 seconds of audio CD data; hence even if the data flow is interrupted,

data is read from memory so that the sound signal remains undisturbed.

•While listening to music, the Anti-S.T (Anti-Shock Time) Buffer Level is automatically

saved.

+10 button

Otros manuales para MCD-SM55

Tabla de contenidos

Otros manuales de Reproductor de CD de Samsung

Samsung

Samsung MCD-HF920 Manual de usuario

Samsung

Samsung MAX-DN55 Manual de usuario

Samsung

Samsung Z-100M Manual de usuario

Samsung

Samsung DVD-C639P Manual de usuario

Samsung

Samsung BD-J7500 Manual de usuario

Samsung

Samsung RCD-M30G Manual de usuario

Samsung

Samsung RCD-695 Manual de usuario

Samsung

Samsung MX-C730D Manual de usuario

Samsung

Samsung yePP MCD-CM370 Manual de usuario

Samsung

Samsung MAX-VL6100 Manual de usuario

Samsung

Samsung MCD-SF85 Manual de usuario

Samsung

Samsung CD YEPP MCD-HM200H Manual de usuario

Samsung

Samsung Z-510M Manual de usuario

Samsung

Samsung MAX-B450 Manual de usuario

Samsung

Samsung MCD-HM200 Manual de usuario

Samsung

Samsung MAX-B420 Manual de usuario

Samsung

Samsung MCD-SM55 Manual de usuario

Samsung

Samsung MAX-632P Manual de usuario

Samsung

Samsung yePP MCD-CM600 Manual de usuario

Samsung

Samsung DVD-C631P Manual de usuario

Samsung

Samsung MAX-810 Manual de usuario

Samsung

Samsung PCD-S70 Manual de usuario

Samsung

Samsung yePP MCD-SM85 Manual de usuario

Samsung

Samsung MCD-SM55 Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Philips

Philips AZ1207 Manual de usuario

Philips

Philips CD582 Manual de usuario

Philips

Philips AZ 6821 Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Sony

Sony MZ-R3 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Sony

Sony MZ-M10 Manual de usuario

Philips

Philips Expanium AZ 1538 Manual de usuario
