Samsung DMS2 Manual de usuario

DMS2(Data Management Server2)

MIM-D00A

Air Conditioner

installation manual

DB98-32138A(3)

imagine the possibilities

Thank you for purchasing this Samsung product.

MIM-D00A_DMS2_IM_E 32138-3.indd 57 2010-09-03 오후 2:12:02

E-2

Safety Precautions

Read carefully this installation manual before

installation and check if the DMS2 is installed correctly

after installation.

 Do not attempt to install or repair this DMS2 by yourself.

This DMS2 contains no user-serviceable parts.

Always consult authorized service personnel for repairs.

When moving, consult authorized service personnel for

disconnection and installation of the DMS2.

Ensure that the wall is strong enough to support the

weight of the DMS2.

Must install the DMS2 with rated power supply.

The DMS2 must be installed according to

the national electrical rules by an installation specialist.

If you wish to uninstall the DMS2, consult an authorized

installation center.

WARNING

CAUTION  Do not use inflammable gases near the DMS2.

Do not install the DMS2 in a location where

it will come into contact with combustible gases,

machine oil, sulphide gas, etc.

Avoid locations where acid/alkali solution or special

spray is used.

Choose a location that is dry and sunny, but not exposed

to direct sunlight. Suitable temperature is between

0°C(32°F) and 39°C(102.2°F).

 Do not spill water into the DMS2.

Do not apply tensile strength to the cable to avoid cable

damage.

Do not press the buttons with a sharp object.

Do not connect the power cable to the control terminal.

If the DMS2 is installed in a hospital or other special

places, it should not affect other electronic devices.

This installation manual describes how to install the DMS2. For installation of

other optional accessories, refer to the appropriate installation manual.

MIM-D00A_DMS2_IM_E 32138-2.indd 2 2010-07-22 ｿﾀﾈﾄ 2:31:21

E-3

Contents

 SAFETY PRECAUTIONS

.....................................................................

 BEFORE INSTALLING THE DMS2

...................................................

 ACCESSORIES

.....................................................................................

 VIEWING THE PARTS

........................................................................

 PRODUCT DIMENSIONS

...................................................................

 SYSTEM ARCHITECTURE

...................................................................

 COMPATIBLE DEVICES

.....................................................................

 INSTALLING THE DMS2

................................................................

 SETTING THE COMPUTER ENVIRONMENT

......................................

 SETTING THE DMS2

......................................................................

 TRACKING

.........................................................................................

 PIM SETTING

..................................................................................

 SETTING THE POWER DISTRIBUTION

..............................................

 APPENDIX

.........................................................................................

MIM-D00A_DMS2_IM_E 32138-2.indd 3 2010-07-22 ｿﾀﾈﾄ 2:31:21

E-4

Checks before installation

DMS2 IP

 A public IP is needed to access the DMS2 over the

internet.

(One public IP is needed for each DMS2)

 A private IP may be used if the DMS2 need not be

accessed over the internet.

 DMS2 supports DHCP.

DHCP(Dynamic Host Configuration Protocol)

An Internet protocol for automating the configuration of

computers that use TCP/IP.

DHCP is used to automatically assign IP addresses.

In other words, the IP address of the host is supported only

when the PC is on.

Network related equipments

DHCP(Dynamic Host Configuration Protocol)

An Internet protocol for automating the configuration of

computers that use TCP/IP.

DHCP is used to automatically assign IP addresses.

In other words, the IP address of the host is supported only

when the PC is on.

Installation connection wire

 The LAN cable and the communication cables from

centralized controllers/interface modules must be

installed in such a way that the wires can be connected

to the DMS2 with ease.

Note

The DMS2 is a server and supports static IP and

Dynamic IP. To access the DMS2 through the internet

or with S-NET series, the DMS2 address,which is the IP

address, must be known.

A static IP service from an internet service provider

must be used if xDSL (ADSL, VDSL) is being used

for internet connection. (Static IP costs more than

dynamic IP.)

Choosing between a private IP and a public static IP

depends on whether the DMS2 needs to be controlled

from an external location.

Before Installing the DMS2

MIM-D00A_DMS2_IM_E 32138-2.indd 4 2010-07-22 ｿﾀﾈﾄ 2:31:21

E-5

Item DMS2

Quantity 1

Shape

Adapter Power cable M4x16 Screw

1 6

User’s manual Installation

manual Cable tie

1 1 1

Make sure you have each item. Supplied items may vary depending on your

country or service provider.

Accessories

 The DMS2 must be installed by a trained installer.

 Ensure the main power is turned off before installing

the DMS2.

 Be sure to use adapter and power cable we provide.

 The power cable and the communication cable must

be installed according to the national electrical wiring

regulations.

MIM-D00A_DMS2_IM_E 32138-2.indd 5 2010-07-22 ｿﾀﾈﾄ 2:31:22

E-6

DMS2 Exterior

LCD Display

Shows current time and IP address. Various

messages will be displayed depending on

button input.

LCD operation button

There are 4 buttons(Menu, ▼(Down), ▲(Up),

Set) and you can access to menu and move,

check the menu.

LED Indicator

Check 15 LED status such as Power, CPU-Alive,

Ethernet-Linked/Active, COM1~5-TX/RX and

Check

DMS2 Bottom cover

Unfasten 2 screws on the bottom and

separate the bottom cover from DMS2.

Then check cable connection part.

Item Name Status

Power Power indicator Turns blue when the

power is supplied.

CPU Alive CPU operation indicator

Blinks in orange with

1 second intervals during

normal operation.

Ethernet–Linked Internet connection indicator Turns green during

normal connection.

Ethernet–Active Internet data transmission/reception indicator

Blinks in orange during

normal transmission/

reception.

COM1~5 – TX Channel 1~5 Centralized controller/Interface module

Data transmission Indicator

Blinks in green during

normal transmission.

COM1~5 – RX Channel 1~5 Centralized controller/Interface module

Data reception Indicator

Blinks in green during

normal reception,

Check Indoor/Outdoor unit/Communication check Indicator Turns green when notice

occurs.

LED Indicator

Viewing the Parts

Main Parts

MIM-D00A_DMS2_IM_E 32138-2.indd 6 2010-07-22 ｿﾀﾈﾄ 2:31:22

E-7

Name Description

DI Terminal1 Digital Input connection terminal, Channel1~Channel5

DI Terminal2 Digital Input connection terminal, Channel6~Channel10

DO Terminal3 Digital Output connection terminal, Channel1~Channel5

DO Terminal4 Digital Output connection terminal, Channel6~Channel10

Reset Button

Reset DMS2

Power Terminal

Connect DMS2

adapter

Serial Terminal Service agent checks DMS2 error status using this terminal

SD card socket

Sub memory (for program update and set information saving) socket

RS485

Communication

Terminal

Connect for RS485 communication with devices such as centralized

controller/Interface module

-COM1 ~ COM5

Ethernet Terminal Connect LAN cable

Cable tie groove Groove for arranging cables

Cable tie groove

SD Card Socket

Serial Terminal

Power Terminal

Reset Button

DI Terminal1 DI Terminal2 DO Terminal3 DO Terminal4

Ethernet Terminal

RS485 Communication Terminal

Viewing the Parts

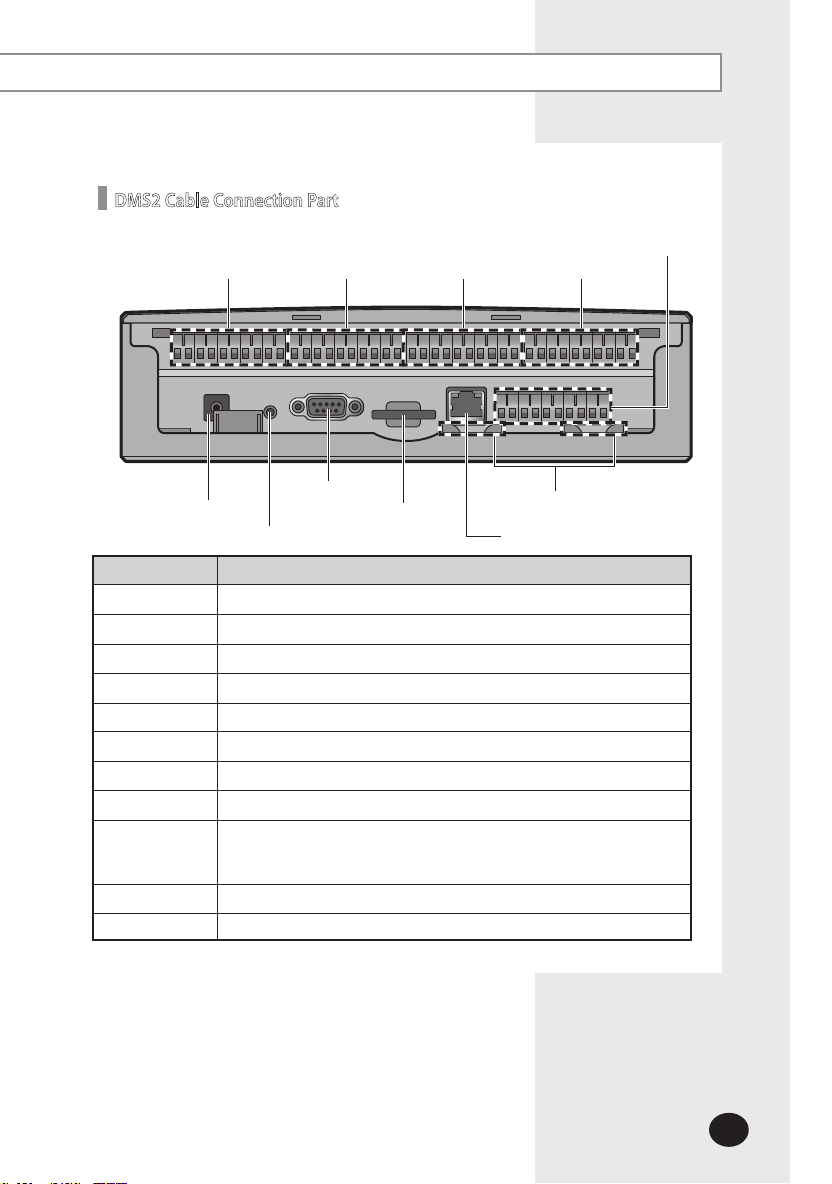

DMS2 Cable Connection Part

MIM-D00A_DMS2_IM_E 32138-2.indd 7 2010-07-22 ｿﾀﾈﾄ 2:31:22

E-8

240

255

64.80 (Unit : mm)

Display Board

40-pin Cable

20-pin Cable

DI contact control

option switch

Main Board

Sub Board

DMS2 Interior

Main Parts

Viewing the Parts (Continued)

Note If you need external circuit configuration, consult with the manufacturer.

Refer to page 20 for DI contact input operation.

Product Dimensions

MIM-D00A_DMS2_IM_E 32138-2.indd 8 2010-07-22 ｿﾀﾈﾄ 2:31:23

E-9

 Connecting centralized controller and DMS2 ( type)

- You can control up to 16 centralized controllers and 256 indoor units using DMS2.

 Connecting interface module and DMS2( type)

- You can control up to 80 interface modules and 256 indoor units using DMS2.

*16 interface modules can be connected to RS485 communication channel of DMS2.

- The more interface modules are connected, the longer time takes for tracking.

Display Board

40-pin Cable

20-pin Cable

DI contact control

option switch

Main Board

Sub Board

System Architecture

S-NET mini

Centralized

controller

DMS2

Internet

S-NET3

Interface module Interface module Interface module



When connecting centralized controller and interface module to the DMS2 of same

communication channel, only one of them will communicate according to the

communication channel mode setting of [System Settings]-[Tracking]. Therefore,

do not connect the centralized controller and interface module to the same

communication channel.



If you set the communication channel mode as interface module, virtual centralized

controller address will be assigned. Therefore please aware of that if you set the

centralized controller address as virtual centralized controller address when you

connect interface module and centralized controller at the same, it may cause trouble

for bringing device information.

Channel 0: Virtual centralized controller 11, Channel 1: Virtual centralized controller 12,

Channel 2: Virtual centralized controller 13, Channel 4: Virtual centralized controller 14,

Channel 5: Virtual centralized controller 15

MIM-D00A_DMS2_IM_E 32138-2.indd 9 2010-07-22 ｿﾀﾈﾄ 2:31:24

E-10

Compatible Devices

No Devices Model Note

Indoor Unit

Outdoor Unit

All System indoor/outdoor units

such as: DVM, DVM PLUS,

DVM PLUS II, DVM PLUS III,

DVM PLUS

, mini DVM, CAC Series

Centralized

Controller

MCM-A202, MCM-A202A,

MCM-A202B -

SIM MIM-B12 Needed for EHP power distribution

PIM MIM-B16 Needed for EHP power distribution

Interface

module

MIM-B04A (DVM, DVM PLUS, etc.)

MIM-B13 (DVM PLUS II, etc.)

MIM-B13A (DVM PLUS II/

DVM PLUS III, DVM PLUS

etc.)

MIM-B13B

Watt-hour

Meter

RS485 comm. type

Connected with SIM

Needed for power distribution

( Please consult Samsung for compatible

power meters)

Pulse type

Connected with PIM

Pulse Width: 20~400(ms)

Pulse: 1~10000(Wh/Pulse)

  Products with ‘* ’ are not Samsung products and must be purchased separately.

(Only selected power meters may be used for protocol compatibility issues.)

MIM-D00A_DMS2_IM_E 32138-2.indd 10 2010-07-22 ｿﾀﾈﾄ 2:31:25

Tabla de contenidos

Otros manuales de Acondicionador de aire de Samsung

Samsung

Samsung AS12 XAX Series Manual de usuario

Samsung

Samsung AZ09AATEA Manual de usuario

Samsung

Samsung AW05M0YEA Manual de usuario

Samsung

Samsung AZ09AATEA Manual de usuario

Samsung

Samsung AM NN1PEH Series Manual de usuario

Samsung

Samsung MH052FUEA Manual de usuario

Samsung

Samsung SH09AI8VX Manual de usuario

Samsung

Samsung CC24BTVA Manual de usuario

Samsung

Samsung RC DHXE Series Manual de usuario

Samsung

Samsung AR36BSHUMGMNCV Manual de usuario

Samsung

Samsung AW0700B Manual de usuario

Samsung

Samsung AP-3607BR Manual de usuario

Samsung

Samsung AW069AB Manual de usuario

Samsung

Samsung AP500PF Manual de usuario

Samsung

Samsung AJ009JNNDCH FJM series Manual de usuario

Samsung

Samsung AQV36W Manual de usuario

Samsung

Samsung AM036FXMDCH Manual de usuario

Samsung

Samsung AR TY5A Series Manual de usuario

Samsung

Samsung AF55JV1MAEE Manual de usuario

Samsung

Samsung AVMBH020CA0 Manual de usuario

Samsung

Samsung AR TXFY Series Manual de usuario

Samsung

Samsung AQ12PHGE/AFR Manual de usuario

Samsung

Samsung AM JXVHGH EU Series Manual de instrucciones

Samsung

Samsung HH105ECM Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario

Frigidaire

Frigidaire FAZ12ES2A Manual de usuario
