Samsung CH EAMC Series Manual de usuario

ENGLISH

System Air Conditioner (Cooling and Heating)

E S F I P D G R DB98-26330A(4)

CHEAM(1)C Series

ENGLISH

ESPAÑOLFRANÇAISITALIANOPORTUGUÊSDEUTSCH

EΛΛHNIKA

RUSSIAN

INSTALLATION

MANUAL

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

WARNING

 The unit should not be installed by the user. Ask the dealer or autho-

rized company to install the units except room air conditioners for the

U.S.A and Canada area.

 If the unit is installed improperly, water leakage, electric shock or fire

may result.

 Mount with the lowest moving parts at least 2.5 m above the floor or

grade level. (If applicable)

 The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

 When installing the built-in type air conditioner, keep all electrical

cables such as the power cable and the connection cord in pipe, ducts,

cable channels e.t.c to protect them against liquids, outside impacts

and so on.

Installing the unit

 If the power cord of this air conditioner is damaged, it must be replaced

by the manufacturer, its service agent or similarly qualified persons in

order to avoid a hazard.

 The unit must be plugged into an independent circuit if applicable or

connect the power cable to the auxiliary circuit breaker. An all pole

disconnection from the power supply must be incorporated in the fixed

wiring with a contact opening of >3mm.

 Do not use an extension cord with this product.

 If the unit is equipped with a power supply cord and a plug, the plug

must be accessible after installation.

 The air conditioner must be installed in accordance with national wiring

regulations and safety regulations wherever applicable.

Power supplyline,

fuse or circuit breaker

Risk of electric shock. • Can cause injury or death. • Disconnect all

remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

ENGLISH

E-3

 Preparation for Installation ............................................................................................................... 4

 Deciding Where to Install the Indoor Unit ................................................................................ 5

 Indoor Unit Installation ........................................................................................................................ 7

 Purging the Unit ..................................................................................................................................... 8

 Connecting the Refrigerant Pipe ................................................................................................... 9

 Cutting / Flaring the Pipes ................................................................................................................ 10

 Performing Leak Test & Insulation .............................................................................................. 11

 Connecting the Cables to the Outdoor Unit ............................................................................. 11

 Drainpipe and Drain Hose Installation ....................................................................................... 12

 Connecting the Connection Cord ................................................................................................. 14

 Assigning Address to Indoor Unit ................................................................................................. 15

 Installing the Safety Net ..................................................................................................................... 16

 Troubleshooting ...................................................................................................................................... 17

 Parts List (Optional) ............................................................................................................................. 20

Contents

E-4

Preparation for Installation

When deciding on the location of the air conditioner with the

owner, the following restrictions must be taken into account.

General

Do NOT install the air conditioner in a location where it will

come into contact with the following elements:

 Combustible gases

 Saline air

 Machine oil

 Sulphide gas

 Special environmental conditions

If you must install the unit in such conditions, first consult your dealer.

Accessories

 The following accessories are supplied with the indoor unit.

The type and quantity may differ depending on the specifications.

Installation manualM4x12 tapped Screw Pad stopper

Pattern sheet InsulationInsulation cover drain Insulation cover band

Insulation pipe Insulation drain hose Cable-tie Flexible hose

Safety net M4x12 tapped Screw

ENGLISH

E-5

Deciding Where to Install the Indoor Unit

Indoor Unit

 There must be no obstacles near the air inlet and outlet.

 Install the indoor unit on a ceiling that can support its weight.

 Maintain sufficient clearance around the indoor unit.

 Make sure that the water dripping from the drain hose runs away correctly

and safely.

 The indoor unit must be installed in this way, that they are out of public

access. (Not touchable by the users)

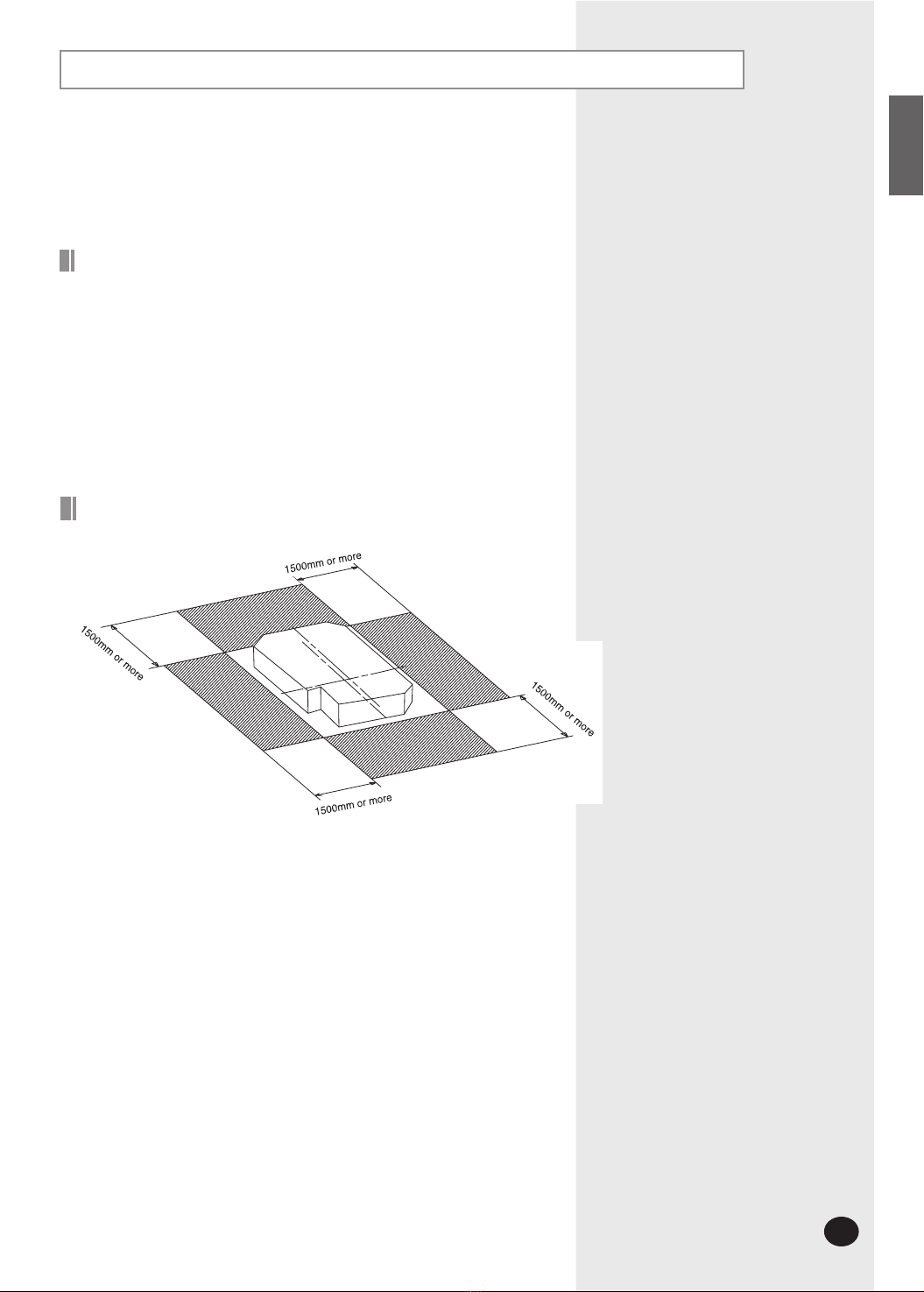

Space Requirements for Indoor Unit

E-6

Deciding Where to Install the Indoor Unit (continued)

Drawing of the indoor unit

Unit : mm

No. Name "A"Model "B"Model

Liquid pipe connection

CH052EAMC/CH070EAM1C:

6.35(1/4")

CH070EAMC:

9.52(3/8")

CH094EAMC:

9.52(3/8")

Gas pipe connection

CH052EAMC:ø

12.7(1/2")

CH070EAM(1)C:

15.88(5/8")

CH094EAMC:

15.88(5/8")

19.05(3/4")

Drain pipe connection

Power supply connection

Air discharge grille

Air suction grille

950

059

242

661

061

322

246

305

840

57 57

754

892

322

242

246

305

091

840

001

260

25 25

290

57 57

25 25260

290

Branch duct

connection

mm0

m r

der

iuqe

lba

tsu

jdA

ats

dA8

ero

riuqe

caps

Branch duct

connection

“A” Model: CH052/070/094EAMC

CH070EAM1C

“B” Model: CH105/140EAMC

860~690 (Ceiling opening)

699(Suspension position)

860~690(Ceiling opening)

766(Suspension)

ENGLISH

E-7

Place the pattern sheet on the ceiling at the spot where you want to

install the indoor unit.

Insert bolt anchors, use existing ceiling supports or construct a suitable

support as shown in figure.

Install the suspension bolts depending on the ceiling type.

Screw eight nuts to the suspension bolts making space for hanging

the indoor unit.

Hang the indoor unit to the suspension bolts between two nuts.

Screw the nuts to suspend the unit. Cut a pad stopper and place it on the

bracket at this time.

Adjust the unit to the appropriate position considering the installation area for the

front panel.

7-1 Place the pattern sheet on the indoor unit.

7-2 Adjust a space between the ceiling and the indoor unit by using the gauge of

dimensions.

7-3 Fix the indoor unit securely after adjusting level of the unit by using a leveler.

7-4 Remove the pattern sheet, connect the other cables and install the front panel.

 Ensure that the ceiling is strong enough to support

the weight of the indoor unit.

Before hanging the unit, test the strength of each

attached suspension bolt.

 If the length of suspension bolt is more than 1.5m,

it is required to prevent vibration.

IMPORTANT

You must install the suspension bolts more than four

when installing the indoor unit.

IMPORTANT

 Piping must be laid and connected inside the ceiling when

suspending the unit. If the ceiling is already constructed,lay

the piping into position for connection to the unit before

placing the unit inside the ceiling.

Note

 Since the diagram is made of paper, it may shrink or stretch

slightly due to temperature or humidity. For this reason, before

drilling the holes maintain the correct dimensions between the

markings; refer to page 5 or 6.

Note

Concrete

Suspension bolt(M8)-field supply

Hole in anchor

Hole in plug

Insert

Ceiling support

Pad stopper

Bracket

20mm

Indoor Unit

Ceiling

Gauge of

Dimensions

17mm

Indoor Unit Installation

It is recommended to install the piping joint before installing the indoor unit.

E-8

 To prevent dirt or foreign objects from getting into the pipes

during installation, do NOT remove the pinch pipe completely

until you are ready to connect the piping.

Note

On delivery, the indoor unit is loaded with refrigerant gas.

All this gas must therefore be purged before connecting the

assembly piping. To purge the inert gas, proceed as follows.

Unscrew the pinch pipe at the end of each refrigerant pipe.

Result: All inert gas escapes from the indoor unit.

Purging the Unit

Liquid refrigerant

port

Gas refrigerant port

ENGLISH

E-9

Connecting the Refrigerant Pipe

There are two refrigerant pipes of differing diameters:

 A smaller one for the liquid refrigerant

 A larger one for the gas refrigerant

 The inside of copper pipe must be clean & has no dust.

Remove the pinch pipe on the pipes and connect the assembly pipes to

each pipe, tightening the nuts, first manually and then with a torque

wrench, a spanner applying the following torque.

Must use insulator which is thick enough to cover the refrigerant pipe to

protect the condensate water on the outside of pipe falling onto the floor

and the efficiency of the unit will be better.

Cut off any excess foam insulation.

Be sure that there must be no crack or wave on the bended area.

It would be necessary to double the insulation thickness (10mm or more)

to prevent condensation even on the insulator when if the installed area is

warm and humid.

 If the pipes must be shortened refer to page10.

Note

Outer Diameter Torque (kgf•cm)

6.35 mm (1/4") 140~170

9.52 mm (3/8") 250~280

12.70 mm (1/2") 380~420

15.88 mm (5/8") 440~480

19.05 mm (3/4") 990~1210

22.23 mm (7/8") 990~1210

Refrigerant oil

Torque wrench

Flare nut

Union

Spanner

E-10

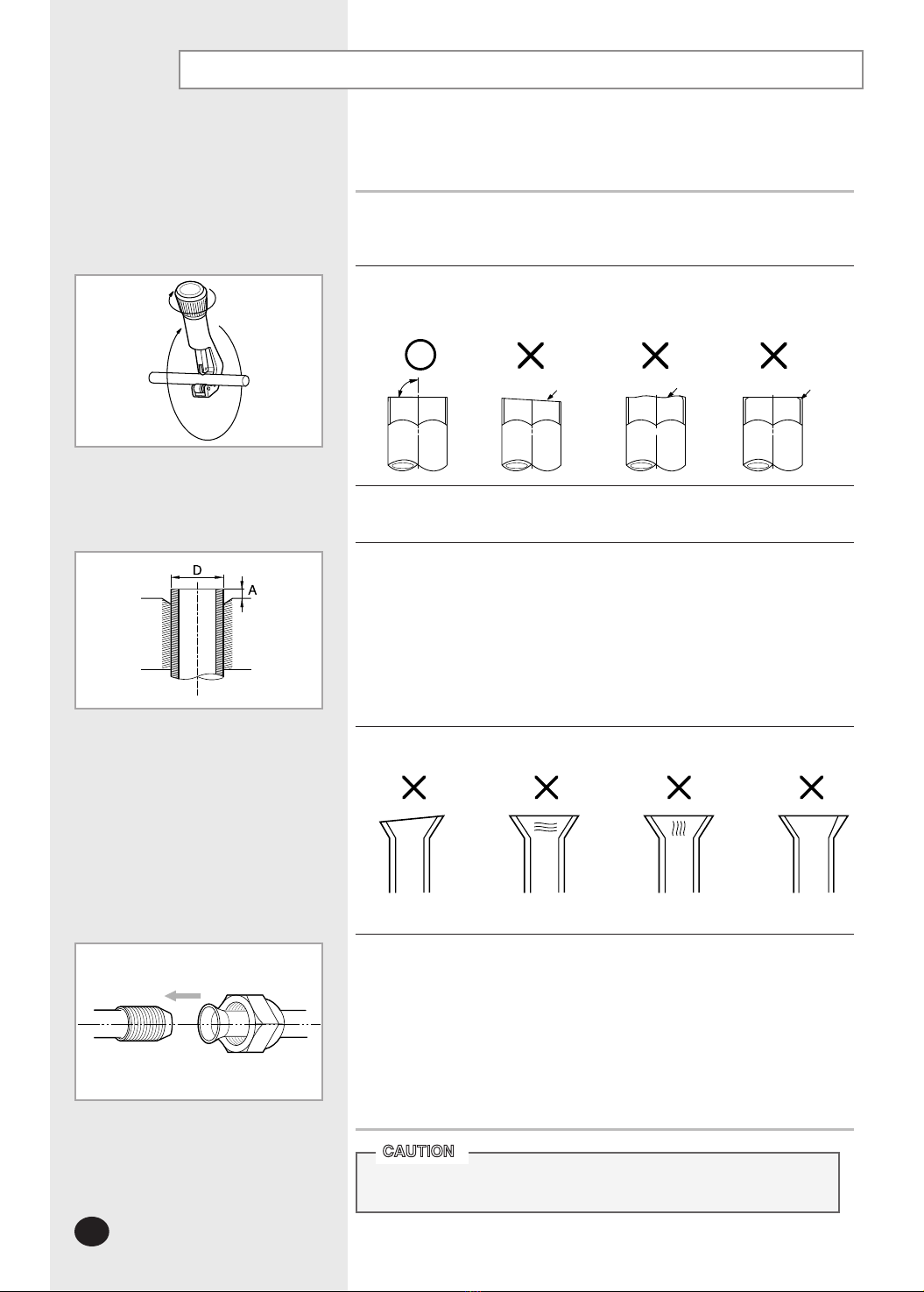

Cutting/Flaring the Pipes

Make sure that you have the required tools available (pipe cutter, reamer,

flaring tool and pipe holder).

If you wish to shorten the pipes, cut it with a pipe cutter, taking care to ensure

that the cut edge remains at a 90° angle with the side of the pipe. Refer to the

illustrations below for examples of edges cut correctly and incorrectly.

To prevent any gas from leaking out, remove all burrs at the cut edge of the

pipe, using a reamer.

Slide a flare nut on to the pipe and modify the flare.

Check that the flaring is correct, referring to the illustrations below for

examples of incorrect flaring.

Align the pipes and tighten the flare nuts first manually and then with

a torque wrench, applying the following torque.

Outer Diameter (D) Depth (A)

6.35 mm (1/4") 1.3mm

9.52 mm (3/8") 1.8mm

12.70 mm (1/2") 2.0mm

15.88 mm (5/8") 2.2mm

19.05 mm (3/4") 2.2mm

22.23 mm (7/8") 2.2mm

Oblique Rough Burr

Inclined Damaged Surface Cracked Uneven Thickness



CAUTION

In case of welding the pipe, you must weld with nitrogen

gas blowing.

Outer Diameter Torque (kgf•cm)

6.35 mm (1/4") 140~170

9.52 mm (3/8") 250~280

12.70 mm (1/2") 380~420

15.88 mm (5/8") 440~480

19.05 mm (3/4") 990~1210

22.23 mm (7/8") 990~1210

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Samsung

Samsung

Samsung AW0700 Guía de configuración

Samsung

Samsung AVXWHH028EA Manual de usuario

Samsung

Samsung AQV12F2VE Manual de usuario

Samsung

Samsung AR BVHC Series Manual de usuario

Samsung

Samsung AW05M0YEA Manual de usuario

Samsung

Samsung AST18S6GDC Manual de usuario

Samsung

Samsung SINGLE AF50MS3MCEENHC Manual de instrucciones

Samsung

Samsung AJ052NBNDEH/SA Manual de usuario

Samsung

Samsung AM BN4PCH Series Manual de usuario

Samsung

Samsung AQV12NSA Manual de usuario

Samsung

Samsung FH052EAMC Manual de usuario

Samsung

Samsung SC05ZZ8 Manual de usuario

Samsung

Samsung AW Series Guía de configuración

Samsung

Samsung AVXDSH071EE Manual de usuario

Samsung

Samsung HH105ECM Manual de usuario

Samsung

Samsung AC030JXADCH Manual de usuario

Samsung

Samsung AQV09NSD Manual de usuario

Samsung

Samsung FH070EAV Manual de usuario

Samsung

Samsung AVMWH020CA0 Manual de usuario

Samsung

Samsung AM18A1C09 Manual de usuario

Samsung

Samsung AWT18S1WDCG Manual de usuario

Samsung

Samsung AQ07A1AE Manual de usuario

Samsung

Samsung AM JN1DEH Series Manual de usuario

Samsung

Samsung AVXTFH056EA Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario

Frigidaire

Frigidaire FAZ12ES2A Manual de usuario
