Samsung AW0719 Manual de usuario

AW0719

AW0819

DB68 00322A (1)

OWNER’S

INSTRUCTIONS

WINDOW-TYPE

ROOM AIR CONDITIONER

( Cool )

E-2

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

◆ A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

2Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

4Do NOT insert anything between the air outlet blades, as the inner fan may be damaged

and you may be hurt. Keep children away from the unit.

5ALWAYS ensure that the power cable is in good condition.

Make sure that it is not walked on or damaged by items placed on or against it.

If the power cord is damaged in any way, it must be replaced by an approved

power cord available from the manufacturer or its service agent.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

◆ An approved service center

◆ The outlet at which the air conditioner was purchased

7Do NOT place any obstacles in front of the unit.

3NEVER spill liquid of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

E-3

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Air Conditioning Unit Main Parts and Control Panel .................................... 4

■Getting Started ............................................................................................... 5

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 6

■Airing Your Room ........................................................................................... 7

■Switching the Air Conditioner Off .................................................................... 7

■Adjusting the Air Flow Direction Horizontally .................................................. 8

■Adjusting the Air Flow Direction Vertically ...................................................... 8

◆RECOMMENDATIONS FOR USE

■Operating Recommendation ........................................................................... 9

■Temperature and Humidity Ranges ................................................................ 9

■Cleaning Your Air Conditioner ........................................................................ 10

■Solving Common Problems ............................................................................ 11

■Technical Specifications ................................................................................. 11

◆INSTALLATION ....................................................................................................... 12

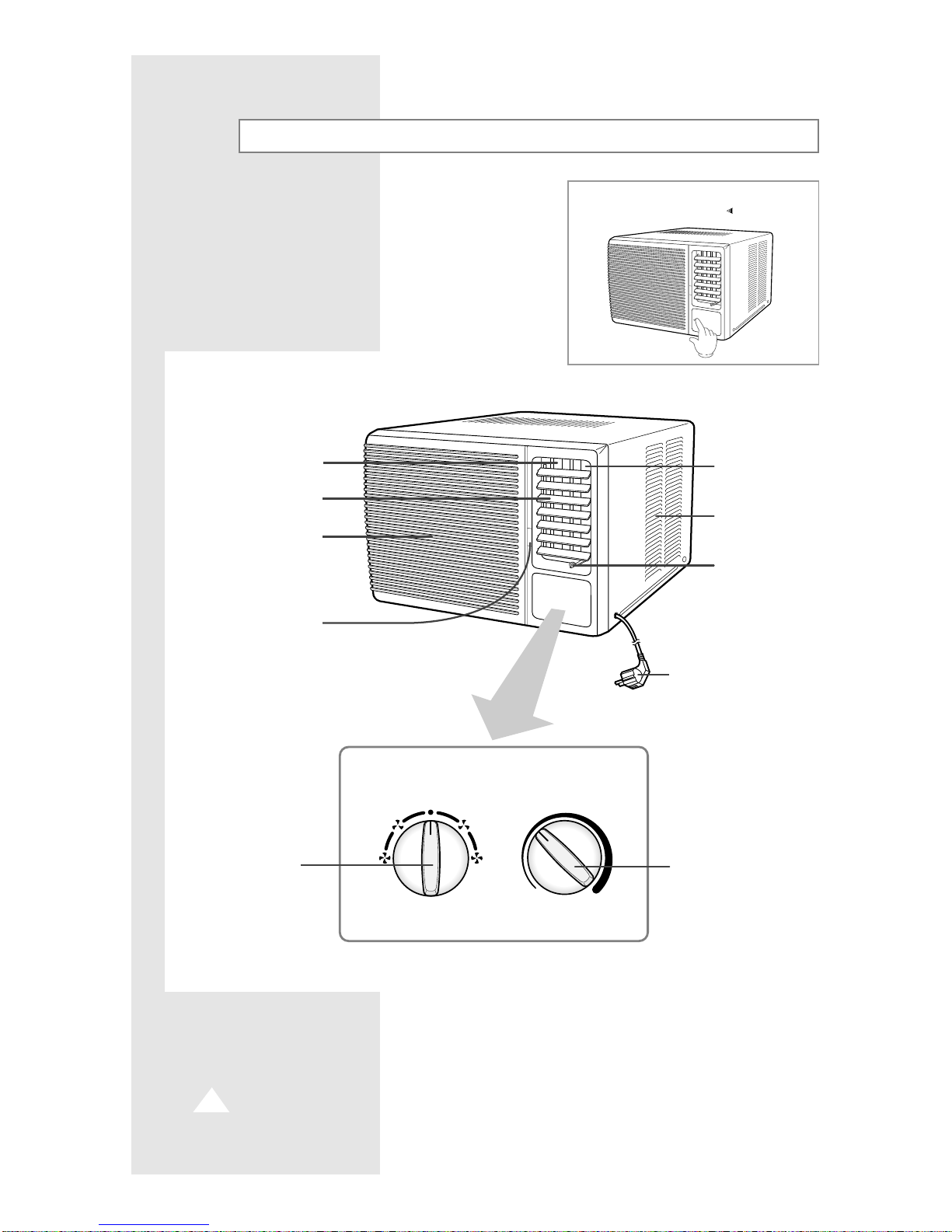

Air Conditioning Unit - Main Parts and Contro Pane

E-4

OFF

LOW

COOL

LOW

FAN

OPERATION

COOL

THERMOSTAT

COOLEST

Outer air flow blades

(up/down orientation)

Air inlet (Inside)

Air filter

(The air filter is

located in inside.)

Ventilation lever

Air outlet

Air inlet (Outside)

Power plug

(

The type of the power plug

may differ according to the

type of local power supply.)

Temperature

control dial

Operating mode

selection dial

Inner air flow blades

(right/left orientation)

HOW TO OPEN THE OPERATING UNIT.

◆ Press the area marked “ ”on the door.

❄The design and shape are subject to

change according to the model.

Getting Started

E-5

You have just purchased a window-type room air conditioner and it has been installed

by your installation specialist.

Your Owner’s Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s features.

The booklet is organized as follows.

◆The illustration on page 4 shows the air conditioning unit;

it indicates the location and purpose of the main parts and controls on the unit.

◆ In the main part of the document, you will find a series of step-by-step

procedures for each function available.

The illustrations in the step-by-step procedures use four different symbols:

PRESS PUSH IMPORTANT NOTE

☛

➢

Select the operating mode and fan speed.

To coo your room with a... Set the operating mode

se ection dia to...

High fan speed HI COOL

Low fan speed LOW COOL

Result: ◆

The air conditioner starts up in Cool mode.

◆

The fan starts up at the speed selected.

You can change modes at any time.

Coo ing Your Room

E-6

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the fan speed.

To control the direction of the air flow, refer to page 8.3

To adjust the temperature, turn the temperature control dial

to the desirde position.

Possible temperatures: Between 64°F and 84°F inclusive.

Result: The air conditioner starts cooling if the room temperature

is higher than the selected temperature.

OFF

LOW

COOL

LOW

FAN

FAN HI

COOL

OPERATION

➢

COOLEST

THERMOSTAT

81˚F ~ 73˚F

73˚F

~ 64˚F

81˚F

~ 84˚F

OFF

LOW

COOL

LOW

FAN

FAN HI

COOL

OPERATION

OFF

LOW

COOL

LOW

FAN

OPERATION

COOL

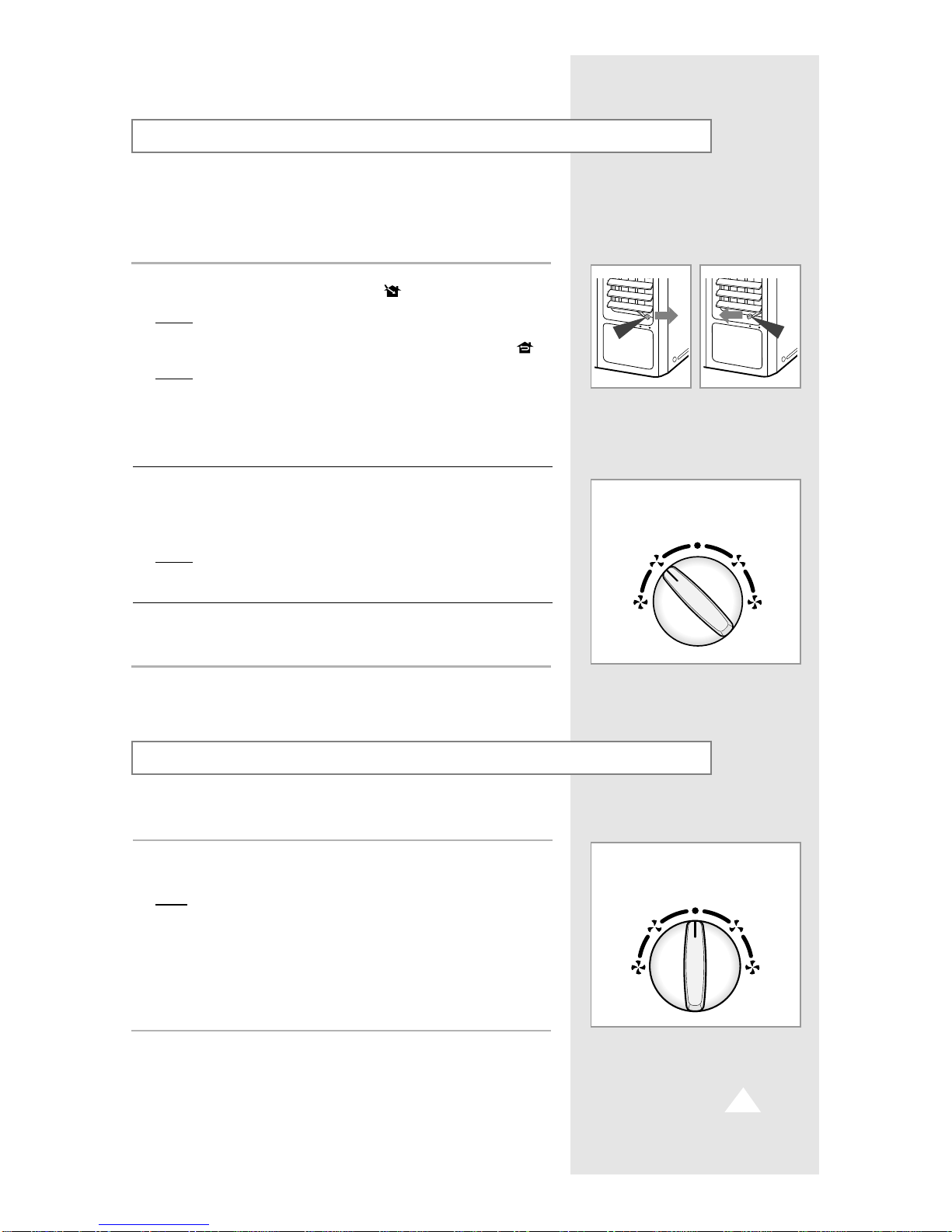

Airing Your Room

Switching the Air Conditioner Off

E-7

To switch the unit off, simply set the operating mode selection dial

to the OFF position.

Result: The air conditioner stops operating.

If the atmosphere in your room is stale, you can air it using

the Fan feature and if necessary, evacuate the stale air outside.

You can switch the air conditioner off whenever you want.

Set the operating mode selection dial to the HI FAN or LOW FAN position.

HI FAN : The fan turns rapidly.

LOW FAN : The fan turns slowly.

Result:

The air conditioner starts up in Fan mode.

To control the direction of the air flow, refer to page 8.

If you wish to evacuate stale air outside, push the ventilation lever on the front

of the unit to the right and the open position ( ).

Result:

The air inside the room circulates and stale air is evacuated outside.

Otherwise, push the ventilation lever to the left and the closed position ( ).

Result:

The air simply circulates inside the room.

➢

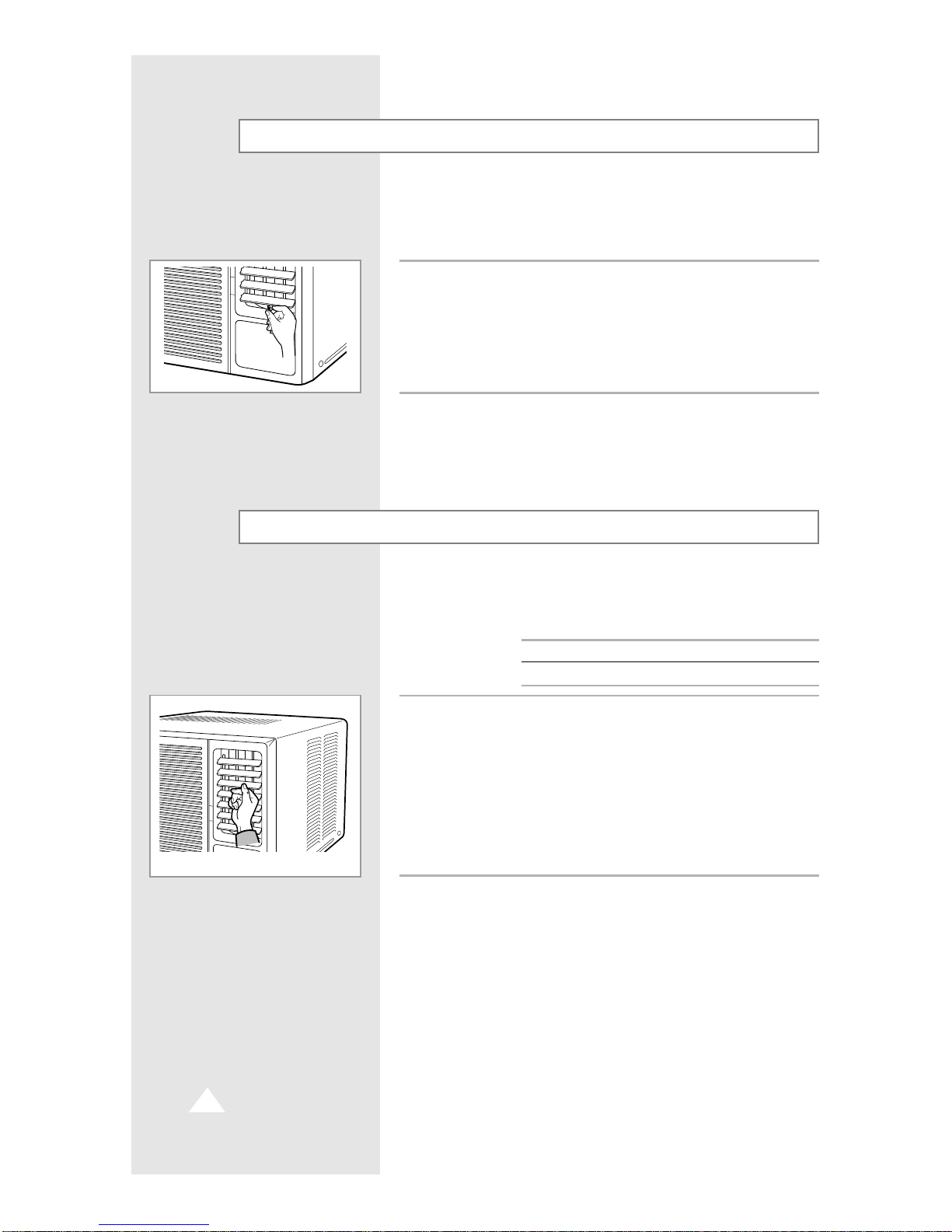

Adjusting the Air F ow Direction Horizonta y

Adjusting the Air F ow Direction Vertica y

E-8

Depending on the position of the unit in your room, you can adjust the

orientation of the inner air flow blades on the right-hand side of the

unit, thus increasing the efficiency of the air conditioner.

Hold the inner air flow blades, and adjust them to the desired direction.

Again depending on the position of the unit in your room, you can

adjust the orientation of the outer air flow blades on the right-hand

side of the unit.

RECOMMENDATION When...

Cooling

Adjust the b ades to face...

Upwards.

Adjust the air flow blades to the desired position, by pushing them

upwards or downwards.

If you orient the air flow blades downwards and the unit operates

in Cool mode for long periods of time, dew may:

◆

Form on the surface of the blades

◆

Drip from the blades

➢

If the air conditioner is used at... Then...

Higher temperature The automatic protection feature may be triggered

and the air conditioner stopped.

Lower temperature A water leakage or some other malfunction may happen

if the heat exchanger freezes.

Higher humidity levels Water may condense on and drip from the surface of the unit

if it is used for long periods.

The following table indicates the temperature and humidity ranges

within which the air conditioner can be used.

Mode Outdoor

Temperature Indoor

Temperature Indoor Humidity

Cooling 69.8°F to 109.4°F approx. 69.8°F to 89.6°F approx. 80% or less

Here is a recommendation that you should follow when using your

air conditioner.

Topic Recommendation

If a power failure occurs when the air conditioner is operating,

the unit is switched off. When the power returns,

the air conditioner starts up again automatically.

Power fai ure

Operating Recommendation

Temperature and Humidity Ranges

E-9

C eaning Your Air Conditioner

E-10

If you... Then...

Will not be using the ◆ Set the fan going for a few hours

air conditioner for a to dry the inside of the air conditioner

long period of time thoroughly.

◆ Switch the air conditioner off and

unplug it from the wall socket.

◆ Clean the filter and outer surfaces.

Have not used the air Set the fan going for a few hours to

conditioner for a long dry the inside of the air conditioner

period of time thoroughly.

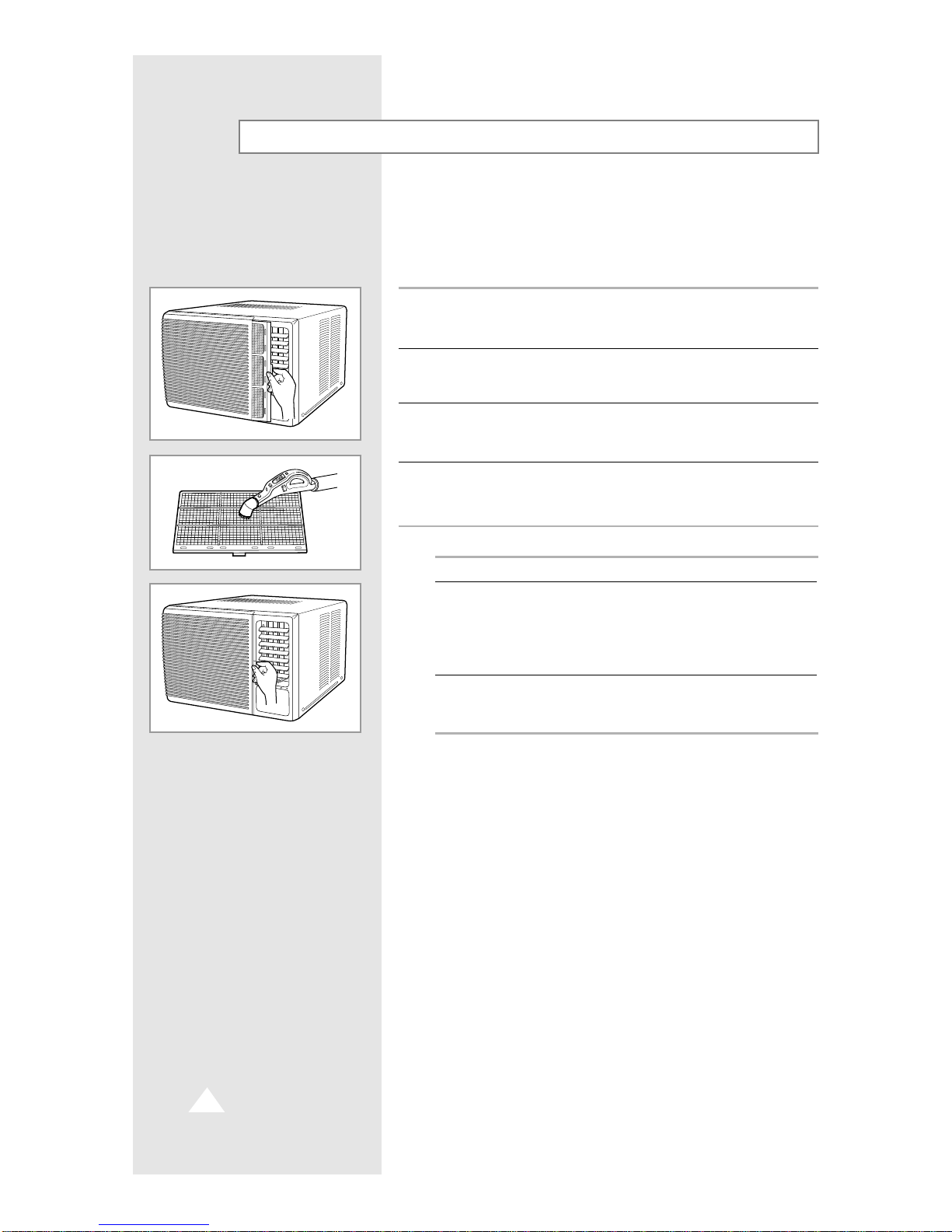

To get the best possible use out of your air conditioner,

you must clean it regularly to remove the dust on the air filter.

Before cleaning your air conditioner, ensure that it is

switched off and unplugged from the wall socket.

Hold the handle of the air filter, pull it slightly forward, and then pull it

out to the right side.

Remove all dust on the air filter with a vacuum cleaner or brush.

When you have finished, insert the air filter into the original position.

Clean the outer surfaces with a damp cloth and mild detergent

(do NOT use benzene, solvents or other chemicals).

Wipe them dry with a clean, soft cloth.

☛

➢
