Samson Airline 77 Manual de usuario

PRO

PRODUCT SPECIFICATION SHEET

WIRELESS

TYPE:

FIXED CHANNEL

SYSTEMS

PRODUCT DESCRIPTION

HANDHELD MICROPHONE SYSTEM CR77 WITH AX1

SERIES CATEGORY

AIRLINE 77 WIRELESS

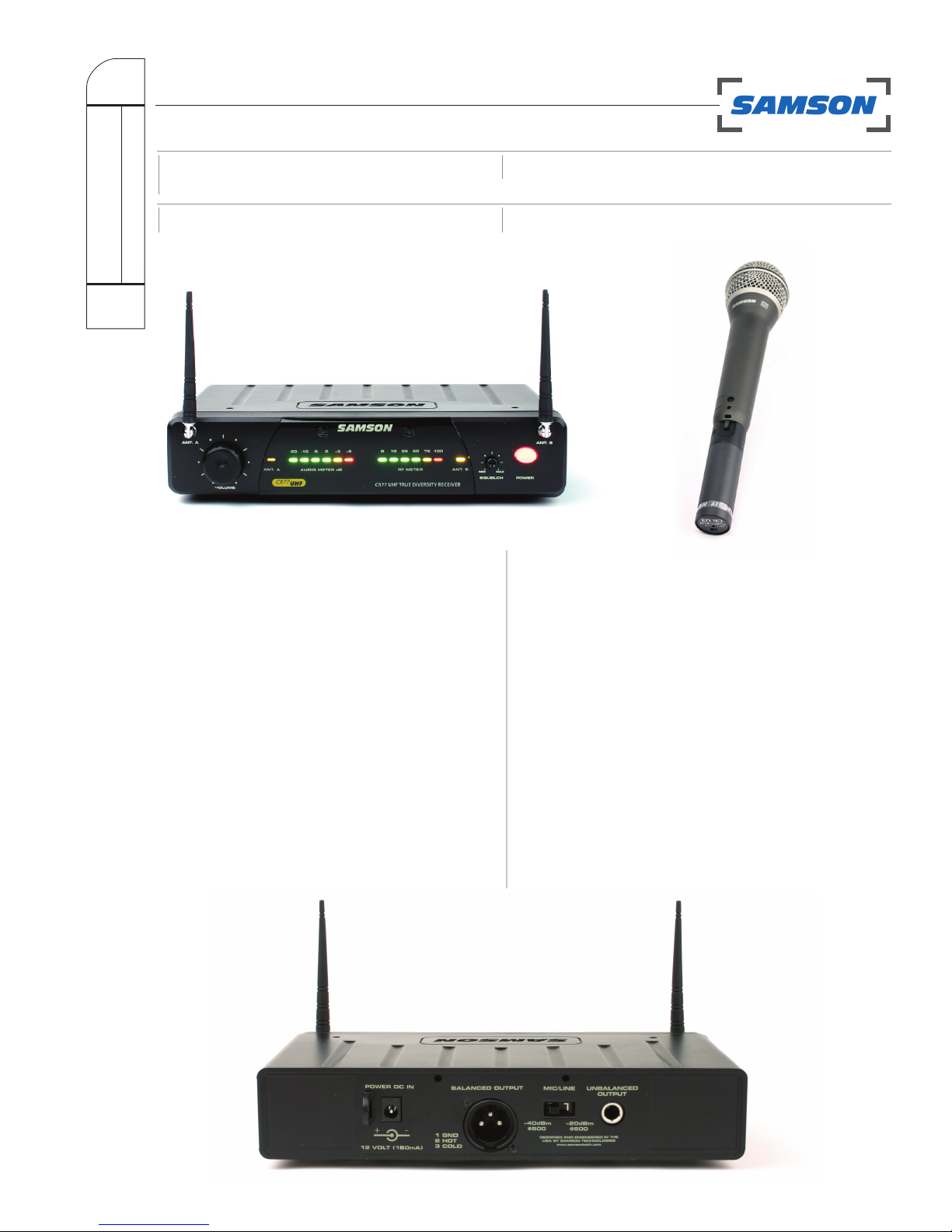

CR77 GENERAL DESCRIPTION

The CR77 is a true diversity UHF receiver that can be

used freestanding or mounted in any standard 19-inch

rack, making it easy to integrate into any traveling or

fixed installation audio system. It includes a pair of

tuned antennas and the synthesized PLL frequency

control circuitry keeps the signal locked and true

while LEDs monitor the true diversity operation.

The CR77 features a front panel display with large

six-segment audio level and RF level LED meters

along with a large rotary volume knob that allows

easy adjustment of audio output. The unit also houses

a line/mic output level switch and squelch controls.

The rear panel features balanced XLR and unbalanced

1/4-inch outputs allowing flexible connection options.

Two CR77 receivers can even be rackmounted together

in a single-space rack adapter (RK55) available as an

added accessory.

AX1 GENERAL DESCRIPTION

The compact AX1 Handheld UHF Transmitter allows a

user to convert any dynamic microphone into a wireless

mic. It’s as simple as plugging the standard female XLR

connector of the AX1 into any standard wired dynamic

microphone, making it easier than ever to go wireless.

And because it’s so small and lightweight, the AX1 feels

like a natural part of the microphone.

Despite it’s small size, the AX1 features a power switch,

microphone input level control and a power/battery LED

that conveniently indicates when there is less than two

hours of battery life remaining. The AX1 also operates

for up to 14 hours on a single AAA battery. Plus, as

a UHF transmitter, it operates on clearer frequencies

with less interference.

HANDHELD MICROPHONE SYSTEM

ARCHITECT’S & ENGINEER’S SPECIFICATIONS

The CR77 from Samson shall be a UHF true diversity

wireless audio receiver to be used with any of our Airline

wireless transmitters. The CR77 shall be a ½ rackspace

receiver that can also be used as a stand-alone receiver.

The CR77 is supplied with a 12 volt DC power supply.

The CR77 shall have a front panel level control, squelch

control, power switch, antenna A and B, and 6 segment

audio and RF metering. The rear panel of the CR77 shall

have balanced XLR and ¼ inch unbalanced outputs with

mic/line level switching. The CR77 shall operate in the

801-805mHz.

PRODUCT SPECIFICATION SHEET

SERIES DESCRIPTION CATEGORY

AIRLINE 77 CR77 WITH AX1 WIRELESS

CR77 SPECIFICATIONS

Frequency Response......................... 50 Hz - 15 kHz (±3 dB overall)

Receiving Frequency Range............... 801 – 805 MHz or 863 –

865 MHz

Sensitivity....................................... 18 dBm (@ THD 2%)

T.H.D. (Overall) ................................ 1% Max (@AF 1 kHz,

RF 46 dBu)

S/N Ratio (Overall) ........................... 90 dB (with IHF-A Filter)

Dimensions (W × D × H) .................... 8.5˝ × 4.55˝ × 1.69˝

216mm × 115.75mm × 43mm

1.69”

4”

.92”

2.6”

8.5”

A ELF VEL

M NI

MAX

ARCHITECT’S & ENGINEER’S SPECIFICATIONS

The AX1 transmitter from Samson shall be a UHF wireless

transmitter for use with any standard dynamic microphone

The AX1 shall operate on a single AAA battery and get

approximately 14 hours battery life. The AX1 shall have XLR

female connector to plug into a dynamic mic allowing use

of the dynamic mic as a wireless mic. The AX1 shall have

a power switch with LED indicator that flashes on to show

power up and then goes out to extend battery life. The AX1

shall have a mic gain control inside, accessible by removing

the battery cover. The AX1 shall work in the 800mHz range.

AX1 SPECIFICATIONS

Operating Power Voltage................... 1.5V Typical, 1.05V Minimum,

2V Maximum

Current Consumption ........................ 60mA Typical

Battery Life..................................... 14 Hours (AAA Battery)

RF Output Power (5mW) .................... -4 dB Minimum,

+3 dB Maximum

Frequency Stability .......................... -40 kHz Minimum,

40 kHz Maximum

Spurious......................................... 1μW

Modulation Factor............................ 13 kHz Minimum, 15 kHz

Typical, 17 kHz Maximum,

Input 1 kHz @ -20 dBv

Input Impedance (Mic)...................... 2kΩ

THD................................................ < 2% (1 kHz deviation 15 kHz)

Audio Frequency Response................ 50 Hz – 15 kHz (±3.5 dB)

Controls ......................................... Power Switch, Volume

Input...... ........................................ XLR (Female)

Indicators ....................................... Power On (LED Flash),

Low Battery (LED On)
