Safeline MX3+ Manual de usuario
www.safeline-group.com
11.2020 © 2020 SafeLine and all the SafeLine products and
accessories are copyrighted by law.
Lift Emergency Telephone
SafeLine MX3+ v.2.2.2 EN
MX3+ manual
Innovation brought to you from Tyresö, Sweden
2SafeLine MX3+ v.2.2.2 EN
Technical data
Power: 10 - 30 VDC
Consumption: In standby: 50 mA at 12 VDC
Operation: 160 mA at 12 VDC
Input: 10 to 30 VDC, 5 mA optically isolated
Output: 2x 12 to 24 VDC, max 200 mA (transistor negative)
Weight: Surface mounted with button: 575 g
Size (H x W x D): Surface mounted with button: 155 x 90 x 31 mm
IP class: IP 43
Bluetooth: Bluetooth 4.0
BLE 2,4 GHz
Operation temperature: +5°- 40°
Air humidity: 30%-90% R
Audio les: Format WAVE-8 or 16kHz, 16 bit mono, max 16 sec/le
3SafeLine MX3+ v.2.2.2 EN
Content General information 4
Installation 5
Overview and wiring diagram 5
Parallel wiring 6
Wiring diagram, H1/H2 6
Wiring diagram, output 1, 2 and external button 7
Outputs 8
Functions 9
Conguration overviews 10
Conguration interfaces 10
Conguration with telephone 12
Conguration examples 13
Parameter list 14
Operation 19
LED indication for pictogram in car 19
Testing 20
Emergency calling process 21
Troubleshooting 22
Declaration of Conformity 23
4SafeLine MX3+ v.2.2.2 EN
This unit was built with state-of-
the-art technology and to
generally recognised safety
related technical standards
currently applicable. These
installation instructions are
to be followed by all people
working with the unit, in both
installation and maintenance.
It is extremely important that
these installation instructions
are made available at all times
to the relevant technicians,
engineers or servicing and
maintenance personnel. The
basis prerequisite for safe
handling and trouble free
operation of this system is a
sound knowledge of the basic
and special safety regulations
concerning conveyor techno-
logy, and elevators in particular.
The unit may only be used for
its intended purpose. Note in
particular that, no unauthorised
changes or additions may be
made inside the unit or indivi-
dual components.
Exclusion of liability
The manufacturer is not liable
with respect to the buyer of
this product or to third parties
for damage, loss, costs or work
incurred as a result of accidents,
misuse of the product, incorrect
installation or illegal changes,
repairs or additions. Claims
under warranty are likewise
excluded in such cases. The
technical data is the latest
available. The manufacturer
accepts no liability arising from
printing errors, mistakes or
changes.
Declaration of conformity
Download ”The declaration of
conformity” at our website:
www.safeline-group.com
Safety Precautions!
- Only trained professionals,
who are authorised to work on
the equipment, should install
and con gure this product.
- This quality product is dedi-
cated for the lift industry. It has
been designed and manufactu-
red to be used for its speci ed
purpose only. If it is to be used
for any other purpose, SafeLine
must be contacted in advance.
- It should not be modi ed
or altered in any way, and
should only be installed and
con gured strictly following the
procedures described in this
manual.
- All applicable health and
safety requirements and
equipment standards should be
considered and strictly adhered
to when installing and con -
guring this product.
- After installation and con -
guration this product and the
operation of the equipment
should be fully tested to ensure
correct operation before the
equipment is returned to
normal use.
Electrical and electronic
products may contain materials,
parts and units that can be
dangerous for the environment
and human health. Please
inform yourself about the local
rules and disposal collection
system for electrical and
electronic products. The correct
disposal of your old product
will help to prevent negative
consequences for the environ-
ment and human health.
General
information
5
www.safeline-group.com
sw ver.
serial no.
hologram
SafeLine MX3+
1 2
3
5
4
SafeLine MX3+ v.2.2.2 EN
Installation
Overview and
wiring diagram
1. Connections
2. RS232 PC connection
Firmware update and conguration with SafeLine Pro.
3. Volume control
To increase volume, press Button ”2”; to decrease volume,
press Button ”8”. It is also possible to adjust the volume in the
SafeLine LYNX app (available on both Google Play and Apple
App Store).
4. Output for additional voice station/hearing loop
When connecting an additional remote station *CABLE14 is
required.
5. Keyboard
If extra voice station is connected, connection cable *CABLE14 is
required.
Pink
Grey
Yellow
Green
Brown
White
Brown
White
Brown
White
Input alarm button (input 2**)Input alarm button (input 2**)
Additional input, lter (input 1**)Additional input, lter (input 1**)
Voltage supply +10 - 30 VDCVoltage supply +10 - 30 VDC
Voltage supply 0 VDCVoltage supply 0 VDC
Telephone line inTelephone line in
Additional alarm button, only N/O.***Additional alarm button, only N/O.***
*CABLE13 is required.*CABLE13 is required.
Output 2*Output 2*
Output 1*Output 1*
*Please refer to the Parameterlist *88* for programming
information. *CABLE13 is required.
** Serial no. >27000 have congurable inputs.
*** Serial no. >27000 additional alarm button with NO/NC
Telephone line inTelephone line in
6
Speaker B
Speaker A
www.safeline-group.com
sw ver.
serial no.
hologram
SafeLine MX3+
*CABLE15
SafeLine MX3+
SafeLine MX3+ v.2.2.2 EN
Parallel wiring
In order to access the unit
remotely, it needs to be
assigned a unit number.
Please refer to the Para-
meter list (*82*) for more
information.
SafeLine MX3+ on PSTN Line (max 9 units) Telefone line
Wiring
diagram, H1/
H2
Use CABLE15 to connect
SafeLine MX3+ with a
hearing loop.
Hearing loop
7
www.safeline-group.com
sw ver.
serial no.
hologram
SafeLine MX3+
SafeLine MX3+ v.2.2.2 EN
Wiring
diagram,
output 1, 2 and
external button
Requires that the output is
congured for the corres-
ponding function.
Please refer to the Para-
meter list (*88*) or the app
for more information.
Outputs
The two sinking outputs can be congured independently with a
number of functions. The conguration is performed via SafeLine
Pro or with the conguration code *88*XY#, where X species
output 1 or 2 and Y species the function:
0 = Pictogram (Output 1 - yellow, Output 2 - green)
1 = Activate with DTMF 8/9 (Output 1 - DTMF8, Output 2 – DTMF9)
2 = System failure
3 = Emergency bell
E.g. *88*13# congures output 1 for an emergency bell.
Pictogram yellow
(Output 1, Conguration code 0)
The output is activated at the following events:
• Input for emergency bell is activated.
• Input for emergency bell is set active at a certain time.
The output is deactivated at the following events:
• Distress input deactivated before set time.
• Active alarm ended.
• Reset button (#) is pressed.
Pictogram green
(Output 2, Conguration code 0)
The output is activated at the following events:
• Voice communication activated.
• Incoming call connected.
The output is deactivated at the following events:
• Outgoing call ended/timeout/cancelled.
• Incoming call ended/timeout/cancelled.
• Reset button (#) is pressed.
Use *CABLE13 to connect SafeLine MX3+ with external access-
ories. Output 1 and 2 can be congured independently.
Output 2
Output 1
8SafeLine MX3+ v.2.2.2 EN
Outputs Activate with DTMF 8
(Output 1, Conguration code 1)
The output is activated at the following events:
• DTMF tone 8 is received.
The output is deactivated at the following events:
• 3 seconds after activation.
Activate with DTMF 9
(Output 2, Conguration code 1)
The output is activated at the following events:
• DTMF tone 9 is received.
The output is deactivated at the following events:
• 3 seconds after activation.
System failure
(Output 1 & 2, Conguration code 2)
The output is activated at the following events:
• Telephone line OK.
The output is deactivated at the following events:
• Telephone line missing.
Emergency bell
(Output 1 & 2, Conguration code 3)
The output is activated at the following events:
• Emergency alarm button input active.
• The call is not yet connected.
The output is deactivated at the following events:
• Emergency alarm button input deactivated.
• The call is connected.
9SafeLine MX3+ v.2.2.2 EN
Silence disconnect
The function will automatically disconnect a call if no sound is
received from the alarm operator within a set time. Only works for
voice calls, not for P100/CPC/Q23. The conguration is performed
via SafeLine Pro or with the conguration code *92*X#, where X
species the time:
0 = The function is off.
1 = 30 seconds.
2 = 60 seconds (default).
3 = 90 seconds.
Volume control through software
The speaker volume is adjusted via the keyboard control. Key 2
raises and Key 8 lowers the volume in 6 steps. The volume can also
be adjusted using the command *76*X# where X is the desired
volume position between 1 and 6. Default value is 3.
The set volume mode are stored in the EEPROM so that the unit
remembers the set position.
External mic/voice station
When a call is activated by the emergency alarm button on the
external mic/voice station, the microphone on the external mic/
voice station will be used and the internal microphone discon-
nected. The speaker sound will however be heard from both
speakers simultaneously.
Functions
10
1 2 3
4 5 6
97 8
*0#
SafeLine MX3+
serial no.
hologram
sw ver.
www.safeline-group.com
SafeLine Pro
SafeLine MX3+ v.2.2.2 EN

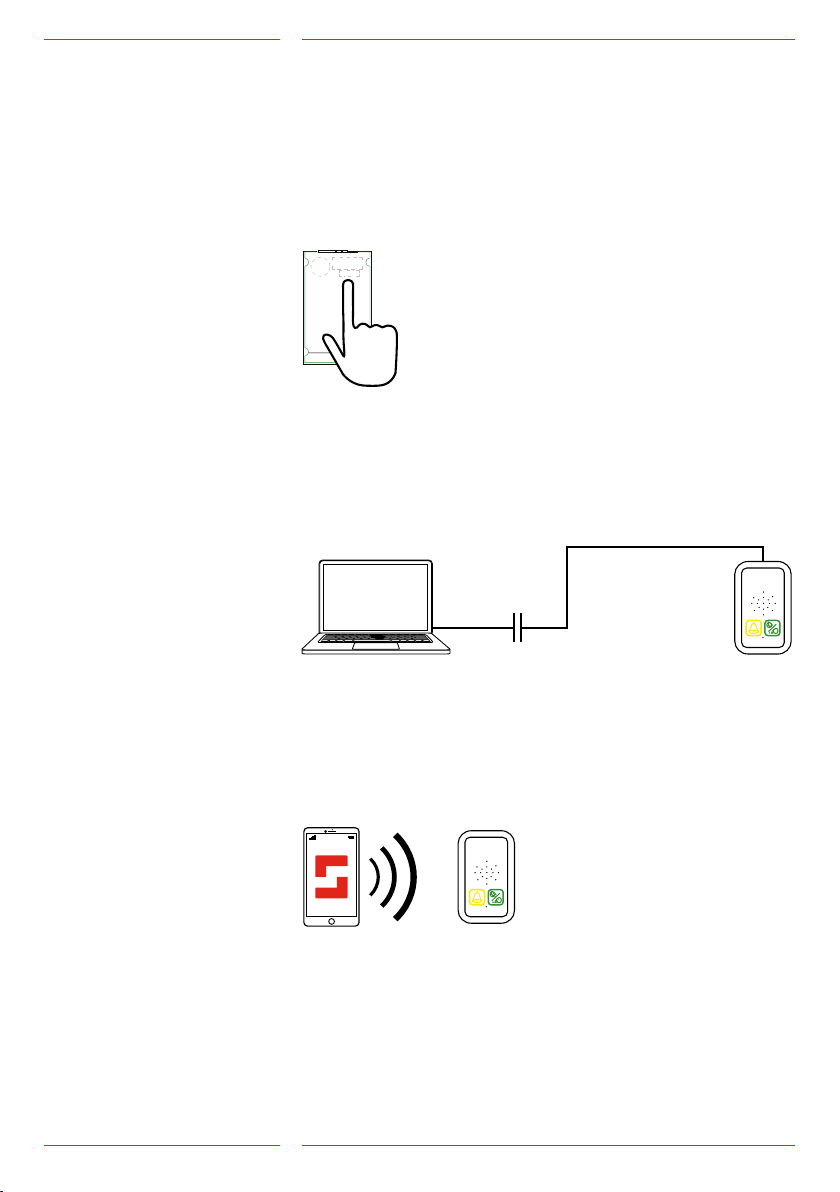

Keyboard conguration
The integrated keyboard at the rear of the MX3+ enables a fast
conguration of the unit.
Conguration
interfaces
The unit has to be
connected to a power
source before the congu-
ration can begin.
Conguration with the LYNX app
For conguration via app, download the LYNX app from Google
Play or Apple App store and register an account.
Conguration with SafeLine Pro
The unit can be congured at the ofce prior to the installation or at
site after installation, with a conguration cable (*PCable).
Conguration
overviews
