Under Counter Larder Fridge

Instruction Manual

Contents

Safety Instructions ………………………………………. 3-5

Electrical Safety ………………………………………. 5

Transportation & Handling ………………………………………. 5

Installing & Switch on your Appliance ………………………………………. 6-7

Before Switching On ………………………………………. 7

Product Overview ………………………………………. 8

Unit & Spare Parts ………………………………………. 8

Usage ………………………………………. 9

Temperature Selection ………………………………………. 9

Door Reversal ………………………………………. 10-12

Replacing the Bulb ………………………………………. 13

Energy Saving Advice ………………………………………. 13

Food Storage Guidelines ………………………………………. 14

Maintenance & Cleaning ………………………………………. 15

Internal Cleaning ………………………………………. 15

External Cleaning ………………………………………. 16

When not in Use ………………………………………. 16

Trouble Shooting ………………………………………. 17-18

Connection to the Mains Supply ………………………………………. 19

Guarantee ………………………………………. 20

Technical Specification ………………………………………. 21

Product Fiche ………………………………………. 22

Notes ………………………………………. 23

Safety Instructions

Important note: Please read this booklet before installing and switching on this

appliance. The manufacturer assumes no responsibility for incorrect installation

and usage as described in this booklet.

Warning: When positioning the appliance, ensure the supply cord is not

trapped or damaged.

Warning: Do not locate multiple portable socket-outlets or portable power

suppliers at the rear of the appliance.

•This model uses natural refrigerant gas as part of its cooling system. This

gas is known as R600a (Isobutene) and is environmentally friendly but can be

combustible. Care should therefore be taken when handling or transporting the

product to ensure that none of the refrigeration circuit components are

damaged,

•Do not obstruct ventilation openings in the appliance

•The appliance must not be placed or rested on its power cord.

•Do not use mechanical devices or other artificial means to accelerate the

defrosting process, such as a heater or a hair dryer.

•Do not use electrical appliances in the refrigerator compartment of the

appliance.

•Ifthis appliance is to replace an old refrigerator with a lock, the lock must be

removed as a safety measure before storing it or disposing of it. This is to

protect children from locking themselves inside the appliance.

•Old refrigerators and freezers contain insulation gases and refrigerant, they

must be disposed of properly. Contact your local authority or your dealer if

you have any questions. Please ensure that you do not damage the scrapunit

prior to being picked-up by the relevant waste disposal service.

•Do not use adaptors or extension leads when connecting the appliance to the

electrical power supply

•Do not plug in damaged plugs.

•Do not pull, twist or damage the power cable.

•Do not plug-in or un-plug the appliance with wet hands to prevent electrical

shock.

•This appliance can be used by childrenaged from 8 years and above and

persons with reduced physical, sensoryor mental capabilitiesor lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved. Children should not play with the appliance.

•Children aged from 3 to 8 years are allowed to load and unload this appliance.

•This appliance is designed to be used by adults, do not allow childrento play

with the appliance or letthem hang over the door.

•Do not place explosive or flammable material in your appliance for your own

safety.

•Bottles containing a high percentage of alcohol must be sealedwell and placed

vertically in the refrigerator.

•Do not cover the body or the top of the appliance

•Fix down the accessories in the appliance during transportation to prevent

damage to them.

•To avoid contamination of food, please respect the following instructions

•Opening the door for long periods can cause a significant increase of the

temperature in the compartments of the appliance.

•Clean regularly surfaces that can come in contact with food and accessible drainage

systems.

•Store raw meat and fish in suitable containers in the refrigerator, so that it is not in

contact with or drip onto other food.

•Two-star frozen-food compartments(if they are presented in the appliance) are

suitable for storing pre-frozen food, storing or making ice-cream and making ice

cubes.

•One-, two- and three -star compartments (if they are presented in the

appliance) are not suitable for the freezing of fresh food.

•If the appliance is left empty for long periods, switch off, defrost, clean,

dry and leave the door open to prevent mount developing within the

appliance.

Electrical Safety

THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET

•Before switching on, make sure that the voltage of your electricity supply is the

same as that indicated on the rating plate. This product is designed to operate

on 220 –240V AC; 50Hz. Connection to any other power source may damage

the unit.

•This product may be fitted with a non re-wireable plug. If it is necessary to

change the fuse in the plug, the fuse cover must be refitted. If the fuse cover

becomes lost or damaged, the plug must not be used until a suitable

replacement is obtained.

•If the plug has to be changed because it is not suitable for your socket, or

becomes damaged in any way, it should be cut off and an appropriate plug

fitted following the wiring instructions. This should be carried out by a qualified

electrician. The plug removed must be disposed of safely, as insertion into a 13

Amp socket is likely to cause an electrical hazard.

Transportation and Handling

For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the

base and rear corners of cabinet. Lift the refrigerator carefully. Never use the door

handles for lifting. To move the refrigerator on a flat level surface, tilt it slightly

backwards and push backwards.

This unit is heavy and could cause injury –ensure there are adequate people

present to move the appliance.

Installing and Switching on Your Appliance

•Operating voltage for your appliance is 220-240Vat 50Hz.

•Before plugging in the power supply, ensure that the voltage on the rating label

corresponds to the working voltage of your electrical system in your home.

•Insert the plug into an efficient Ground (Earth) connection. If the socket hasno

Ground (Earth) contact or the plug does not match, we suggestyou call an authorised

electrician for assistance.

•Place your appliance in an area that is not exposed to direct sunlight.

•Your appliance should be placed at least 10cm away from stoves, ovens and other

heating cores.

•This appliance should never be used outdoors or left in the rain.

•When your appliance is placed nextto achest freezer or freezer, there should be at

least 10cms betweenthem to prevent humidityon the outer surface.

•Do not place anything on your appliance and install the unit in a suitable place so that

there is at least 30cm clearance above the appliance.

•If placing your appliance nextto kitchen cabinets, leave 5cm betweenthem.

•The rear of the appliance should be at least 6cm away from the back wall.

•The appliance must be used in the vertical position and on a flat surface.

•To level the appliance, use the adjustable feet on the appliance.

•Do not place your appliance on a carpeted surface as this will prevent adequate

ventilation.

•This appliance should only be placed on a flat, firm surface.

•Choose a dry and well-ventilated space.

•The appliance should be positioned so that the plug is easily accessible.

•This appliance is not suitable for use in garages, outbuildings or rooms that do not

comply with the ambient temperature requirements set out in the Product Fiche.

•If you need help or are unsure how to install the unit, please contact Customer

Services on 0345 208 8750 or visit mda.russellhobbs.com.

Before Switching On

•Before using your appliance, add a teaspoon of bicarbonate of soda to warm

water and with a damp cloth wipe down all parts of the new appliance, then

repeat the process with a clean damp cloth and dry. (ensure the appliance is

not connected to the power when performing this task).

•Remove all transport tapes and foam protection pieces . Clean the interior with

a cloth dampened in lukewarm soap and water. Wipe with clean water and

wipe dry.

•There may be an odour when you first switch on the appliance, it will disappear

when the appliance starts to cool.

•When the appliance has been positioned, adjust the feet to ensure the unit is

stable. This is essential to ensure quiet running and proper door opening

/closing.

•Connect to the electrical socket but do not switch the power to the refrigerator

on for at least 3 hours. The coolant within the product needs time to settle after

it has been transported and put in to position, failure to do this will affect the

cooling performance of your appliance.

•Once the appliance has settled, locate the thermostat dial on the product and

set between “5“ and “6” and switch on the power. The compressor will begin to

work. Close the door.

•You may hear faint gurgling or bubbling sounds when the refrigerant is pumped

to the cooling system and through the coils or tubing at the rear of the

appliance. When the compressor is in operation you may hear a slight whirring

sound or pulsating noise. The thermostat controls the operation of the

compressor, and you may hear a slight click as it cycles in and out (this is

normal).

•To save energy, you should minimize the frequency and duration of door

opening.

WARNING! During use, service and disposal of the appliance,

please pay attention to symbol similar to the one shown, which is

located on rear of the appliance (rear panel or compressor) and

with a yellow or orange colour. It’s risk of fire warning symbol.

There are flammable materials in refrigerant pipes and

compressor. Please be far away from fire source during use,

service and disposal.

Product Overview

Unit Parts & Spare Parts

Before installation, check that all parts detailed in the product overview are

present. If any parts are missing, please contact the Product Care Customer Service

team on 0345 208 8750 or visit us at mda.russellhobbs.com

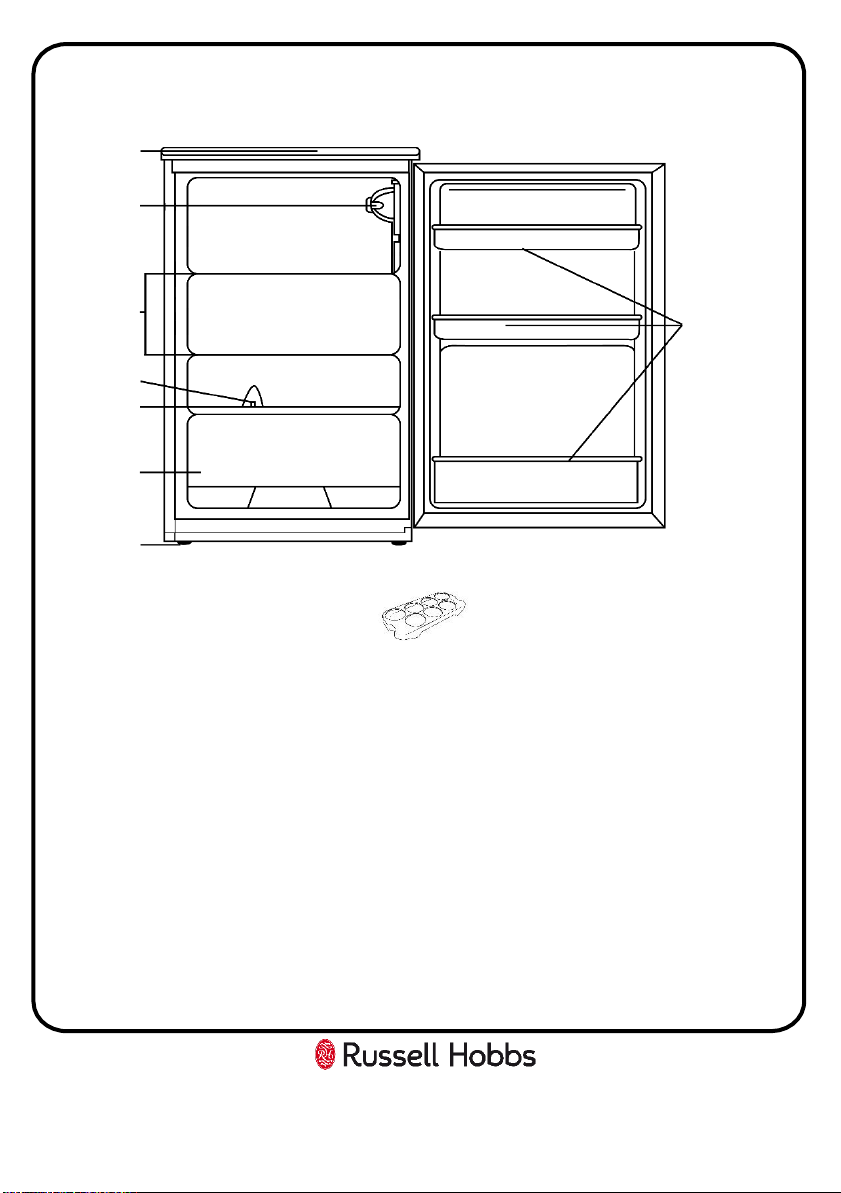

1. Top cover

2. Light & thermostat

3. Adjustable shelves

4. Drainage hole

5. Non-adjustable shelf

6. Crisper

7. Adjustable feet

8. Door racks

9. Egg rack

The temperature in the appliance is controlled by the temperature control dial

located inside the fridge. Rotate the control dial left or right to regulate the

temperature inside the fridge.

On the temperature control, Off is Off, 1 is the warmest setting and 6 is the

coldest setting. Under normal conditions the temperature control should be

set between 5 and 6. Setting 6 should be used as a rapid cool setting and should

only be set 2 hours before a large amount of food is placed in the fridge. The

temperature control should be put back to setting 5 or 6 after the food has been

placed in the fridge, if this is not done the temperature in the fridge

compartment could fall below 0ºC as the compressor will run continuously.

Once the temperature control has been set, close the door and plug in the

appliance. We recommend that the door is not opened for a minimum of 4

hours to allow the appliance to reach the standard operating temperature.

Note: The standard operating temperature for the fridge compartment should

be between 0ºC and 4ºC.

Note: The temperature of the freshly stored food and how often the door is

opened affects the temperature in the refrigerator compartment. If

required, change the temperature setting.

Allow to stand for a minimum of 3 hours before plugging in to the mains

Usage

Door Reversal

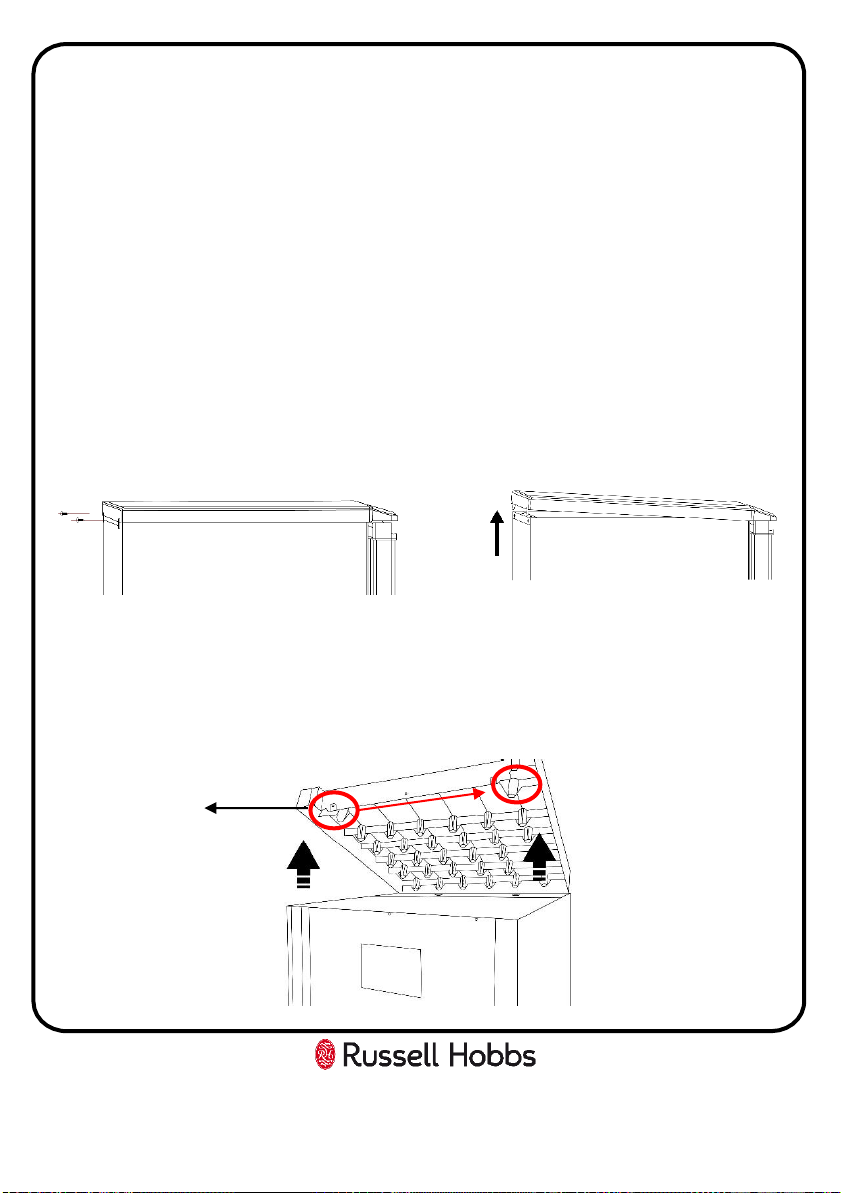

You will need to tilt the appliance backward to access the lower hinge which holds

screws. Do not tilt more than 45 degrees and do not lay the appliance flat on its

side.

Tools Required: Philip head screwdriver, flat headed screwdriver and hexagonal

spanner.

For your own safety, a minimum of 2 people should lift or tilt this product.

1. Remove the top cover by removing the 2 screws from the rear of the top

cover with a Phillips head screwdriver. Remove the top cover.

2. At the front of the top cover on the underside there is a small plastic blocking

clip on the left hand side, this needs to removed and inserted on to the

opposite side.

Blocking

clip

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Russell Hobbs

Russell Hobbs

Russell Hobbs RH55FFWD180-M Manual de usuario

Russell Hobbs

Russell Hobbs RHUCF55-H Manual de usuario

Russell Hobbs

Russell Hobbs RH14CLR4001B Manual de usuario

Russell Hobbs

Russell Hobbs RHTTF67 Manual de usuario

Russell Hobbs

Russell Hobbs RHUCLF1 Manual de usuario

Russell Hobbs

Russell Hobbs RHLF1 Manual de usuario

Russell Hobbs

Russell Hobbs RHTTLF1R Manual de usuario

Russell Hobbs

Russell Hobbs RH55FF176W Manual de usuario

Russell Hobbs

Russell Hobbs RHUCLF55(B) Manual de usuario

Russell Hobbs

Russell Hobbs RHTTLF1 Manual de usuario

Russell Hobbs

Russell Hobbs RH50FF144 Manual de usuario

Russell Hobbs

Russell Hobbs RHBI55LF122-N Manual de usuario

Russell Hobbs

Russell Hobbs RHBLF1 Manual de usuario

Russell Hobbs

Russell Hobbs RH120 Manual de usuario

Russell Hobbs

Russell Hobbs 21270 Manual de usuario

Russell Hobbs

Russell Hobbs RHTTF67B-LCK Manual de usuario

Russell Hobbs

Russell Hobbs RH55FF171B Manual de usuario

Russell Hobbs

Russell Hobbs RH54FF170B Manual de usuario

Russell Hobbs

Russell Hobbs RH140 Manual de usuario

Russell Hobbs

Russell Hobbs RHBU60FRIDGE-N Manual de usuario

Russell Hobbs

Russell Hobbs RHUCLF2W Manual de usuario

Russell Hobbs

Russell Hobbs RH90FF176B Manual de usuario

Russell Hobbs

Russell Hobbs RHBI55177LF2 Manual de usuario

Russell Hobbs

Russell Hobbs RHFR520MB-4D Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
