RS SAILING Aero Guía de inicio rápido

COMPONENTS LIST

HARDWARE AND ROPE PACK

Downhaul tail

Outhaul control line

Vang purchase

Vang strop

Daggerboard elastic

Control line takeup elastic

Toestrap elastic

Mainsheet

Main halyard

Main halyard tail

Mainsheet block

Vang cleat

Mainsheet traveller

Plastic rings

(control lines)

16mm block

16mm block with becket

(vang)

40mm soft-attach

Harken block

Control line joining ties

QUANTITY

Downhaul Control linc

1. COMPONENTS LIST

30mm block

Mainsheet spring

18 mm soft-attach

double block

16mm vang double block

Plastic clip (daggerboard)

Traveller rope

Rope bobble

5mm shackle (vang)

Plastic washer (mainsheet block)

Zip ties

Rudder downhaul

Rudder

Rudder stock

Tiller extension.

Dagger board

Boom

Top mast

Lower mast

Sail

Sail numbers

Document case

Owners’ Manual

Rigging Manual

GBR

Congratulations on the purchase of your new RS Aero and thank you for choosing an

RS product. We are condent that you will have many hours of great sailing and racing

in this truly excellent design.

The RS Aero is an exciting boat to sail and offers fantastic performance. This rigging

guide has been compiled to help you to gain the maximum enjoyment from your RS

Aero, in a safe manner. It contains details of the craft, the equipment supplied or tted,

its systems, and information on its safe operation and maintenance. Please read this

rigging guide carefully and be sure that you understand its contents before using your

RS Aero.

This rigging guide will not instruct you in boating safety or seamanship. If this is your

rst boat, or if you are changing to a type of craft that you are not familiar with, for your

own safety and comfort, please ensure that you have adequate experience before

assuming command of the craft. If you are unsure, RS, your RS dealer, or your national

sailing federation – for example, the Royal Yachting Association – will be able to advise

you of a local sailing school, or a competent instructor.

Please keep this rigging guide in a secure place and hand it over to the new

owner if you sell the boat.

Please also see Owners Manual for technical summary and Capsize recovery.

For further information, spares, and accessories, please contact:

RS Sailing

Premier Way

Abbey Park

Romsey

Hants SO51 9DQ

Tel.: +44(0)1794 526760

Fax: +44(0)1794 278418

E-mail: www[email protected]

2. Introduction

3. RS Aero Registration

We have introduced a new boat registration system for the Aero, which will be extremely

important to help the Association communicate with owners, develop the Class, create

strong events and take the Aero on to the next level.

RS Aero Boat Registration - how it works:

• It is free

• Owners go to the Association website, RSaerosailing.org – Boat Registration

• Enter your name & contact details, boat number, sailing club etc – Submit

• The Association emails back a pdf Registration Document (required for event entry

or for re-sale of the boat) and a password.

• When a boat is sold, the seller logs into the Boat Registration page on the site,

using the password – and enters new owner details

• The new owner is sent an updated Registration Document.

The data is held by the Aero Class Association. By doing this we will transform the future

strength of the Class and speed of growth.

Please play your part and ensure that the RS Aero registration is lled out fully and be

part of the RS Aero revolution.

Preparation

Your RS Aero comes complete with all the components necessary to take the boat sailing.

In order to commission it, you will need the following tools:

• Pliers or a shackle key

• Sharp knife

• Small at head screwdriver

• PVC electrician’s tape

It will take around 1 1/2 hours to prepare your Aero so make sure you allow plenty of time.

Whilst your RS Aero has been carefully prepared, it is important that new owners should

check that shackles and knots are tight. This is especially important when the boat is new,

as travelling can loosen seemingly tight ttings and knots. It is also important to check

such items prior to sailing regularly.

DO NOT use a knife or other sharp object to cut through packaging containing

parts – you may damage the contents!

4. Commissioning

Unpacking

Having unpacked your RS Aero, you should check that you have all of the items listed

below before throwing away any of the packing, as there may be some small items still

wrapped. Please see contents page.

Unpack your Aero and place on a suitable gunwhale supported trolley. Avoid point loading

the hull skins. Dispose of any packaging.

The Aero comes in a Tyvek production bag which is reuseable. It has padding on the deck

so you can stack boats together if needed.

If you are trailing stacked boats we would recommend you put covers over the white

production cover for protection as the Tyvek cover is quite delicate.

Rigging Guide

5. Hull

PLEASE FOLLOW ASSEMBLY GUIDE IN THE CORRECT ORDER

1 - 5 MAINSHEET BLOCK ASSEMBLY

Compress the existing spring (as removed in step 1.1) using

cable ties then shackle the ratchet block onto the eyelet.

Add the eyelet onto the ratchet base.

Make sure the plastic spring

washer goes back on the

right way up.

Once the shackle is tightened,

cut the cable ties.

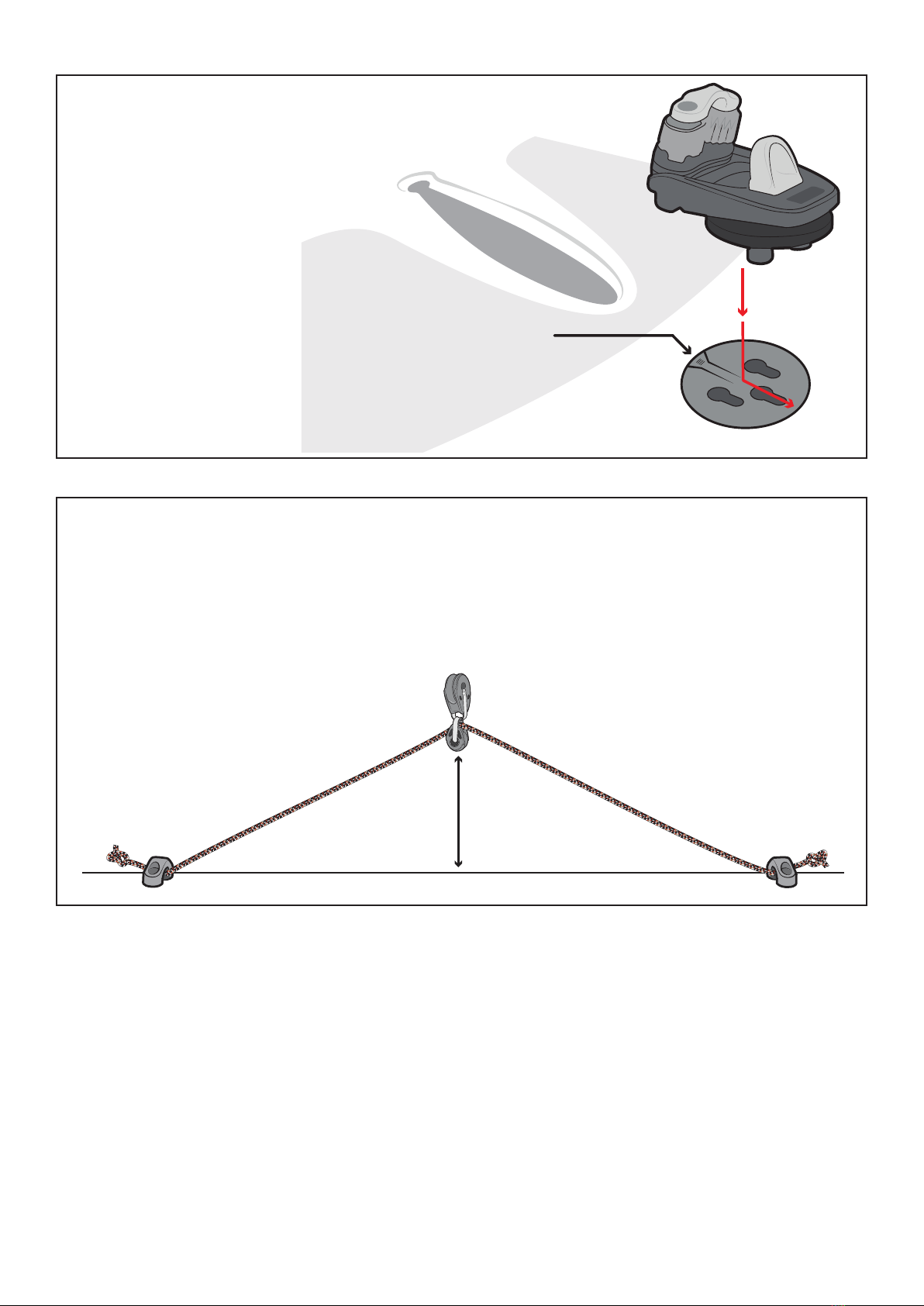

Take the new ratchet base, align the three pins with the holes in

the adapter plate, then push it down then forwards to lock into

place.

See appendix for instructions regarding tting a

swivel jammer upgrade.

To remove, release the

catch on the block base

using the tool provided.

You should hear a click as the catch engages.

Push this tab to

release

100mm

• Use mainsheet traveller rope.

• Tie overhand knot in each end.

• Add the vang cleat.

• Push and slide forward until it clicks.

6 VANG CLEAT

7 TRAVELLER SYSTEM

Use rear cleat

Use front cleat

10.

PORT SIDE

• Pass rope through front cleat.

• Pass rope through front hole in gunwhale.

STARBOARD SIDE

• Use outhaul rope (blue, white eck).

• Pass through hole from underneath gunwhale.

• Pass through rearmost cleat.

• Pass rope through front 20mm harken

block (A) on port organiser.

• Pass through 16mm single block (B)

• Pass through rear 20mm harken block

boat.

8 - 13 OUTHAUL SYSTEM
